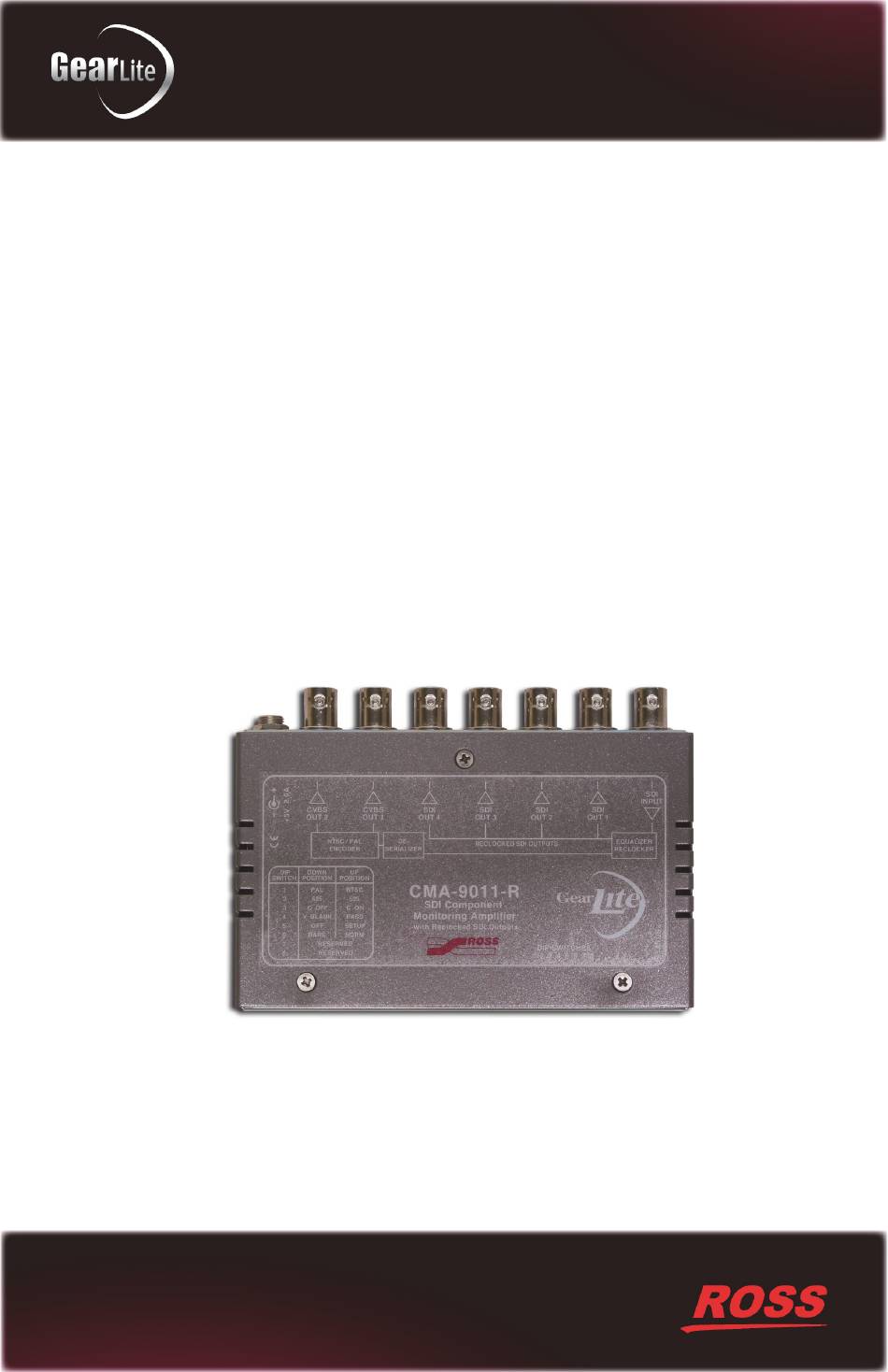

- Page 1 CMA-9011-R SDI Component Monitoring Amplifier with Reclocked SDI Outputs User Manual...
- Page 2 I hope you enjoy reading it below. If anything at all with your Ross experience does not live up to your expectations be sure to reach out to us at solutions@rossvideo.com. David Ross CEO, Ross Video dross@rossvideo.com...
- Page 3 Release Date: May 2, 2014. Copyright © 2014 Ross Video Limited. Ross®, and any related marks are trademarks or registered trademarks of Ross Video Ltd. All other trademarks are the property of their respective companies. PATENTS ISSUED and PENDING. All rights reserved.
-
Page 4: Symbol Meanings
Important Regulatory and Safety Notices to Service Personnel Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed below to avoid personnel injury and to prevent product damage. Product may require specific equipment, and/or installation procedures to be carried out to satisfy certain regulatory compliance requirements. -
Page 5: Important Safety Instructions
Important Safety Instructions Warning – Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. The safe operation of this product requires that a protective earth connection be provided. A grounding conductor in the equipment's supply cord provides this protective earth. To reduce the risk of electrical shock to the operator and service personnel, this ground conductor must be connected to an earthed ground. -
Page 6: Emc Notices
Notice — Changes or modifications to this equipment not expressly approved by Ross Video Limited could void the user’s authority to operate this equipment. CANADA This Class “A” digital apparatus complies with Canadian ICES-003. -
Page 7: Environmental Information
To avoid the potential release of those substances into the environment and to diminish the need for the extraction of natural resources, Ross Video encourages you to use the appropriate take-back systems. These systems will reuse or recycle most of the materials from your end-of-life equipment in an environmentally friendly and health conscious manner. -
Page 9: Simplified Block Diagram
Introduction Overview The CMA-9011-R SDI Component Monitoring Amplifier with Reclocked SDI Outputs is a high quality monitoring solution for SDI signals and part of a growing family of GearLite self-contained, small brick-format modules. The CMA-9011-R addresses high quality imaging requirements by converting the eight MSBs of an SDI signal to analog composite video (CVBS). - Page 10 Features The CMA-9011-R includes the following features: • NTSC, PAL, or PAL-N operation • 10bit DAC resolution • 8bit data processing • Four reclocked SDI outputs • Reclocking to reduce jitter and noise • Automatic input cable equalization > 250m (> 820ft) of Belden 8281 •...
-
Page 11: Static Discharge
Unpack each CMA-9011-R you received from the shipping container and check the contents to ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly. Mounting and Installation The CMA-9011-R can be mounted in any convenient location. However, to... -
Page 12: Optional Mounting Accessories
Optional Mounting Accessories Ross Video is committed to providing practical solutions for the needs of your high-quality broadcast facility. 11 • Installation (Iss. 05) - Page 13 Step 1. Figure 3 Flat Metal Plate Installation Option Install the chassis in the desired location using the Mounting Holes on the Flat Metal Plate. Mounting screws are not provided by Ross Video. Angle Mounting Bracket The Angle Mounting Bracket (Figure 4) allows a single GearLite module to be installed in positions not possible with the flat metal plate.
- Page 14 Figure 4 Angle Mounting Bracket 13 • Installation (Iss. 05)
-
Page 15: Dip Switch Setup

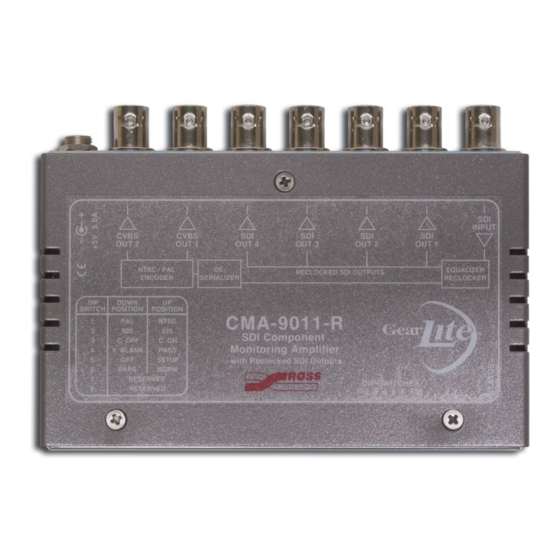

Setup Power Adapter and Supply Connect the PS-9000 power adapter to the power supply connector. The PS-9000 provides up to 2A of regulated +5V DC (5%). The DC power cord has a locking connector that securely fastens into the power supply DC jack on the CMA-9011-R. - Page 16 DIP Switches Figure 6 CMA-9011-R Front Edge User Controls Figure 6 shows all switches in the default UP ( ) position. The DIP switches are number 1-8 starting at the left of the block. The top of the CMA-9011-R chassis includes a label that provides a condensed DIP switch settings chart.
-
Page 17: Status Leds
Status LEDs The front panel of the module has an LED that displays the status of the amplifier. Figure 7 indicates the location of the LED and Table 2 describes the LED function. STATUS LED Figure 7 CMA-9011-R Status Indicator LEDs Table 2 Status LED Descriptions Color Function... -
Page 18: Technical Specifications
Specifications Technical Specifications Specifications are subject to change without notification. Table 3 CMA-9011-R — Technical Specifications Category Parameter Specification Number of Inputs Signal Standards SMPTE 259M (conversion at Accommodated 270Mbps only) Serial Digital Input Impedance 75ohm terminating Video Input Return Loss >19dB to 270MHz Automatic, up to 26dB (250m of Equalization... - Page 19 Table 3 CMA-9011-R — Technical Specifications Category Parameter Specification Number of Outputs Video Composite Analog Video Output Impedance 75ohm Output Return Loss >45dB to 6MHz Output Isolation >44dB to 6MHz Signal Level 1Vp-p nominal Analog DC Offset for RGB or Monitoring <±...
-
Page 20: Service Information
Service Information Warranty and Repair Policy The GearLite CMA-9011-R is warranted to be free of any defect with respect to performance, quality, reliability, and workmanship for a period of THREE (3) years from the date of delivery to the customer. In the event that your GearLite... - Page 21 Notes: Service Information (Iss. 05) • 20...
- Page 22 Notes: 21 • Service Information (Iss. 05)
- Page 23 Notes: Service Information (Iss. 05) • 22...
- Page 24 Contact Us Contact our friendly and professional support representatives for the following: • Name and address of your local dealer • Product information and pricing • Technical support • Upcoming trade show information Telephone: +1 613 • 652 • 4886 Technical After Hours Emergency: +1 613 •...
