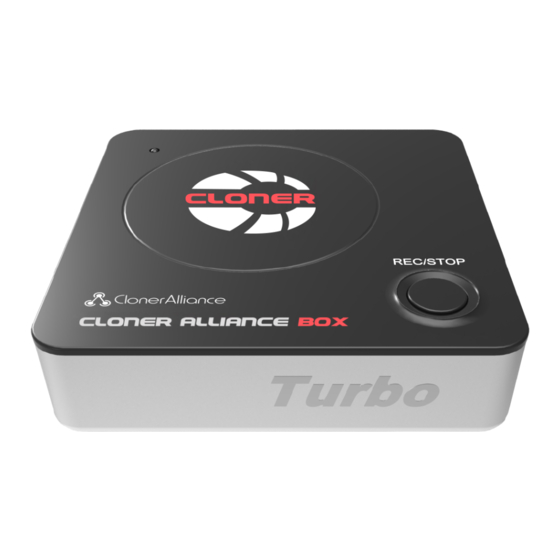

ClonerAlliance Box Turbo User Manual

Record Videos For Colorful Life

Keep all Videos in your hands via HDMI

Table of Contents

Need help?

Do you have a question about the Box Turbo and is the answer not in the manual?

Questions and answers

Summary of Contents for ClonerAlliance Box Turbo

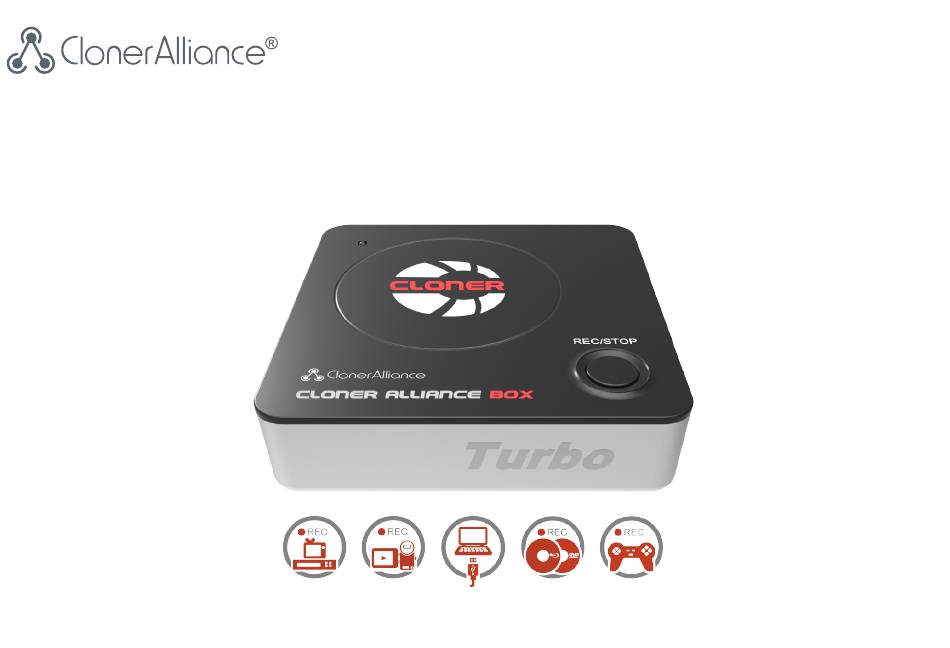

Page 1 ClonerAlliance Box Turbo User Manual Record Videos For Colorful Life Keep all Videos in your hands via HDMI...
Page 2 ClonerAlliance Box Turbo User Manual This documentation describes how to use ClonerAlliance Box Turbo (Model: HCB-988BT) device. Copyright Notice Copyright © ClonerAlliance Inc. All rights reserved. Documentation Version 2.5.5 No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission of ClonerAlliance™...
Page 4 Before using ClonerAlliance Box Turbo, please ensure that you read and under- stand the safety precautions below: 1. Do not attempt to open the case of ClonerAlliance Box Turbo or modify it in any way, as this will void the warranty.
Page 5: Table Of Contents
How to connect to PC and record videos directly? Install & Register ClonerAlliance Helper............7 Register .
Page 6: Getting Started
GETTING STARTED 1.1 Box Contents • a. ClonerAlliance Box Turbo • d. Power Adapter • b. HDMI Cable • e. User Manual • c. Micro-USB to USB Cable • f. USB Flash Drive...
Page 7: Product Diagram
ClonerAlliance Box Turbo User Manual 1.2 Product Diagram 1.2. Product Diagram...
Page 8 7. MIC: Insert the microphone plug into this jack to input voice. 8. TO PC: Connect the Micro-USB to USB cable between PC and ClonerAlliance Box Turbo for recording videos to PC. This function must be realized together with ClonerAlliance Helper.
Page 9: How To Record Videos To Usb Storage Device
ClonerAlliance Box Turbo 1. Plug the power adapter into the power socket and plug the other end into the 5V/2A port of ClonerAlliance Box Turbo. 2. Connect HD video output devices to the “IN”port on ClonerAlliance Box Turbo via an HDMI cable.
Page 10: Record/Capture
2.2 Record/Capture 1. After all devices are connected properly, please press the“ON/OFF”button to switch on the power of ClonerAlliance Box Turbo. After turning on ClonerAlliance Box Turbo. The LED light will be solid Blue or Green. Then turn on other devices.
Page 11 Tips 1. When the storage space of the USB flash drive or mobile hard disk is full, ClonerAlliance Box Turbo will stop recording. 2. If you press and hold the REC/STOP button for a few seconds, it will work as a switch between 720p and 1080p. You can switch between 720p and 1080p only with the input resolution of 1080p/1080i.
Page 12: How To Connect To Pc And Record Videos Directly
3.2 Register Please register ClonerAlliance Helper first before using, otherwise, it will show a watermark because it is a demo version. Launch ClonerAlliance Helper. Fill in your proper Email address, real name and code in the auto pop-up Register window.
Page 13: How To Get The Registration Code
ClonerAlliance Box Turbo User Manual 3.3 How to get the registration code? Scan the QR code on the back of ClonerAlliance Box Turbo or visit the registration link: https://www.cloner-alliance.com/ register/ first, enter your SN number, you can get your registration code directly.
Page 14: Connect
2. Connect the Micro-USB to the USB cable between the “To PC”port and the USB port of the PC. 3. Plug the power adapter into the power socket and plug the other end into the 5V/2A port of ClonerAlliance Box Turbo.
Page 15 After all devices have been connected properly, please power on all connected devices. If ClonerAlliance Box Turbo isn’t recognized by your PC, please make sure “Full HD Capture Device”is installed suc- cessfully and appears in the Device Manager (Right click My Computer – Manage – System Tools – Device Manager). If “Full HD Capture Device”didn’t appear in the list, please reinstall ClonerAlliance Helper and try again.
Page 16 ClonerAlliance Box Turbo User Manual 3.4. Connect...
Page 17: Record/Capture
For more details about recording videos to PC, please click the link below to visit the Frequently Asked Questions. https://www.cloner-alliance.com/help/knowledgebase/cat_cloneralliance_box_turbo 3.5 Record/Capture 1. After all devices are connected properly, insert the video disc into the drive of the video player and run ClonerAlliance Helper. 3.5. Record/Capture...
Page 18 ClonerAlliance Box Turbo User Manual 2. Click to start recording. 3.5. Record/Capture...
Page 19 ClonerAlliance Box Turbo User Manual 3.5. Record/Capture...
Page 20 ClonerAlliance Box Turbo User Manual 3. Click to stop recording. Tip: During recording, you can also click to pause anytime. When want resume, please click continue recording. sides, Click take screenshots, click capture animation. 3.5. Record/Capture...
Page 21 ClonerAlliance Box Turbo User Manual Software interfaces may vary depending on the version. 3.5. Record/Capture...
Page 22 ClonerAlliance Box Turbo User Manual 4. After recording, click to view the recorded video. Then you can double click the file to play back the video directly. ClonerAlliance Helper also supports recording videos at the scheduled time. Click to enter the ”Sched- 3.5. Record/Capture...
Page 23 ClonerAlliance Box Turbo User Manual ule recording” window. Then click the ”+” button to set up the schedule recording task. 3.5. Record/Capture...
Page 24 ClonerAlliance Box Turbo User Manual Please enable schedule recording first, and set the Recording duration, Starting time, Repeat mode and Date for schedule recording. Then click “OK”. Then videos will be recorded automatically at the scheduled time. 3.5. Record/Capture...
Page 25: Supported Resolutions
SUPPORTED RESOLUTIONS 1920x1080 (50p), 1920x1080 (60p) 1920x1080 (24p), 1920x1080 (25p), 1920x1080 (30p) 1920x1080 (50i), 1920x1080 (60i), 1280x1024 (60p) Input 1280x720 (60p), 1280x768 (60p), 1280x800 (60p) Output 720x480 (60i), 720x480 (50i) 640x480 (60p), 720x480 (60p), 720x576 (50p) Recording 1920x1080 (30p), 1280x720 (60p), 1280x720 (30p) 640x480 (60p), 720x480 (60p), 720x576 (50p)
Page 26: Product Specifications
Note: ClonerAlliance Box Turbo will record several 2GB files if the USB storage device is in FAT32 format. If in NTFS format, ClonerAlliance Box Turbo will record only 1 file with a greater size. Maximum storage capacity 2TB Power supply...
Page 27: Frequently Asked Questions
My TV Has A Black Screen When Using ClonerAlliance Box Turbo, what should I do? Don’t worry, it’s very easy to solve this problem. Please scan the QR code below to find the answer.
Page 28 Why is there a prompt “Can’t detect USB Device”? Please format your USB stick or unplug the USB stick from the USB port and plug it into ClonerAlliance Box Turbo again. If the solutions don’t work, please send an email to support@cloner-alliance.com...
Page 29 ClonerAlliance Box Turbo User Manual 1. Please make sure your connection is correct first. Connect ClonerAlliance Box Turbo to TV via an HDMI cable (HDMI Out). Connect your source device to ClonerAlliance Box Turbo(HDMI In). 2. If it still blinks, please upgrade the latest firmware.
Page 30 ClonerAlliance Box Turbo User Manual If you are unable to use a new drive/hard drive, please reformat your drive using your computer, and make sure the formatting is a “Full Format,”not a “Quick Format.”Then try recording again. FYI. Here is the requirement of external hard drives.
Page 31 Do ClonerAlliance products record 5.1 audio from the HDMI (AC3, DTS etc) or just 2 channel? ClonerAlliance Hardware records PCM or Stereo audio format. I am sorry that it doesn’t record Dolby Digital 5.1. Please adjust the audio output of your source device to PCM or Stereo before recording.
Page 32 Username. From other platforms, let me know related information. Thanks very much. Due to time difference, internet connection or any other unexpected factors, ClonerAlliance technical support may miss your chat request. Don’t worry. If we missed your chat request, we will get back to you ASAP. All questions will be answered...
Page 33 ClonerAlliance Box Turbo User Manual in 24 hours. Microphone Function For best quality voice recording, please use good quality microphone. To control voice recording, please adjust the volume of HDMI input source. Note. Please use a microphone with a plug like this.
Page 34: Contact Us
CONTACT US If you encounter any problem when using our products, please contact us by support@cloner-alliance.com or call 1-844-9-CLONER (toll free) and we will serve you with utmost satisfaction. We’ll offer a satisfying discount on batch purchase and affiliate program. If you are interested, please contact us by market@cloner-alliance.com.
Page 35: After Sales Warranty
ClonerAlliance provides 90-Day No Hassle Return(at our cost) and 2-Year Warranty Service. 90-Day No Hassle Return(at our cost) ClonerAlliance Inc. offers you super-long test period. Don’t worry about refund win- dow’s period. Feel free to test it. If you want to return it, contact us at support@cloner- alliance.com.
Page 36: Disclaimer
DISCLAIMER HDMI is a registered trademark of HDMI Licensing, LLC. USB is a registered trade- mark of USB Implementers Forum. HDMI and USB are registered trademarks of their respective companies. ClonerAlliance Inc. is not affiliated with those companies.
