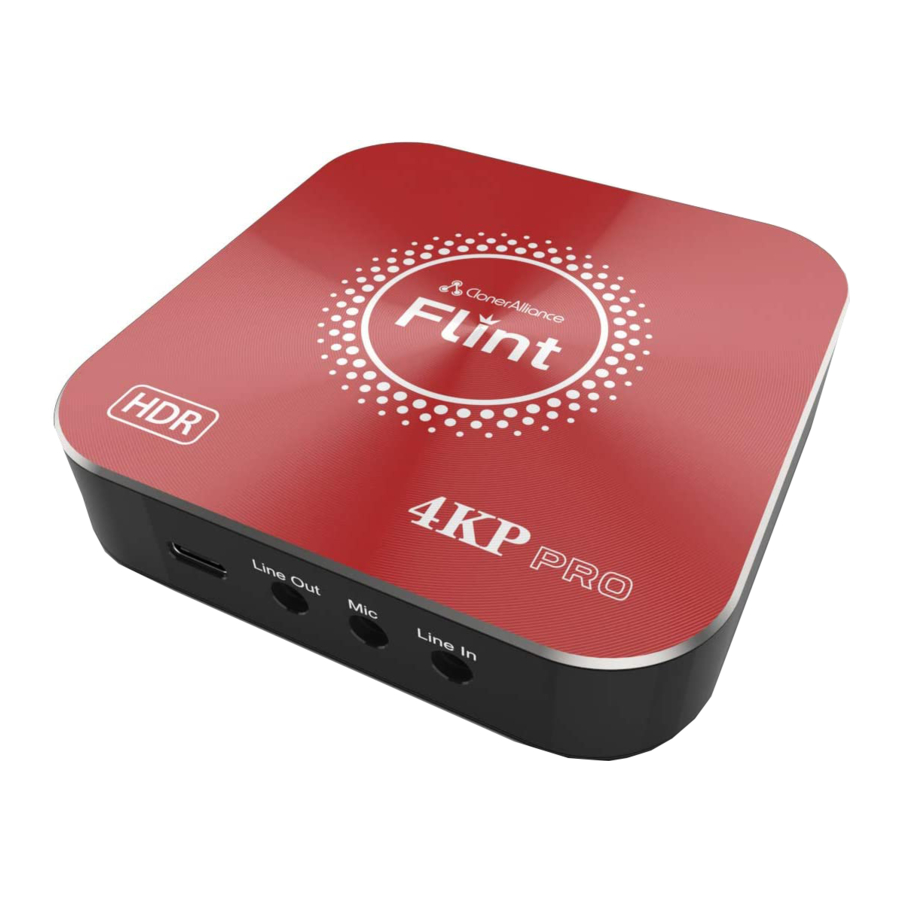

Summary of Contents for ClonerAlliance Flint 4KP Pro

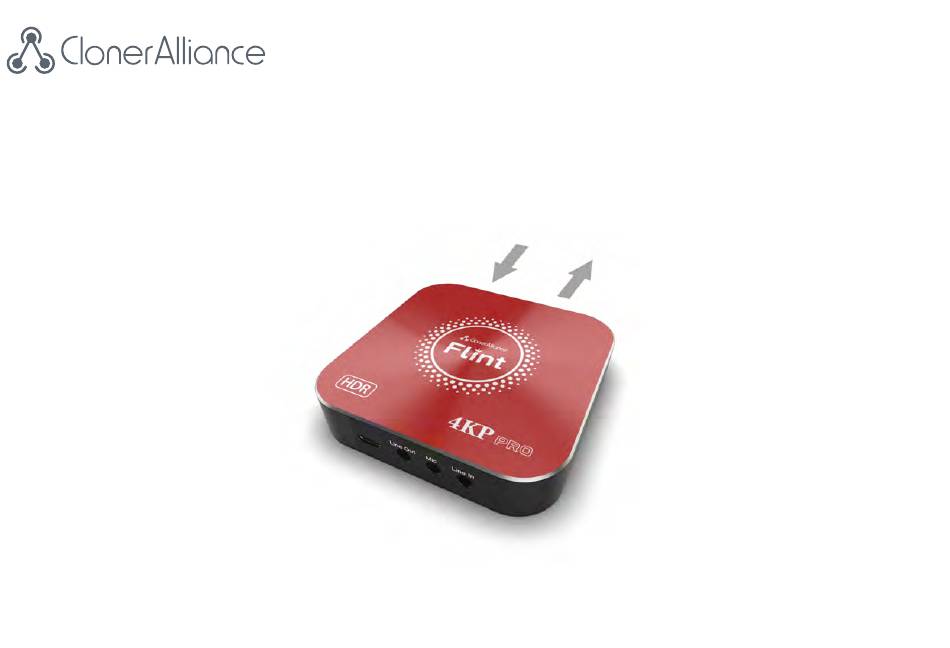

  • Page 1 ClonerAlliance Flint 4KP Pro User Manual...
  • Page 2 ClonerAlliance Flint 4KP Pro User Manual This documentation describes how to use ClonerAlliance Flint 4KP Pro (Model: CA-1490F4P) device. Copyright Notice Copyright © ClonerAlliance Inc. All rights reserved. Documentation Version 1.0.1 No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission of ClonerAlliance Inc.
  • Page 3 Before using ClonerAlliance Flint 4KP Pro, please ensure that you read and un- derstand the safety precautions below: 1. Do not attempt to open the case of ClonerAlliance Flint 4KP Pro or modify it in any way, as this will void the warranty.

  • Page 5: Table Of Contents

    ........20 Record HDR videos with ClonerAlliance Flint 4KP Pro .
  • Page 6 ..................49 Record/Capture with ClonerAlliance App .

  • Page 7: Getting Started

    GETTING STARTED 1.1 Box Contents • a. ClonerAlliance Flint 4KP Pro • c. HDMI Cable • b. Quick User Guide • d. USB3.0(male) to USB Type-C cable...

  • Page 8: Product Diagram

    ClonerAlliance Flint 4KP Pro User Manual 1.2 Product Diagram 1. USB Type-C: Connect a USB3.0(male) to USB Type-C cable between ClonerAlliance Flint 4KP Pro and PC. 2. Line Out: Stereo audio output port. 3. Mic: 3.5mm Microphone input port. 4. Line In: Stereo audio input port.
  • Page 9 5. OUT: Connect an HDMI cable between ClonerAlliance Flint 4KP Pro and TV. 6. AUX PWR: Type-C socket, it’s an optional port, connect an extra power supply if needed. 7. IN: Connect an HDMI cable between the source video player and ClonerAlliance Flint 4KP Pro. 1.2. Product Diagram...

  • Page 10: Software Installation

    2.1 Install and register ClonerAlliance Helper (Windows Users) 1. Install ClonerAlliance Helper ClonerAlliance Helper is a smart program to record video discs, game videos, homemade videos or anything from any video source under Windows OS working together with ClonerAlliance Flint 4KP Pro.
  • Page 11 ClonerAlliance Flint 4KP Pro User Manual Note: Prior to installing ClonerAlliance Helper, please make sure you are using Windows 7 or later versions and your PC is equipped with USB 2.0 or 3.0 port. 2. Register ClonerAlliance Helper Please register ClonerAlliance Helper first before using, otherwise it can only be used for 7 days. Launch ClonerAlliance Helper.
  • Page 12 You will get a registration code directly. It is advised that you input your correct email address to receive the registration code at the same time. You may use the registration code, name and your email address to register ClonerAlliance Helper.

  • Page 13: Install Obs Studio (Windows, Mac, And Linux Users)

    ClonerAlliance Flint 4KP Pro User Manual 2.2 Install OBS Studio (Windows, Mac, and Linux Users) Open Broadcaster Software is a free and open source software for video recording and live streaming. Download and start streaming quickly and easily on Windows, Mac or Linux.
  • Page 14 ClonerAlliance Flint 4KP Pro User Manual 2.2. Install OBS Studio (Windows, Mac, and Linux Users)

  • Page 15: Record/Capture Videos To Pc

    RECORD/CAPTURE VIDEOS TO PC 3.1 Connect 1. Connect the video player to the “IN”port on ClonerAlliance Flint 4KP Pro via an HDMI cable. 2. Connect the TV to the “OUT”port on ClonerAlliance Flint 4KP Pro via an HDMI cable. 3. Connect the USB3.0(male) to USB Type-C cable between ClonerAlliance Flint 4KP Pro and PC.
  • Page 16 ClonerAlliance Flint 4KP Pro User Manual ClonerAlliance Flint 4KP Pro will be recognized under different OS platform. • For Windows After all devices are connected properly, when you power on all devices, go to “Device manager”, it will show as “CA- FLINT4KP-PRO”under “Cameras”and “Sound, video and game controllers”:...
  • Page 17 ClonerAlliance Flint 4KP Pro User Manual • For Linux Connect ClonerAlliance Flint 4KP Pro to PC via USB Type-C cable, go to the “Sound/Input”, it will show it as “CA- FLINT4KP-PRO”in the list. • For Mac OS 3.1. Connect...
  • Page 18 ClonerAlliance Flint 4KP Pro User Manual Connect ClonerAlliance Flint 4KP Pro to Mac, go to“Settings/Sound/Input”it also shows“CA-FLINT4KP-PRO”among the list. 3.1. Connect...

  • Page 19: Record/Capture For Windows Users

    Please download ClonerAlliance Helper software and install it on your PC first. See details about Install and register ClonerAlliance Helper (Windows Users) 1. After all devices are connected properly, insert the video disc into the drive of the video player and run ClonerAlliance Helper. 3.2. Record/Capture for Windows users...
  • Page 20 ClonerAlliance Flint 4KP Pro User Manual 2. ClonerAlliance Flint 4KP Pro supports up to 4K30 video capture. Please make sure your source device is set to 4K resolution then you can choose 3840x2160 in ClonerAlliance Helper software: 3.2. Record/Capture for Windows users...
  • Page 21 ClonerAlliance Flint 4KP Pro User Manual If you got “Unsupported Resolution”displayed, please refer to Solution for Unsupported Resolution for details. 3. If your source device supports HDR, you can enable the HDR setting in “Device Setup”window of ClonerAlliance 3.2. Record/Capture for Windows users...
  • Page 22 ClonerAlliance Flint 4KP Pro User Manual Helper to improve your viewing experience. ClonerAlliance Flint 4KP Pro supports displaying and recording HDR10 videos. Note: You need to turn on HDR on your source device first, otherwise you will not be able to enable the HDR function in the software.
  • Page 23 ClonerAlliance Flint 4KP Pro User Manual 5. Click to stop recording. Tip: During recording, you can also click to pause at anytime. When you want to resume, please click to continue recording. Besides, you can Click to take screenshots, click to capture GIF animation.
  • Page 24 ClonerAlliance Flint 4KP Pro User Manual Software interfaces may vary depending on the version. 6. After recording, click to view the recorded video. Then you can double click the captured files to play back directly. 3.2. Record/Capture for Windows users...
  • Page 25 ClonerAlliance Flint 4KP Pro User Manual 7. ClonerAlliance Helper also supports recording videos at the scheduled time. Click to enter the ”Setup” window. Then click the ”+” button. 3.2. Record/Capture for Windows users...

  • Page 26: Solution For Unsupported Resolution

    Solution for Unsupported Resolution ClonerAlliance Flint 4KP Pro doesn’t support 4K upscale, that means if you select 4K in the software but the resolution of your source device is 1080p or below, the preview screen will prompt ”Unsupported resolution”.
  • Page 27 ClonerAlliance Flint 4KP Pro User Manual Don’t worry, please set the resolution of source device to 4K or set capture format to 1080p, it will solve this problem. 3.2. Record/Capture for Windows users...

  • Page 28: Record Hdr Videos With Cloneralliance Flint 4Kp Pro

    Make sure your video source supports HDR mode, you can monitor the source video format through ClonerAlliance helper software. Please connect the device first and enable the HDR function of the source video device. Then open the ClonerAlliance Helper software and open the device settings window in the software.
  • Page 29 ClonerAlliance Flint 4KP Pro User Manual 3.2. Record/Capture for Windows users...
  • Page 30 ClonerAlliance Flint 4KP Pro User Manual When the source video is in HDR format, the button “Enable HDR”will become available. (Please reopen the setting window and refresh the information). Click the “Enable HDR”button, and then click the OK button to enable the HDR function of the device.
  • Page 31 ClonerAlliance Flint 4KP Pro User Manual setting. • Record HDR video When successfully turned on HDR mode, the icon HDR will be displayed on the record button. click the “Record”button to start recording. When HDR video recording is performed for the first time, a window to test the GPU encoder will pop up. Since encoding HDR video requires HEVC encoding, only GPU encoders can complete real-time encoding.
  • Page 32 ClonerAlliance Flint 4KP Pro User Manual When the test is completed, it will automatically start recording video. The format of the recorded video is like this: 3.2. Record/Capture for Windows users...
  • Page 33 ClonerAlliance Flint 4KP Pro User Manual NOTE: After entering HDR mode, the Record setting in the setting window will be invalid. 3.2. Record/Capture for Windows users...

  • Page 34: Preview Videos In Obs Studio

    Please use the software “MP4 Player”to play the mp4 file, it was located in the installation directory of Cloneralliance Helper. Preview Videos in OBS Studio • Note: If you use OBS for video capture or live streaming, please do install ClonerAlliance Helper software first and launch it for at least once. See details about Install and register ClonerAlliance Helper (Windows Users) Please download Open Broadcaster Studio(OBS) software and install it on your PC first.
  • Page 35 ClonerAlliance Flint 4KP Pro User Manual computer. 2. ClonerAlliance Flint 4KP Pro supports up to 4K30 video capture. Please make sure your source devic is set to 4K resolution then you can choose 3840x2160 in OBS: 3.2. Record/Capture for Windows users...
  • Page 36 ClonerAlliance Flint 4KP Pro User Manual If you got “Unsupported Resolution”displayed, please refer to Solution for Unsupported Resolution for details. 3. In Audio output mode section, please choose “Direct sound”, and in Audio Device drop down options, please select 3.2. Record/Capture for Windows users...
  • Page 37 ClonerAlliance Flint 4KP Pro User Manual “CA-FLINT4KP-PRO”as audio device: 4. Please make sure the “Sample rate”in “Audio”settings is set to “48KHz”. 3.2. Record/Capture for Windows users...
  • Page 38 ClonerAlliance Flint 4KP Pro User Manual 5. Click “Start Recording”or “Start Streaming”button to capture or stream your videos. 3.2. Record/Capture for Windows users...

  • Page 39: Record/Capture For Mac Os Users

    ClonerAlliance Flint 4KP Pro User Manual 3.3 Record/Capture for Mac OS users 1. After all devices are connected properly, insert the video disc into the drive of the video player and launch Quick Time Player. 3.3. Record/Capture for Mac OS users...
  • Page 40 ClonerAlliance Flint 4KP Pro User Manual 2. Set up Camera/Microphone/Quality as following: 3.3. Record/Capture for Mac OS users...

  • Page 41: Record/Capture For Linux Users

    ClonerAlliance Flint 4KP Pro User Manual 3. You can capture your movie now. 3.4 Record/Capture for Linux users 1. After all devices are connected properly, insert the video disc into the drive of the video player and launch OBS Studio software.
  • Page 42 ClonerAlliance Flint 4KP Pro User Manual 2. In source column, click “+”to add video capture device: 3.4. Record/Capture for Linux users...
  • Page 43 ClonerAlliance Flint 4KP Pro User Manual 3. Please set up as following: 3.4. Record/Capture for Linux users...
  • Page 44 ClonerAlliance Flint 4KP Pro User Manual 4. In source column, click “+”to add audio capture device: 5. If you need to monitor the audio during preview/recording, please also modify the settings in advanced audio properties: 3.4. Record/Capture for Linux users...
  • Page 45 ClonerAlliance Flint 4KP Pro User Manual 6. Now you can start recording and streaming. 3.4. Record/Capture for Linux users...
  • Page 46 ClonerAlliance Flint 4KP Pro User Manual 3.4. Record/Capture for Linux users...

  • Page 47: Record/Capture Game Console With Pc

    RECORD/CAPTURE GAME CONSOLE WITH PC 4.1 Connect 1. Connect the game console to the “IN”port on ClonerAlliance Flint 4KP Pro via an HDMI cable. 2. Connect the TV to the “OUT”port on ClonerAlliance Flint 4KP Pro via an HDMI cable.
  • Page 48 ClonerAlliance Flint 4KP Pro User Manual ClonerAlliance Flint 4KP Pro will be recognized under different OS platform. You can see details about record/capture game console videos at Record/capture videos to PC 4.1. Connect...

  • Page 49: Preview Videos For Live Streaming

    1. IN: Connect an HDMI cable between the source video player and ClonerAlliance Flint 4KP Pro. 2. OUT: Connect the TV to the “OUT”port on ClonerAlliance Flint 4KP Pro via an HDMI cable. 3. Type-C: Connect the USB3.0(male) to USB Type-C cable between ClonerAlliance Flint 4KP Pro and PC.

  • Page 50: Install Software

    You also can use OBS Studio instead, which is a popular open source software for video recording and live streaming. No matter which software you choose to use, please do install ClonerAlliance Helper first and launch it for at least once.
  • Page 51 ClonerAlliance Flint 4KP Pro User Manual When you live stream with ClonerAlliance Helper, it provides you Picture In Picture live streaming mode. 1. Launch ClonerAlliance Helper software, and go to “Live”, click the “+”button to add devices into “My scene” list: 2.
  • Page 52 ClonerAlliance Flint 4KP Pro User Manual 3. Add a video capture device, choose the camera you connected: 4. Now you have set up your broadcast with PIP mode. 5.3. Setting for preview video...
  • Page 53 ClonerAlliance Flint 4KP Pro User Manual 5. Please click to set up live stream server. 5.3. Setting for preview video...
  • Page 54 ClonerAlliance Flint 4KP Pro User Manual 6. Click to begin live streaming. • For Open Broadcaster Studio users Please make sure you have installed ClonerAlliance Helper already. Please refer to Preview Videos in OBS Studio 5.3. Setting for preview video...
  • Page 55 1. Connect the video player to the “IN”port on ClonerAlliance Flint 4KP Pro via an HDMI cable. 2. Connect ClonerAlliance Flint 4KP Pro to Android phone with the USB type-A to USB Micro-B OTG cable or USB type-A to type-C connector.
  • Page 56 ClonerAlliance Flint 4KP Pro User Manual 6.1. Connect...
  • Page 57 ClonerAlliance Flint 4KP Pro User Manual • For USB Micro-B socket phone: Please use USB type-A(female) to USB Micro-B OTG cable to connect ClonerAlliance Flint 4KP Pro with your Android phone. 6.1. Connect...
  • Page 58 ClonerAlliance Flint 4KP Pro User Manual Note: The OTG cable and connectors mentioned above are not included in our package, please prepare them yourself. 6.2 Record/Capture with ClonerAlliance App Step 1: Please connect source device properly. Step 2: Please install ClonerAlliance APP on your phone and launch it after finishing installation.
  • Page 59 ClonerAlliance Flint 4KP Pro User Manual Step 3: Set up resolution, bitrate and duration (short video capture) by tapping Settings and go in Video capture menu as fol- 6.2. Record/Capture with ClonerAlliance App...
  • Page 60 ClonerAlliance Flint 4KP Pro User Manual lowing picture shows: Video Capture • Resolution: 1920*1080; 1280*720; 720*480 • Bitrate: 100KBps-10000KBps • Duration: 3min to infinity 6.2. Record/Capture with ClonerAlliance App...
  • Page 61 ClonerAlliance Flint 4KP Pro User Manual Step 4: then to record video as configured in ”Preview and recorder” and tap to stop recording (short video will stop automatically as duration configured). Step 5: to check all files have been saved.
  • Page 62 PLAY GAME CONSOLE ON PC WITHOUT TV With ClonerAlliance Flint 4KP Pro, you can use your PC’s screen to play game console. No TV required. 7.1 Connect...

  • Page 63: Play Game Console For Windows Users

    Install and register ClonerAlliance Helper (Windows Users) Step 2: Please connect ClonerAlliance Flint 4KP Pro to your PC with the USB to Type-C cable which included in the package. Step 3: Please connect game console to the “In”port of ClonerAlliance Flint 4KP Pro with HDMI cable, then power up the game console.
  • Page 64 ClonerAlliance Flint 4KP Pro User Manual Step 4: Launch ClonerAlliance Helper software, it will recognize ClonerAlliance Flint 4KP Pro device automatically and show the game console’s screen after connected. Step 5: For the best gaming experience, it is recommended to set “Video format”as “NV12: 1920x1080”and set FPS to “120”...

  • Page 65: Play Game Console For Mac Os Users

    ClonerAlliance Flint 4KP Pro User Manual 7.3 Play game console for Mac OS users 1. After all devices are connected properly, insert the video disc into the drive of the video player and launch Quick Time Player. 7.3. Play game console for Mac OS users...
  • Page 66 ClonerAlliance Flint 4KP Pro User Manual 2. Please confirm the setting of Camera/Microphone/Quality as below. 7.3. Play game console for Mac OS users...

  • Page 67: Play Game Console For Linux

    ClonerAlliance Flint 4KP Pro User Manual 3. You can capture your game now. 7.4 Play game console for Linux users 1. After all devices are connected properly, insert the video disc into the drive of the video player and launch OBS Studio software.
  • Page 68 ClonerAlliance Flint 4KP Pro User Manual 2. In source column, click “+”to add video capture device: 7.4. Play game console for Linux users...
  • Page 69 ClonerAlliance Flint 4KP Pro User Manual 3. We recommend you set the frame rate as 60fps while game recording/streaming, please set up as following: 7.4. Play game console for Linux users...
  • Page 70 ClonerAlliance Flint 4KP Pro User Manual 4. In source column, click “+”to add audio capture device. 5. If you need to monitor the audio during preview/recording, please also modify the settings in advanced audio properties: 7.4. Play game console for Linux users...
  • Page 71 ClonerAlliance Flint 4KP Pro User Manual 6. Now you can start playing, recording or streaming your games. 7.4. Play game console for Linux users...
  • Page 72 ClonerAlliance Flint 4KP Pro User Manual 7.4. Play game console for Linux users...

  • Page 73: Frequently Asked Questions

    Can I use multiple ClonerAlliance Flint 4KP Pro devices on one PC at the same time? Sure, both bundled software ClonerAlliance Helper and OBS studio can support multiple ClonerAlliance Flint 4KP Pro...
  • Page 74 ClonerAlliance Flint 4KP Pro User Manual You can easily distinguish each device through video preview window.
  • Page 75 And you can select an audio device for each video capture device based on the insertion order. Does ClonerAlliance Flint 4KP Pro Need Extra Power Supply? Generally, ClonerAlliance Flint 4KP Pro can be powered by USB port with PC directly. But in certain circumstances, it may...
  • Page 76 Can I Watch The Videos On My TV When I Use ClonerAlliance Flint 4KP Pro To Record The Videos? Yes. ClonerAlliance Flint 4KP Pro can pass-through HDMI video signal out to TV while recording video. You can enjoy...
  • Page 77 Why Does It Only Have Sound But No Video After Switching Back To Preview Screen With ClonerAlliance Flint 4KP Pro? Please use a USB Hub to provide power supply for ClonerAlliance Flint 4KP Pro independently, then it will work well.
  • Page 78 ClonerAlliance Flint 4KP Pro User Manual Why Is There No Audio When Running Open Broadcaster Software(OBS) With ClonerAlliance Flint 4KP Pro? Please adjust the setting of OBS accordingly, it could be resolved easily. • Instructions for Windows Users: Please proceed as follows: At Set Audio Output Mode, please select“Output desktop audio (DirectSound), Audio Device to“Microphone(Live Stream-...
  • Page 79 ClonerAlliance Flint 4KP Pro User Manual • Instructions for Mac Users: If OBS mac version doesn’t output audio, please follow the steps below, it will output audio successfully: 1 Please click “Advanced Audio Properties”.
  • Page 80 ClonerAlliance Flint 4KP Pro User Manual 2 Select “Monitor and Output”in “Audio Monitoring”.
  • Page 81 ClonerAlliance Flint 4KP Pro User Manual How to deal with PC doesn’t recognize ClonerAlliance Flint 4KP Pro device?
  • Page 82 ClonerAlliance Flint 4KP Pro User Manual Please change another USB port and re-plug in, it’ll help. Why are audio and video out of sync when I use OBS studio with ClonerAlliance Flint 4KP Pro? Please set up as following and it will perform normally.
  • Page 83 ClonerAlliance Flint 4KP Pro User Manual Note: It is an important setting, otherwise may cause the bad audio quality issue. 3. If your video and audio are still not synchronized, please adjust video delay value in “Source-filter-Video de- lay(Async)”around 470ms according to your circumstance. Tip: The value can also be minus. Please adjust per...
  • Page 84 ClonerAlliance Flint 4KP Pro User Manual your circumstance.
  • Page 85 ClonerAlliance Flint 4KP Pro User Manual...
  • Page 86 ClonerAlliance Flint 4KP Pro User Manual • Instructions for Mac Users: 1. Please make sure sample rate in OBS Studio is set to 48KHz.
  • Page 87 ClonerAlliance Flint 4KP Pro User Manual Note: It is an important setting, otherwise may cause the bad audio quality issue.
  • Page 88 ClonerAlliance Flint 4KP Pro User Manual 2. Right click “Video Capture Device”then click “Filters”:...
  • Page 89 ClonerAlliance Flint 4KP Pro User Manual 3. Click to add “Video Delay (Async)”:...
  • Page 90 ClonerAlliance Flint 4KP Pro User Manual 4. Set it to 470ms (You can adjust it lower or higher until you found the audio and video synchronized):...
  • Page 91 ClonerAlliance Flint 4KP Pro User Manual How to use ClonerAlliance Flint 4KP Pro to record 10bit mp4? • Prepare tools: 1. Capture device: ClonerAlliance Flint 4KP Pro 2. Capture software: ClonerAlliance helper x64 version • Settings for 10bit 1. Set up device format to “P010”...
  • Page 92 ClonerAlliance Flint 4KP Pro User Manual 2. Set up recording encoder to h264(software) or HEVC(NVIDIA CUDA). Please make sure the video resolution and fps setting is “same to device”. NOTE: Click “Test GPU encoder”to show GPU encoders in list.
  • Page 93 What can I do when it prompt Unsupported Resolution? Please refer to Solution for Unsupported Resolution for details. How to use ClonerAlliance Flint 4KP Pro to record HDR videos? Please refer to Record HDR videos with ClonerAlliance Flint 4KP Pro for details.

  • Page 94: Product Specifications

    PRODUCT SPECIFICATIONS 1920x1080 640x480, 720x480, 720x576, 800x600, 1024x768, 1280x720, Input 1280x1024, 600x1200, 1920x1080, 3840x2160(60HZ, 30HZ, 24HZ), Output 4096x2160(60HZ) Recording Up to 2160p30 SDR or 1080p60 HDR Output for- YUY2, RGB, NV12, P10 HDR10 Video stan- NTSC, PAL dard (input) Input signal HDMI, Line in, Mic Output sig- HDMI (pass-through), USB Type-C, Line out...

  • Page 95: After Sales Warranty

    AFTER SALES WARRANTY ClonerAlliance Inc. provides 60-Day No Hassle Return(No Additional Fee) and 2-Year Replacement Warranty Service for all hardware. Please rest assured to use ClonerAl- liance products.

  • Page 96: Contact Us

    CONTACT US If you encounter any problem when using our products, please contact us by support@cloner-alliance.com or call 1-844-9-CLONER (toll free) and we will serve you with utmost satisfaction. We’ll offer a satisfying discount on batch purchase and affiliate program. If you are interested, please contact us by market@cloner-alliance.com.

  • Page 97: Disclaimer

    DISCLAIMER HDMI is a registered trademark of HDMI Licensing, LLC. USB is a registered trade- mark of USB Implementers Forum. HDMI and USB are registered trademarks of their respective companies. ClonerAlliance Inc. is not affiliated with those companies.
  • Page 98 Toll free: 1-844-9-CLONER Support Email: support@cloner-alliance.com Market Email: market@cloner-alliance.com www.cloner-alliance.com Copyright ClonerAlliance Inc. All rights reserved.
