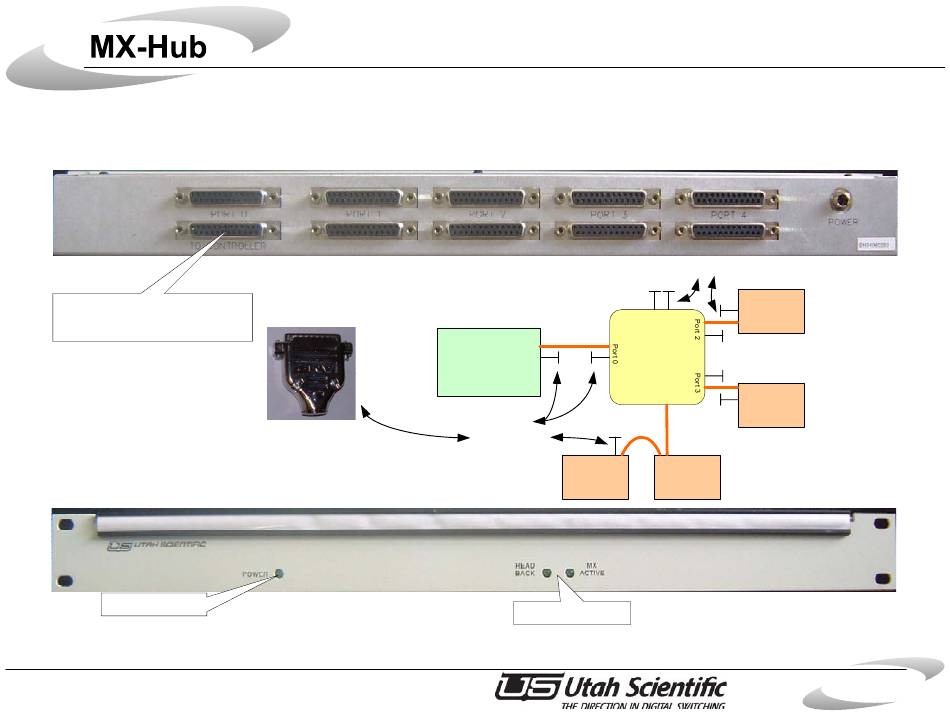

MX cable from one of the system
controller MX bus connections. This
cable overall length can not exceed 300'.

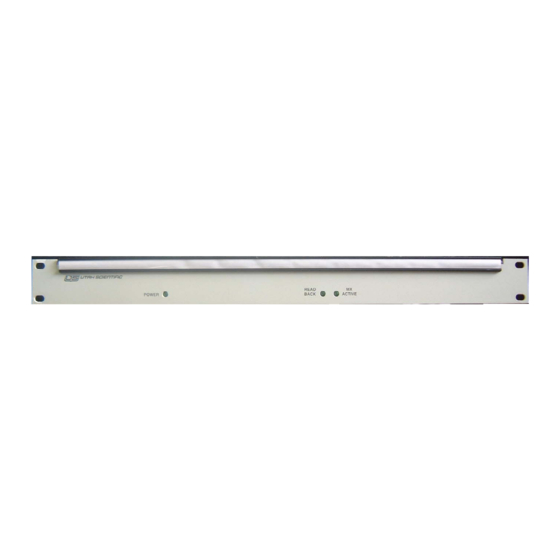

Green = power okay
USI Part #80263-3
Note: Maximum MX cable length is 300' from the controller and an additional
300' from the MX-hub. All MX ports must be terminated either on the
controller chassis, the MX-hub or on the last router frame in the sequence.
8 supplied MX-bus
terminators. USI
part #70797-1
MX
cable
SC Control System
MX
Terminator
Router
Frame
Green = MX bus active
Wednesday, May 16, 2007
MX Terminator
Router
Frame
Port 1
MX-Hub
Router
Port 4
Frame
Router
Frame
Customer
Service
800-447-7204
Page 1
Advertisement
Related Manuals for UTAH SCIENTIFIC MX-Hub
Summary of Contents for UTAH SCIENTIFIC MX-Hub
- Page 1 Wednesday, May 16, 2007 Note: Maximum MX cable length is 300' from the controller and an additional 300' from the MX-hub. All MX ports must be terminated either on the controller chassis, the MX-hub or on the last router frame in the sequence.
- Page 2 Wednesday, May 16, 2007 The U-Net control bus supports a maximum of 255 control panels. The use of a U-Net hub does not increase the total number of panels Redundant power supported, it only increases the potential length of the U-Net CAT-5 cable. supply connectors.
