UHD 12G
System Setup and Operation Guide
32x and 144x Systems

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UHD 12G and is the answer not in the manual?

Questions and answers

Related Manuals for UTAH SCIENTIFIC UHD 12G

Summary of Contents for UTAH SCIENTIFIC UHD 12G

  • Page 1 UHD 12G System Setup and Operation Guide 32x and 144x Systems...
  • Page 2 Printed in U.S.A. • Copyrights and Trademarks © 2017 Utah Scientific, Inc., All rights reserved. Any use or reproduction of this guide’s contents without the prior written consent of Utah Scientific, Inc. is strictly prohibited. UTAH 100 is a trademarks of Utah Scientific, Inc.
  • Page 3 Operation of this equipment in a residential area is likely to cause harmful interference, in which case, the user will be required to correct the interference at their own expense. Shielded cables must be used to ensure compliance with the FCC Class A limits.
  • Page 4 Declaration of Conformity Utah Scientific, Inc. 4750 Wiley Post Way, Suite 150 Salt Lake City, Utah 84116-2878 U.S.A. We declare our sole responsibility that the UTAH-100/UHD 12G Digital Routing Switcher is in conformance with the following standards: Emission EN55022:1994+A1&A2 •...
  • Page 5 Important Safeguards and Notices This section provides important safety guidelines for the Operator and Service Personnel. Specific warnings and cautions are found throughout the guide where they apply, but may not appear here. Please read and follow the important safety information, specifically those instructions related to risk of fire, electric shock, or injury to persons.
  • Page 6 Dangerous voltages exist at several points in this prod- • uct. To avoid personal injury, do not touch exposed con- ductors and components while power is on. Do not insert anything into either of the systems two-power supply cavities with power connected. Do not wear hand jewelry or watches when troubleshoot- •...
  • Page 7 Company Information Utah Scientific, Incorporated 4750 Wiley Post Way, Suite 150 Salt Lake City, Utah 84116-2878 U.S.A. Telephone: +1 (801) 575-8801 • FAX: +1 (801) 537-3098 • Technical Services (voice): +1 (800) 447-7204 • Technical Services (FAX): +1 (801) 537-3069 •...
  • Page 8 Warranty Policies Hardware Warranty Utah Scientific, Inc. warrants to the original purchaser that the Utah Scientific hardware is free from defects in materials and workmanship and will perform substantially in accordance with the accompanying written materials under normal use and service for a period of two (2), five (5), or ten (10) years from the date of shipment.
  • Page 9 These rights may vary in certain states/jurisdictions. No liability for consequential damages. To the maximum extent permitted by applicable law, in no event shall Utah Scientific or its suppliers be liable for any damages whatsoever (including without limitation, damages for loss...

  • Page 11: Table Of Contents

    Section 1 System Setup Introduction ....................1-1 Control System ....................1-1 Router Hardware Description ................ 1-2 3G/12G ..................1-3 Signal Levels .................... 1-4 Hardware Installation ..................1-5 Initial Inspections ..................1-5 Before Applying Power .............1-5 Service ..................1-5 Initial Setup ....................
  • Page 12 Noise ......................2-2 I/O Module Specifications ................2-3 Multi-Rate Digital Input Card ..............2-3 Multi-Rate Digital Output Card ..............2-3 FLEX-I/O Option ..................2-3 Fiber Input/Output Card ................2-3 Alarm Conditions ..................2-4 UHD 12G Setup & Operations Guide...

  • Page 13: System Setup

    Section 1 System Setup Introduction The UHD 12G is a compact, power efficient series of SDI routing switchers. These products provide a compact design with unique control facilities to allow cost effective routing solutions and flexible, configurable distribution amplifiers or, when combined with a Utah Scientific SC-4 or SC-400 control system, provide a cost sensitive alternative to the flagship Utah Scientific UTAH-400 SDI routers.

  • Page 14: Router Hardware Description

    System Setup Router Hardware Description The UHD system is based upon a four board architecture similar to other Utah Scientific routing switchers. These four boards are made up of an Input board, a crosspoint board, midplane, and output board. Input or Output boards can be removed or added (via the midplane) in the field to expand systems, change IO types or replace defective modules.

  • Page 15: 3G/12G

    1 power supply as a standard. (The part number for the optional redundant power supply is USI 94001-9006.) 3G/12G The UHD 12G supports two types of IO cards; those that support signals p to 3Gb/Sec and others that support up to 11.88 Gb/Sec signals. Section 1...

  • Page 16: Signal Levels

    System Setup Signal Levels A "signal level" represents one of many specific types of audio or video elements that a routing switcher is capable of handling. The typical signals capable of being switched are: • Analog Video • Analog Audio (stereo with left and right channels). •...

  • Page 17: Hardware Installation

    Hardware Installation Initial Inspections Check the contents of the shipment for completeness and possible transport damage. If the contents are incomplete or damaged, contact Utah Scientific Inc immediately for repairing or replacement parts of the equipment. Before Applying Power Verify that the product is configured to match the available main power source per the input power configuration instructions provided in this manual.

  • Page 18: Initial Setup

    System Setup Initial Setup 1. Remove the chassis and inspect the unit carefully for damages that may have occurred during transport. 2. Check that the frame is installed so the airflow though the unit is unrestricted. No forced ventilation is required under normal operating conditions.

  • Page 19: Installation

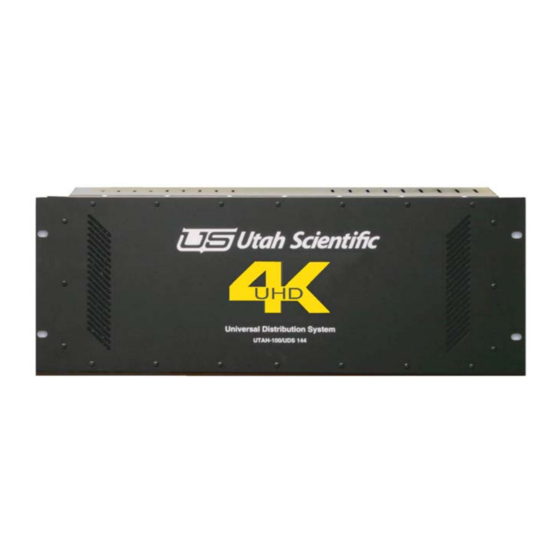

    Installation Installation 32x and 144x Systems Primary Crosspoint Redundant Crosspoint Primary Power Supply Redundant Power Supply Figure 1-2. UHD 12 Front Input Cards Output Cards Figure 1-3. UHD 12G Rear Section 1...

  • Page 20: Contents

    System Setup Contents • 1 Primary Crosspoint card • 1 Redundant Crosspoint card • 18 Input card Slots. • 18 Output card Slots. • 1 Primary Control Card Slot • 1 Redundant Control card slot • 1 12V Power Supply with chassis •...

  • Page 21: Rear Panel Considerations

    Video Ref Figure 1-4. MX Bus This is the control bus between the UHD 12G and SC-4 controller. Each chassis contains two connectors, fed through either side, then distributed to the next piece of equipment from either side. Section 1...

  • Page 22: Determining And Setting Router Signal Levels

    System Setup Determining and Setting Router Signal Levels Signal levels are preset at the factory and tested during manufacturing, determined by cus- tomer input and requirements. The installation of your new Utah-400 Router should not require any signal level changes to operate after the new installation. By definition, a signal level represents distinct elements of the broadcast system.

  • Page 23: Connecting Cables

    SC-4 control system to switch its inputs and outputs. In addition, the proper levels and offsets must be set on the UHD 12G routing system(s) so they will operate on the proper signal levels. The MX-Bus is a daisy chain configuration, must not exceed 300 feet (91.4 meters) in length;...

  • Page 24: Coax Input Card 121415-1 (Up To 12G)

    System Setup Coax Input Card 121415-1 (up to 12G) General The SDI Coax input card is responsible for receiving, reclocking, and presenting the input signals to the crosspoint card. It has 16 HDBNC connectors, 16 SDI Cable equalizers, with reclockers. The reclocking components automatically detect, lock to and re-time the incoming SDI signals.

  • Page 25: Fiber Input Card 121423-1 (Up To 3G)

    Installation Fiber Input Card 121423-1 (up to 3G) General This card can be populated with a variety of SFP receiver devices to allow for different functionality. It allows for 8 dual DFP connections, allowing 16 total inputs. The list of SFP module types is –...

  • Page 26: Circuit Description

    System Setup Circuit Description Component U2 receives and regulates 12V into 3.3V to be used by the SFP’s and 2x2 crosspoint 2G. Component U19 receives and regulates 12V into 1.2V to be used by the 2x2 crosspoint 2G. Component U1 is the system identifier I2C based IO expander, which allows board presence to be communicated to the user.

  • Page 27: Fiber Output Card 121424-1 (Up To 3G)

    Installation Fiber Output Card 121424-1 (up to 3G) General This card can be populated with a variety of SFP transmitter devices to allow for different functionality. It allows for different functionality. It allows for 8 dual DFP connections, allowing 16 total outputs. The list of SFP module types is - •...

  • Page 28: Circuit Description

    System Setup Circuit Description Component U2 receives and regulates 12V into 3.3V to be used by the SFP’s. Component U19 is the system identifier I2C based 1.2V expander, which allows board presence to be connumicated to the user. Controls and Indicators None.

  • Page 29: Coax Output Card 121417-1 (Up To 3G)

    Installation Coax Output Card 121417-1 (up to 3G) General The SDI Coax Output card is responsible for driving the switched video signals down coaxial cables in a SMPTE compliant fashion. It has 16 HDBNC connectors and 16 SDI Cable drivers on it. Figure 1-11.

  • Page 30: Coax Output Card 121416-1 (Up To 12G)

    System Setup Coax Output Card 121416-1 (up to 12G) General The SDI Coax Output card is responsible for driving the switched video signals down coaxial cables in a SMPTE compliant fashion. It has 16 HDBNC connectors and 16 SDI Cable drivers on it. Figure 1-12.
  • Page 31 Installation Section 1 1-19...
  • Page 32 System Setup 1-20 System Setup...

  • Page 33: Specifications And Alarms

    Frame Specifications Section 2 Specifications and Alarms Frame Specifications Width 19” Rack Mount Depth 3.4” Sizes 1RU -- Capacity: 32 inputs, 32 outputs Power Consumption: <30W 4RU -- Capacity: 144 inputs, 144 outputs Power Consumption: <100W Section 2...

  • Page 34: Power Supply

    Specifications and Alarms Power Supply AC Input Specifications Power Consumption - 720 watts per module Voltage - 900-240 Frequency - 50-60Hz Redundancy - optional (shares load) DC output specifications 12VDC - 60 Amps max (typically 25 Amps) Noise Series UHD UT-100 / UHD-32 UT-100 / UHD 144 Specifications...

  • Page 35: I/O Module Specifications

    I/O Module Specifications I/O Module Specifications Multi-Rate Digital Input Card Number of ports per card: 16 Formats supported: From 18Mbps up to 3Gbps Connector Type: HD-BNC Multi-Rate Digital Output Card Number of ports per card: 16 Formats supported: From 18Mbps up to 3Gbps Reclocking: All SDI rates up to 3Gbps Connector Type: HD-BNC Conforms to SMPTE 259C, 292, and 424...

  • Page 36: Alarm Conditions

    Specifications and Alarms Alarm Conditions The UHD 12G will enter a temperature alarm condition when the internal temperature exceeds the allowable limit. A temperature alarm is most likely caused by fan failures. The Blue LED on the front left of the unit will turn Red when the UHD enters a temperature alarm condition.
  • Page 37 I/O Module Specifications Section 2...
  • Page 38 Specifications and Alarms Specifications...
  • Page 39 Numerics 144x144 UDS System 7 Multi-Rate Digital Input Card basic specification 3 Multi-Rate Digital Output Card basic specification 3 airflow 6 MX Bus 9 Alarm Conditions 4 MX Bus Based Systems 11 Circuit Description Power application 5 coax input card 12, 14, 16 power cords 6 coax output card 17, 18 Power LED 6...
