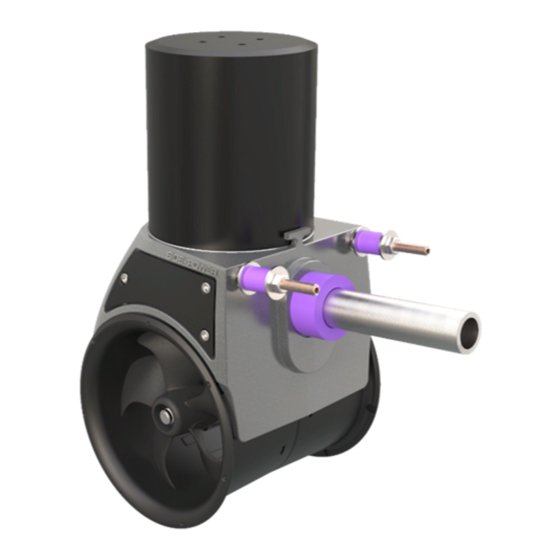

Sleipner SX35 Installation Manual
Dc external electric thruster
Hide thumbs
Also See for SX35:
- Installation manual (24 pages) ,
- User manual (12 pages) ,
- Installation manual (24 pages)
Related Manuals for Sleipner SX35
Summary of Contents for Sleipner SX35
- Page 1 Installation Guide For DC External Electric Thruster Models SX35, SX50 DOCUMENT ID: SLEIPNER AS 5630 REVISION: P.O. Box 519 DATE: N-1612 Fredrikstad 2021 Norway LANGUAGE: www.sleipnergroup.com...
-
Page 2: Table Of Contents
SM908126 | SX50/140-12V-150MM - SX50/140 - 12V-150mm w/Controller SM908127 | SX50/140-12V-50MM - SX50/140 - 12V -50mm w/Controller SM908123 | SX35/140-12V-150MM - SX35/140 - 12V -150mmw/Controller SM908125 | SX35/140-12V-OEM02 - SX35/140 - 12V -OEM02 w/Controller Sleipner Motor AS P.O. Box 519, Arne Svendsensgt. 6-8... -
Page 3: Responsibility Of The Installer
Sleipner products. The recommendations given in this document are guidelines ONLY, and Sleipner strongly recommends that advice is obtained from a person familiar with the particular vessel and applicable regulations. - Page 4 • If able ensure that stern-drives/ trim-tabs do not interfere with the water flow from the thruster as this can reduce the thrust effectiveness considerably. We recommend the use of our Sleipner cowls to enhance the performance and allow installation in shallow draft boats. Sleipner cowls will also minimise the effect if stern-drives/ trim-tabs obstruct the thruster.
-
Page 5: Thruster Measurements
Support bolts diameter Distance of support bolts from tube Distance of support bolts *Valid for SX & SXP * Standard tube (Hull thickness <50mm) * Extended tube for thicker hull models (Hull thickness >50mm to <150mm) MG_0110 SX35 & SX50 5630 2021... -
Page 6: Thruster Specifications
- Electronic time-lapse device protects against sudden change of drive direction. - The electric thermal cut-off switch in electro motor protects against overheating (auto-reset when electro motor cools down). - Original Sleipner panels shut off automatically 6 minutes after last use. - Original SLeipner panels use child-safe double ON buttons. -
Page 7: Control Box Technical Specifications
Min ambient temp: -25ºc -25ºc Power supply cable: 35 - 70mm²/ AWG 2 - 00 35 - 70mm²/ AWG 2 - 00 Mount direction : 187 mm 7’36” 170 mm 6’69” 121 mm 4’76” MG_0132 SX35 & SX50 5630 2021... -
Page 8: Positioning The Stern Thruster
Engine Water line Installing the thruster at an angle close to the water line will blast This guide applies to water beyond the water surface. SX 35, 50, 80 & 100 MG_0109 SX35 & SX50 5630 2021... -
Page 9: Stern Thruster Cowls/ Grids
243/ 9.6 260/ 10.2 330/ 13 393/ 15.5 515/ 20.3 C (mm/ in) 130/ 5.1 240/ 9.4 D (mm/ i n) 170/ 6.7 256/ 10.1 256/ 10.1 288/ 11.3 340/ 13.4 419/ 16.5 540/ 21.3 MG_0017 SX35 & SX50 5630 2021... -
Page 10: Grids Or Cowls Assembly
1. Attach the cowls or grids with included bolts and washers. (NB: If installation of the cowls ensure the appropriate twist of the cowl to direct water away from obstacles) *Cowl Tighten 2Nm MG_0145 Tighten 2Nm SX35 & SX50 5630 2021... -
Page 11: Tunnel Installation
Remove cover guard. Align two ends of the tunnel. Remove cover guard. Ensure top lips tabs into the motor inserts. Push two tunnel ends together. Snap lock Check snap lock positions around the tunnel. MG_0112 SX35 & SX50 5630 2021... -
Page 12: Sx Spacer
Compression 50mm ring Spacer Apply MS Polymer sealant or equal to back surface face Hull Compression Drill ring 8.5 / 9 mm 12mm Spacer MG_0262 SX35 & SX50 5630 2021... -
Page 13: Motor Installation
All rings need Maximum hull thickness +10% compression is 50 mm or 150mm Hull thickness Sealant (MS Polymer) Cover the entire surface 7 - 8 All rings need Thruster and attachment bolts +10% compression MG_0113 SX35 & SX50 5630 2021... -
Page 14: Propeller Installation
Insert the washer to the end of the shaft spline. Tighten with the propeller lock-nut. Apply anti fouling to the gear leg and propeller. Do not apply anti fouling to any rubber elements of the gear leg or anodes. MG_0478 SX35 & SX50 5630 2021... -
Page 15: Control Box Installation
Tighten hose clamps in order to ensure Ignition Protection as illustrated. Fasten the control box to the hull. IMPORTANT It is the installers full responsibility to follow instructions and ensure total Ignition Protection. BAT. + # SX35 CONTROL BOX 5.6 Nm BAT. - 5.6 Nm Hose claps... -
Page 16: Thruster Electrical Installation
2 Control cables from control panel(s)/ remote Minimum and recommended cable dimensions can be identical due to safety margins and cable heat considerations for short cable lengths. * Minimum or recommended cable cross section in mm2 MG_0039 SX35 & SX50 5630 2021... - Page 17 Thruster Electrical Installation Control Cables Blue protection sleeve Tighten to 4 NM # SX35 CONTROL BOX Thruster Thruster Thruster Thruster Tighten to Tighten to 5.6 NM 5.6 NM Temp switch NC Blue protection sleeve Blue protection sleeve Temp switch NC...
-
Page 18: Electrical Specifications
Electrical Specifi cations MC_0077 SX35 & SX50 5630 2021... -
Page 19: Control Panel Cable Installation
(NB: If two or more control panels are operated at the same time in opposite directions, the electronic control box will stop the thruster until it receives a single signal or thrust in one direction.) • Sleipner on/off equipment it is entirely “plug & play” and require no additional confi guration setup. See the Control panel manual for more information. Thruster Motor Ext. -
Page 20: Control Panel Installation
Control Panel Installation MC_0398 For Control Panel installation please refer to the supplied manual in your Sleipner product delivery Installation Guide Control Panel SLEIPNER AS DOCUMENT ID: P.O. Box 519 REVISION: DATE: N-1612 Fredrikstad Norway www.sleipnergroup.com LANGUAGE: SX35 & SX50... -
Page 21: Pre-Delivery Checklist
Correct drive direction as per control panel: ..............................The compartment for the thruster has been isolated from general bilge water and has no obvious or suspected risks for flooding: .................................................................................................................................. Other comments by installer: .................................................................................................................................................................... SX35 & SX50 5630 2021... -
Page 22: Service And Support
10. This warranty gives you specific legal rights, and you may also have other rights which vary from country to country. Patents MC_0024 At Sleipner we continually reinvest to develop and offer the latest technology in marine advancements. To see the many unique designs we have patented visit our website www.sleipnergroup.com/patents SX35 & SX50... - Page 23 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SX35 & SX50 5630 2021...
- Page 24 © Copyright Sleipner Motor AS, 2021 The information given in the document was correct at the time it was published. However, Sleipner Motor AS can not accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifi...
