Summary of Contents for Sigicom INFRA C22

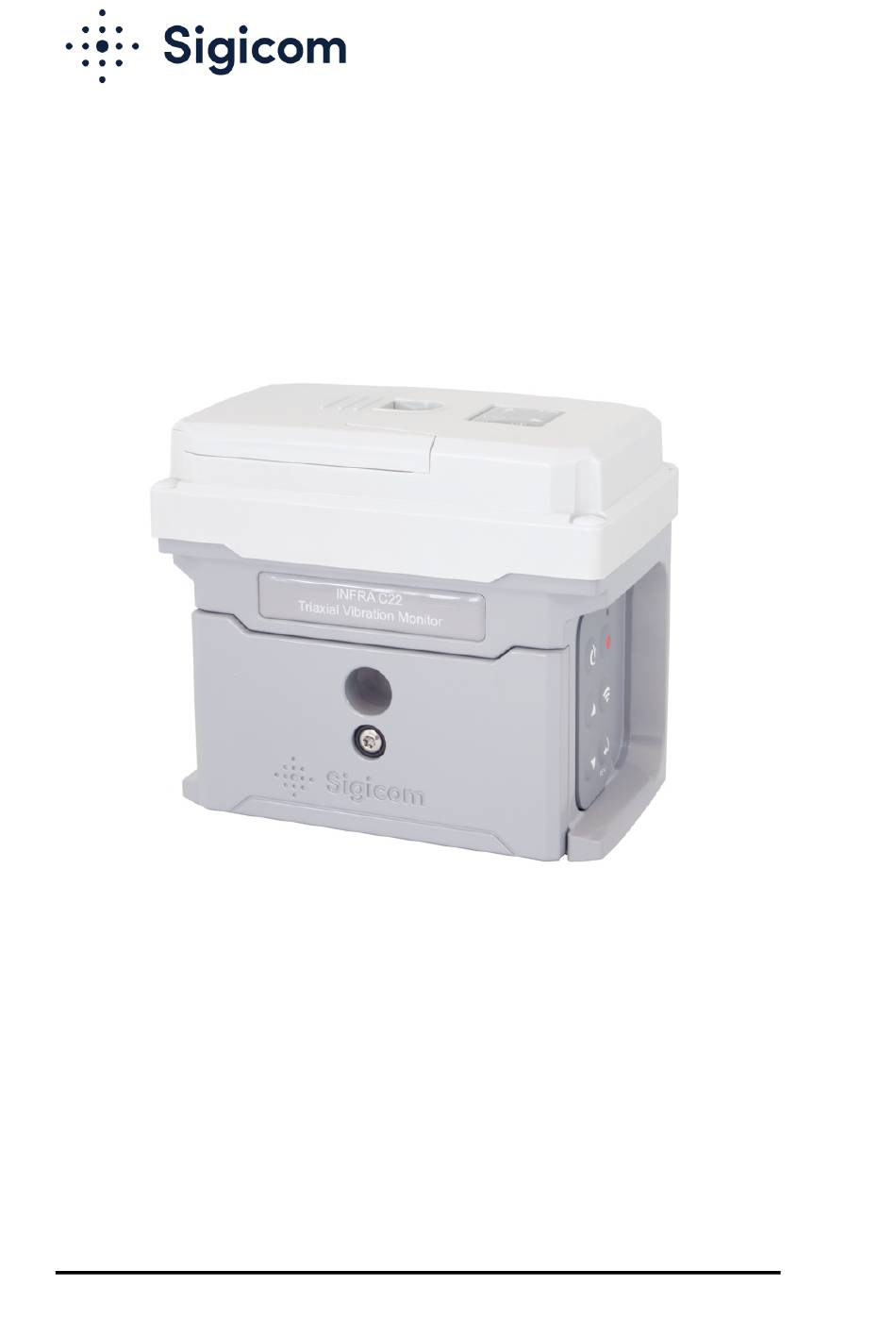

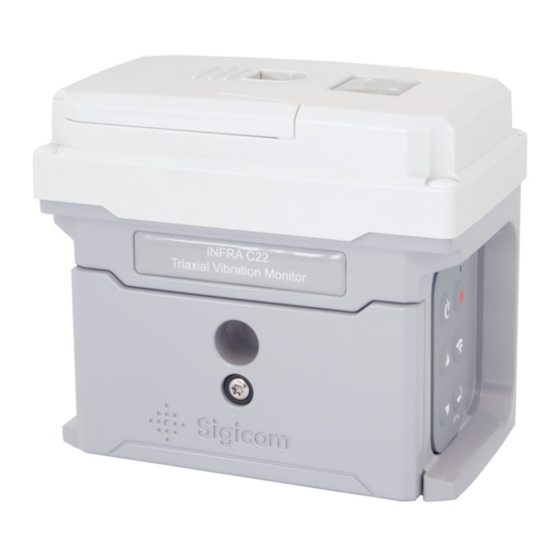

  • Page 1 INFRA C22 Wireless Vibration Monitor Art no. 080-05222-0 Manual ver. N Valid for firmware 2.5.1 Manual Copyright © Sigicom AB 2021 Art.no. ML089-05222-0En...
  • Page 2 Only use batteries and power supplies provided or recommended by 8 Accessories Sigicom, see chapter • Do not use C22 batteries in other products than applicable Sigicom products. • A power source connected to the C22 must not be able to supply more than 20V and 3A.
  • Page 3 Scrapped equipment should be sent back to the manufacturer of the equipment (Sigicom AB) for proper handling according to the WEEE directive. • Sigicom uses a certified local partner for recycling of scrapped equipment. The batteries used in this equipment falls under the Battery Directive 2006/66/EC: •...
  • Page 4: Table Of Contents

    Table of Contents Introduction ..................7 1.1. INFRA System ................7 1.2. INFRA C22 Vibration Monitor ..........7 1.3. INFRA C22 Enclosure .............. 8 1.4. Unpacking and Parts Identification ........... 9 Product Description ................10 2.1. Keypad ..................10 2.2.
  • Page 5 Time Synchronization through Internet ........42 6.5. Daylight Saving Time ............. 43 Technical Specifications ..............44 Accessories ..................45 Maintenance and Calibration ............46 10. Contact and Support ................47 Appendix A. Battery Level Limits ............48 Copyright © Sigicom AB 2021...
  • Page 6 Appendix I. Configure APN for the removable SIM ......74 Appendix J. Enter SIM PIN code ............75 Appendix K. Configure PPP authentication ..........77 Developed by: Sigicom AB Glasfibergatan 8 SE – 124 45 Älvsjö, Sweden Support: support@sigicom.com Manufactured in Estonia Copyright © Sigicom AB 2021...
  • Page 7: Introduction

    Manual communication is performed by the operator. • At scheduled communication. 1.2. INFRA C22 Vibration Monitor The C22 instrument is a complete triaxial wireless vibration monitor measuring in three directions, vertical, longitudinal, and traverse. It consists of vibration sensor elements, analog measuring electronics, analog-digital converters, an embedded microcontroller/DSP for digital signal processing etc., a small color display, a six-button keypad, a...
  • Page 8: Infra C22 Enclosure

    1.3. INFRA C22 Enclosure The enclosure base is milled out of solid aluminum and includes: • A horizontal hole for wall-mounting (M6 or ¼” bolt). • A vertical hole for floor-mounting (M6 or ¼” bolt). • A front lid covering the two batteries.
  • Page 9: Unpacking And Parts Identification

    1.4. Unpacking and Parts Identification The INFRA C22 Vibration Monitor has been shipped in protective packaging. Please keep this and use it when transporting your equipment. Verify the package content with the following list: • C22 Vibration Monitor instrument. •...
  • Page 10: Product Description

    Menu / Enter / Acknowledge / Activate For more information about operation of the graphical user interface, see chapter 5 Operation. Note! The LED indicator (the green circle in the picture above) is only used at firmware upgrade. Copyright © Sigicom AB 2021...
  • Page 11: Display

    (EVT) values in three directions. Live values for three directions = maximum over the last three seconds. 3. MONITORING status. 4. COMMUNICATION status. 5. GPS position status 6. ERRORS and WARNINGS See chapter 5 for more information about the display screens. Copyright © Sigicom AB 2021...
  • Page 12: Batteries

    When set through the graphical user interface, the memory card can be accessible as a Windows drive via the USB interface. See section 5.8.5. Only charging up to battery level 60%, to extend battery life. Copyright © Sigicom AB 2021...
  • Page 13: Memory Card

    If the memory card is unintentionally missing (or corrupt), an error message will be displayed at start-up. Please contact Sigicom Support for guidance regarding memory card formatting or other memory card issues. Note! Only use a memory card approved by Sigicom.
  • Page 14 PIN-code lock (contact your network provider for more information) or follow the instructions in Appendix J on how to configure a PIN-code in the C22. For activation or deactivation of the embedded SIM card, please contact Sigicom Support. Copyright © Sigicom AB 2021...
  • Page 15: Measuring Parts

    The main processor of the C22 is a combined general processor and a digital signal processor (DSP). The DSP part of the processor filters, compensates and detects the signals according to the selected measurement standard Copyright © Sigicom AB 2021...
  • Page 16: Measuring Logic

    V, L and T, are always stored, and are always un- weighted, even if frequency weighting is active The following additional interval channels may also be stored: This is different compared to e.g. INFRA C12. Copyright © Sigicom AB 2021...
  • Page 17 The limit here is equal to the lowest possible threshold for the chosen standard e.g. 0.4 mm/s (0.02 in/s) for standards with level range 250 mm/s, and 0.04 mm/s (0.002 in/s) for standards with level range 25 mm/s. Copyright © Sigicom AB 2021...
  • Page 18: Transient Recording

    The pre-trig time depends on Record time according to the table (was added with FW-version 2.5.0): Record time [s] Pre-trig time [s] 1 – 9 10 - 19 20 - 29 30 -39 40 - 120 Copyright © Sigicom AB 2021...
  • Page 19: Overload Handling

    Overload is indicated in the display with a “>” before the value. 3.3. Data Storage C22 follows the data storage model for the new generation of Sigicom’s INFRA instruments. Although data files are accessible through the USB interface (see section 5.8.5), data is only readable after post-processing through INFRA Net.
  • Page 20 INFRA Net when Monitoring is started. For further information, see section 6.2. Copyright © Sigicom AB 2021...
  • Page 21: Configuration And Installation

    4. Configuration and Installation 4.1. Configurations and Settings The customer’s INFRA Net account is pre-set from Sigicom prior to delivery and cannot be changed by the customer. Contact Sigicom Support if this needs to be changed. INFRA Net Communication Schedule 4.1.1.
  • Page 22: Factory Default Settings

    Make sure that the C22 is firmly attached and aligned (plumb and level). For correct measuring results, the mounting angle of the instrument must not exceed 5º relative to the horizontal plane. Refer to Sigicom product catalog for more information on mounting solutions.
  • Page 23: Site Startup Check

    4.3. Site Startup Check After mounting, it is recommended to start the instrument and check: • Battery level • Clock set • INFRA Net communication • Monitoring Copyright © Sigicom AB 2021...
  • Page 24: Operation

    Sensor test failed, or the alignment of the sensor is not horizontal enough. After transition into monitoring mode, the instrument will communicate to INFRA Net and transmit its status. In previous INFRA systems, Monitoring is called registration (REGON). Copyright © Sigicom AB 2021...
  • Page 25: Sensor Test

    If the instrument is recording when monitoring off is selected, the recording will be completed before monitoring is stopped. Once monitoring is stopped, the instrument will communicate to INFRA Net and update the instrument’s new status and data. Copyright © Sigicom AB 2021...
  • Page 26: Infra Net Communication

    Manual INFRA Net Communication 5.4.2. Manual communication can be initiated from the communication screen. Press to enter this screen, and then press again to start the communication. The communication process is displayed on the screen: Copyright © Sigicom AB 2021...
  • Page 27: More Communication Information

    When the batteries are completely discharged, monitoring will stop and the C22 will turn off. If power was accidentally lost while in monitoring mode (e.g. if the batteries were improperly removed), the C22 will restart monitoring when new or recharged batteries are reinserted. Copyright © Sigicom AB 2021...
  • Page 28: Removal And Replacement Of Li-Ion Batteries

    Turn the battery lock lever to the other side and remove/replace the second battery. • Reset the lock lever in its middle position for the lid to fit. • Replace the front lid using a Torx T20 driver. Figure 5. Instrument with front lid removed Copyright © Sigicom AB 2021...
  • Page 29: Gui Menu

    To view and possibly change the monitoring parameters, select “Monitoring config”: → Monitoring config Frequency weight parameter may also be available, as an additional option, depending on selected standard. to select parameter, and to enter the parameter settings screen. Copyright © Sigicom AB 2021...
  • Page 30: Communication Mode

    Normal mode: Internet and INFRA Net is available. • Flight mode: Internet and INFRA Net communication is disabled. Flight mode is indicated on the main screen with an airplane symbol: Set communication mode by pressing: → Settings and actions → Communication mode. Copyright © Sigicom AB 2021...
  • Page 31: Clock Set

    Note! C22 will reboot after the clock is changed. Clock Format 5.8.4. Time can be displayed in either 12- or 24-hour format, which is configured by this selection. This configuration is only for the instrument, INFRA Net is not affected by this. Copyright © Sigicom AB 2021...
  • Page 32: Usb Memory Interface Mode

    3. The microSD memory should now appear as a removable drive in the file system of the PC. 4. When finished command the PC to eject the removable disc. 5. Disconnect the USB connector from the instrument and it will reboot automatically. Copyright © Sigicom AB 2021...
  • Page 33: Firmware Upgrade

    This section describes how to upgrade to latest FW version when the C22 is in the office. To upgrade a C22 which is monitoring out in the field (so called Remote firmware upgrade), see section 5.10.1. The latest FW release is available for download from the Sigicom Support page: http://support.sigicom.com/infra/index.html Note! Monitoring must be OFF, and communication mode set to Flight mode (see section 5.8.2), to perform a firmware upgrade.
  • Page 34 The LED is positioned just above the REC-key on the keypad. Note! FW in green; if it is in yellow and without a frame the files are in downloading state. Copyright © Sigicom AB 2021...
  • Page 35: Errors And Warnings

    Errors are in red text, and warnings in orange. If there are several errors, use the arrow keys to scroll between them. Each individual error code can be acknowledged / cleared with the key. A list of errors and warnings is presented in Appendix E. Copyright © Sigicom AB 2021...
  • Page 36: Power Off And Reboot

    → Settings and actions → Power off / Reboot. Note! Monitoring must be OFF when doing Power off or Reboot. Select either Power off or Reboot in the list and click If none of the two selections is wanted, back out with Copyright © Sigicom AB 2021...
  • Page 37: Gui Passcode

    (or not entered at all), the C22 GUI will be opened in a ‘view- only’ mode. All settings and actions (including monitoring start) are prohibited. An active passcode may be deactivated in the following way: → Settings and actions → GUI Passcode. Copyright © Sigicom AB 2021...
  • Page 38: Infra Net Remote Control

    3. Use INFRA Net to change parameter settings. 4. Perform a manual communication again on the C22 to read the new change request. The changes will then be performed. For further information about INFRA Net remote control, see INFRA Net Hardware manual. Copyright © Sigicom AB 2021...
  • Page 39: Remote Firmware Upgrade

    Hardware tab) Special commands → Remote Reboot followed by Manage changes → Commit. The data logger will perform the reboot at the next communication. It may take several minutes until the firmware files have been downloaded. Copyright © Sigicom AB 2021...
  • Page 40: Remote Shut Down

    Please select (in INFRA Net – Hardware tab) Special commands → Remote Update GPS Position followed by Manage changes → Commit. The C22 will perform the update at the next communication. First a controlled “Stop Monitoring” will be performed. Copyright © Sigicom AB 2021...
  • Page 41: Other Functions

    Yellow: a GPS position is received with lower accuracy (estimated position error normally > 20 m) • Green, a GPS position is received with high accuracy (estimated position error < 20 m, but it needs to be outdoor) Copyright © Sigicom AB 2021...
  • Page 42: Gps Time Synchronization

    (whole) second. This makes it possible to use two or more INFRA C22 to measure the ground wave, for example caused by railway traffic. It is here recommended that the units are placed with a distance of at least 50 meters between them, and that their Trigger level is so low that they each trigger a transient.
  • Page 43: Daylight Saving Time

    (STD) is configured with the time zone mentioned above. The C22 does not need to turn monitoring off during the transition. All data from C22 is time stamped with UTC time. Daylight Saving Time only affects the presentation of time. Copyright © Sigicom AB 2021...
  • Page 44: Technical Specifications

    Static pressure: 101.3 kPa (14.7 psi) Accuracy: Noise and interference according to EMC demands in IEC61326-1:2006. Transient low-pass filter characteristics: - 0.5 dB at 467Hz, -3dB at 627Hz. Operations temp: -20°C to +50°C (-4°F to 122°F) Copyright © Sigicom AB 2021...
  • Page 45: Accessories

    Socket wrench 10 mm with handle, part number 080-01893-0 • Hex screwdriver 3 mm (for plastic antenna cover), part number 080-01894-0 • Transport case INFRA C2x, part number 080-01888-0 See latest INFRA product catalogue for a complete list of accessories and more details. Copyright © Sigicom AB 2021...
  • Page 46: Maintenance And Calibration

    If the backup battery drops below 2.6 V, a warning message will be communicated. For replacement of the backup battery, send the instrument to Sigicom. • If repair is required, please contact Sigicom prior to sending the instrument in for repair. Copyright © Sigicom AB 2021...
  • Page 47: Contact And Support

    SE-12545 ÄLVSJÖ Sweden Phone: +46 8 4499750 Email: info@sigicom.com USA: Sigicom Inc. 2636 Midpoint Drive Ste B Fort Collins, CO 80525 Phone: 970-493-1552 Email: info@sigicom.com World-wide Support: Phone: +46 8 44 99 770 Email: support@sigicom.com Copyright © Sigicom AB 2021...
  • Page 48: Appendix A. Battery Level Limits

    Service messages are sent when the SOC level falls below the BAT LOW or BAT CRITICAL levels. For replacement of the backup battery, send the instrument to Sigicom. SOC = State-Of-Charge (a combined state of charge of the two batteries).
  • Page 49: Appendix B. Li-Ion Battery Transport

    Transport by Air is prohibited according to the IATA Special Provision A154. • Follow safety instruction for Li-Ion batteries in the beginning of this manual. • Call Sigicom for consultation before any transportation. Note! Worn out batteries are forbidden in air transport. Copyright © Sigicom AB 2021...
  • Page 50: Appendix C. Safe Handling Of Li-Ion Batteries

    • Place the safety instruction easily seen in all sites where batteries are handled. • Inform personnel about the instruction. • Report all safety related events to management. Reference: http://batteryuniversity.com/learn/article/safety_concerns_with_li_ion Copyright © Sigicom AB 2021...
  • Page 51: Appendix D. In Case Of Li-Ion Battery Fire

    COMBUSTABLE MATERIAL PLACE THE BATTERY IN SAND FILLED BUCKET, PLACE OUTSIDE IF POSSIBLE USE FIRE EXTINGUISHER WATER IS OK IF NO OTHER KIND OF FIRE EXTINGUISHER IS AVAILABLE PUT SEEMINGLY BURNED-OUT BATTERY OUTSIDE FOR A TIME Copyright © Sigicom AB 2021...
  • Page 52: Appendix E. Errors And Warnings

    E100/1 Temperature alarms Cool down the instrument E102 Instrument humidity warning Check that all screws of the instrument lid are tightened Is set if instrument time differs two seconds or more from correct time, see section 5.8.3 Copyright © Sigicom AB 2021...
  • Page 53 Connect to the server so the files SD-card is full can be upload E115 Slow file opening Format the SD-card E116 Connect to the server so the files SD-card is almost full can be upload Copyright © Sigicom AB 2021...
  • Page 54: Appendix F. Measurement Standards

    5 – 500 Hz RMS 1s Frequency: calculated frequency is sent in additional interval channels. Resultant: a calculated resultant value is sent as an additional interval channel. Resultant is only calculated when frequency weighting is OFF. Copyright © Sigicom AB 2021...
  • Page 55 SN 640312a 250 mm/s 5 – 150 Hz S28B SN 640312a 25 mm/s 5 – 150 Hz S30A BS 7385 250 mm/s 1 – 300 Hz S30B BS 7385 25 mm/s 1 – 300 Hz Copyright © Sigicom AB 2021...
  • Page 56 SBR-A 25 mm/s 1 – 100 Hz 20 mm/s 1 – 80 Hz SBR-B Comfort RMS 125ms 250 mm/s 2 – 250 Hz Toronto bylaw 514 Toronto 250 mm/s 1 – 100 Hz bylaw 514 Copyright © Sigicom AB 2021...
  • Page 57 BS 7385 & 250 mm/s 1 – 300 Hz 6841 (VDV) S71B 25 mm/s 1 – 300 Hz BS 7385 & 6841 (VDV) Different depending on vertical or horizontal. See Appendix H for a detailed description Copyright © Sigicom AB 2021...
  • Page 58 Vibration och stöt – Mätning och riktvärden för bedömning av komfort i byggnader. Level and frequency ranges: 20 mm/s, RMS, 1-80 Hz. Filtered according to ISO 2631-2, time constant 1 s. Max resolution in presentation: 0.005 mm/s RMS and 3 significant digits. Copyright © Sigicom AB 2021...
  • Page 59 Level and frequency ranges: 125 m/s , 5-300 Hz. Max resolution in presentation: 0.01 m/s and 3 significant digits. Threshold range: 0.1 – 110 m/s Note! The stated level range is only valid at 80Hz because the sensor Copyright © Sigicom AB 2021...
  • Page 60 Max resolution in presentation: 0.05 mm/s and 3 significant digits. Threshold range: 0.4 – 220 mm/s. 20B. NS 8141:2001 Byggverk Vibrasjoner og støt - Måling av svingehastighet og beregning av veiledende grenseverdier for å unngå skade på byggverk. Copyright © Sigicom AB 2021...
  • Page 61 Human exposure to mechanical vibration and shock. Level and frequency ranges: 20 mm/s, RMS, 1-80 Hz. Filtered according to ISO 2631-2, time constant 1 s. Max resolution in presentation: 0.005 mm/s RMS and 3 significant digits. Copyright © Sigicom AB 2021...
  • Page 62 Filtered according to ISO 2631-2, time constant 1 s. Max resolution in presentation: 0.0001 mm/s RMS and 3 significant digits. Threshold range: 0.001 – 0.75 in/s. 35. AS 2187.2-2006 Explosives - Storage, transport and use - Use of explosives. Copyright © Sigicom AB 2021...
  • Page 63 0.04 – 22 mm/s. 42A. IN 1226 French standard IN 1226. Level and frequency ranges: 250 mm/s, 1-150 Hz. Max resolution in presentation: 0.05 mm/s and 3 significant digits. Threshold range: 0.4 – 220 mm/s. Copyright © Sigicom AB 2021...
  • Page 64 Level and frequency ranges: 20 mm/s, RMS, 1-80 Hz. Filtered according to ISO 2631-2, time constant 125 ms. Max resolution in presentation: 0.005 mm/s RMS and 3 significant digits. Threshold range: 0.04 – 15 mm/s. Copyright © Sigicom AB 2021...
  • Page 65 55A. ISEE/USBM Same as standard 51A, ISEE standard, but in SI units. Level and frequency ranges: 250 mm/s, 2-250 Hz. Max resolution in presentation: 0.05 mm/s and 3 significant digits. Threshold range: 0.4 – 220 mm/s. Copyright © Sigicom AB 2021...
  • Page 66 Harmfulness assessments of vibrations transmitted by the foundation to buildings. Level and frequency ranges: 25 mm/s, 1-100 Hz. Max resolution in presentation: 0.005 mm/s and 3 significant digits. Threshold range: 0.04 – 22 mm/s. 59. FTA VdB Federal Transport Administration (USA) Copyright © Sigicom AB 2021...
  • Page 67 60B. NCh 3577 Metodología para evaluar las vibraciones producidas por voladuras sobre infraestructuras. Level and frequency ranges: 25 mm/s, 1-315 Hz. Max resolution in presentation: 0.005 mm/s and 3 significant digits. Threshold range: 0.04 – 22 mm/s. Copyright © Sigicom AB 2021...
  • Page 68 In addition the interval channels VDV and VDV-accu are calculated (see Appendix H). Level and frequency ranges: 25 mm/s, 1-300 Hz. Max resolution in presentation: 0.005 mm/s and 3 significant digits. Threshold range: 0.04 – 22 mm/s. Copyright © Sigicom AB 2021...
  • Page 69: Appendix G. Standards With Frequency Weighting

    Drywall and Plaster, see Figure G1: • Drywall: 0.75 in/s (4 – 15 Hz) • Plaster: 0.50 in/s (2.6 – 10 Hz) Figure G1. Frequency weighting curves for the standards S51A and S51B (ISEE Seismograph). Copyright © Sigicom AB 2021...
  • Page 70 (peak) is greater than 1.0 in/s and its frequency is in the range 2.6 - 10 Hz • a signal (peak) is greater than 4.0 in/s and its frequency is 40 Hz (or higher) Copyright © Sigicom AB 2021...
  • Page 71 Figure G2. Figure G2. Frequency weighting curves for the standards S18A and S18B (DIN 4150-3). This figure is copied from a Transient report in INFRA Net, where the different standard’s frequency weighting curves can be displayed. Copyright © Sigicom AB 2021...
  • Page 72: Appendix H. British Standard Bs 6841 (Vdv)

    The output from the band pass filters is the base for the interval channels (V, L, T). However, these are not the only interval channels in this standard. There are also intervals based on Vibration Dose Values (VDV) calculated as Copyright © Sigicom AB 2021...
  • Page 73 SMS or e-mail. This is configured in INFRA Net. Note! Recordings are disabled in the VDV-standards 70A and 70B (but enabled for all other standards, including 71A and 71B). 1.75 The unit of VDV is m/s Copyright © Sigicom AB 2021...
  • Page 74: Appendix I. Configure Apn For The Removable Sim

    3. When succeeded, the file name above is changed to _extapn.txt. If, by some reason the APN needs to be set back to empty, create the file extapn.txt, keep it empty and follow steps 1 to 3 form the list above. Copyright © Sigicom AB 2021...
  • Page 75: Appendix J. Enter Sim Pin Code

    If the PUK code is “12345678”, and the new PIN code is “1111”, write the following: 1111 12345678 After this is done, follow steps 2-5 from the list above. If successful, the SIM-card will now be unlocked, and the PIN code set to “1111”. Copyright © Sigicom AB 2021...
  • Page 76 Note! The unit will only try a PIN code (or PUK code) once. This is to avoid accidentally locking the SIM-card if multiple connections are attempted. Therefore, it is safe (but useless) to retry a connection with an incorrect PIN code that has already been tested. Copyright © Sigicom AB 2021...
  • Page 77: Appendix K. Configure Ppp Authentication

    Note! To clear configured PPP authentication, follow the same steps but do not write anything in the pppauth.txt file. If PPP authentication is not configured, the fields “User” and “Pwd” will not be visible in the SIM information menu (see step 5 above). Copyright © Sigicom AB 2021...
