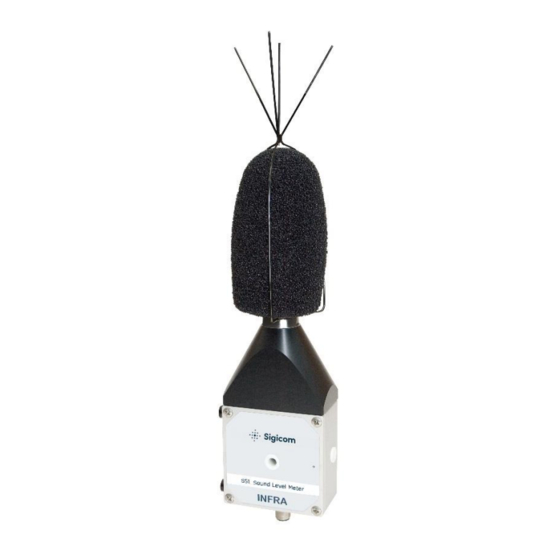

- Page 1 INFRA S51 Sound Level Meter with infrasound capabilities Art no. 080-02851-0 Manual ver. B Valid for firmware version 1.9.0 Manual Copyright ©Sigicom AB 2018 Art.no ML089B02850-0En...
- Page 2 Equipment Directive (WEEE directive) 2002/96/EC with its last update 2009, category 9: monitoring and control instruments: • Scrapped equipment should be sent back to the manufacturer of the equipment (Sigicom) for proper handling according to the WEEE directive. • Sigicom uses a certified local partner for recycling of scrapped equipment.
-
Page 3: Table Of Contents
Appendix A Specifications .............. 30 A.1 Reference conditions (factory calibration) ......30 A.2 Accuracy ................30 A.3 Linear operating range (sinusoidal signals) ......31 A.4 Microphone ................31 A.5 Electrical test method ............32 A.6 Overload handling ..............32 Copyright ©Sigicom AB 2018... - Page 4 A.7 Power consumption ............... 32 A.8 Mechanical data ..............33 A.9 Approvals ................33 Appendix B Glossary ............... 34 Copyright ©Sigicom AB 2018...
-
Page 5: Introduction
Monitoring System. See one example of this in the figure here below. Example of a setup of the INFRA Field Monitoring System For a comprehensive description of the INFRA Monitoring System please consult the INFRA Datalogger manual. Copyright ©Sigicom AB 2018... -
Page 6: About This Manual
Chapter 7 – Maintenance and calibration: Information about calibration interval etc. • Chapter 8 – Accessories: Lists the accessories for S51, and S51-related accessories for the INFRA Field Monitoring System. • Chapter 9 – Contact and support: Contains contact information to Sigicom AB. Copyright ©Sigicom AB 2018... -
Page 7: Features
• IEC 61672-1:2013 • ISO 7196:1995 INFRA S51 Sound Level Meter offers the following features: • Full integration with INFRA Field Monitoring System which makes it possible to combine the sound level meter with geophones (vibration) and a numerous of other sensor types. -
Page 8: Unpacking And Parts Identification
When using 1s interval setting – don’t use the threshold to trig recordings. • When using threshold on the Leq channel – don’t setup shorter interval time than 5 minutes. • Contact Sigicom support if you need to violate any of these limitations. Copyright ©Sigicom AB 2018... -
Page 9: General Description
The Sensor Cable supplies the S51 Sound Level Meter with both electrical power and all necessary communication. To present data correctly, use the latest firmware in the INFRA Datalogger (1.15.1-1.15.1 or later). A Sound Level Meter connected with INFRA Datalogger in a minimal configuration. Copyright ©Sigicom AB 2018... - Page 10 • dust monitoring • wind, speed and direction • air temperature • air humidity • atmospheric pressure • etc. All quantities are synchronized and can be viewed in any of the INFRA presentation systems. Copyright ©Sigicom AB 2018...
-
Page 11: Design Features
S51 Sound Level Meter handles two time constants: • 0.125 seconds for time weighting F (FAST) • 1 second for time weighting S (SLOW) • No time weighting (PEAK) One of the time weightings can be selected at a time. Copyright ©Sigicom AB 2018... -
Page 12: Level Ranges
One of the level ranges can be selected at a time. 3.5 Display devices S51 Sound Level Meter shall be connected to the INFRA Field Monitoring System which has several capabilities of displaying the measured signals. The resolution is 0.1 dB. Copyright ©Sigicom AB 2018... -
Page 13: Interval Files
In order to enable long cables and low power of the communication, the transfer capabilities between S51 and the Datalogger are rather slow. It transfers approx. 0.15 s of S51-data per second or 0.4 s of vibration sensor data per second. Copyright ©Sigicom AB 2018... - Page 14 • If the recording length is set short, the transient memory will be splitted into two or more transient files. This enables that more than one transient file may be recorded before the memory becomes full. Copyright ©Sigicom AB 2018...
-
Page 15: Configuration And Operation
The definitions used here are described in the standards IEC 61183 and ANSI S1.10. Free-field frequency characteristics of the measured sound pressure level for various angles of incidence. The calculated random incidence is also illustrated. Copyright ©Sigicom AB 2018... -
Page 16: Mounting
This short distance implies that the measured sound pressure level (of the lower frequencies) will be 6dB higher compared to a situation See section 8 Accessories. Copyright ©Sigicom AB 2018... - Page 17 6 dB increased measurement is not done in the S51, but can be setup in the post-processing. Measured sound pressure level as function of the frequency because of total reflections for three distances between the center of the microphone and the wall (sinusoidal sound wave). Copyright ©Sigicom AB 2018...
-
Page 18: Parameters
SLOW and L 30 - 105 dBC and L SLOW 40 - 115 dBC and L SLOW 55 - 130 dBC and L SLOW 40-114 dBG and L SLOW 50-112 dBG SLOW and L 65-139 dBG Copyright ©Sigicom AB 2018... - Page 19 • The INFRA functionalities SMS and Server messages can be activated such that each time the interval value of the L Copyright ©Sigicom AB 2018...
- Page 20 (solved in data logger fw 1.16.0). Also, Live mode in the Data logger only has capacity to sent one channel message per second, meaning if one S51 is running in live mode it must be set to min 2s interval time. Copyright ©Sigicom AB 2018...
-
Page 21: Measurements Of Low-Level Sounds
Example: noise level = 20 dB, sound level = 23 dB measured level = 24.8 dB Influence by the self-generated noise level, as function of the difference between the sound level and the noise level. Copyright ©Sigicom AB 2018... -
Page 22: Quick Start
The delay may be up to one interval period. First presentation of data will then be delayed up to two interval periods. Transient trig and readout of Live-values are available directly after activation of REG ON. Copyright ©Sigicom AB 2018... -
Page 23: Periodical Testing
3. Every time you press F2, the “Live-value” is updated. 4. If you have several nodes connected to your Datalogger, press ▲ or ▼ until the “Live-value” of your S51 is displayed. Read more about the Live functionality in the Infra Master Manual. Copyright ©Sigicom AB 2018... -
Page 24: Consider This
Use the included windscreen to prevent undesirable wind noise to be added to the measured signals. • The sensor cables supplied by Sigicom are designed to work properly with the system. Please don’t use other types of cables. -
Page 25: Post-Processing Of Data
Post-processing can be done in the web application InfraNet. • Data is sent from the Datalogger to an Internet accessible database server where each Infra customer has its own database instance. • See further in documentation of the InfraNet application. Copyright ©Sigicom AB 2018... -
Page 26: Maintenance And Calibration
7 Maintenance and calibration • Send the device to Sigicom AB for calibration and adjustment. See contact information below. Recommended calibration interval is 12 months. • If sent to repair, please carefully write down the description of the problem. It is also recommended contacting Sigicom before sending the unit for repair. -
Page 27: Accessories
8 Accessories 8.1 Specific accessories: • Sensor Bolts, Sigicom art. no. 080-01710-0 to 080-01714-0 Sensor bolts of different lengths. For mounting of the S51 Sensor Level Meter on a wall. Possibly used together with the Mounting Wedge (see below). •... - Page 28 Mounting Wedge, the sensing microphone will come very close to the wall, which is a requirement in many cases. • Acoustic calibrator Class 1, Sigicom art. no. 080-03610-0 1 kHz 94/114 dB, IEC 60942:2003 class 1 PTB type approved. Used for periodic tests of the S51.
-
Page 29: Other Accessories
• 10pF Preamplifier Input Adapter, Sigicom art. no. 080-03611-0 Used to carry out more extensive tests than what a single frequency acoustic calibrator can. 8.2 Other accessories: • Sensor drop cable 0.3m (1ft), art. no 080-01100-0 • Sensor drop cable 1.0m (3.3ft), art. no 080-01101-0 •... -
Page 30: Contact And Support
Sigicom Inc. 2649 East Mulberry Stress Unit 17 Fort Collins, Colorado 80524 United States Phone: +1 (970) 493-1552 France: Sigicom Immeuble PLAZA 93, reu del la Villette 69003 LYON Fransé Phone: +33 4 20 10 25 85 Copyright ©Sigicom AB 2018... -
Page 31: Appendix A Specifications
Transient file low-pass filter characteristics (except for frequency weighting): • +/- 0.25dB up to 1250 Hz • -3dB at 1500Hz • -25dB at 2000Hz Warm-up time: Less than one minute after power-up of the controlling Datalogger. Copyright ©Sigicom AB 2018... -
Page 32: Linear Operating Range (Sinusoidal Signals)
-40 to +120 ºC (-0.01dB/ºC within -10 to +55 ºC) • Humidity range: 0 to 100% RH (not condensing) • Humidity influence : <0.1 dB (0 to 100% RH) @ 250Hz • Static-pressure coefficient @ 250H/25ºC: -0.011 dB/kPa Copyright ©Sigicom AB 2018... -
Page 33: Electrical Test Method
62dB A.5 Electrical test method • The microphone may be replaced by a “10pF Preamplifier input adapter”, Sigicom art.no 080-03611-0 to enable injection of electrical test signals into the S51. Note! Use proper ESD precautions while the microphone is removed. -
Page 34: Mechanical Data
Weight: 750 g A.9 Approvals Fulfills EMC and safety demands according to: • LVD 2006/95/EC • EMCD 2004/108/EC • EN 61326-1:2006 • FCC part 15 Radio frequency device, Subpart B • Canadian ICES-003 Issue 4 February 2004 Copyright ©Sigicom AB 2018... -
Page 35: Appendix B Glossary
4 kHz in a so called transient file. • Interval file: The Interval file contains measurement data sampled one time every selected Interval time. Each channel has its own Interval files. Copyright ©Sigicom AB 2018...
