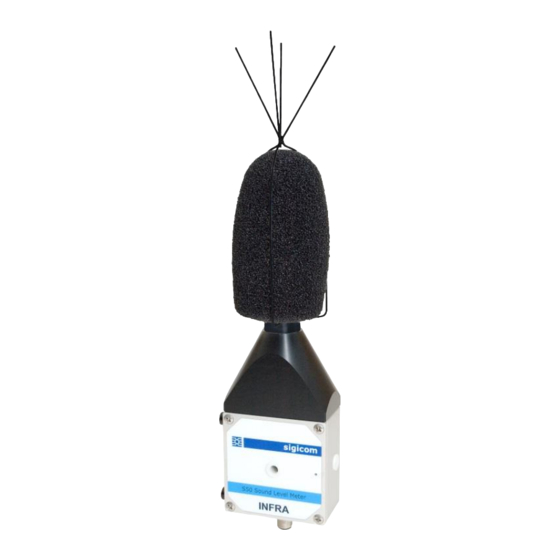

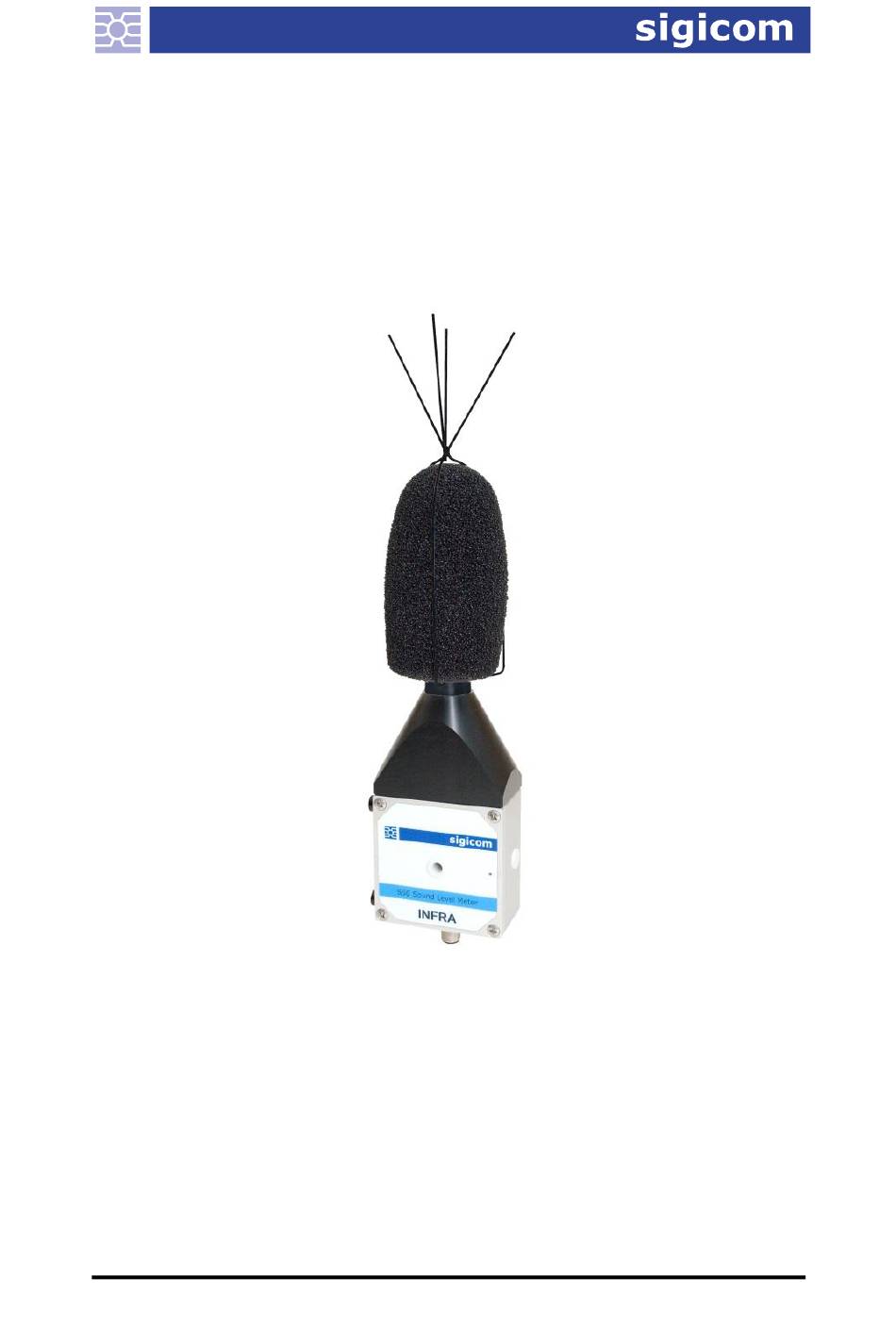

- Page 1 INFRA S50 Sound Level Meter Art no. 080-02850-0 Manual ver. F Valid for firmware version 1.8.0 Manual Copyright ©Sigicom AB 2003-2014 Art.no ML089B02850-0En...
- Page 3 Scrapped equipment should be sent back to the manufacturer of the equipment (Sigicom) for proper handling according to the WEEE directive. Sigicom’s partner for recycling of scrapped equipment is Hans Andersson Recycling Stockholm AB, with transport certificate no. 562-1372-2012 (Länsstyrelsen i Stockholms län).
-
Page 4: Table Of Contents
8.2 Other accessories: ..............28 Contact and support ..............29 Appendix A Specifications .............. 30 A.1 Reference conditions (factory calibration) ......30 A.2 Accuracy ................30 A.3 Linear operating range (sinusoidal signals) ......31 A.4 Microphone ................31 Copyright ©Sigicom AB 2003-2014... - Page 5 A.5 Electrical test method ............32 A.6 Overload handling ..............32 A.7 Power consumption ............... 32 A.8 Mechanical data ..............33 A.9 Approvals ................33 Appendix B Glossary ............... 34 Copyright ©Sigicom AB 2003-2014...
-
Page 6: Introduction
Monitoring System. See one example of this in the figure here below. Example of a setup of the INFRA Field Monitoring System For a comprehensive description of the INFRA Monitoring System please consult the INFRA Master manual. Copyright ©Sigicom AB 2003-2014... -
Page 7: About This Manual
Chapter 7 – Maintenance and calibration: Information about calibration interval etc. Chapter 8 – Accessories: Lists the accessories for S50, and S50-related accessories for the INFRA Field Monitoring System. Chapter 9 – Contact and support: Contains contact information to Sigicom AB. Copyright ©Sigicom AB 2003-2014... -
Page 8: Features
ANSI S1.43-1997 (R2007) IEC 61672-1:2002 INFRA S50 Sound Level Meter offers the following features: Full integration with INFRA Field Monitoring System which makes it possible to combine the sound level meter with geophones (vibration) and a numerous of other sensor types. -
Page 9: Unpacking And Parts Identification
Foam (which protects your S50 from shock during transportation). Calibration Document. Please, report immediately any damage or shortage to Sigicom AB. Record the instrument’s serial number. You will be asked to give this number in any S50 related communication you may have with Sigicom AB. -
Page 10: General Description
Monitoring System by any of the available INFRA Sensor Cables. The Sensor Cable supplies the S50 Sound Level Meter with both electrical power and all necessary communication. S50 Sound Level Meter connected with INFRA Datalogger in a minimal configuration. Copyright ©Sigicom AB 2003-2014... - Page 11 dust monitoring wind, speed and direction air temperature air humidity atmospheric pressure etc. All quantities are synchronized, and can be viewed in any of the INFRA presentation systems. Copyright ©Sigicom AB 2003-2014...
-
Page 12: Design Features
3.3 Time weightings S50 Sound Level Meter handles two time constants: 0.125 seconds for time weighting F (FAST) 1 second for time weighting S (SLOW) One of the time weightings can be selected at a time. Copyright ©Sigicom AB 2003-2014... -
Page 13: Level Ranges
One of the level ranges can be selected at a time. 3.5 Display devices S50 Sound Level Meter shall be connected to the INFRA Field Monitoring System which has several capabilities of displaying the measured signals. The resolution is 0.1 dB. Copyright ©Sigicom AB 2003-2014... -
Page 14: Interval Files
In order to enable long cables and low power of the communication, the transfer capabilities between S50 and the Datalogger are rather slow. It transfers approx. 0.15 s of S50-data per second or 0.4 s of vibration sensor data per second. Copyright ©Sigicom AB 2003-2014... - Page 15 If the recording length is set short, the transient memory will be splitted into two or more transient files. This enables that more than one transient file may be recorded before the memory becomes full. Copyright ©Sigicom AB 2003-2014...
-
Page 16: Configuration And Operation
The definitions used here are described in the standards IEC 61183 and ANSI S1.10. Free-field frequency characteristics of the measured sound pressure level for various angles of incidence. The calculated random incidence is also illustrated. Copyright ©Sigicom AB 2003-2014... -
Page 17: Mounting
This short distance implies that the measured sound pressure level (of the lower frequencies) will be 6dB higher compared to a situation See section 8 Accessories. Copyright ©Sigicom AB 2003-2014... - Page 18 6 dB increased measurement is not done in the S50, but can be setup in the post-processing. Measured sound pressure level as function of the frequency because of total reflections for three distances between the center of the microphone and the wall (sinusoidal sound wave). Copyright ©Sigicom AB 2003-2014...
-
Page 19: Parameters
40 - 115 dBA SLOW and L 55 - 130 dBA and L SLOW 25 - 95 dBC SLOW and L 30 - 105 dBC SLOW and L 40 - 115 dBC SLOW and L 55 - 130 dBC Copyright ©Sigicom AB 2003-2014... - Page 20 1, 2 and 4 seconds are available if firmware version is 1.6.0 or newer. 60 minutes is available if firmware version is 1.8.0 or newer. Upper threshold on the L channel is available if firmware version is 1.7.0 or newer. Copyright ©Sigicom AB 2003-2014...
- Page 21 4.4.6 Customer string The customer string is a four character string that can be changed. The default string is “SND “. The Datalogger must have firmware version 1.12.0-1.14.1 or newer. Copyright ©Sigicom AB 2003-2014...
-
Page 22: Measurements Of Low-Level Sounds
Example: noise level = 20 dB, sound level = 23 dB measured level = 24.8 dB Influence by the self-generated noise level, as function of the difference between the sound level and the noise level. Copyright ©Sigicom AB 2003-2014... -
Page 23: Quick Start
The delay may be up to one interval period. First presentation of data will then be delayed up to two interval periods. Transient trig and readout of Live-values are available directly after activation of REG ON. Copyright ©Sigicom AB 2003-2014... -
Page 24: Periodical Testing
3. Every time you press F2, the “Live-value” is updated. 4. If you have several nodes connected to your Datalogger, press ▲ or ▼ until the “Live-value” of your S50 is displayed. Read more about the Live functionality in the Infra Master Manual. Copyright ©Sigicom AB 2003-2014... -
Page 25: Consider This
Use the included windscreen to prevent undesirable wind noise to be added to the measured signals. The sensor cables supplied by Sigicom are designed to work properly with the system. Please don’t use other types of cables. -
Page 26: Post-Processing Of Data
Infra customer has its own database instance. InfraNetManager connects to the database over Internet to access all data for reporting, analyzing and remote controlling of the equipment. See further in documentation of the InfraNetManager application. Copyright ©Sigicom AB 2003-2014... -
Page 27: Maintenance And Calibration
7 Maintenance and calibration Send the device to Sigicom AB for calibration and adjustment. See contact information below. Recommended calibration interval is 12 months. If sent to repair, please carefully write down the description of the problem. It is also recommended contacting Sigicom before sending the unit for repair. -
Page 28: Accessories
8 Accessories 8.1 Specific accessories: Sensor Bolts, Sigicom art. no. 080-01710-0 to 080-01714-0 Sensor bolts of different lengths. For mounting of the S50 Sensor Level Meter on a wall. Possibly used together with the Mounting Wedge (see below). ... - Page 29 Mounting Wedge, the sensing microphone will come very close to the wall, which is a requirement in many cases. Acoustic calibrator Class 1, Sigicom art. no. 080-03610-0 1 kHz 94/114 dB, IEC 60942:2003 class 1 PTB type approved. Used for periodic tests of the S50.
-
Page 30: Other Accessories
10pF Preamplifier Input Adapter, Sigicom art. no. 080-03611-0 Used to carry out more extensive tests than what a single frequency acoustic calibrator can. 8.2 Other accessories: Sensor drop cable 0.3m (1ft), art. no 080-01100-0 Sensor drop cable 1.0m (3.3ft), art. no 080-01101-0 ... -
Page 31: Contact And Support
9 Contact and support Address Sigicom AB Alfred Nobels Allé 214 SE-146 48 Tullinge Phone +46 8 44 99 770 Internet www.sigicom.com E-mail support@sigicom.se Copyright ©Sigicom AB 2003-2014... -
Page 32: Appendix A Specifications
Transient file low-pass filter characteristics (except for frequency weighting): +/- 0.25dB up to 1250 Hz -3dB at 1500Hz -25dB at 2000Hz Warm-up time: Less than one minute after power-up of the controlling Datalogger. Copyright ©Sigicom AB 2003-2014... -
Page 33: Linear Operating Range (Sinusoidal Signals)
(-0.01dB/ºC within -10 to +55 ºC) Humidity range: 0 to 100% RH (not condensing) Humidity influence : <0.1 dB (0 to 100% RH) @ 250Hz Static-pressure coefficient @ 250H/25ºC: -0.011 dB/kPa Influence of 1m/s2 acceleration: 62dB Copyright ©Sigicom AB 2003-2014... -
Page 34: Electrical Test Method
A.5 Electrical test method The microphone may be replaced by a “10pF Preamplifier input adapter”, Sigicom art.no 080-03611-0 to enable injection of electrical test signals into the S50. Note! Use proper ESD precautions while the microphone is removed. ... -
Page 35: Mechanical Data
A.9 Approvals Fulfills EMC and safety demands according to: LVD 2006/95/EC EMCD 2004/108/EC IEC 61672-1:2002 EN 61326-1:2006 FCC part 15 Radio frequency device, Subpart B Canadian ICES-003 Issue 4 February 2004 Copyright ©Sigicom AB 2003-2014... -
Page 36: Appendix B Glossary
4 kHz in a so called transient file. Interval file: The Interval file contains measurement data sampled one time every selected Interval time. Each channel has its own Interval files. Copyright ©Sigicom AB 2003-2014...
