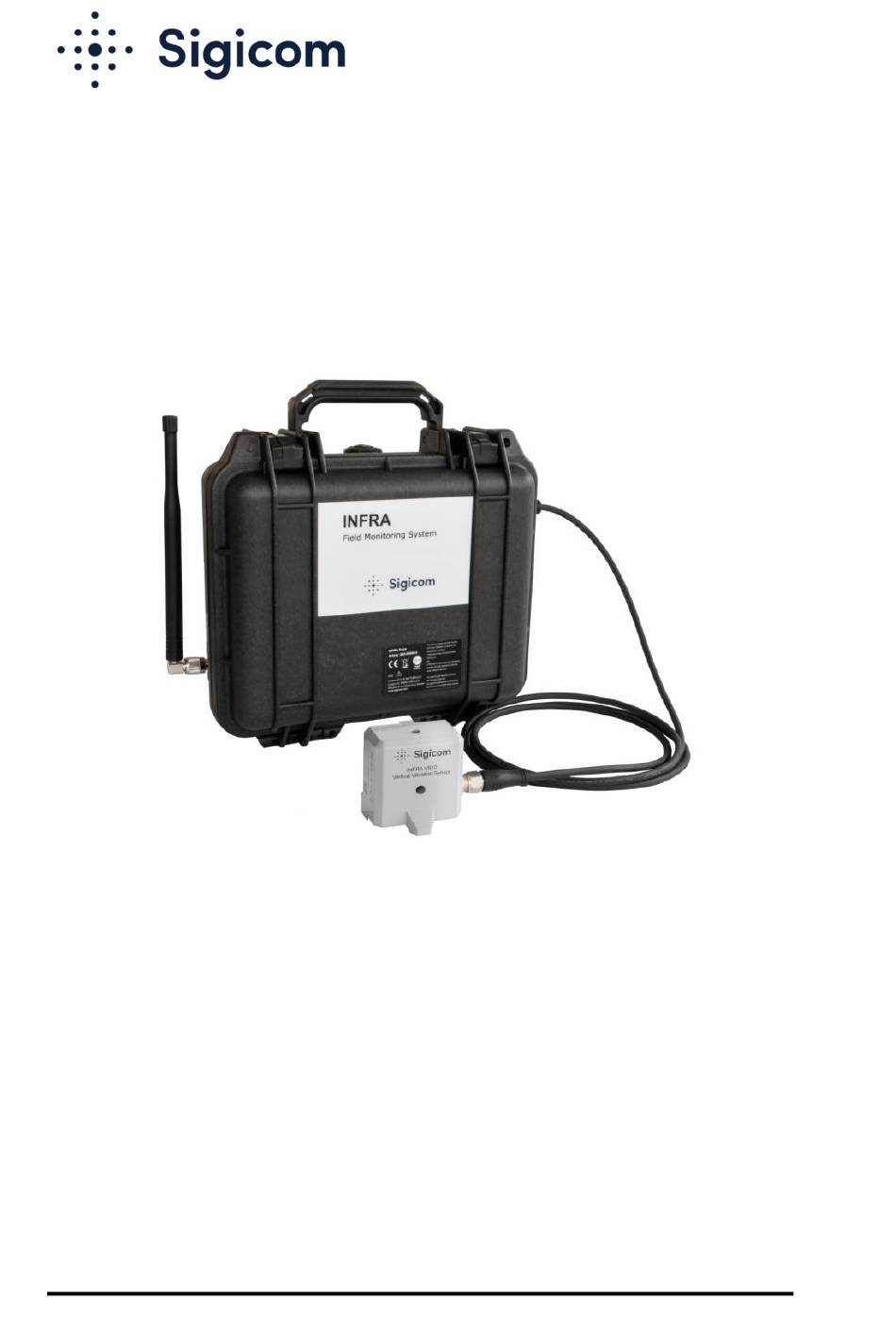

- Page 1 INFRA Point Vertical/Triaxial Vibration System Data logger: art no. 080-05000-0 Vertical sensor: art no. 080-05110-0 Triaxial sensor: art no. 080-05112-0 Manual ver. H Valid for firmware 2.5.1 Manual Copyright © Sigicom AB 2021 Art.no. ML089-05000-0En...
- Page 2 Only use batteries and power supplies provided or recommended by 8 Accessories Sigicom, see chapter • Do not use C22 batteries in other products than applicable Sigicom products. • A power source connected to the C22 must not be able to supply more than 20V and 3A.
- Page 3 Directive (WEEE directive) 2012/19/EU, category 9: monitoring and control instruments: • Scrapped equipment should be sent back to the manufacturer of the equipment (Sigicom AB) for proper handling according to the WEEE directive. • Sigicom uses a certified local partner for recycling of scrapped equipment.
-
Page 4: Table Of Contents
Table of Contents Introduction ..................7 1.1. INFRA System ................7 1.2. INFRA Point Vibration System ..........7 1.3. INFRA Point Enclosure ............8 1.3.1. Data logger ................8 1.3.2. Sensor ................... 8 1.4. Unpacking and Parts Identification ........... 9 Product Description ................ - Page 5 5.10.2. Remote Reboot ..............42 5.10.3. Remote Shut Down ............. 43 5.10.4. Remote Update GPS Position ..........43 Other Functions ................44 6.1. Disable Communication ............44 6.2. GPS position ................44 6.3. GPS time synchronization ............45 Copyright © Sigicom AB 2021...
- Page 6 6.4. Time Synchronization through Internet ........45 6.5. Daylight Saving Time ............. 46 Technical Specifications ..............47 7.1. General INFRA Point System ..........47 7.2. Data logger ................48 7.3. Sensors ..................48 Accessories ..................49 8.1. External Antennas ..............50 Maintenance and Calibration ............
-
Page 7: Introduction
At scheduled communication. 1.2. INFRA Point Vibration System The INFRA Point unit is a data logger with one vibration sensor attached by cable. The sensor can either be a single-axis type measuring in vertical direction, or a triaxial type. The triaxial sensor is measuring in three directions: vertical, longitudinal and transverse. -
Page 8: Infra Point Enclosure
Data logger 1.3.1. INFRA Point data logger is built in a Peli™ case, which is extremely robust and tough, and has a Gore-Tex membrane, pressure-equalizing vent to keep the inside dry. This vent is waterproof even if the case is completely submerged. -
Page 9: Unpacking And Parts Identification
Any damage or omission should be reported immediately to Sigicom. Keep record of the instrument’s serial number. You will be asked to give this number in any INFRA Point related communication you may have with Sigicom. Copyright © Sigicom AB 2021... -
Page 10: Product Description
2.1. Data logger Operator-panel Antenna connector Keypad Display Battery cover External power connector Sensor connector USB connector Figure 1 Data logger Note! Make sure that protecting plastic caps are attached to connectors when not in use. Copyright © Sigicom AB 2021... -
Page 11: Keypad
Menu / Enter / Acknowledge / Activate For more information about operation of the keypad and graphical user interface, see chapter 5 Operation. Note! The LED indicator (the white circle in the picture above) is only used at firmware upgrade. Copyright © Sigicom AB 2021... -
Page 12: Display
DATA: Measurement standard. Vibration data; interval (INTV) or transient (EVT) value(s). Live value(s) = maximum over the last three seconds. MONITORING status. GPS and COMMUNICATION status. ERRORS and WARNINGS Copyright © Sigicom AB 2021... -
Page 13: Batteries
See chapter 5 for more information about this. Batteries 2.1.3. The power supply of the INFRA Point data logger has two Li-Ion batteries and uses the battery with the highest voltage. The switch-over between the batteries is automatic. If the unit is firmly mounted, the batteries can be replaced one at the time... -
Page 14: Usb Connector (Mini-B Type)
2.1.6. The data logger has a Mini-USB connector, mainly used for maintenance. INFRA Point is never powered through the USB interface. Do never monitor vibrations with the USB connected. The Mini-USB connector is located at the center on the bottom side of the data logger, see Figure 1. - Page 15 Figure 2 Position of memory card, SIM card and backup battery. Insert with the cut corner first and to the right. Note! The backup battery shall only be replaced by Sigicom technician or agent. Copyright © Sigicom AB 2021...
-
Page 16: Sim Cards
Figure 2 on page 15 shows where the SIM card is positioned. Note! The PIN-code lock of the removable mini-SIM card must be deactivated before use in INFRA Point. Contact your network provider for pin-code lock deactivation. When inserted, make sure that the SIM card is correctly positioned. Push the card gently until it is fixed in place. -
Page 17: Memory Card
Memory Card 2.1.8. The INFRA Point data logger uses a microSD memory card. It is used to store recorded data, system logs and various status files to be communicated to INFRA Net. No configuration data is saved on the memory card. Figure 2 on page 15 shows where the memory card is positioned. -
Page 18: Sensors
2.2. Sensors The INFRA Point system can either be equipped with a vertical or a triaxial sensor. The triaxial sensor is measuring in three directions: vertical, longitudinal and transverse. Figure 5 Triaxial sensor Figure 6 Vertical sensor The sensors have no batteries inside. Only calibration parameters are stored in the sensors’... -
Page 19: Measuring Parts
Digital Signal Processing The main processor of the INFRA Point data logger is a combined general processor and a digital signal processor (DSP). The DSP part of the processor filters, compensates and detects the signals according to the selected measurement standard Copyright ©... -
Page 20: Measuring Logic
Appendix F. Interval Measurements 3.2.2. INFRA Point processes the vibration signal through the filters and detectors of the selected measurement standard. The interval value is the maximum value of the processed signal within a selected interval time. When the interval end time is reached, the maximum value is saved, and a new interval is started. -
Page 21: Transient Recording
Similarly, if analog or digital overload occurs in one or more samples during recording of a transient, the corresponding transient will be tagged with an overload flag. In this way INFRA Net can indicate possible overload in its interval and transient data reports. Copyright © Sigicom AB 2021... -
Page 22: Data Storage
GPS Receiver 3.4.2. The INFRA Point data logger is equipped with a GPS (GNSS) receiver to locate the position of the unit and is activated after the start of monitoring. The position data will be communicated to INFRA Net. For further information see section 6.2. -
Page 23: Configuration And Installation
Flight Mode 4.1.2. The INFRA Point data logger can be set to run in flight mode where INFRA Net (and other) communication is inhibited, see section 5.8.2 for details. Configuration Menu 4.1.3. -
Page 24: Factory Default Settings
4.2. Installation Data logger 4.2.1. Make sure that the INFRA Point data logger is positioned in such a way that sufficient cellular coverage is obtained. Note! The data logger must not be submerged in water. Copyright © Sigicom AB 2021... -
Page 25: Sensor
Sensor 4.2.2. Make sure that the INFRA Point sensor is firmly attached and aligned (plumb and level). For correct measuring results, the mounting angle of the instrument must not exceed 5º relative to the horizontal plane. Refer to Sigicom product catalog for more information on mounting solutions. -
Page 26: Operation
See section 5.8.7. Note! An error event may initiate communication to INFRA Net, and a subsequent message being sent. If last known monitoring mode was ON, the INFRA Point data logger will automatically restart monitoring after instrument start-up. 5.2. Start Monitoring... -
Page 27: Sensor Test
If the instrument is recording when monitoring off is selected, the recording will be completed before monitoring is stopped. Once monitoring is stopped, the instrument will communicate to INFRA Net and update the instrument’s new status and data. Copyright © Sigicom AB 2021... -
Page 28: Infra Net Communication
During INFRA Net communication, all data files on the memory card are transmitted to the INFRA Net server and automatically removed from the memory card. If there are communication problems, the INFRA Point data logger will continue to attempt to communicate with incrementally increasing time intervals between communication attempts. -
Page 29: More Communication Information
Legal info. 5.5. Power Off The INFRA Point data logger will automatically power off after a period of no activity, referred to as time-out. If an activity has taken place, e.g. a key is pressed, the time-out will be prolonged. -
Page 30: Removal And Replacement Of Li-Ion Batteries
Turn the battery lock lever to the other side and remove/replace the second battery. • Reset the lock lever in its middle position for the lid to fit. • Replace the front lid using a Torx T20 driver. Figure 5. Instrument with front lid removed Copyright © Sigicom AB 2021... -
Page 31: Gui Menu
To view and possibly change the monitoring parameters, select “Monitoring config”: → Monitoring config. to select parameter, and to enter the parameter settings screen. Note! The recommended way to configure the monitoring parameters is to use INFRA Net (see section 5.10). Copyright © Sigicom AB 2021... -
Page 32: Communication Mode
• Flight mode: Internet and INFRA Net communication are disabled. Set communication mode by pressing: → Settings and actions → Communication mode. Flight mode will be indicated on the main screen with an airplane symbol: Copyright © Sigicom AB 2021... -
Page 33: Clock Set
( ) to change a value. Finish with the key. Note! The INFRA Point data logger will reboot after the clock is changed. Clock format 5.8.4. Time can be displayed in either 12- or 24-hour format, which is configured by this selection. -
Page 34: Usb Memory Interface Mode
Flight mode (see section 5.8.2), to set USB mode. Connect a USB cable between your PC and the USB connector on the INFRA Point data logger, see section 2.1.60. Press The microSD memory should now appear as a removable the file system of the PC. -
Page 35: Firmware Upgrade
5.8.6. This section describes how to upgrade to latest FW version when the INFRA Point data logger is in the office. To upgrade a data logger which is monitoring out in the field (so called Remote firmware upgrade), see section 5.10.1. - Page 36 The upgrade sequence is indicated by the LED flashing in RED (erasing) → BLUE (programming) → GREEN/RED (ok/fail). The LED is positioned just above the REC-key on the keypad. Copyright © Sigicom AB 2021...
- Page 37 An alternative way to upgrade FW to the latest version, without connecting any USB-cable, is to: Set INFRA Point communication mode to Normal mode, see section 5.8.2. Stop monitoring. On the main screen, wait for the communication to finish, indicated by “idle” displayed below the communication symbol.
-
Page 38: Errors And Warnings
Errors are in red text, and warnings in orange. If there are several errors, use the arrow keys to scroll between them. Each individual error code can be acknowledged / cleared with the key. A list of errors and warnings is presented in Appendix E. Copyright © Sigicom AB 2021... -
Page 39: Power Off And Reboot
Note! Monitoring must be OFF when doing power off or reboot. • Power off. • Reboot. Select either power off or reboot in the list and click If the selected action is permitted, you will be asked to confirm once again with Copyright © Sigicom AB 2021... -
Page 40: Gui Passcode
. or If the passcode is active at display start-up, and the passcode is entered incorrectly (or not entered at all), the INFRA Point GUI will be opened in a ‘view-only’ mode. All settings and actions (including monitoring start) are prohibited. -
Page 41: Infra Net Remote Control
INFRA Point shall be monitoring. The data logger does not communicate automatically when monitoring is off. When communicating to INFRA Net, INFRA Point sends its status and parameter settings. On the Hardware page in INFRA Net, the operator can view all status and settings, and request changes of configurable parameters. -
Page 42: Remote Firmware Upgrade
Remote Firmware Upgrade 5.10.1. It is possible to upgrade FW also on an INFRA Point data logger which is “at work”, monitoring vibrations. This is done by selecting (in INFRA Net – Hardware tab) Special commands → Remote Firmware Upgrade followed by Manage changes →... -
Page 43: Remote Shut Down
Please select (in INFRA Net – Hardware tab) Special commands → Remote Update GPS Position followed by Manage changes → Commit. The INFRA Point data logger will perform the update at the next communication. First a controlled “Stop Monitoring” will be performed. Copyright © Sigicom AB 2021... -
Page 44: Other Functions
Yellow: a GPS position is received with lower accuracy (estimated position error normally > 20 m) • Green, a GPS position is received with high accuracy (estimated position error < 20 m, but it needs to be outdoor) Copyright © Sigicom AB 2021... -
Page 45: Gps Time Synchronization
(whole) second. This makes it possible to use two or more INFRA Point data loggers to measure the ground wave, for example caused by railway traffic. It is here recommended that the sensors (VS10 or VS12) are placed with a distance of at least 50 meters between them, and that their Trigger level is so low that they each trigger a transient. -
Page 46: Daylight Saving Time
(STD) is configured with the time zone mentioned above. INFRA Point does not need to turn monitoring off during the transition. All data from INFRA Point is time stamped with UTC time. Daylight Saving Time only affects the presentation of time. -
Page 47: Technical Specifications
7. Technical Specifications 7.1. General INFRA Point System Power The following applies in monitoring mode, with consumption: display off and no communication: Vertical sensor: < 15 mW. Triaxial sensor: < 20 mW. Run-time: Depending on ambient temperature, quantity of transient recordings and scheduled INFRA Net communications etc.:... -
Page 48: Data Logger
Weight: 0.4 kg (0.9 lbs). Triaxial sensor Enclosure: Aluminum painted gray, all molded. 73 x 61.5 x 71.5 mm (2.9 x 2.4 x 2.8 in), excluding connector and standoffs. Weight: 0.8 kg (1.8 lbs). Copyright © Sigicom AB 2021... -
Page 49: Accessories
8. Accessories • INFRA Point cable - 2m, part number 080-01002-0 • INFRA Point cable - 5m, part number 080-01005-0 • INFRA Point cable - 15m, part number 080-01015-0 • Spare Li-Ion battery B100, part number 080-01621-0 • Battery charger Li-Ion B50/B100, part number 080-01628-0 •... -
Page 50: External Antennas
VSWR better than 2:1 within the used frequency range. Recommended antennas: • INFRA Mini/Point GSM/GPRS half wave antenna, part number 080-01252-0 (delivered with INFRA Point). • Cellular external antenna, part number 080-01250-1, with 3m (10ft) connection cable. Cellular antenna extension cables: •... -
Page 51: Maintenance And Calibration
Firmware update is done remotely via INFRA Net. • To keep the INFRA Point data logger dry and protect the electronics from corrosion, check/replace the desiccant bag in its compartment regularly. It is recommended to check once per year and change every two years. -
Page 52: Contact And Support
SE-12545 ÄLVSJÖ Sverige Phone: +46 8 4499750 Email: info@sigicom.com USA: Sigicom Inc. 2636 Midpoint Drive Ste B Fort Collins, CO 80525 Phone: 970-493-1552 Email: info@sigicom.com World-wide Support: Phone: +46 8 44 99 770 Email: support@sigicom.com Copyright © Sigicom AB 2021... -
Page 53: Appendix A. Battery Level Limits
Service messages are sent when the SOC level falls below the BAT LOW or BAT CRITICAL levels. For replacement of the backup battery, send the instrument to Sigicom. SOC = State-Of-Charge (a combined state of charge of the two batteries). -
Page 54: Appendix B. Li-Ion Battery Transport
For more information about shipping and travelling with Li-Ion batteries, please see Sigicom support page. http://support.sigicom.com/infra Transport of INFRA Point system with batteries installed: • Before air transport, set the data logger in “Flight mode”, and then select “Power off” via “Settings and actions” in the graphical user interface. -
Page 55: Appendix C. Safe Handling Of Li-Ion Batteries
• Place the safety instruction easily seen in all sites where batteries are handled. • Inform personnel about the instruction. • Report all safety related events to management. Reference: http://batteryuniversity.com/learn/article/safety_concerns_with_li_ion Copyright © Sigicom AB 2021... -
Page 56: Appendix D. In Case Of Li-Ion Battery Fire
COMBUSTIBLE MATERIAL PLACE THE BATTERY IN SAND FILLED BUCKET, PLACE OUTSIDE IF POSSIBLE USE FIRE EXTINGUISHER WATER IS OK IF NO OTHER KIND OF FIRE EXTINGUISHER IS AVAILABLE PUT SEEMINGLY BURNED-OUT BATTERY OUTSIDE FOR A TIME Copyright © Sigicom AB 2021... -
Page 57: Appendix E. Errors And Warnings
File system failure Check the memory card E120 Sensor is missing. Connect and reboot. Cleared when reconnected E121 Sensor is disconnected Is set if instrument time differs two seconds or more from correct time, see section 5.8.3. Copyright © Sigicom AB 2021... -
Page 58: Appendix F. Measurement Standards
3 – 400 Hz S25A NS 8141:2013 Byggverk 250 mm/s 3 – 400 Hz S25B NS 8141:2013 Byggverk 25 mm/s 5 – 500 Hz S53A Geophone 250 mm/s 5 – 500 Hz S53B Geophone 25 mm/s Copyright © Sigicom AB 2021... - Page 59 Vibration och stöt – Riktvärden för vibrationer i byggnader härrörande från pålning, spontning, schaktning och packning för bedömning av skaderisk. Level, frequency ranges: 25 mm/s, 2-150 Hz Max resolution in presentation: 0.005 mm/s and 3 significant digits 0.04 – 22 mm/s Threshold range: Copyright © Sigicom AB 2021...
- Page 60 - Del 1: Virkning av vibrasjoner og lufttrykkstøt fra sprengning på byggverk, inkludert tunneler og bergrom. Level, frequency ranges: 25 mm/s, 3-400 Hz Max resolution in presentation: 0.005 mm/s and 3 significant digits 0.04 – 22 mm/s Threshold range: Copyright © Sigicom AB 2021...
- Page 61 Threshold range: 53B. Geophone Unfiltered geophone signal. Upper frequency limit 500 Hz. Level and frequency ranges: 25 mm/s, 5-500 Hz. Max resolution in presentation: 0.005 mm/s and 3 significant digits. 0.04 – 22 mm/s. Threshold range: Copyright © Sigicom AB 2021...
-
Page 62: Appendix G. Configure Apn
When succeeded, the file name above is changed to _extapn.txt. If, by some reason the APN needs to be set back to empty, create the file extapn.txt, keep it empty and follow steps 1 to 3 form the list above. Copyright © Sigicom AB 2021... -
Page 63: Appendix H. Enter Sim Pin Code
If the PUK code is “12345678”, and the new PIN code is “1111”, write the following: 1111 12345678 After this is done, follow steps 2-5 from the list above. If successful, the SIM-card will now be unlocked, and the PIN code set to “1111”. Copyright © Sigicom AB 2021... - Page 64 Note! The unit will only try a PIN code (or PUK code) once. This is to avoid accidentally locking the SIM-card if multiple connections are attempted. Therefore, it is safe (but useless) to retry a connection with an incorrect PIN code that has already been tested. Copyright © Sigicom AB 2021...
-
Page 65: Appendix I. Configure Ppp Authentication
Note! To clear configured PPP authentication, follow the same steps but do not write anything in the pppauth.txt file. If PPP authentication is not configured, the fields “User” and “Pwd” will not be visible in the SIM information menu (see step 5 above). Copyright © Sigicom AB 2021...
