- Page 1 Tire Linc Pressure Monitor 2.0 ® OEM INSTALLATION MANUAL...

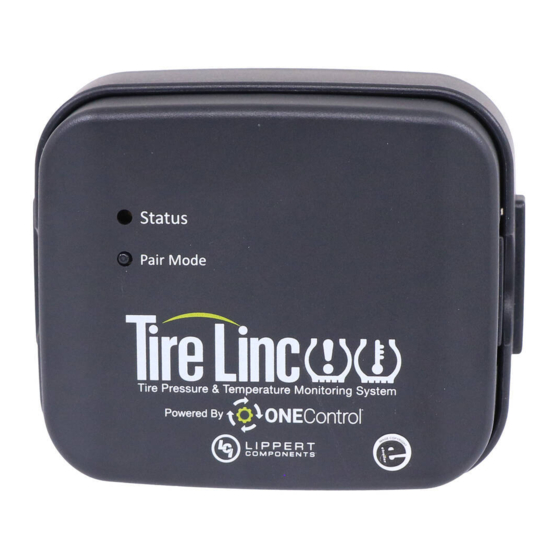

- Page 2 TABLE OF CONTENTS Introduction Safety Resources Required Repeater Dock Installation Additional Instructions Notes Introduction This document covers the installation of the Tire Linc Tire Pressure and Temperature Mounting System (TPMS) repeater dock with additional instructions of a complete TPMS is provided by the OEM. Images used in this document are for reference only when assembling, installing and/or operating this product.
- Page 3 Repeater Dock Installation Locate a mounting area inside the unit that allows connection of the Tire Linc repeater dock (Fig. 1A) to the unit's power source before the battery disconnect/constant power source without creating a strain on the completed connection. NOTE: Connecting Tire Linc to a power source past the disconnect will turn off the Tire Linc system if the power source is turned off during transport.
- Page 4 Additional Instructions NOTE: These instructions are needed if a complete TPMS is provided by the OEM. Snap the Repeater (Fig. 2A) into the dock (Fig. 2B). The dock is keyed and the repeater can only be snapped in one way. NOTE: The Repeater Dock is keyed and the Repeater can only be snapped in one way.
- Page 5 Notes Page 5 Rev: 04.13.21 CCD-0002733...
- Page 6 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (LCI). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty. ...
