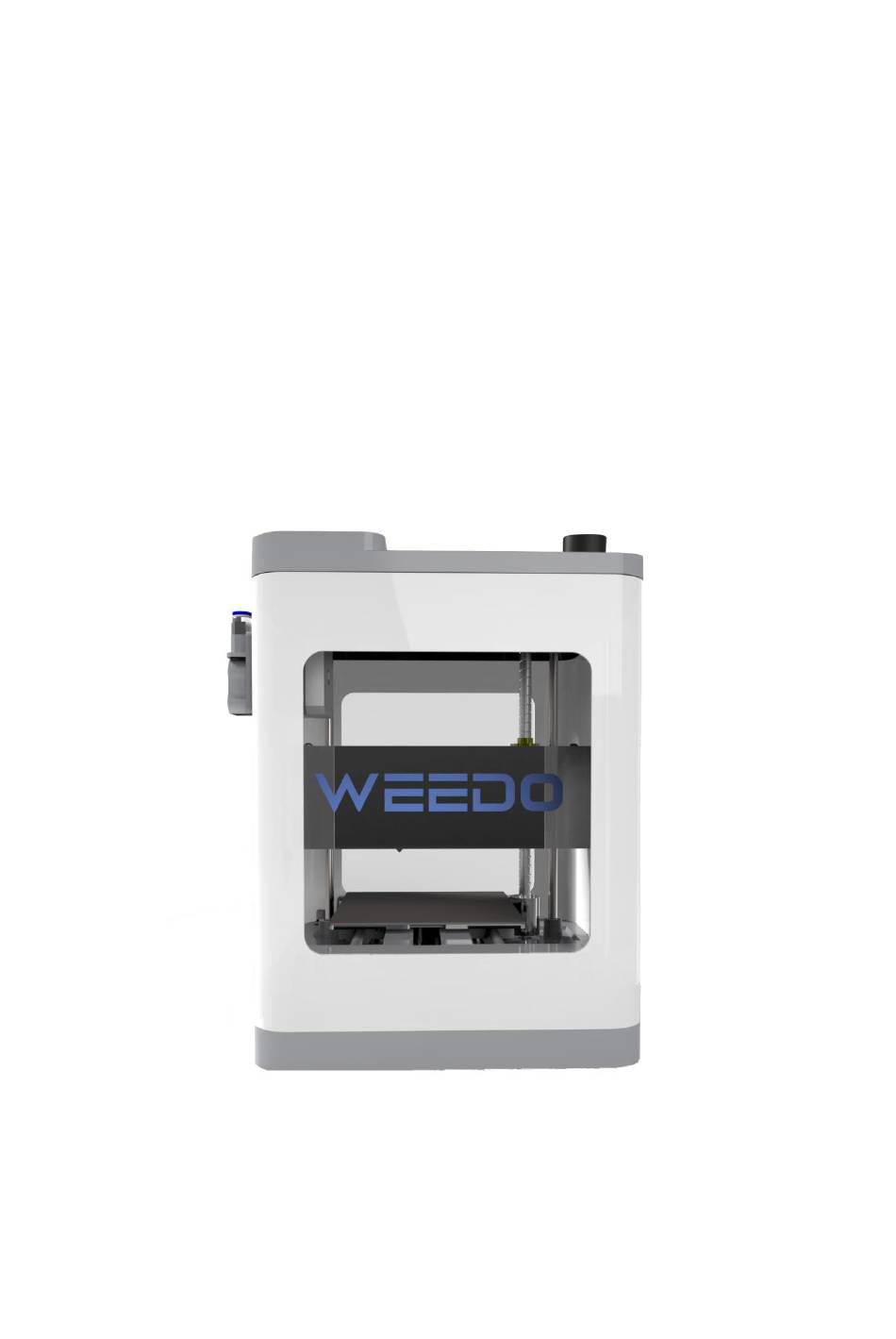

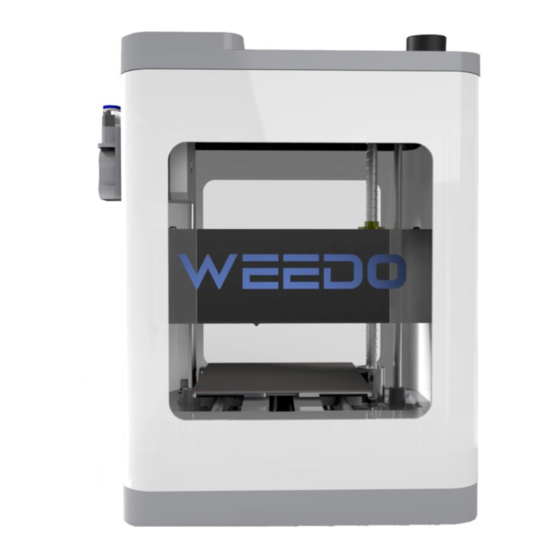

- Page 1 User Manual for WEEDO Mini 3D Printer-TINA2 1 / 5...
- Page 2 1. About The Machine Product Specification Printing Accuracy 0.1-0.4mm Forming Size 105x105x105mm Filament Nozzle Diameter 0.4mm Filament Diameter 1.75mm Printing Number Single Printing Platform Removable Platform Automatic Correction Supported Filament In/ Out One Key Achieving Printing Speed Recommend 40mm/s Product Size 215x200x270mm Printing Software Wiibuilder...
- Page 3 2. Accessories List 1.Power Supply (100V-230V,24V@5A,120W) 2.Filament 3.SD Card 4.Card Reader 5.Shovel 6.Glue Stick 3. Operate Introduction How To Print Your First Model. Step 1. Filament In （1）Pull the filament from the accessories, make sure the front of the filament be straight and then let the filament get into the nozzle through the feed tube.
- Page 4 （3）After the filament extrude from nozzle, the process finished. Get into “Tune” and Click “cancel all” Step2. Choose Printing File （1） Click the knob and get into next menu，Rotate the knob and find “Print from SD” and then you will get into next menu, find your printing file and start to print! （2）...
- Page 5 “Baby step Z” decrease the gap will decrease. The value100means 0.1mm.In the printing process, you can use “pause” to pause your printing. （2） After the printing process finished, the nozzle get to origin. You can take off the model with the platform. 4.
