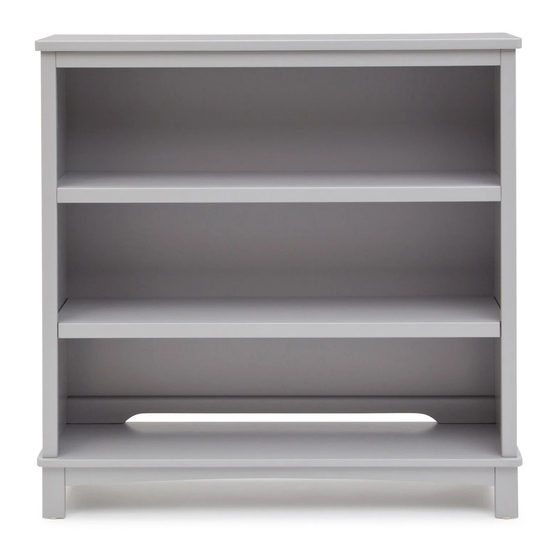

Convertible Bookcase
THIS PRODUCT IS NOT INTENDED FOR
INSTITUTIONAL OR COMMERCIAL USE.
When contacting Delta Consumer Care please reference the above information. Before contacting Delta
Consumer Care please ensure that the information above matches the information found on the label on
the Back Panel, please reference the information found on the product when contacting Delta Consumer
Care.
To register your product for important safety alerts and updates to your product please visit
www.DeltaChildren.com and click on Product Registration.
July,10 2014, 25136-79700-R0
Read all instructions before assembly and use.
KEEP INSTRUCTIONS FOR FUTURE USE.
ADULT ASSEMBLY REQUIRED
Due to the presence of small parts during assembly, keep out of
reach of children until assembly is complete.
Consumer Care:
www.DeltaChildren.com
Delta Children's Products
114 West 26th Street
New York, NY 10001
Tele.212-645-9033
Style #:
Lot:
Date:
79700
___________
___________
___________
A
REV
©2014 DELTA ENTERPRISE CORP.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rowen 79700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Delta Children Rowen 79700

Summary of Contents for Delta Children Rowen 79700

  • Page 1 ADULT ASSEMBLY REQUIRED Due to the presence of small parts during assembly, keep out of reach of children until assembly is complete. Convertible Bookcase Consumer Care: www.DeltaChildren.com Delta Children’s Products 114 West 26th Street New York, NY 10001 Tele.212-645-9033 79700 Style #:...

  • Page 2: Notes On Assembly

    - Do not scratch or chip the finish. - Inspect the product periodically, contact Delta Children's Products for replacement parts or questions. - Do not store the product or any parts in extreme temperatures and conditions such as a hot attic or a damp, cold basement.
  • Page 3 PARTS: Hardware kits part# 25135 For colors 988 and 986 C. Front Rail x1 Top Back Rail x1 F. Top x1 Part# 25123 Part# 25124 Part# 25128 B. Right Side x1 A. Left Side x1 Part# 25122 Part# 25121 L. Fixed Shelf x1 Part# 25126 G.
  • Page 4 PARTS: Hardware kits part# 24153 GG. 30mm Bolt x20 AA. 80mm Bolt x4 DD. 70mm Bolt x8 CC.50mm Bolt x4 FF. WOOD DOWEL 30mm x28 EE. Washer Head Screw 15mm x51 BB. Plastic Crescent Washer x8 KK. Metal Plate x2 HH.
  • Page 5 HARDWARE SYSTEM - REVIEW BEFORE ASSEMBLY 70mm Bolt Plastic Crescent Washer 1. Insert the Dowels in the Rail into the holes in the Post. 2. Align the bolt with the hole in the end of the rail, align the dowels in the end of the rail with the with the holes in the post.
  • Page 6 STEP #1 FF. WOOD DOWEL DD.70mm Bolt x3 30mm x6 BB. Crescent Washer x3 Attach the Bottom Back Rail (Part E), Front Rail (Part C) and Top Back Rail (Part D) to the Left Side (Part A). Install (6) Dowels (Part FF) as shown. Attach the rails to the Left Side using (3) 70mm Bolts (Part DD) and (3) Crescent Washers (Part BB).
  • Page 7 STEP #2 FF. WOOD DOWEL GG. 30mm Bolt x2 30mm x10 Attach the Fixed Shelf (Part L), to the Left Side using(2) Wood Dowels (Part FF) and (2) 30mm Bolts (Part GG) through the Fixed Shelf . Install and tighten the Bolts following the directions on page 5. Then install (8) Wood Dowels (Part FF) in ends of the rails and Shelf as shown.
  • Page 8 STEP #3 DD.70mm Bolt x3 BB. Crescent Washer x3 GG. 30mm Bolt x2 Carefully align all of the Dowels with the holes in the Right Side (Part B). Attach the Right Side using (3) 70mm Bolts (Part DD) and (3) Crescent Washers (Part BB). Install and tighten the Bolts following the directions on page 5.
  • Page 9 STEP #4 FF. WOOD GG. 30mm Bolt x8 CC.50mm Bolt x4 DOWEL 30mm x4 Attached the Top Panel (Part F) to the base of the case. Ensure (4) Dowels (Part FF) from the Side are aligned properly before installing any bolt. Install (4) 50mm Bolts (Part CC) through the Back Rails, and (4) 30mm Bolts (Part GG) through the Top Front Rail, then install (4) 30mm Bolts (Part GG) through the Sides.
  • Page 10 STEP #5 EE. Washer Head Screw x30 Attach Back Panel - Upper (Part G) and Back Panel - Lower (Part T) using (30) Washer Head Screws (Part EE). Tighten with a Phillips Screwdriver.
  • Page 11 STEP #6 EE. Washer Head Screw x13 Insert The Joint Cover Rail (Part U) on the Back Panel - Lower, then insert the back Panel - Middle (Part H) into the slot of Joint Cover Using (13) Washer Head Screws (Part EE).
  • Page 12 STEP #7 FF. WOOD DD. 70mm Bolt x2 DOWEL 30mm x6 BB. Crescent Washer x2 GG. 30mm Bolt x2 DO NOT complete this step if using as a Hutch. This step is for Bookcase ONLY Attach the Front Rail (Part J) to the Book Shelf Left Side and Book Shelf Right Side (Parts R and S) using (4) Dowels (Part FF), (2) 70mm Bolts (Part DD) and (2) Crescent Washers (Part BB).
  • Page 13 STEP #8 FF. WOOD DOWEL 30mm x2 GG. 30mm Bolt x6 Attach the Book Shelf Bottom (Part N) to the base of the bookcase using (6) 30mm Bolts (Part GG) and (2) Dowels (Part FF). Tighten with the Allen Wrench.
  • Page 14 STEP #9 AA. 80mm Bolt x4 DO NOT complete this step if using as a Hutch. This step is for Bookcase ONLY. Install (4) 80mm Bolts (Part AA) through the Book Shelf Sides. Tighten all bolts with the Allen Wrench.
  • Page 15 STEP #10 HH. Shelf Support x4 Insert (4) Shelf Supports (Part HH) in to the predrilled holes in the side.
  • Page 16 STEP #11 Insert the Removable Shelf (Part K) in the Hutch and place shelf on the supports.
  • Page 17 BOOKCASE ASSEMBLY...
  • Page 18 STEP #12 KK. Metal Plate x2 EE. Washer Head Screw x8 DO NOT complete this step if assembled as a Bookcase. This step is for Hutch ONLY. Place the Hutch onto the Dresser Base Unit NOT Included - See Retail Store or Contact Delta Children's Products.
  • Page 19 STEP #13 HH. Shelf Support x4 Insert (4) Shelf Supports (Part HH) in to the predrilled holes in the side.
  • Page 20 STEP #14 Insert the Removable Shelf (Part K) in the Hutch and place shelf on the supports. DO NOT use the Removable Shelf when using base unit as a changing surface.
  • Page 21 HUTCH ASSEMBLY Dresser Base Unit NOT Included - See Retail Store or Contact Delta Children's Products...

  • Page 22: Warranty

    Consumer Care: www.DeltaChildren.com Delta Children’s Products 114 West 26th Street New York, NY 10001 Tele.212-645-9033 Warranty: This Delta product is warranted to be free from defects for a period of 90 days from the date of purchase under normal use. This warranty extends only to the original retail purchaser and is valid only when supplied with proof of purchase, or if received as a gift, when the registration is on file with Delta.
