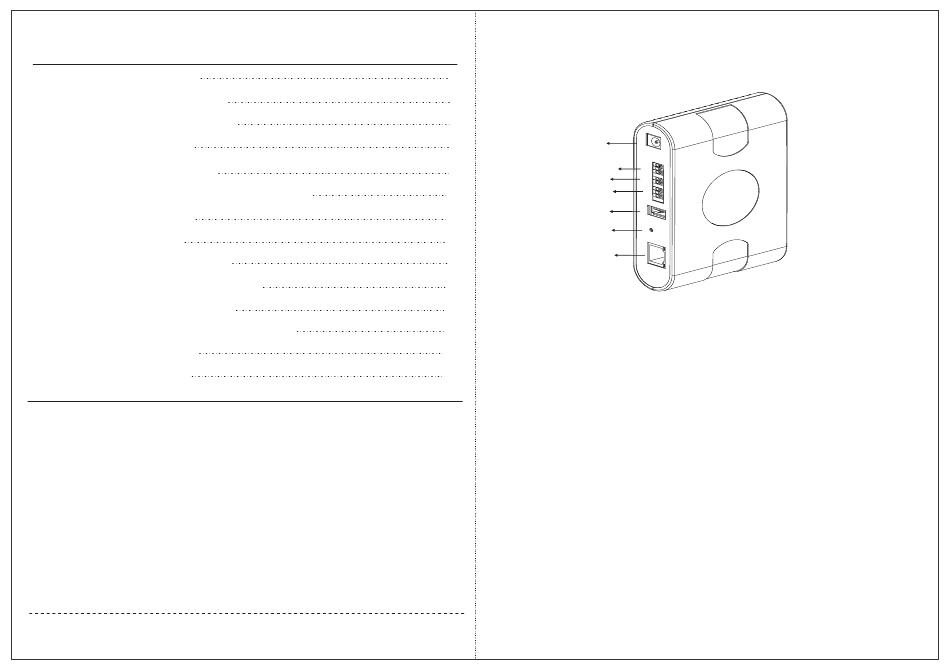

Know your Panel200

4
5
5
Power
6
AUX O/P
7
AUX I/P
RS-485
9
USB
11
Reset
12
Ethernet
13
14
15
16
17
The COSEC Panel200 communicates with COSEC server
18
via TCP/IP network connection.
The completely distributed database of COSEC Panel200
enables it to operate independently. All information
regarding cards, time zones, relay control and alarm
points are loaded into its memory.
The COSEC Panel200 connects to the COSEC Door
controllers via RS485 loop or TCP/IP network. The COSEC
Panel200 is designed to operate off-line, making access
control decisions independently.
Figure1
4
