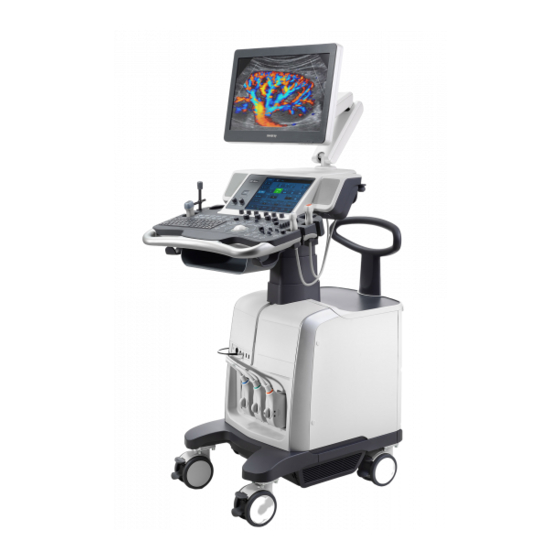

Mindray DC-8 EXP Quick Manual

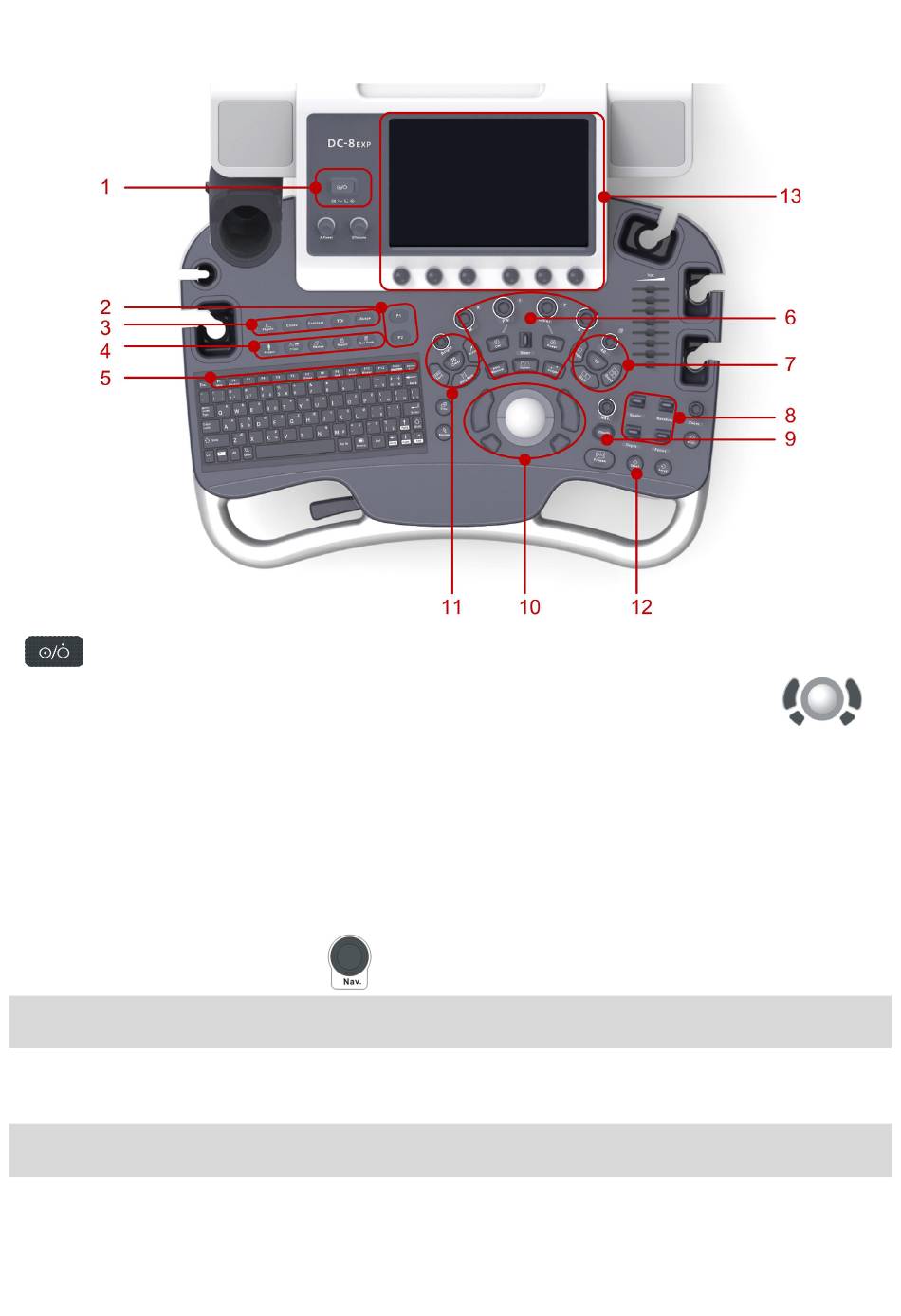

1. Power on
2. P1,P2: User-defined key
3. Advanced function key
Elasto
iScape
TDI
Contrast
4. Exam procedure
Patient: Patient information
Probe: Probe select
End Exam: End exam & start a new
patient
5. Function key on the key board（F1-F12）
iStation: Patient management
iZoom: Image enlargement

1. Getting Started

New Patient
1. Press [Patient], fill in the basic patient information via Touch screen or Keyboard.
2. Press [Probe], select probe and exam mode via Touch screen.

2. Scanning

B/M Mode

1. Adjust the interested parameters via Touch screen.
2. Rotate the [B]/ [M] knob to adjust the gains.
CDFI/Power Mode

DC-8 EXP Quick Guide

6. Imaging Mode & Measurement
Update: Initiate or Refresh M/PW/CW
image; Start/Stop image acquisition in
iScape or 3D/4D mode.
7. 3D/4D: Enter/Exit 3D/4D
8. Parameter adjustment
Depth: Depth adjustment in real-time
imaging
Zoom: Rotate to enter pan zoom;
Press to enter spot zoom.
Scale
Baseline
Focus: Change the focus position.
9. Optimize the image
iTouch: Auto optimization for B/Color/PW
Multi-functional knob
10. Control center
Trackball & Set button (The left/right
kidney shaped key)
The left& right bottom small key：Set up
beginning and ending frame in cine
loop.
11. Annotation
Body mark
Text
Clear
Arrow
12. Save image
Save 1; Save 2
13. Touch screen & Parameter knobs
1. Press [Color]/ [Power] to enter Color/Power mode.
2. Move [Trackball] to change the position of ROI.
3. Press [Set] (No.10 button), and then move [Trackball] to
change the size of ROI, press [Set].
