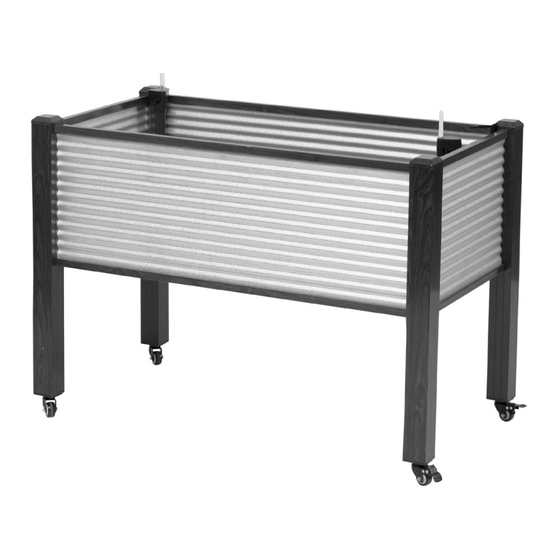

Gardener's Galvanized Elevated Raised Bed Quick Start Manual

The Galvanized Elevated Raised Bed offers the comfort of waist-high gardening with a sleek, modern look. It is built to last, easy to
use, and the self-watering reservoir ensures your plants will get all the water they need, while cutting down on your watering chores.
It's perfect for growing vegetables or creating dramatic flower displays.
Parts List
(2) Side Panels
(2) End Panels
(4) Legs
(4) Leg Caps
(4) Platform Supports
(1) Floor Support
(2) Reservoir Bases
(2) Reservoir Tops
(18) Capillary Tubes
(2) Drainage Plugs
(2) Fill Tubes and Water Level Indicators
(4) Wheels (2 with brakes, 2 without)
Caution: Metal edges may be sharp. Please be careful when assembling your planter. NOTE: Assembly is easiest with two people.
Step 1. Identify and organize all the parts on a clean, level surface. NOTE: Please notice how there are two styles of Platform Supports
that are mirror images of each other.
Step 2. Examine a Leg and notice how there are two predrilled holes near the bottom of the slots (Figure 1). Take a Platform Support
and line up the holes on it with the holes on the Leg, as shown in Figure 1. NOTE: If you are unable to line up the holes, try the
other style of Platform Support. Place Medium Screws through both sets of lined up holes and tighten them into place using a
Phillips screwdriver. Repeat to attach the remaining Platform Supports to the other three Legs.
Step 3. Attach a Side Panel to a Leg by placing the plastic knobs into the openings on the Leg and sliding the Panel down until it sits
on the bottom of the slot (Figure 2). Important: Attach the Side Panel to the slot where the Platform Support will sit against the
Panel. NOTE: You may need to use a rubber mallet to tap the Panel into place. Place a Small Screw into the hole at the top of the
slot to help keep the Panel in place. Repeat to attach a Leg to the other end of the same
Side Panel.
Step 4. Repeat Step 3 to attach Legs to the remaining Side Panel.
Step 5. Insert the plastic knobs on the End Panels into the
remaining slots on the Legs to form a rectangle. Pull
down on the Panels to make sure they are sitting at
the bottom of the slots, and insert Small Screws into
the holes at the top of the
Legs (Figure 2).
over please_
#8594274
Galvanized Elevated Raised Bed
(8) Bolts
(8) Small Screws
(24) Medium Screws
(8) Large Screws
Tools Required
Phillips screwdriver
Rubber mallet
Figure 1
Leg
slots
Platform
Support
holes
Assembly
Figure 2
knob
screw
Leg
Platform
Support
Side Panel
Floor Support
Figure 3
Side Panel
Platform
Supports
End
Panel
Legs
0944V Rev 12/16
