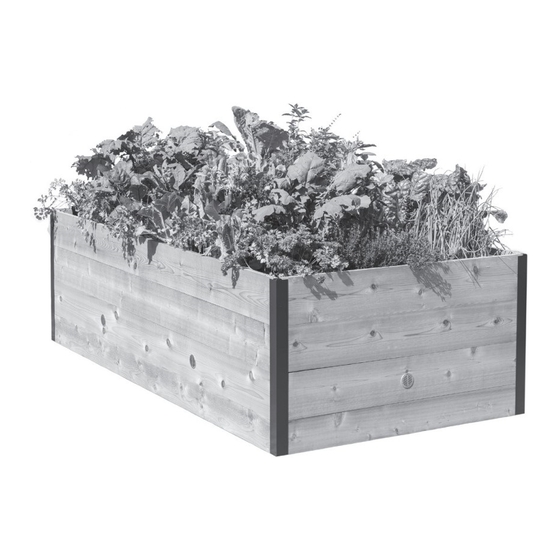

Elevated Raised Bed 4' x 8'

Parts Included

(6) 8' CEDAR BOARDS
(2) 8' CEDAR BOARDS WITH VENTS
(4) CORNERS
(2) PLATFORM SUPPORTS
(4) FLAT SUPPORTS
(2) 4' END PANELS
(3) CROSS SUPPORTS
(3) 2x4 BOARDS
(4) CORNER CAPS
(121) SCREWS
FLOOR PLANKS
FABRIC LINER

Assembly

Important: When inserting the CEDAR BOARDS and PANELS into the CORNERS, make sure
they are fully pressed inside. If there are any gaps between the wood and the CORNER then you
will have problems lining up the holes.
NOTE: Assembly is easiest with two people.
1. Identify and organize all parts on a clean, level surface. NOTE: The CEDAR BOARDS have a rough side and a smooth side. The
FLOOR PLANKS may be different widths.
2. Examine the VENTS on the CEDAR BOARDS and notice how the louvers are slanted (Fig. 1). Using Fig. 2 as a reference, lay three 8'
CEDAR BOARDS and one 8' CEDAR BOARD WITH VENTS on a flat surface, with the rough sides facing up, the VENTS facing down
and the louvers on the VENTS slanted toward the bottom of the Panel. Line up the ends of the BOARDS and press them tightly
together. NOTE: We recommend using a clamp or having another person hold them firmly together.
3. Slide a CORNER onto the ends of the CEDAR BOARDS, positioning it so the holes in the CORNER match Fig. 2. NOTE: The top
CEDAR BOARD should sit 1/8" above the top of the CORNER. Make sure the BOARDS are tight together and are fully seated in
the CORNER, then use your screw gun to insert SCREWS through the holes, skipping the 4th hole from the top. Repeat to attach
another CORNER onto the other side of the CEDAR BOARDS.
4. Examine a PLATFORM SUPPORT to find the side with 4 holes. Using the assembled 4' END PANEL as a reference, line up the holes
in the ends of the SUPPORT with the open holes in the CORNERS (Fig.2 & 3). Insert a SCREW into both sets of holes.
5. Again using Fig.2 and the assembled END PANEL as references, place the FLAT SUPPORTS underneath the PLATFORM SUPPORT.
Line up with the 4th from the top holes in the FLAT SUPPORTS with the holes in the PLATFORM SUPPORT and make sure they are
straight. Secure the FLAT SUPPORTS into place by inserting SCREWS through all of the holes.

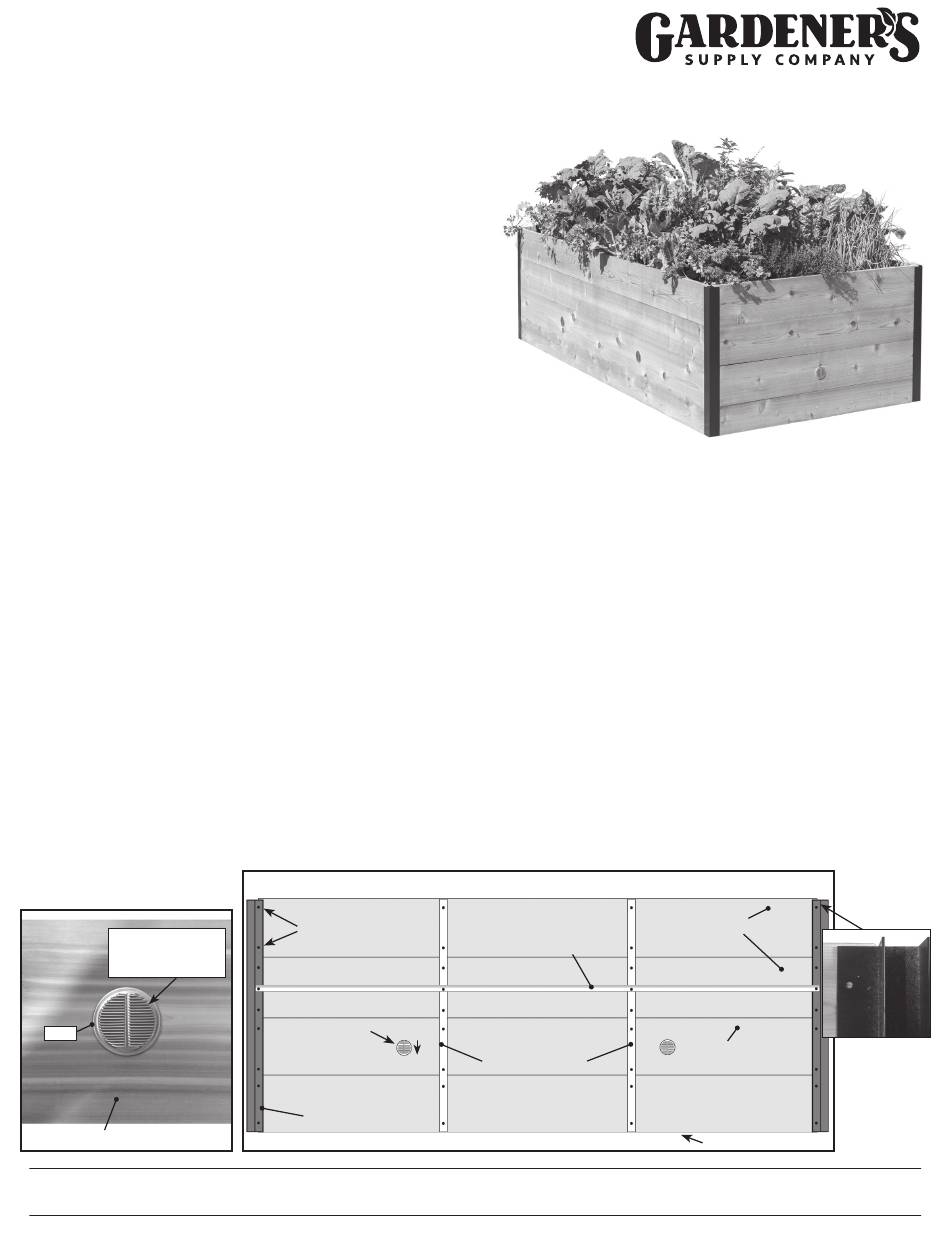

Figure 1
louvres should be
slanted downward
to shed water
vent
8' CEDAR BOARD WITH VENTS
#8599866

Tools Needed

Screw gun or Drill with #2 Phillips bit
Phillips screwdriver
Rubber mallet or hammer
Tape Measure
Figure 2: 8' Side Panel
holes
back of the Vent
with the louvers
slanted down
CORNER
8% of our profits
Learn more at gardeners.com/
PLATFORM SUPPORT
FLAT SUPPORTS
go back to our communities.
FoRCE-FoR-GoOD
1-800-876-5520 • gardeners.com
info@gardeners.com
8' CEDAR BOARDS
(rough sides)
8' CEDAR BOARD
WITH VENTS
bottom of the Panel
over please
The top CEDAR
BOARD should
sit 1/8" above
the top of the
Corners.
1350S Rev 12/19
