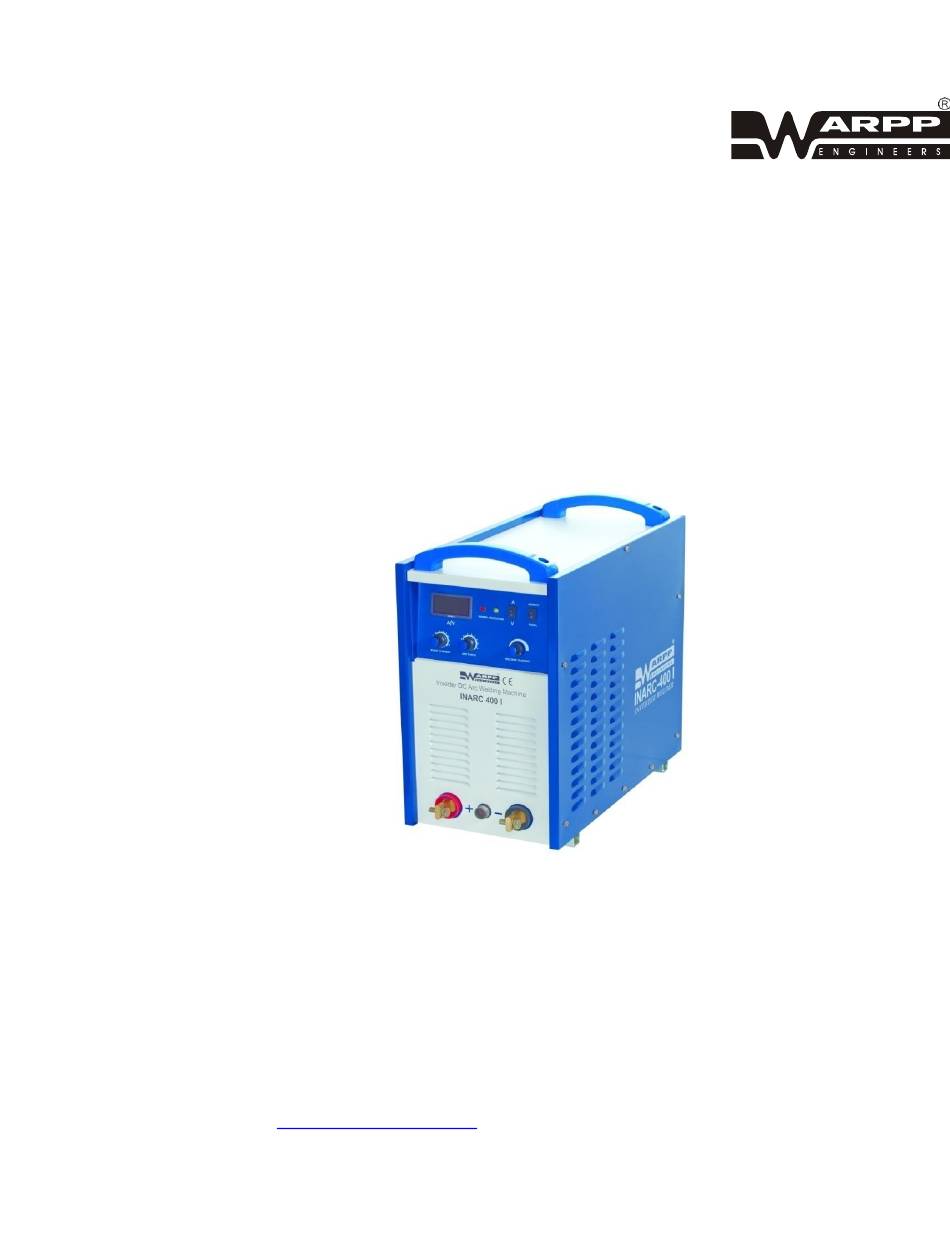

User's Manual
INARC – 400 I / 630 I
Inverter Based Arc Welding Machines
WARPP ENGINERERS PVT.LTD.
Survey No. 36, House No. 15/3,Unique Industrial Estate
Dhumal Nagar Vasai (East) Distt. Palghar (Maharashtra) INDIA –
PIN -401208
Tel : 8551817744 / 8551819944 / 8551817868 - 69 / 8551812002
Customer Care Tel : 8080808734
Email :
service@warpp.co.in
. Website : www.warpp.co.in
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INARC-400 I and is the answer not in the manual?

Questions and answers

Related Manuals for WARPP INARC-400 I

Summary of Contents for WARPP INARC-400 I

  • Page 1 Survey No. 36, House No. 15/3,Unique Industrial Estate Dhumal Nagar Vasai (East) Distt. Palghar (Maharashtra) INDIA – PIN -401208 Tel : 8551817744 / 8551819944 / 8551817868 - 69 / 8551812002 Customer Care Tel : 8080808734 Email : service@warpp.co.in . Website : www.warpp.co.in...
  • Page 2 Caution :Before attempting to connect the equipment to any Power source,read instructions carefully. In case any defect or deficiency, contact “WARPP ENGINEERS PVT.LTD.” or its authorized Agent. Make sure to quote model number and serial number of the equipment in all correspondence.
  • Page 3 INDEX 1. Safety Precautions 2. Product Description & Features 3. Working Condition & Environment Required 4. Technical Specification 5. Working Principle 6. Installation 7. Controls 8. Parameters & its operational meaning 9. How to operate the machine 10. Do’s & Don’ts 11.

  • Page 4: Safety Precautions

    1. Safety Precautions General safety precaution :  Please strictly comply with rules defined in this manual to avoid unexpected accidents  How to connect to power supply, select working area and use pressure gas, please comply with proper rules ...
  • Page 5  Don’t weld in the flammable gas or weld container which contains flammable material, otherwise it can cause explode.  Don’t weld encapsulated container, otherwise it can cause break.  Ensuring a fire extinguisher at hand in case fire break out. Avoid being hurt by moving parts : ...

  • Page 6: Product Description & Features

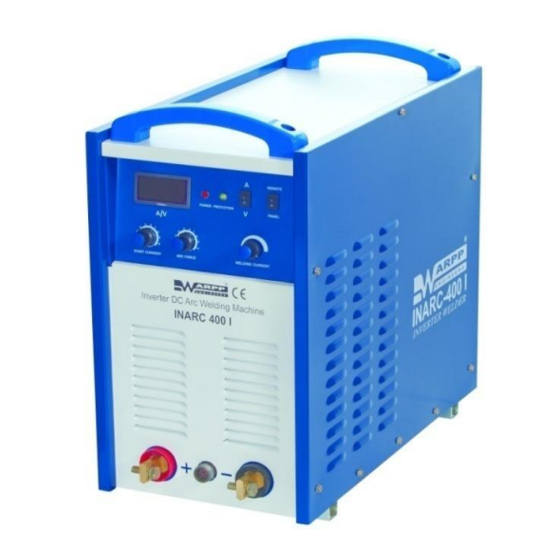

    2. Product Description & Features This Series Inverter Arc welding machines is meant for Shielded Metal Arc Welding (SMAW) only having rated current of 400 Amps & 630 Amps. Which are novelty high-efficient and energy-saving DC Arc machines, not only are used in carbon steel, but also for stainless steel with its sound static and dynamic characteristic.
  • Page 7 3. Working Condition & Environment Required 1) Please note that this equipment to be installed in a clean place free from dirt & moisture 2) Avoid direct exposure to sunlight 3) Care should be taken to see that it is not exposed to rain 4) Whenever the machine to be used at a site make sure proper shade is provided for the machine 5) Do not keep the machine near oven, furnace where temperature may be higher and it can affect the performance of the machine...
  • Page 8 page for this) If the machine is a single phase machine then each KVA would require around 4.6 Amps of current. That means if input KVA of the machine is 5 KVA, then it would draw 23 Amps at full load If the machine is a three phase machine then each KVA would require around 1.4 Amps of current.
  • Page 9 4. Technical Specification Parameters Description INARC 400 I INARC 630 I Primary power voltage/frequency 3 phase 400V ±10% / 50Hz Rated Input Power 18.4 KVA 35KVA Rated input current Rated duty cycle Range of output current 20～400A 30～630A 75 – 85 VDC Open Circuit Voltage (OCV) Full-load efficiency Power factor（at full-load）...

  • Page 10: Block Diagram

    5. Working Principle Block Diagram These power sources are used for various types of welding and they are based on IGBT inverter Technology. In these types of machines input supply is first converted in to DC by a rectifier circuit. The rectified voltage is then filtered and fed to an inverter section.
  • Page 11 Block diagram with waveforms at different stages is given below for reference : Different types of power sources are available for welding and most commonly used are as under Constant current (CC) power source Constant Voltage (CV) power source CC/CV power source Please refer to the below chart for process-wise recommended power source types Process Power source type...
  • Page 12 Constant Current (CC) type power source Constant current characteristics is also called as drooping characteristics. Typical V/I curve of such power source is shown below. Here the current remains stable even if the arc length varies. When there is change in arc length, change in the voltage is more when compared to change in current and hence they are called constant current type power source Relationship between the voltage and current for different process in CC type power source is as under...
  • Page 13 Relationship between the voltage and current for different process in CV type power source is as under GMAW: V = I * 0.05 + 14 FCAW: V = I * 0.05 + 18 Note: Some power source have both CC and CV characteristics. The explanation given above is general and the capability of the machines depends on the model number of the machine purchased by you.

  • Page 14: Installation

    6. Installation Installation : 1. Place the welding machine in the room where there is no straight sunlight, no rain, less dust, low humidity ,and temperature range of 0° - 50°C. 2. The gradient of ground must not be more than 15° 3.
  • Page 15 INSTALLATION DIAGRAM OF INARC 400 I...
  • Page 16 7. Controls Front panel Details : A/V Meter (Display) : It displays the output current or arc voltage during welding or OCV if not welding Power LED : This indicator will on as soon as MCB of the machine is switched on Protection LED : This LED will on if there is problem in the machine 4.

  • Page 17: Rear Panel

    7. 7 Pin Connector : This is socket for remote control. it is optional accessories. 8. - Ve Terminal : This terminal is provided to connect the holder cable 9. + Terminal : This terminal is provided to connect the earthing cable connected to be job.
  • Page 18 8. Parameters & its Operational meaning Shielded Manual Metal Arc Welding (SMAW) or Electric Welding can be done by this Power Source. TIG welding process can be done by lift arc or scratch arc process. Welding parameters can be adjusted with the help of various pots available on the front panel. a) WELDING CURRENT : Welding current of the welding process can adjusted with Welding current pot Pot as per below chart : Table 1 SMAW welding parameters...
  • Page 19 9. How to operate the machine 1. Switch on the main switch for input supply provided for the machine 2. Switch on the MCB of the machine provided on the rear side of the machine 3. Set the output current as per required welding rod from panel or through remote 4.
  • Page 20 10. Do’s & Don’ts Do’s Don’ts Don’t keep any foreign material or plate on the Clean the machine with compressed air @ < 3 Kg/Cm2 top cover of the machine Use proper polarity & current Never use the higher current than recommended Use proper welding cable size Never use long cable if not required Never use long arc...

  • Page 21: Troubleshooting

    11. Trouble Shooting 11. Trouble Shooting S.NO. Trouble Probable Cause Remedy MCB is on but welding 1) Check for 3 phase is not starting 1) Check and supply ensure 2) Check & replace 2) MCB faulty 3) Check & replace 4) Check &...
  • Page 22 12. Wiring Diagram...
  • Page 23 13. Maintenance In principle, Machine’s maintenance and repair should be completed by us or our authorized distributors. Customers can also solve the problems instructed by us or our authorized distributors. 1. Periodic inspection and maintenance : Remove dust from power resource with compressed air by our authorized maintainer every 3- 4 months.
  • Page 24 Spare Part List Description Part Code Model INARC 400 I INARC 630I AC CAPACITOR SP00173 SP00173 CONTROL TRANSFORMER SP00899 SP00899 DIGITAL DISPLAY METER SP01103 SP01103 DRIVE CARD SP01229 SP01229 DC CAPACITOR SP01065 SP01065 SP01321 SP01319 FAN CAPACITOR CAP05 CAP05 IGBT SP01871 SP01868 INPUT SURGE SUPPRESSOR...

  • Page 25: Side View (Left)

    SPARE PARTS IN DETAILS : TOP VIEW SIDE VIEW (LEFT)

  • Page 26: Side View (Right)

    SIDE VIEW (RIGHT) FRONT VIEW – 1...
  • Page 27 FRONT VIEW – 2 *************...
