WARPP INMIG 250 IH Operating Manual

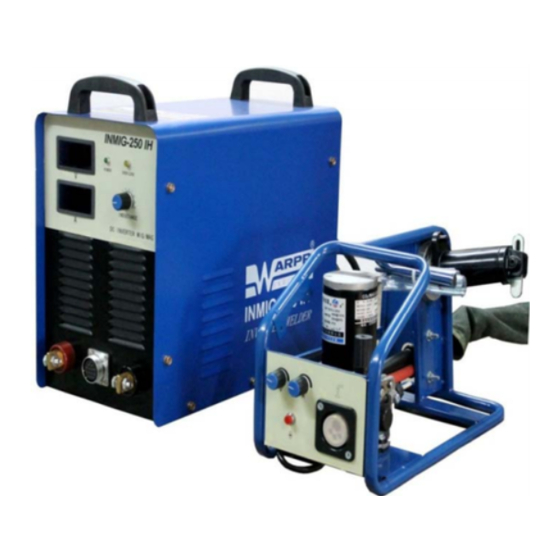

Inverter gas shielded mig welding machine
Hide thumbs

Advertisement

Quick Links

Download this manual
INVERTER GAS SHIELDED
MIG WELDING MACHINE
OPERATION MANUAL
WARPP ENGINEERS PVT. LTD.
B-1005, Western Edge II, Near Metro Mall, Off. Western
Express Highway, Borivali (E), Mumbai-400 066.
Tel:022-28542272 / 73/74 Fax:022-28542275.
Website:www.warpp.co.in Email:sales@warpp.co.in

Advertisement

loading
Need help?

Need help?

Do you have a question about the INMIG 250 IH and is the answer not in the manual?

Questions and answers

Related Manuals for WARPP INMIG 250 IH

Summary of Contents for WARPP INMIG 250 IH

  • Page 1 INVERTER GAS SHIELDED MIG WELDING MACHINE OPERATION MANUAL WARPP ENGINEERS PVT. LTD. B-1005, Western Edge II, Near Metro Mall, Off. Western Express Highway, Borivali (E), Mumbai-400 066. Tel:022-28542272 / 73/74 Fax:022-28542275. Website:www.warpp.co.in Email:sales@warpp.co.in...

  • Page 2: Table Of Contents

    CONTENTS Safe item......................(3) Brief of product....................(4) Properties..................... (5) Assemble.......................(6) Operation ...................... (8) Welding parameter checking list..............(10) Attention ...................... (11) Maintain ...................... (13) Regular check....................(14) Spare Part list....................(15)

  • Page 3: Safe Item

    Safe Item Please do the best safeguard when operator does the welding work, welding work will be bringing the harm to you and others. Regarding the detailed information regarding the accident when welding, please check the manual carefully. There is necessary to have a train for the welding work operator, in order to use this machine safely.

  • Page 4: Properties

    Product Brief INMIG IH gas shielded welding machine is the inverter welding machine with the international advanced inverter technology. The general principle of it is to make the 50Hz/60Hz AC current into DC current, and make the DC current into high frequency AC current basing on the high power electronic element IGBT, whose frequency could be 20KHZ, reducing voltage and rectification Character:...
  • Page 5 Parameter Parameter INMIG 250 IH Input power Three phases 380V +/-15% 50/60 HZ Input current （A） Power capacity (KVA) Current adjustment range (A) 50-250 Output voltage (V) 15-29 Duty cycle (%) Power factor 0.85 Efficiency (%) No Load Voltage Wire feeder model...

  • Page 6: Assemble

    Assemble Wire connection...
  • Page 7 1. input wire connection There is a power wire for each machine. 180/200’s power wire should be connecting to AC 220V; 250’s power wire should be connecting to AC 220V, there is no phase order for three wires . 2. output wire connection Please connect the gas cylinder which is with the gas gauge to the CO2 enter door at the rear of machine through gas tube.

  • Page 8: Operation

    Gas cylinder assemble Please connect the gas cylinder which is with the gas gauge to the CO2 enter door at the rear of machine through gas tube，and fasten it by gas tube lock Please pay attention: 1. Please keep the gas cylinder far from high temperature area, and all possible high temperature places, in order to avoid increasing the gas pressure for accident.
  • Page 9 CO2 welding current and voltage scope Welding wire Short cut transition submarine-launched transition diameter (mm) Current (A) Voltage (V) Current (A) Voltage (V) 40-70 17-19 160-400 25-28 60-100 18-19 200-500 26-40 80-120 18-21 200-600 27-40 100-150 19-23 300-700 28-42 140-200 20-24 500-800 32-44...
  • Page 12 1. Environment The welding operation shall be operated in a relatively dry environment, and the air humidity should not exceed 90 percent. (2) The ambient temperature should be between -10 and 40 . (3) Do not weld under the sunlight or in the rain, and do not let water or rain go into welding machine.
  • Page 13 (4) There is one grounding screw on the back of every welder with the grounding mark. Before use, selecting one cable with the cross section of more than 4mm 2 , connect the shell of welding machine to ground to discharge electrostatic or avoid possible accidents due to current leakage.

  • Page 14: Attention

    The repairing principle of the welding machine should be made by our company and the user can solve the problems met in using it under the direction of our company. 1. Issues to pay attention It should rivet the tag of equipment number on the shut of the casing, or the inner elements might be damaged.
  • Page 15 FRONT VIEW Digital Display Meter Voltage (DSP001) Digital Display Meter Current 10K Potentiometer (DSP001) for Inductance (POT004) (POT004) O tp t Connector Output Connector EURO Type with Strip (OCN-EURO-S) 13 Pin Connector Panel Mounted Female (CON13PM F) (CON13PM-F)
  • Page 16 REAR VIEW Fan (FAN007) (FAN007) Shunt (SHUNT- S-300-75) S-300-75) Snubber Card (PCB-SNB-B39) MOV (MOV001) IGBT (IGBT5012)
  • Page 17 LEFT VIEW Main Transformer (MTAX-B08) Output Rectifier Card Control Transformer (PCB-OUT-FRM001) (CTRAX-B39)
  • Page 18 TOP VIEW Drive Card Main PCB Capacitor Board (PCB-DRV-04) (PCB-MIG-250 IH) (PCB-CP-250 IH) Input Bridge Module with Surge Suppressor Board (PCB-IB-01)
  • Page 19 BACK VIEW Fuse Holder MCB (MCB001)

  • Page 20: Spare Part List

    SPARE PART LIST INMIG 250 IH DESCRIPTION Part Code MAIN PCB PCB-MIG-250 IH DRIVE CARD PCB-DRV-04 IGBT IGBT5012 INPUT BRIDGE MODULE WITH SURGE PCB-IB-01 SUPRESSOR BOARD OUTPUT RECTIFIER MODULE CARD PCB-OUT-FRM001 FAN007 CAPACITOR BOARD PCB-CP-250 IH SNUBBER CARD PCB-SNB-B39 MCB001...
