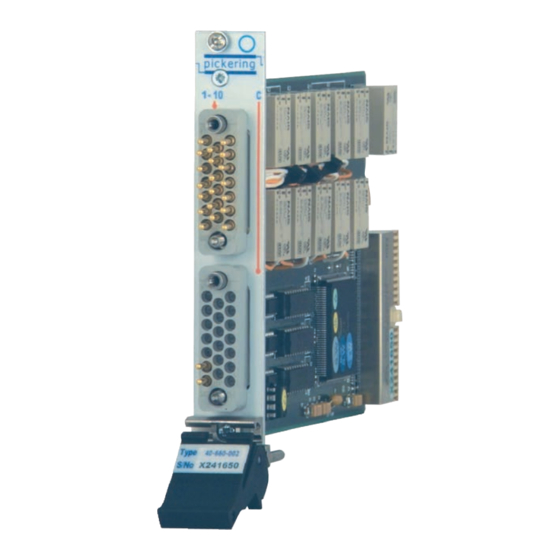

PXI Power Multiplexer
• 10-Channel Power MUX, 1 or 2-Pole
• High Density 18-Channel Power MUX, 1-Pole
• 10A Current Rating (1-Pole Versions),
8A Current Rating (2-Pole Version)
• Hot Switch to 125VDC/250VAC, Cold Switch to
400VDC/250VAC
• VISA, IVI & Kernel Drivers Supplied for Windows
• Supported by PXI or LXI Chassis
• 3 Year Warranty
Pickering Interfaces have a range of power switching PXI modules,
available in relay, matrix or multiplexer configurations.
The 40-660A is a 10-channel power multiplexer, suitable for
switching inductive/capacitive loads up to 10A at 250VAC. It is
available in 1-pole (10A) or 2-pole (8A) versions.
The 40-665A is a higher density 18-channel power multiplexer with the
same specification as the 1-pole 40-660A.
The 40-660A/665A can be operated as conventional multiplexers
with break-before-make action when a new channel is selected.
Alternatively, product variants can be supplied that allow multiple
channels to be simultaneously selected.
The 40-660A/665A channel selection configurations have been
revised from the 40-660/665. The 40-660A/665A modules default
to single channel selection with multiple channel selection variants
defined by use of a suffix.
Com
10-Channel 1-Pole Power
Multiplexer 40-660A-001
1
2
Com1
Com2
3
4
5
6
7
8
9
10
10-Channel 2-Pole Power
Multiplexer 40-660A-002
Power multiplexer modules can be used for switching heavy AC or
DC loads or for slave switching large external relays, contactors
and solenoids. Mating connectors are supplied with all versions.
1.1
1.2
2.1
2.2
3.1
3.2
4.1
4.2
5.1
5.2
Com
6.1
6.2
7.1
7.2
8.1
8.2
9.1
9.2
10.1
10.2
18-Channel High Density Power
Multiplexer 40-665A-001
40-660A/665A
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
pickeringtest.com
Advertisement
Related Manuals for Pickering 40-660A-001
Summary of Contents for Pickering 40-660A-001
- Page 1 • VISA, IVI & Kernel Drivers Supplied for Windows • Supported by PXI or LXI Chassis • 3 Year Warranty Pickering Interfaces have a range of power switching PXI modules, available in relay, matrix or multiplexer configurations. The 40-660A is a 10-channel power multiplexer, suitable for switching inductive/capacitive loads up to 10A at 250VAC.
-
Page 2: Specifications
Connectors PXI bus via 32-bit P1/J1 backplane connector. 30VDC / 250VAC Resistive Front panel signal connectors: • 40-660A-001 - 20-pin male GMCT • 40-660A-002 - 2 x 20-pin male GMCT 30VDC / 250VAC Inductive • 40-665A-001 - 20-pin male GMCT For pin outs please refer to the operating manual. -
Page 3: Specifications & Ordering Information
The module is compliant with the PXI Specification 2.2. Local Bus, Product Customization Trigger Bus and Star Trigger are not implemented. Pickering PXI modules are designed and manufactured on our own Uses a 33MHz 32-bit backplane interface. flexible manufacturing lines, giving complete product control and enabling simple customization to meet very specific requirements. - Page 4 We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families with 1200+ products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks. All assemblies are manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules. Connectors & Backshells...
- Page 5 Power Multiplexer – 40-660A/665A Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os The VISA driver is also compatible with Real-Time Operating Systems such as LabVIEW RT.
