- Page 1 Phono-Pre-Amplifier for MC / MM User's Manual...
- Page 2 § your phono pre-amplifier Audionet ‘PAM V2’ § the owner's manual (you are reading right now) § one standard power cord Transport Please transport your ‘PAM V2’ only inside the provided package. Use the plastic bag to prevent scratches on the housing.

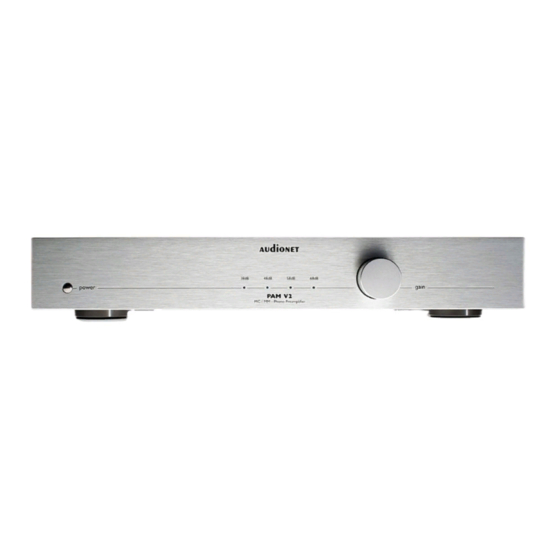

- Page 3 Overview The Audionet ‘PAM V2’ is designed in reference to the principles of the Audionet amplifier technology to use their advantages. In the following you will find listed the design features of the ‘PAM V2’. The base of the unit is the 2mm steel chassis to protect the circuitry and electronic components from high frequency electromagnetic fields.
- Page 4 Please do not put the ‘PAM V2’ directly side by side to a loudspeaker or into the corner of the room as there is to be found the highest acoustical energy. Also avoid proximity of power amplifiers and mains filters.
- Page 5 C/Rext for additional resistors or capacitors to adjust to the electrical characteristics of the pick-up. Base capacity of the ‘PAM V2’ is 150pF. The gold plated screw (GND) is for connecting the turn table ground.
- Page 6 ‘high output MC’ systems mostly will work properly with 48dB gain. Please try out individual setting for your pick-up. A knob labeled ‘input imp.’ is to be found at the back of the ‘PAM V2’ for selecting the terminating resistance to your pick-up. Please select carefully.
- Page 7 Further adjustments Adjusting capacity In case of insufficient base capacity of C = 150pF (pico farads) an addi- tional high quality miniature capacitor C can be connected to the input labeled using a cinch plug to increase input capacity. Both capaci- C/Rext ties will be added simply.
- Page 8 100 VA toroidal transformer, shielded, 40.000mF capacity Class A output stage DC-free outputs FET inputs, no bias current audionet GmbH Brundbütteler Damm 140 B 13581 Berlin, Germany www.audionet.de Errors and omissions excepted. Specifications and contakt@audionet.de...
