OPERATING YOUR REFRIGERATOR

This Refrigerator series comes with one of the best quality controller branded CAREL. Before using your Refrigerator, please read this instruction

carefully .

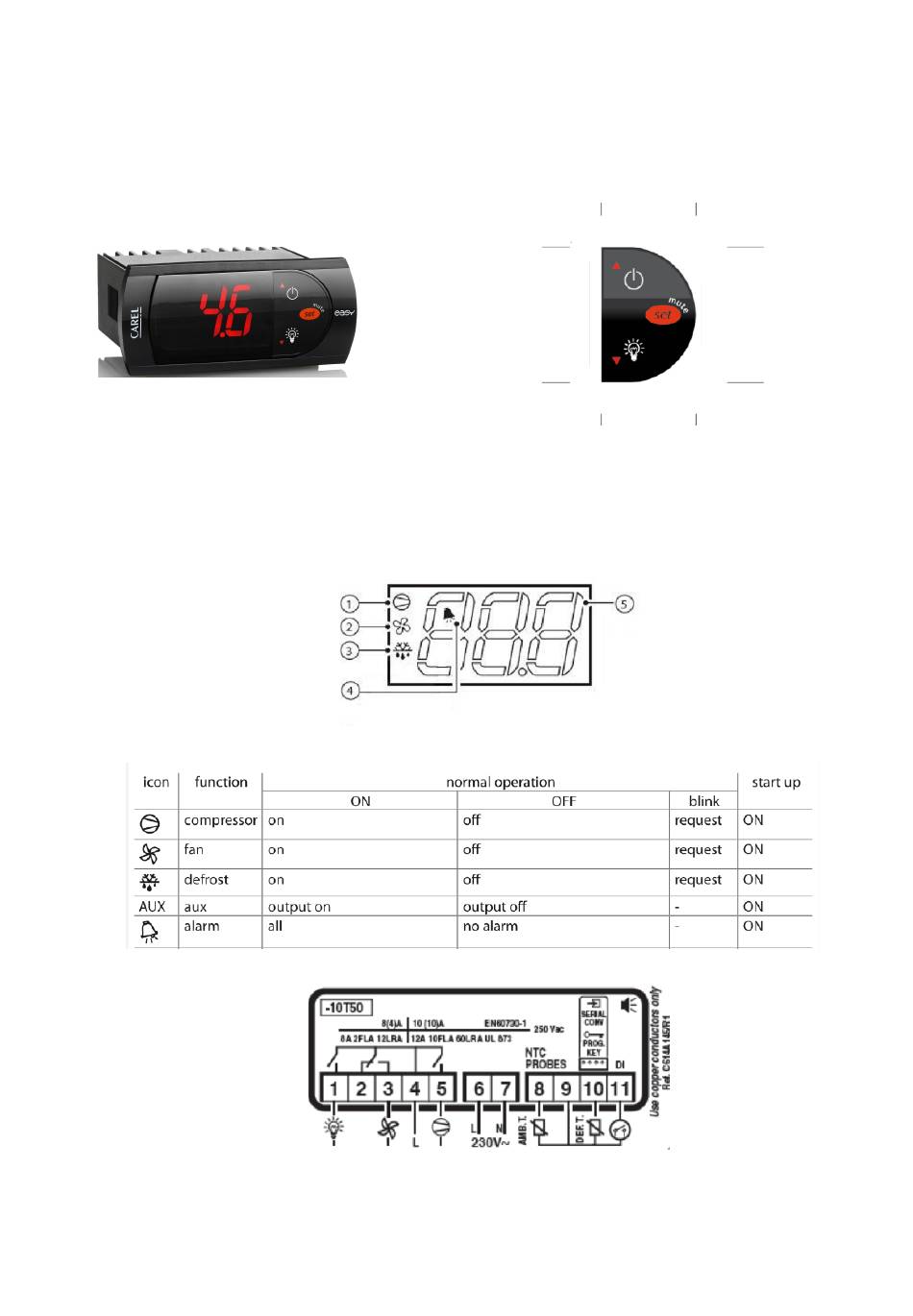

KEYBOARD :

• UP/POWER: Increase the value; pushing the keypad at least 3 seconds, power ON or OFF.

• DOWN/LIGHT: decrease the value; pushing at lest 0.5 seconds the keypad, the light status will be toggled.

• SET/MUTE: alarm mute, choose parameter, and save temporary the modiﬁed parameter.

DISPLAY:

LEDS AND ASSOCIATED FUNCTIONS:

WIRING DIAGRAM:

COMPRESSOR

FAN

DEFROST

ALARM

OPERATION

UP / POWER

DOWN / LIGHT

FIGURE

SET / MUTE

Page 1 OPERATION OPERATING YOUR REFRIGERATOR This Refrigerator series comes with one of the best quality controller branded CAREL. Before using your Refrigerator, please read this instruction carefully . UP / POWER SET / MUTE DOWN / LIGHT KEYBOARD : • UP/POWER: Increase the value; pushing the keypad at least 3 seconds, power ON or OFF.
Page 2 3. Press SET / MUTE” button to save the setting. If no buttons is pressed for 5 seconds, the changes of setting is saved and the DISPLAY will show the actual temperature. Video: Carel Controller Temperature Setting MODIFYING THE PARAMETERS WARNINGS: Running this procedure overwrites any custom parameter settings.
Page 3 OPERATION TABLE OF PARAMETERS CODE DESCRIPTION DEFAULT password PROBE PARAMETERS probe measurement stability select probe/input displayed ( /4=1, display air probe; /4=2, display evaporator probe; /4=3, display the status of LED ﬁgure ON or OFF) select °C/°F (0= °C; 1= °F ) disable decimal point (°C/°F) / 10 probe 1 offset...
Page 4 OPERATION TABLE OF ALARMS Congratulations and thank you for choosing our Important safety instructions ... . . 3 refrigerator/freezer. We are sure you will ﬁnd your new Bar refrigerator with ice box features ..4 appliance a pleasure to use.
