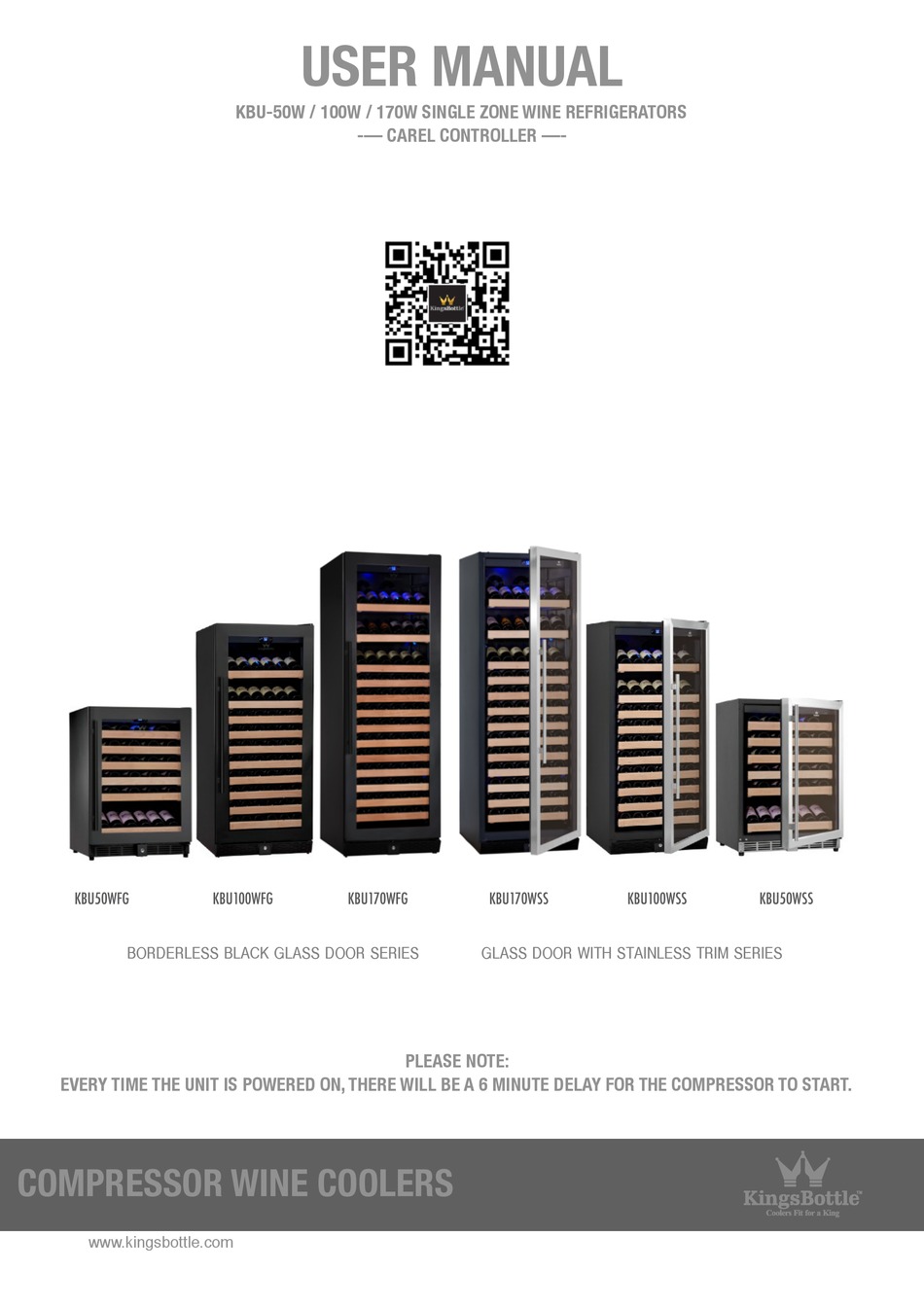

USER MANUAL
KBU-50W / 100W / 170W SINGLE ZONE WINE REFRIGERATORS
-— CAREL CONTROLLER —-
KBU50WFG
KBU100WFG
KBU170WFG
KBU170WSS
KBU100WSS
KBU50WSS
BORDERLESS BLACK GLASS DOOR SERIES
GLASS DOOR WITH STAINLESS TRIM SERIES
PLEASE NOTE:
EVERY TIME THE UNIT IS POWERED ON, THERE WILL BE A 6 MINUTE DELAY FOR THE COMPRESSOR TO START.
!
COMPRESSOR WINE COOLERS
www.kingsbottle.com
