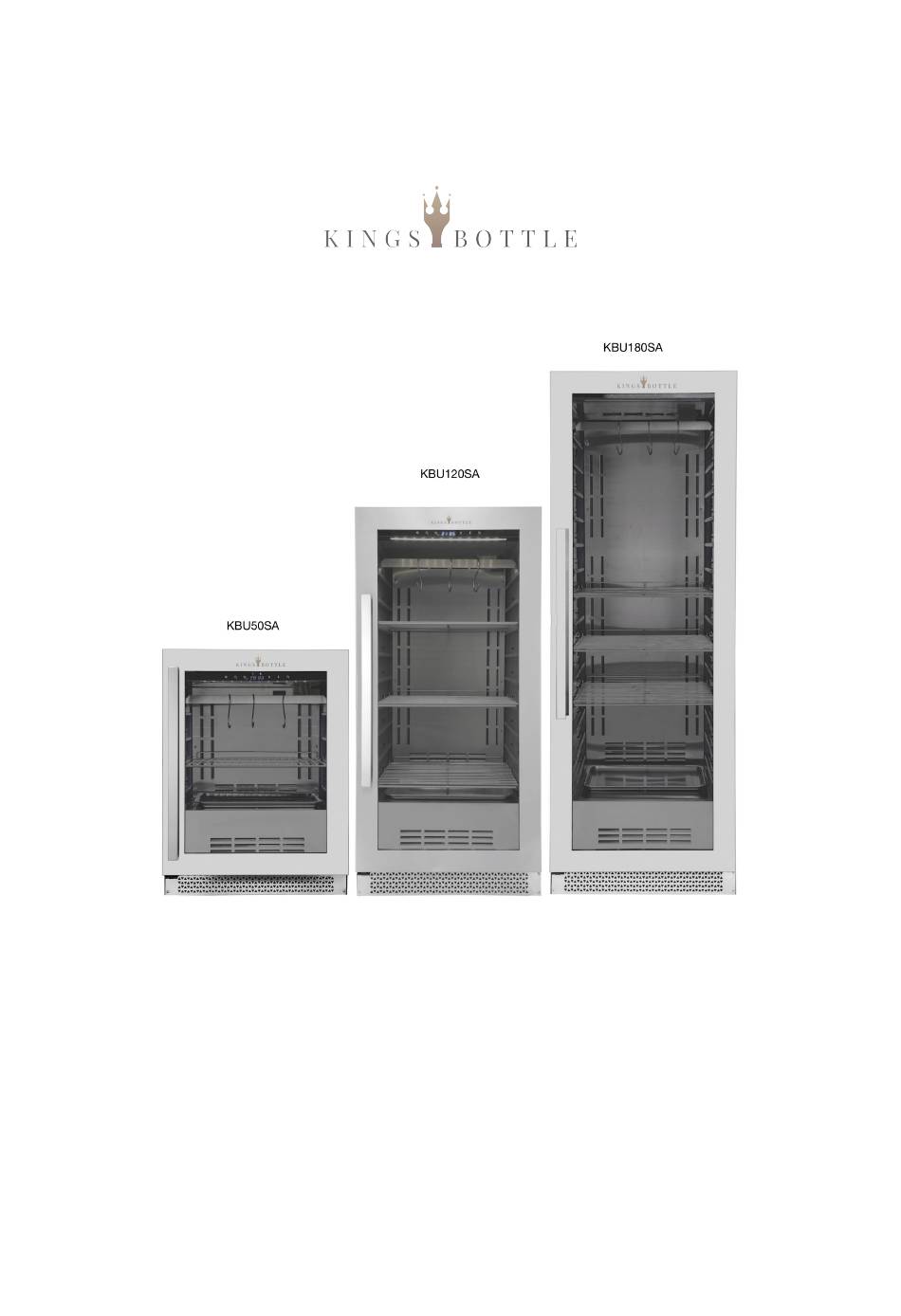

USER MANUAL
KBU-50 / 180SA STEAK AGER FRIDGE
KBU50SA
KBU120SA
KBU180SA
(The model number in Australia is KB instead of KBU)
Thank you for purchasing our steak ager fridge. We hope that our advanced products will give
your meat a different and pleasant taste. Before use, please read and follow all safety rules and
operating instructions.
1
Advertisement
Table of Contents
Related Manuals for KingsBottle KBU50SA
Summary of Contents for KingsBottle KBU50SA
- Page 1 USER MANUAL KBU-50 / 180SA STEAK AGER FRIDGE KBU50SA KBU120SA KBU180SA (The model number in Australia is KB instead of KBU) Thank you for purchasing our steak ager fridge. We hope that our advanced products will give your meat a different and pleasant taste. Before use, please read and follow all safety rules and...
- Page 2 WARNING THE INFORMATION IN THIS DOCUMENT IS SUBJECT TO MODIFICATION WITHOUT ANY PRIOR NOTICE. SOME MODELS ARE AVAILABLE IN DEDICATED COUNTRIES ONLY. No guarantee is provided if the Aged Steak is used for anything other than it was specifically designed. We are not responsible for any errors in this manual. We are not responsible for any spoilage or damage to steak or any other potentially damaged meat or any other contents.
- Page 3 • Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. • Opening the door for long periods can cause a significant increase of the temperature in the co mpartments of the appliance. • Clean regularly surfaces that can keep the water tank system and food in contact with contami nation. • If the product is used before power on, clean the water tank; it is recommended to clean the wa ter tank every 5 days. • This product is not suitable for storing frozen food. • If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and le ave the door open to prevent mould developing within the appliance. • If there are two or more different kinds of meat, before putting the food in the refrigerator, you n eed to pack it in a bag to avoid contamination caused by the two kinds of meat. This product is only suitable for pork and beef, other meats are not allowed. • If there is liquid flowing out of the meat, it needs to be packed in a bag to avoid the problem tha t the product design structure is not easy to clean. R600a WARNINGS For your safety observe the following recommendations. • This appliance contains a small quantity of R600a refrigerant which is environmentally friendly, but flammable. ...
- Page 4 IT IS HAZARDOUS FOR ANYONE OTHER THAN AN AUTHORISED SERVICE PERSON TO CARRY OUT SERVICING OR REPAIRS TO THIS APPLIANCE. WARNING : Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
-
Page 5: Grounding Instructions
When placed within 1 meter vicinity of the Steak Ager, they may affect the operation of the Steak Ager. NOTES: - KB50SA/KBU50SA models are built-in ONLY - KB120SA/KBU120SA, KB180SA/KBU180SA models are Both built-in and free-standing type as per the drawings thereafter. -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS FOR BUILT IN STEAK AGER: FRONT VENTING STEAK AGER ONLY. 1. “Built in” Steak Ager are front venting but are not designed to be fully integrated behind a joinery door. 2. Please follow the installation diagram when installing built-in Steak Ager. No less than the minimum installation dimension. -
Page 7: Installation Drawings
INSTALLATION DRAWINGS FOR BUILT IN STEAK AGER: UNDER BENCH FRONT VENTING STEAK AGER ONLY. Note: The appliance must be positioned so that the plug is accessible after installed. DIMENSIONAL DRAWINGS: KB50SA/KBU50SA KB120SA/KBU120SA... - Page 8 KB180SA/KBU180SA...
- Page 9 OPEN ANGLE SIZE DRAWINGS: KB50SA/KBU50SA KB120SA/KBU120SA / KB180SA/KBU180SA...
- Page 10 RADIATOR SYSTEM DESCRIPTION KB50SA/KBU50SA/KB120SA/KBU120SA/KB180SA/KBU180SA Models use side anti-dew tube and Independent cooling system. TURNING ON YOUR STEAK AGER Plug in and switch on the cellar by pressing on the power button for a few seconds. When you use the Steak Ager for the first time (or restart the Steak Ager after having it shut off for a long time), there will be a few degrees variance between the temperature you have selected and the one indicated on the LED readout.
-
Page 11: Temperature Settings
standards for such appliance. We will always do its utmost to satisfy its customers but will not retake possession of the goods due to complaints based on normal operating noise occurrences. STARTER -TIPS 1. Clean the inside of the Steak Ager with disinfectant, which shouldn’t be aggressive. 2. - Page 12 Steak Ager and the glass is such that within this temperature range, the actual temperature of the Steak Ager will only fluctuate 0.5ºC to 1ºC (1°F to 2°F). TEMPERATURE DISPLAY BOARD OPERATING INSTRUCTION: INSTRUCTIONS FOR LED PANEL OPERATION ➢ ① Function switch button: Press one time ,the window ④...
- Page 13 ➢ ⑤ Display Window: Display actual humidity ➢ ⑥ Temperature setting up button : Press one time, Temperature /Humidity will increase 1 degree Celsius / 1%RH. ➢ ⑦ Temperature setting down button : Press one time, Temperature /Humidity will decrease 1 degree Celsius / 1%RH. ➢...
- Page 14 ③ Light/Fahrenheit/Celsius Switch button： Press the light each time, the light will be ON or OFF. Press 3 seconds and display screen will be converted to Celsius or Fahrenheit degrees. ④ Setting down button： Temperature or humidity will decrease by 1°C or 1% per press. ⑤...
- Page 15 at the back of the Steak Ager, at the bottom of the compressor. The heat is transferred from the compressor and evaporates any condensation that has collected in the pan. Part of the remaining water is collected within the Steak Ager for humidity purposes. This system enables the creation of the correct humidity level inside your Steak Ager required by the natural cork to maintain a long lasting seal.
- Page 16 HUMIDIFICATION SYSTEM DESCRIPTION: This product has automatic humidification function. The humidification system is inside the fan cover. If there is no maintenance requirement, it is forbidden to open and pull out! This product has a watering reminder function. When the water tank is short of water, there will be a buzzer prompt, and the display window will display “...
-
Page 17: Reversibility Of The Door
REVERSIBILITY OF THE DOOR Warning: To avoid accidents during the process of changing the door, we recommend that you get assistance. The glass door is heavy and may cause injury if dropped. - Depending on to the model and the type of handle your Steak Ager is equipped with, you may have to reverse the door through 180 degrees. - Page 18 1. Decorative nail 2. Knife 3. Drop-proof device 4. M5 six angle 5. M5 six angle screwdriver 6. Door spindle core 7. Upper door hinge 8. Lower door hinge Door timeout alarm: If the door is open more than 5 minutes, the door alarm system will be on, the LED lights is flickering, prompt to close the door.
- Page 19 If the screws holes of the handle don't match perfectly with the holes of the door ,please use the electric drill to drill the holes of the door a bit big ( in surface side) , in order to install the handle perfectly MEAT QUALITY RECOMMENDATION The best meat recognized for Dry aging is rib-eye on the bone. It is always best to purchase from a dealer who sources their meat from a good quality abattoir. The younger the animal the better the result.
-
Page 20: Operation Anomalies
OPERATION ANOMALIES Ensure that there is power to the electrical supply plug by connecting another electrical appliance to it. Check fuse, if any. Make sure that the door is closed properly. If your Steak Ager appears to be malfunctioning, unplug it and contact your after sales service. Any intervention on the cold circuit should be performed by a refrigeration technician who should carry out an inspection of the circuit sealing system. -
Page 21: Troubleshooting Guide
TROUBLESHOOTING GUIDE Common problems may easily be solved, saving you the cost of a possible service call. Please read carefully the instruction manual and revert to troubleshooting guide chart. PROBLEM POSSIBLE CAUSE Not plugged in. Steak Ager does The appliance is turned off. not operate.
