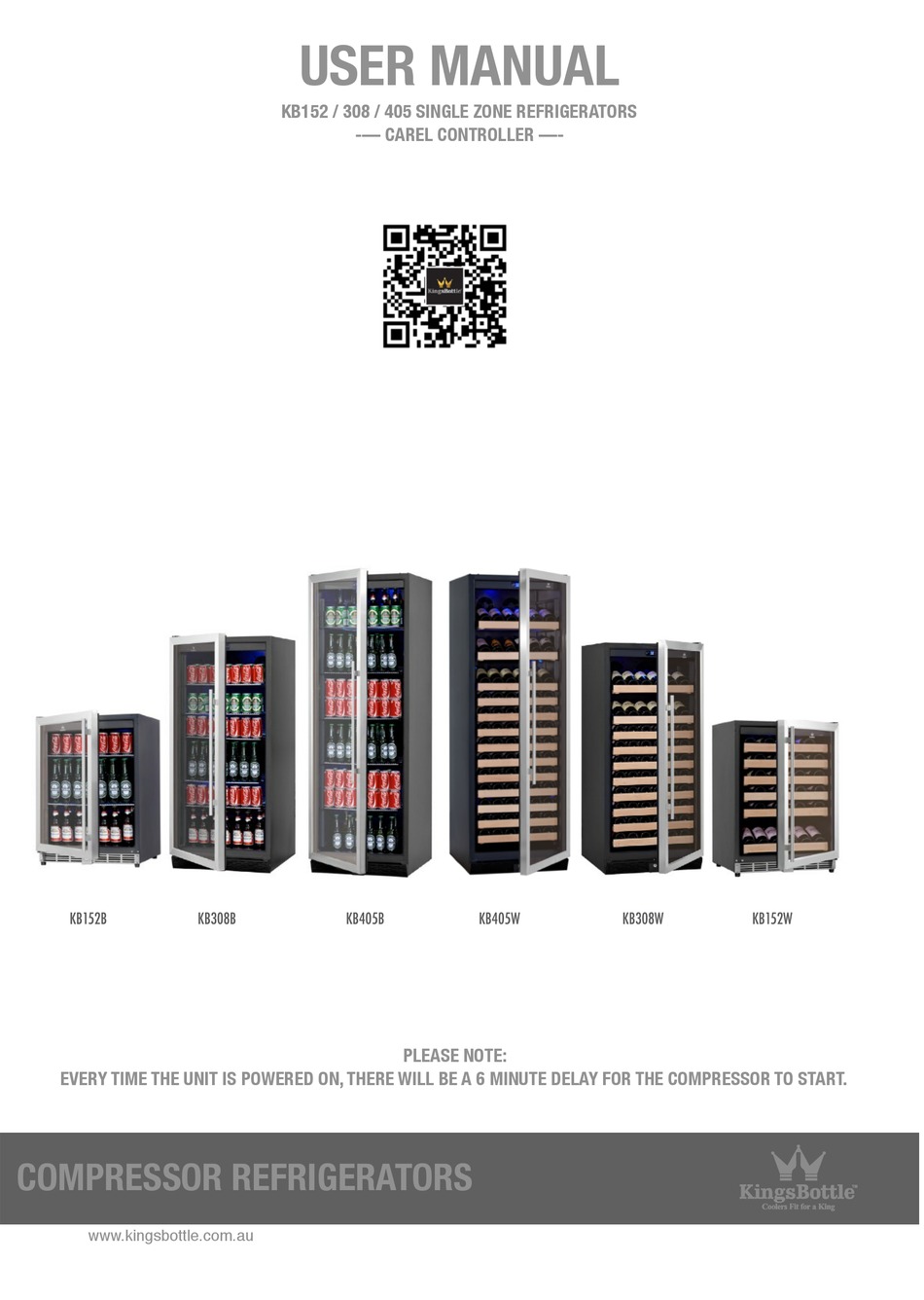

- Page 1 KB152 / 308 / 405 SINGLE ZONE REFRIGERATORS -— CAREL CONTROLLER —- KB152B KB308B KB405B KB405W KB308W KB152W PLEASE NOTE: EVERY TIME THE UNIT IS POWERED ON, THERE WILL BE A 6 MINUTE DELAY FOR THE COMPRESSOR TO START. COMPRESSOR REFRIGERATORS www.kingsbottle.com.au...
- Page 2 Congratulations Congratulations and thank you for Chapter Contents Page choosing our KingsBottle refrigerators . We are sure you will find your new Part I Important Safety & Pre-Use Instructions appliance a pleasure to use . Before installing and operating the refrigerator, Part II Diagram &...
- Page 3 When installed correctly, your refrigerator should: appliance can be found on the rating plate on the appliance. – Have adequate space at the back and sides www.kingsbottle.com.au for air circulation (refer to page 9). in the built-in structure, clear of obstruction.
-
Page 4: Diagram & Description Of Refrigerator
5 Front grill Door 3 Ventilation DC Fan 6 Door hinge Adjustable stand feet YOUR REFRIGERATOR ALSO INCLUDES TWO KEYS TO OPERATE THE ROUNDED LOCKING MECHANISM WHICH IS SHOWN AT THE LOWER CENTRE POSITION OF THE DIAGRAM. COMPRESSOR REFRIGERATORS www.kingsbottle.com.au... -
Page 5: Installation Instructions
20mm either side, behind and on top of the unit. These extra spaces enable units to be placed in the position efficiently, KB308 598 mm 685 mm 1408 mm accommodate the door when open, and without power cords being damaged. KB405 598 mm 685 mm 1821 mm www.kingsbottle.com.au... -
Page 6: Installation Instructions
(three hours for a freezer) before you put any food in it. This will confirm that it is operating correctly and make the conditions appropriate for food storage. COMPRESSOR REFRIGERATORS Congratulations! You have successfully installed your www.kingsbottle.com.au refrigerator/freezer. - Page 7 Do not over tighten. CAUTION: This product is not intended to be a substitute for proper supervision. Manufacturer assumes no liability for improper installation or excessive loads placed on screws, brackets, or straps. Straps should be periodically adjusted, tested and replaced. www.kingsbottle.com.au...
-
Page 8: Layout & Storage
1st, 3rd, 5th shelves to display shelves. Note: This changes will reduce the total storage capacity. remove the 2nd, 4th shelves change the 1st, 3rd, 5th standard shelves to display shelves COMPRESSOR REFRIGERATORS www.kingsbottle.com.au... - Page 9 (use the screws to fill the holes on the wall after shelves removed), and then change the 1st, 3rd shelves to display shelves. Note: This changes will reduce the total storage capacity. KB308W remove the 2nd shelf KB308W change the 1st, 3rd standard shelves to display shelves www.kingsbottle.com.au...
-
Page 10: Layout & Storage
Warranty ..... 19 under the manufacturers warranty. This does not affect your statutory rights. COMPRESSOR REFRIGERATORS ENVIRONMENTAL TIPS dispose of those materials through your local recycling www.kingsbottle.com.au depot or by placing them in appropriate collection containers. - Page 11 OPERATION PART V OPERATING YOUR REFRIGERATOR This KingsBottle Refrigerator series comes with the worlds best quality controller from CAREL. Before using your Refrigerator, please read these instructions carefully . ADJUST TEMPERATURE 1. Press the “SET / MUTE” button for more than 3 seconds until the display shows the code ST ( st ) 2.
- Page 12 Don’t locate the refrigerator near stoves, fires or heaters. When installed correctly, your refrigerator should: – Have adequate space at the back and sides www.kingsbottle.com.au for air circulation (refer to page 9). – Be aligned to the surrounding cupboards. – Have doors that will self-close from a partially...
-
Page 13: Maintenance
3. Keep the refrigerator stocked, an empty refrigerator will run longer, believe it or not. recommended by the manufacturer. per 8g of refrigerant. The amount of refrigerant charged in the appliance can be found on the rating plate on the appliance. www.kingsbottle.com.au... -
Page 14: Troubleshooting Guide
Water drop on Door is opened too often Reduce the times / frequency of door opening. glass door The door gasket does not seal properly Use low heat on a hair dryer to make the door seal take shape. www.kingsbottle.com.au... - Page 15 www.kingsbottle.com.au...
-
Page 16: Technical Data
Warranty is only honored for the unit which is purchased and used in United States of America. And, if your product was purchased at any 3rd party retailer and not directly from KingsBottle, we do not offer an extended warranty policy. You MUST contact the retailer of purchase directly. In the event your retailer does not offer an extended warranty plan, we recommend you contact a third party warranty provider.
