KB50DX-FG
BORDERLESS BLACK GLASS DOOR SERIES
• Every time the unit is powered ON, there will be a 6-minute delay for the compressor to start.
• For optimal use of this product, the temperature of the LOWER cooling zone should be set to at least 4°F
above the temperature of the UPPER cooling zone.
COMPRESSOR WINE REFRIGERATORS
www.kingsbottle.com.au
USER MANUAL
KB-50 / 100 / 170DX DUAL ZONE WINE REFRIGERATORS
KB100DX-FG
KB170DX-FG
KB170DX
GLASS DOOR WITH STAINLESS TRIM SERIES
PLEASE NOTE:
KB100DX
KB50DX
!
Advertisement
Related Manuals for KingsBottle KB100DX-FG
Summary of Contents for KingsBottle KB100DX-FG

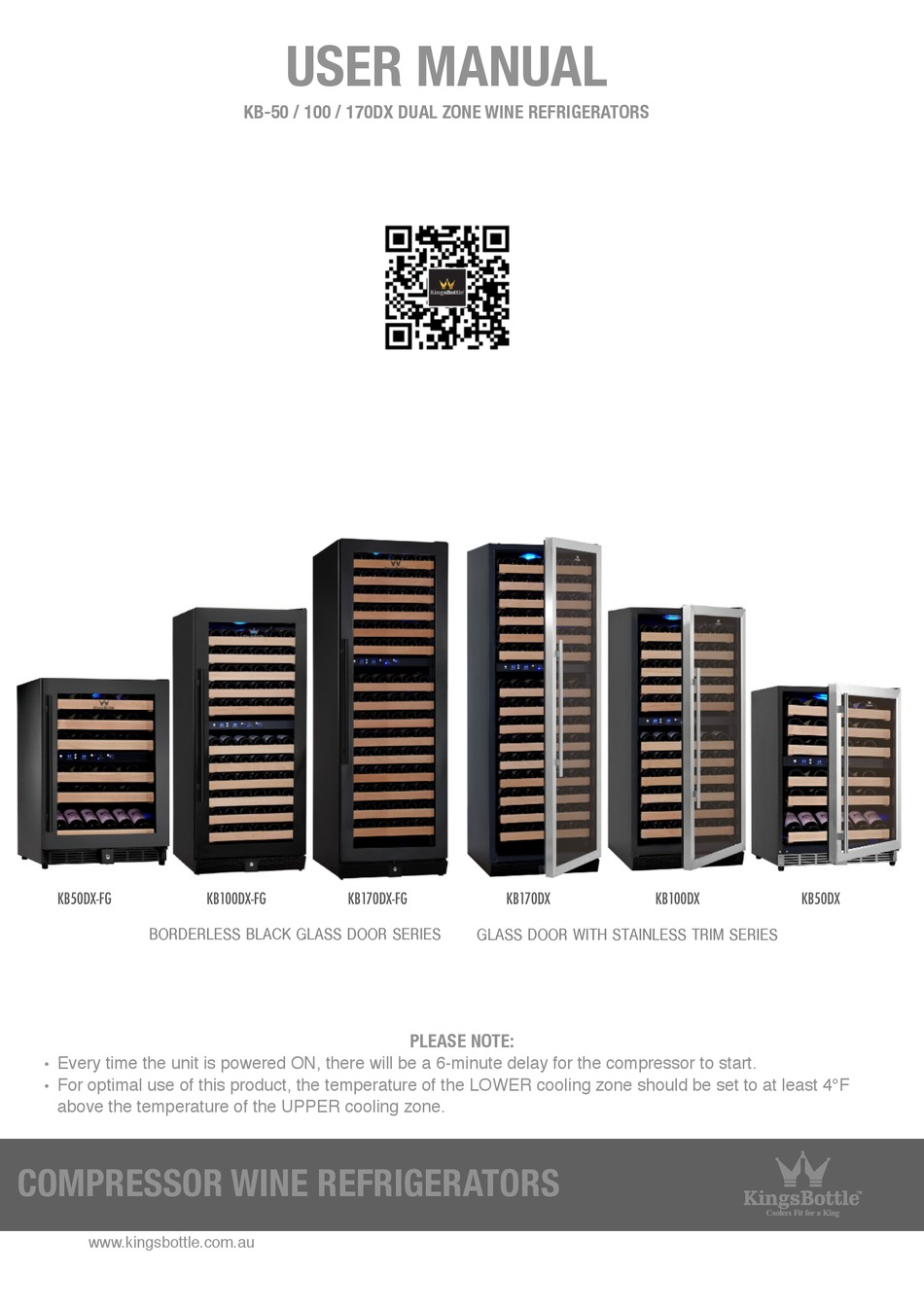

- Page 1 USER MANUAL KB-50 / 100 / 170DX DUAL ZONE WINE REFRIGERATORS KB50DX-FG KB100DX-FG KB170DX-FG KB170DX KB100DX KB50DX BORDERLESS BLACK GLASS DOOR SERIES GLASS DOOR WITH STAINLESS TRIM SERIES PLEASE NOTE: • Every time the unit is powered ON, there will be a 6-minute delay for the compressor to start.
- Page 2 Contents Page Congratulations and thank you for Part I Important Safety & Pre-Use Instructions choosing our KingsBottle wine refrigerators. We are sure you will Part II Diagram & Description of Refrigerator find your new appliance a pleasure to use. Before installing and...
- Page 3 Don’t put the refrigerator in frosty or unprotected areas like a garage or on the verandah. www.kingsbottle.com.au in the built-in structure, clear of obstruction. Keep the refrigerator out of direct sunlight.
-
Page 4: Diagram & Description Of Refrigerator
11 Adjustable stand feet 4 PCB Control Board Display and Control Panel YOUR WINE COOLER ALSO INCLUDES THE FOLLOWING: • Instruction manual • Two keys • Top and bottom hinges , also screws for changing the door hinge COMPRESSOR WINE REFRIGERATORS www.kingsbottle.com.au... -
Page 5: Installation Instructions
20mm on either side, behind and on top of the 598mm 685mm 1408mm 25mm unit. These extra spaces enable units to be placed in the position efficiently, accommodate the door when opened, KB-170 23.54” 26.97” 71.69” 0.98” and without the power cords being damaged. 598mm 685mm 1821mm 25mm www.kingsbottle.com.au... -
Page 6: Installation Instructions
(three hours for a freezer) before you put any food in it. This will confirm that it is operating correctly and make the conditions appropriate for food storage. COMPRESSOR WINE REFRIGERATORS Congratulations! You have successfully installed your www.kingsbottle.com.au refrigerator/freezer. - Page 7 Tighten the straps until snug. Do not over tighten. CAUTION: These instructions are not intended to be a substitute for proper supervision. The manufacturer assumes no liability for improper installation or excessive loads placed on screws, brackets, or straps. Straps should be periodically adjusted, tested and replaced. www.kingsbottle.com.au...
-
Page 8: Layout & Storage
1st, 3rd, 5th shelves to display shelves. Note: This changes will reduce the total storage capacity. remove the 2nd, 4th shelves change the 1st, 3rd, 5th standard shelves to display shelves COMPRESSOR WINE REFRIGERATORS www.kingsbottle.com.au... -
Page 9: Layout & Storage
2nd, 4th shelves to display shelves. Note: This changes will reduce the total storage capacity. remove the 1st, 3rd shelves change the 2nd, 4th standard shelves to display shelves www.kingsbottle.com.au... - Page 10 Warranty ..... 19 under the manufacturers warranty. This does not affect your statutory rights. COMPRESSOR WINE REFRIGERATORS ENVIRONMENTAL TIPS dispose of those materials through your local recycling www.kingsbottle.com.au depot or by placing them in appropriate collection containers.
- Page 11 Keep the refrigerator out of direct sunlight. Meanings of symbols used in this manual are shown below: Don’t locate the refrigerator near stoves, fires or heaters. www.kingsbottle.com.au When installed correctly, your refrigerator should: – Have adequate space at the back and sides...
- Page 12 Repair or replace the PCB After the temp. is lower than 32°F (0°C) or higher than 69°F (20°C), the buzzer will No Code Normal, nothing needs to be done. alarm and remind the user needs to pay attention. COMPRESSOR WINE REFRIGERATORS www.kingsbottle.com.au...
- Page 13 • Keep the refrigerator stocked; an empty refrigerator will run longer, believe it or not. accelerate the defrosting process, other than those recommended by the manufacturer. per 8g of refrigerant. The amount of refrigerant charged in the appliance can be found on the rating plate on the appliance. www.kingsbottle.com.au...
-
Page 14: Troubleshooting Guide
Use a soft cloth to clean the water Water drop on The door is opened too often Reduce the times/frequency of door opening. glass door The door gasket does not seal properly Use low heat on a hair dryer to make the door seal take shape. www.kingsbottle.com.au... -
Page 15: Technical Data
Warranty is only honored for the unit which is used in the countries where the unit was initially purchased. And, if your product was purchased at any 3rd party retailer and not directly from KingsBottle, we do not offer an extended warranty policy. You MUST contact the retailer of purchase directly.
