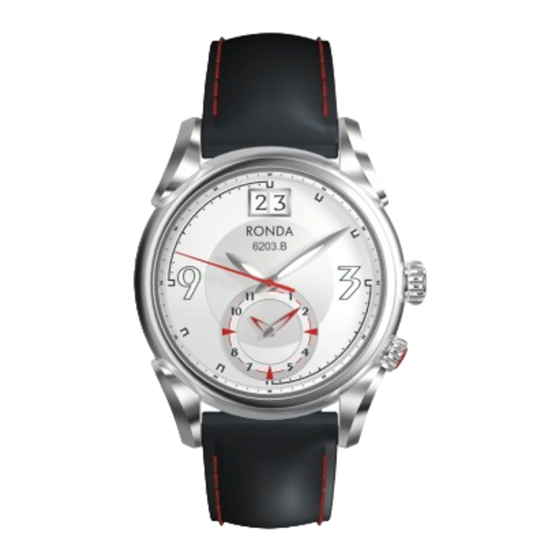

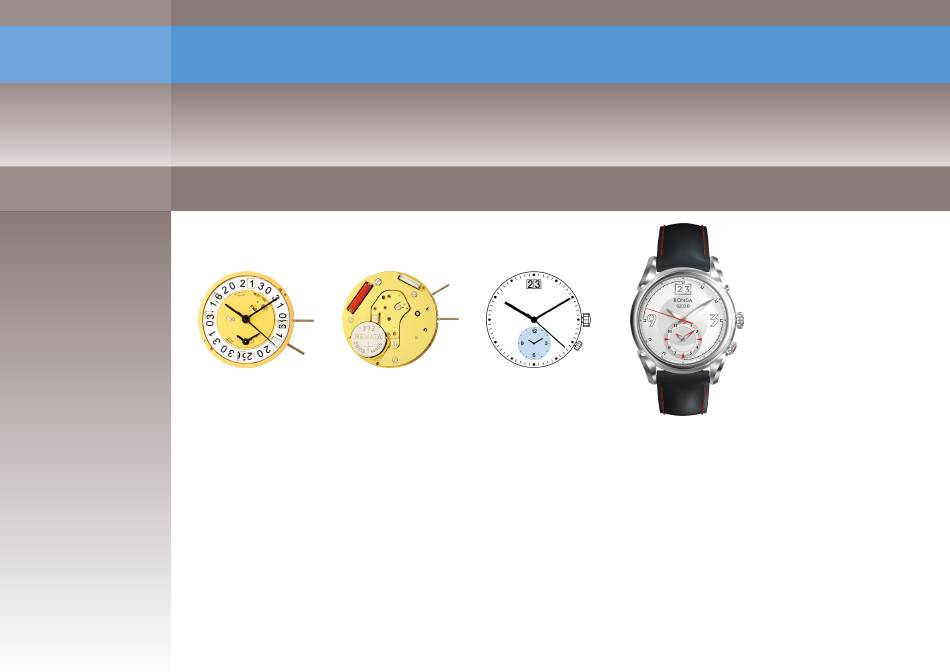

RONDA normtech 700 & 6000
Long battery-life and special functionality
Caliber 6203.B – 11½'''
Product Specifications
Analog quartz movement
Line
Caliber
Size
Version
Swiss Made
Swiss Parts
Standard battery life
Hand fitting height
Features
– Repairable metal watch movement
normtech
– Power saving mechanism with pullled out stem: Reduction
of consumption approximately 70%
6203.B
11½'''
5 Jewels / gold plated
1 Jewels / nickel plated
40 months
1
Date: 19.10.2018
www.ronda.ch
Page: 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ronda normtech 700
Summary of Contents for Ronda normtech 700
- Page 1 RONDA normtech 700 & 6000 Long battery-life and special functionality Caliber 6203.B – 11½''' Product Specifications Features Analog quartz movement – Repairable metal watch movement Line normtech – Power saving mechanism with pullled out stem: Reduction of consumption approximately 70% Caliber 6203.B...
-
Page 2: Technical Specifications
Caliber 6203.B – 11½''' RONDA normtech Functions Technical Specifications – 1 eye Diameter Total 26.00 mm – Multifunction Case fitting 25.60 mm – Second time zone Movement height 3.30 mm – Big date Height over standard battery 3.30 mm – 3 hands Movement rest 0.60 mm... - Page 5 Sous réserve de modifications Force de chassage / Aufpresskraft / Force max. Aenderungen vorbehalten RONDA 6203.B Modifications reserved No. 3316.100 * En cas de données différentes, veuillez contacter le service après-vente * Bei abweichenden Werten, bitte technischen Kundendienst anfragen...
- Page 6 Rallonge de tige / Stellwelle Verlängerung / Stem extension Released No. d'article Stem (dimensions / forces) Artikelnummer Tolerance (min) Part number 10:1 (A3) Scale 3000.040 12.00 1.90 2.60 0.90 0.90 1.35 Sous réserve de modifications Aenderungen vorbehalten RONDA 6203.B Modifications reserved 5030.020...
- Page 7 T2-Instructions 6203.B Fitting dial and hands • Crown in position II • Wind crown until date 02 appears • Crown in position III • Wind hour hand forwards, until date changes to 03 • Remove working hand • Fit dial • Point all hands towards 12 o‘clock • Set time Movement holder • Crown in position II Removing setting stem • Set date H6XXX.1T • Crown in position I • Second time zone crown in position II General Instructions • Set second time zone time Removing the setting stem can only • Second time zone crown in position I be effected in Pos. I. Date switching duration The use of supporting screws is First and tenth digit discs ~2hrs...
- Page 8 – Turn the crown clockwise until the required date Pos. II Quick-change correction for date by a watchmaker using a Ronda movement. Please note appears. – Turn the hands forward by turning the crown, until The date can also be changed during the day-changing the current day of the week appears.
- Page 9 Yoke bridge held by 1 screw 4000.328. 4000.328 Screw 2130.199 Stem maintaining plate Stem maintaining plate held by 1 screw 4000.312. 4000.312 Screw 3622.042 Stator Mark |Z| on stator. 10/2013 U RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 10 Lateral bridle held by 1 screw 4000.244. 4000.244 Screw 3621.060.RK Coil Attention: Please hold the coil only on the grey coil core. 3603.074 Bridle (-) insulator 3603.075 Battery insulator 10/2013 U RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 11 Electronic module held by 1 screw 4000.318. Electronic measurements may be realised now. 4000.318 Screw 2130.168.G.M01.6203B Electronic module cover Electronic module cover held by 3 screws 4000.102. 4000.102 Screw 3600.031.HGF Battery 373 10/2013 U RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 12 Intermediate setting wheel 3305.308.CO Cannon pinion driving wheel (Aig.1) 3007.081.CO Minute wheel 3301.273.CO Hour wheel (Aig.1) 3315.001 Friction spring 3004.187 Date indicator driving wheel 3500.061 Date jumper 10/2013 U RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 13 Date mechanism maintaining plate Date mechanism maintaining plate held by 3 screws 4000.312. 4000.312 Screw 3506.075.G Dial support 8200 Moebius 8200 9014 Moebius 9014 Jismaa 124 9020 Moebius 9020 10/2013 U RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 14 -10s/M. .. +20s/M. 1.20 V Lower working voltage limit Setting stem in position III, 60 s measuring interval: 0.10 µA Typical consumption Maximal consumption 0.30 µA 10/2013 RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch EM 1...
- Page 15 Electronic measurements 6203.B 1.61 kΩ .. 1.81 kΩ Coil resistance M1 ∞ kΩ Coil isolation M1 10/2013 RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch EM 2...
- Page 16 Yoke bridge held by 1 screw 4000.328. 4000.328 Screw 2130.199 Stem maintaining plate Stem maintaining plate held by 1 screw 4000.312. 4000.312 Screw 3622.042 Stator Mark |Z| on stator. 10/2013 N RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 17 Lateral bridle held by 1 screw 4000.244. 4000.244 Screw 3621.060.RK Coil Attention: Please hold the coil only on the grey coil core. 3603.074 Bridle (-) insulator 3603.075 Battery insulator 10/2013 N RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 18 Electronic module held by 1 screw 4000.318. Electronic measurements may be realised now. 4000.318 Screw 2130.168.G.M01.6203B Electronic module cover Electronic module cover held by 3 screws 4000.102. 4000.102 Screw 3600.031.HGF Battery 373 10/2013 N RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 19 Intermediate setting wheel 3305.308.CO Cannon pinion driving wheel (Aig.1) 3007.081.CO Minute wheel 3301.273.CO Hour wheel (Aig.1) 3315.001 Friction spring 3004.187 Date indicator driving wheel 3500.061 Date jumper 10/2013 N RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 20 Date mechanism maintaining plate Date mechanism maintaining plate held by 3 screws 4000.312. 4000.312 Screw 3506.075.G Dial support 8200 Moebius 8200 9014 Moebius 9014 Jismaa 124 9020 Moebius 9020 10/2013 N RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 21 -10s/M. .. +20s/M. 1.20 V Lower working voltage limit Setting stem in position III, 60 s measuring interval: 0.10 µA Typical consumption Maximal consumption 0.30 µA 10/2013 RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch EM 1...
- Page 22 Electronic measurements 6203.B 1.61 kΩ .. 1.81 kΩ Coil resistance M1 ∞ kΩ Coil isolation M1 10/2013 RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch EM 2...
