UltraSecure UltraCOM2 Instruction Manual

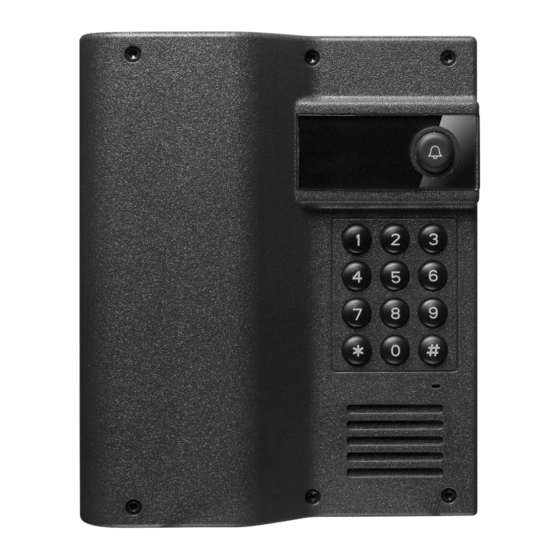

Wireless doorphone
Hide thumbs

Advertisement

Table of Contents

600/
600AK
WIRELESS
DOORPHONE
INSTRUCTION MANUAL
UltraCom

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UltraCOM2 and is the answer not in the manual?

Questions and answers

Related Manuals for UltraSecure UltraCOM2

Summary of Contents for UltraSecure UltraCOM2

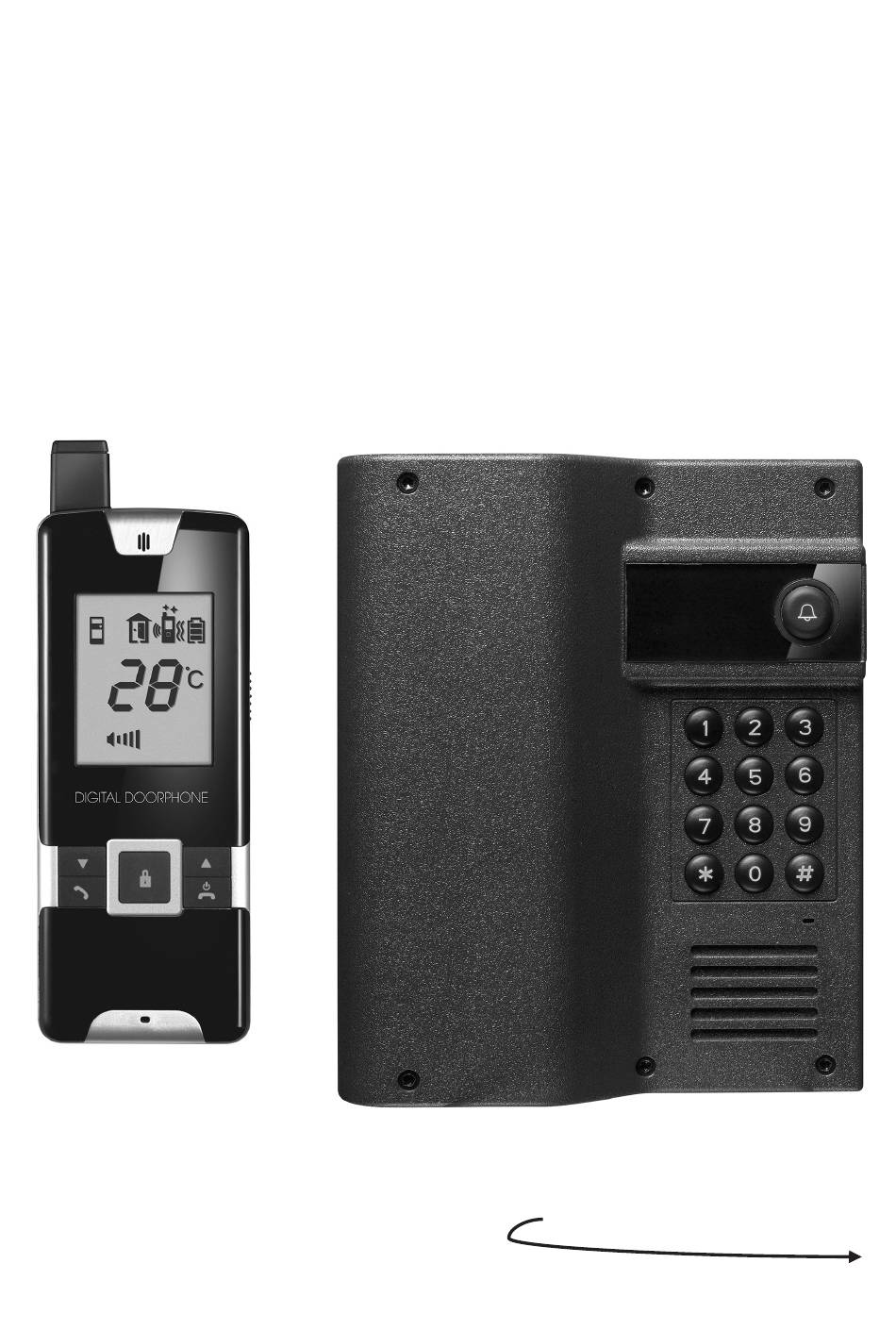

  • Page 1 600/ 600AK WIRELESS DOORPHONE INSTRUCTION MANUAL UltraCom...

  • Page 2: Standard Accessories

    Thank you for purchasing this Digital Wireless Doorphone System. Your system has been manufactured and checked under the strictest possible quality control to ensure that each system leaves the factory in perfect condition. In the unlikely event you find any defect or experience any problem, please contact our service center or dealer, do not attempt to repair by yourself.
  • Page 3 Getting Started A. Power Supply Caller unit 1. With the supplied tool, loosen the 6 screws that hold the unit from mounting bracket. The screws are made special for anti-theft purpose, it is necessary to keep the tool in safe place as you need it later when replacing batteries.
  • Page 4 Handset TO AC OUTLET The supplied Lithium polymer battery pack is already installed in the handset. To replace battery, press down the lock button 18 and slide open the battery door, take out the battery and disconnect from to socket 20 . 2.
  • Page 5 B. Pairing the Handset and Caller unit This process is to match the caller unit with handset so that they can communicate with each other while no other devices (even doorphone of identical model) can interfere with you or receiving your signal.
  • Page 6 C. Mounting of Caller Unit INSERT RIVERTS INTO HOLES (FOR CONCRETE WALL ONLY) Driled Holes 1. Select a location near your door entrance where the surface is not so rough. We recommend do some polishing to get a plane surface or otherwise the unit may not be able to mount properly.
  • Page 7 The operation of two most common types of electric door latch on the market are either “always close” or “always open”. Always close In case 12V DC supply is used, these two terminals normally provide a 12V. During communica- tion, once the door lock opening button 13 is pressed, this voltage will drop to 0V temporarily for 3 seconds.

  • Page 8: Controls Layout

    Controls Layout Handset Charging Stand Call button 13. Door lock open button Door code entry keypad 14. Press-to-talk (PTT) button Low battery indicator 15. Microphone Call indicator 16. Volume up button Front or backgate selector 17. Volume down button Internal or external antenna selector 18.
  • Page 9 Door lock Door chime, flashing opened light and vibrating alert selected Frontgate & Battery Level Backgate doorbell ringing Caller unit battery low Indoor temperature Reception mode Door lock de-activated Missed call Speaker volume Flashing Steady light up Door chime and Frontgate doorbell ringing vibrating alert selected Flashing light and...

  • Page 10: Operation

    OPERATION Switch on the handset by a long press (over 3 seconds) of the Power ON/OFF button 12 Press the same button again in case you want to switch off the unit. The LCD screen will show up. In case the self battery low icon O appears and an alarm heard, the battery has run down and need to be recharged by placing the unit into the charger stand.
  • Page 11 Now conversation is possible and the voice of visitor can be heard from speaker 19 . To talk back to visitor, press and hold the PTT button 14 and speak towards the Microphone 15 , reception mode icon D goes off. Release PTT button 14 after finish speaking to listen to visitor, recep- tion mode icon D show up again.
  • Page 12 12. Under the circumstances of an unanswered call from a visitor (e.g. you are away from home) the icon C will appear on the screen. This icon is useful to remind you somebody has called. Press any button momentarily to remove this icon. 13.
  • Page 13 Setting of Door Lock Opening code ( for unit equipped with door code entry keypad) a. With the handset being switched off, long press of Answer button 11 and Hang up button 12 at the same time for 2 sec will enter code setting mode. The LCD will show “...

  • Page 14: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE Problem Possible Causes Solution Handset and Handset and Caller unit has Perform pairing process Caller unit cannot different ID code communicate Battery has run down Replace new battery in Caller unit Recharge battery in Handset using charger stand. Communication Many steel structures between Relocate the position of Handset...

This manual is also suitable for:

600600ak
