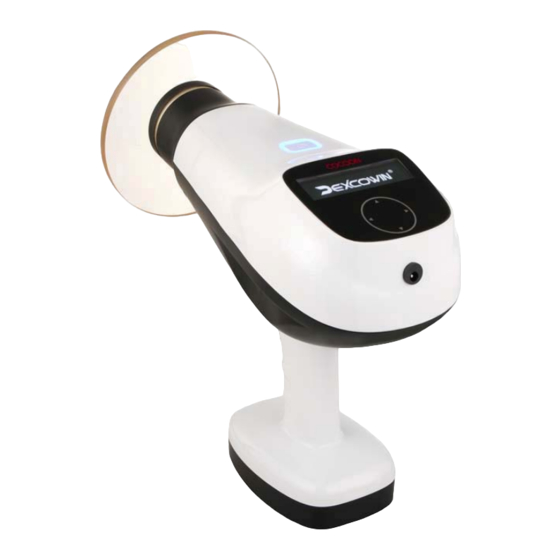

Dexcowin COCOON DX-7020 User Manual

Hide thumbs Also See for COCOON DX-7020:
Table of Contents

Advertisement

Quick Links

MANUAL VERSION 1.105
Revision date: 04, Mar, 2020
File number: IFU-07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COCOON DX-7020 and is the answer not in the manual?

Questions and answers

Lesley
April 15, 2025

My xray machine turns on and lights up. But a lock symbol keeps flashing on the top.The button to slide to lock the trigger in not engaged either, It will tell me its ready for exposure but when I pull the trigger nothing happens. What could possibly be wrong?

0
1 comments:
Mr. Anderson
April 15, 2025

The flashing lock symbol on the Dexcowin COCOON DX-7020 X-ray machine indicates that the X-ray exposure is locked. This prevents the device from taking an exposure. The Lock Mode can be adjusted from the main control screen, so the flashing symbol suggests that the Lock Mode is active and must be deactivated to proceed with exposure.

This answer is automatically generated

0
Dr rashid
January 20, 2025

Battry not charge

0
1 comments:
Mr. Anderson
May 14, 2025

The Dexcowin COCOON DX-7020 battery may not be charging due to the following reasons:

1. The adapter is not properly connected to the external battery or outlet.
2. The adapter light is not on, indicating no power supply.
3. The battery may be faulty or past its recommended replacement period (over two years old).
4. The charging dock or adapter may be malfunctioning.

Verify connections and replace the battery if it is old or damaged.

This answer is automatically generated

0

Related Manuals for Dexcowin COCOON DX-7020

Summary of Contents for Dexcowin COCOON DX-7020

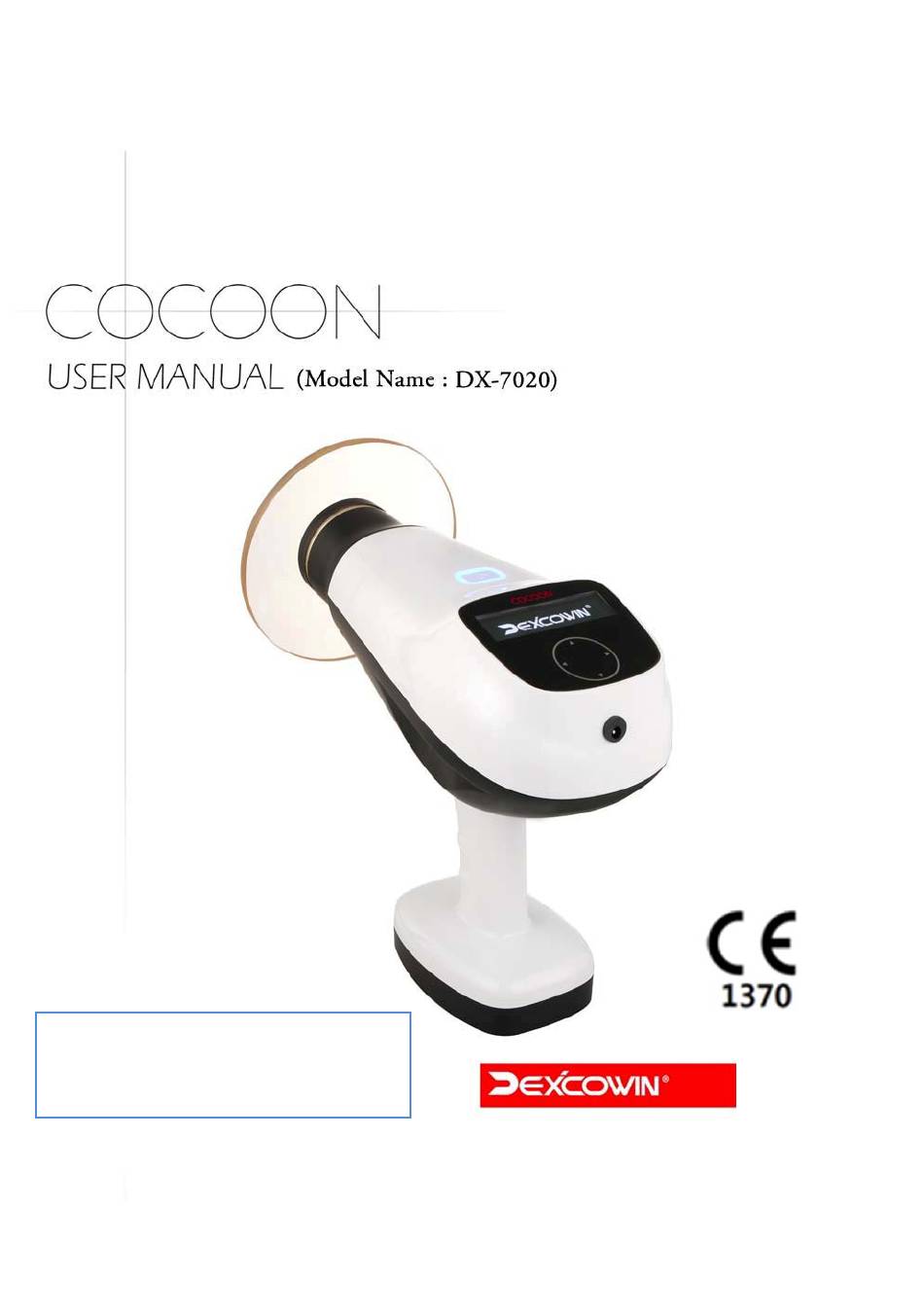

  • Page 1 MANUAL VERSION 1.105 Revision date: 04, Mar, 2020 File number: IFU-07...
  • Page 2 See the Certificate of Conformance accompanying your device. COCOON is also complies with MDD 93/42/EEC as amended by 2007/47/EC. COCOON is a trademark registered by Dexcowin Co., Ltd in Korea and other countries. All right reserved. If any serious incident in relation to the device, please report it to the...
  • Page 3 Symbols used in this Manual SYMBOL NAME DETAIL “Radiation Warning” sign explains details of possible Radiation warning user radiation hazard. "Warning" sign explains details of possible user Warning damage, death or physical damage. "Caution" sign explains details of possible body Caution damage due to incorrect use of product.
  • Page 4 Symbols marked on COCOON SYMBOL NAME DESCRIPTION / FUNCTION Electrical protection Insulated patient application(Type B). Radiation warning This symbol indicates radiation hazard. Warning This symbol indicates hazard. Consult This symbol advises the reader to consult the accompanying accompanying documents. documents This symbol is followed by the name and Manufacturer information...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS GETTING STARTED ......................7 ......................7 NTENDED ROHIBITION OF USE COCOON ........................7 NPACK AND HECK 1.2.1 Product composition ............................... 7 1.2.2 Preliminary Checks..............................9 ............................11 RODUCT EATURES 1.3.1 Features ..................................11 ..........................12 RODUCT SPECIFICATIONS 1.4.1 Device main body ..............................
  • Page 6 3.2.3 Caution for other matters ........................... 24 ITEMS TO CHECK ......................25 ..............................25 TEMS TO HECK SETUP AND CHECK ......................26 ..........................26 ACK SCATTER SHIELD 5.1.1 Performance of back scatter shield ......................... 26 ............................27 ETACHABLE BATTERY ............................27 XTERNAL ATTERY ................
  • Page 7 ..........................47 AINTENANCE SCHEDULE 9.3.1 On-going check ............................... 47 9.3.2 Annual User Check ..............................48 9.3.3 Annual Calibration ..............................49 9.3.4 Maintenance Log Sheet ............................50 TECHNICAL DESCRIPTION AND PRODUCT WARRANTY ........51 10.1 ......................... 51 ASIC ECHNICAL SPECIFICATIONS 10.2 ..........................52 IGH VOLTAGE GENERATOR 10.2.1 X-ray Tube Specifications and Characteristics ....................

  • Page 8: Getting Started

    1 Getting Started Intended Use/ Prohibition of use COCOON is intended for use only by trained and qualified dentists or dental  technician for both adult and pediatric subjects. The device is designed for taking diagnostic intraoral dental X-rays using conventional ...
  • Page 9 Figure1.1 Product Composition * Components may change depending on the situation without notice *.

  • Page 10: Preliminary Checks

    1.2.2 Preliminary Checks Item Check Device Labels As shown in Figure 1.2 below, make sure that the label is attached to the device in place. Other Labels Make sure that the serial number on the Warranty matches the device serial number and the device carrying case serial number.
  • Page 11 Inside: X-ray tube assembly Figure 1.3 Labeling on X-ray tube assembly Figure 1.4 Charging Cradle and Adapter...

  • Page 12: Product Features

    Product Features 1.3.1 Features Medical Device Name: Portable Handheld X-RAY System  Product Name: COCOON  Model Name: DX-7020  Display: 3.12” OLED (Resolution: 256 x 64)  Function for user  - Exposure time setup in accordance with adult and child or type of the teeth - Intuitive Graphic User Interface - Radiation Exposure Interval Setting Function - Trigger use...

  • Page 13: Product Specifications

    Product specifications 1.4.1 Device main body Model Name DX-7020 X-RAY tube focal spot size 0.4 mm Protection type B type Grade for electrical shock Waterproof rating IPX0 Mode of operation Discontinuous operation Cooling method Oil cooling method Total filtration More than 2.3mmAl (inherent filtration: 1.0 mmAl) Input power DC 14.8 V Target Angle...

  • Page 14: Charger Specification

    1.4.2 Charger specification Model name: BPL910S16F01  Input: AC 100-240[V], 50/60 [Hz], 0.5 [A]  Output Voltage: DC 16.8 [V]  Output Current: 1.0 [A]  1.4.3 Battery charging cradle Model name: Cradle  Charging voltage: DC 16.8 [V]  Charging current: 1.0 [A] ...

  • Page 15: Each Part Name Of Main Body

    1.4.4 Each part name of main body Each part name of main body is as following.  Power On/Off Button 256 x 64 pixel OLED screen X-ray mode control Exposure lamp Back scatter shield External battery connector Neck strap hook ring X-ray field Trigger Handle...

  • Page 16: Dc Adaptor & Cord

    1.4.5 DC adaptor & cord The part name of charger is as shown in Figure 1.6.  (TOP) (BOTTOM) Output indicator lamp Charging adapter label Charging power jack AC input connector AC power cord Inside: X-ray tube assembly Figure 1.7 part name of DC adaptor part Output indicator lamp: displays the current output status.

  • Page 17: Battery Charging Cradle

    1.4.6 Battery charging cradle ① The name for each part on charging cradle Charge indicating lamp Charging terminals DC input connector Figure 1.8 part name of charging cradle Charging terminals: connect output terminal of battery pack to charging terminals of ...

  • Page 18: Charging The Battery

    Charge terminal: connect charging power jack of DC adaptor to charge terminal of external  battery. Then the external battery is charged. Charging the Battery NOTE: The battery is tested and fully charged for shipping at the factory. However, battery is to be fully charged prior to initial use to prevent function damage of battery or discharged to lower level in case unused stored for long time period such as three (3) months.
  • Page 19 Figure 1.11 Charging the External battery Caution Use only Dexcowin's adapter and cord originally packaged with the device to prevent damage to battery or accident. Otherwise, the warranty will be avoided or product liability by a manufacturer will be exempted.

  • Page 20: Safety Precautions

    2 Safety Precautions Radiation Safety WARNING This X-ray unit could be dangerous to the patients or the operators unless safe exposure factors, operating instructions and maintenance schedule are observed. COCOON complies with MDD 93/42/EEC as amended by 2007/47/EC IEC60601-1-3,  IEC60601-2-28, IEC60601-2-65, which these are regulations on radiation safety and protection.
  • Page 21 Table 2-1. Diagnostic Reference Level * Approximate Comparable to ** Additional Lifetime For this Effective Radiation Natural Background risk of Cancer from procedure Does Radiation Period of Examination BONE Radiography 1.5 [mSv] 6 [months] Very Low (X-ray)-Spine Radiography 0.001 [mSv] 3 [hours] Negligible (X-ray)-Extremity...

  • Page 22: Cleaning

    Cleaning  Power off or separate power supply before cleaning.  Before cleaning the battery charger, make sure that the battery charger is unplugged.  This device is not waterproof device (IPX0).  Do not use any liquid, wet cloth or spray for the device cleaning. ...

  • Page 23: Security, Storage, And Transportation

    Security, Storage, and Transportation  To prevent unauthorized use, COCOON should be stored securely when not in used.  If you have finished using COCOON, keep it in a separate place to prevent unauthorized use. 2.3.1 Storage Store the device in a safe place for access by qualified person. ...

  • Page 24: Transportation And Storage Conditions

    2.3.3 Transportation and Storage conditions Transportation and storage temperature: -25 ~ 40 ℃  Transportation and storage humidity: 10 ~ 95 %  Transportation and storage atmosphere pressure: 500 ~ 1060hPa  3 Warning / Caution and instructions Warning and instructions 3.1.1 Warning for product use Do not modify the device without authorization of the manufacturer.

  • Page 25: Caution And Instructions

    Caution and instructions 3.2.1 Caution for product use Please ensure not to exceed X-RAY exposure required for image diagnosis.  Handle the device with care; do not use sharp object or cause a severe impact on  the device. Follow the instruction carefully and use for recommended applications. Use only in the recommended temperature, humidity and pressure.

  • Page 26: Items To Check

    Warning: If any serious incident in relation to the device, Please contact by fax or e-mail to European representative or Dexcowin CO., LTD. or the local authority. 4 Items to check Items to Check Read user manual before operating the device for proper usage.

  • Page 27: Setup And Check

    5 Setup and Check The Back scatter shield 5.1.1 Performance of back scatter shield Figure 5.1 indicates the scattering radiation area which is changed using back  scatter shield. The back scatter shield limits scattering radiation area to the intended target. ...

  • Page 28: Detachable Battery

    Detachable battery Cocoon’s battery type is the detachable battery.  The battery is detachable from the main body.  Turn on the power to check that the device is working properly.  If it occurred trouble shooting, see section 8.1. ...

  • Page 29: Checking For Power And Battery Charge State

    Checking for Power and Battery Charge State After fully charging the battery, press and release the POWER button. The OLED display ① should illuminate, accompanied by a single audible signal. ②Check the battery level indication and remaining battery level on the upper right of the main screen.

  • Page 30: Operation

    6 Operation Powering up  Name for each button on top side of COCOON is shown in figure 6.1 Power On/Off button Direction panel: up/down/left/right Exposure lamp Figure 6.1 Name for Each part on top side button and panels  After pressing power button on the top of main body for 1 second, a green light should appear around the button, along with buzzer sound.

  • Page 31: Checking The Battery Charge

    Checking the battery charge Low battery will be indicated by buzzer sound, OLED screen, Low battery indication  lamp and battery warning sound when power is on. The battery level displays on the upper right side of the main control screen are shown ...

  • Page 32: Powering Off

    Powering off TO turn off COCOON, press down the POWER button for one seconds.(COCOON will turn off  automatically if not used for about 5 minutes.) Figure 6.5 POWER BUTTON Exposure Techniques 6.4.1 Patient's positioning Place patient as bilateral symmetry to the chair. ...

  • Page 33: Cocoon Positioning

    Target tooth Detector COCOON cone Figure 6.6 Film or Intra oral sensor positioning 6.4.3 COCOON positioning The distance between the end of the cone and the patient must be within 18cm (7  inch) at least from Focal Spot (X-ray focus point). The target tooth should be located at the center of cone in order to get a whole ...

  • Page 34: Control Of Cocoon

    Control of COCOON 6.5.1 Main control screen composition ○ Main (X-ray) control screen Tooth Type Status Selecting Adult or Child Status of Battery Exposure Time Detector type Lock Mode Indicates Selected Parameter Figure 6.7 Name for each part on Main (X-ray) control screen Detector type: Indicates the type of used detector.
  • Page 35 Figure 6.8 Control screen on the main body Touch the ◀ ▶ touch panel to activate the tooth type parameter and touch ▲ ▼  touch panel to change the tooth type. When the tooth type is changed, the exposure time is changed accordingly. Touch the ◀...

  • Page 36: Setting The Exposure Time

    6.5.3 Setting the Exposure Time When power is turned off, the most recent setting for exposure time is stored in memory and  redisplays when power is turned on again. ▲ ▼( To change exposure time setting touch the increase/ decrease)touch panel. ...
  • Page 37 ③Place main body to the target tooth and at parallel with film or intraoral sensor or PSP. Then press X-ray trigger. ④Keep pressing the trigger until exposure is finished and place main body on a safe place. ⑤Check images from film or sensor or PSP after shooting. When pressing trigger, a melody plays to signal the x-ray exposure warning sound, ...

  • Page 38: X-Ray Parameter Set

    6.5.5 X-RAY parameter set COCOON's X-ray exposure strength is 70 [kV], 2[mA], and changeable by exposure  time. Exposure time can be adjusted between 0.05 – 1.0 [s]  Please refer to Table 6-1 below to adjust parameter for each tooth type. ...

  • Page 39: Screen Setting

    6.5.6 Screen setting Figure 6.12 Entering screen setting  Press▲ ▼panels at the same time for 3sec to move to the screen setting. Move through the menu using ▲ ▼ touch panel, and select one by touching ▶ touch panel. To go back to the previous setting screen, touch ◀ touch panel. Figure 6.13 Setting screen - Main Power save Time: Indicates that device turns off automatically if not used for a few ...
  • Page 40 Buzzer or Speaker by touching ▲ ▼ panels, and select the desired option by touching ▶ panel. Sign indicates which option is selected. Figure 6.15 Setting screen – Sound Effect Quick user guide: A brief description of the product is played for about 3 minutes ...

  • Page 41: Quick User Guide

    7 Quick user guide ① Press power button over 1 second. Then the OLED display should illuminate, accompanied by a single audible signal. ② When Main control screen display, the operator can select parameter, which operator want changing setting value, by ◀/▶ direction touch panel.
  • Page 42 ③ Operator select parameter which operator want changing setting value, then change setting value by▲/▼ direction touch panel. ④Check the safety lock position before expose the x-ray. Then press exposure trigger. ⑤ Press the ◀ ▶ touch panel at the same time for 3 sec to activate/deactivate the lock mode.
  • Page 43 ⑥Position of film or intraoral sensor or PSP and COCOON's cone should be parallel. And the target tooth should be located at the center of cone in order to get a whole shape of target tooth. ⑦Check the X-ray image. If the image is abnormality, try the above procedure again. If there is no abnormality, press power button over 1 second in order to turn off the device.

  • Page 44: How To Replace The Product Handle

    8 How to replace the product handle ① Prepare the COCOON ② Slide the lock button to the left to * The product must be turned off. remove the handle. ③ You can disassemble it by slide the ④ Disassembled product. handle upwards.
  • Page 45 ⑦ Insert the handle in line with the ⑧ After inserting, pull down the handle to guide fully assemble. ⑨ Slide the lock button to the right to fix ⑩ Check the product operation. the handle. <Operation check list> 1. Check if the power turns on. 2.

  • Page 46: Inspection Items Before Repair Request

    9 Inspection items before repair request Check items before requesting inspection If abnormality is found in product, confirm following items before inspection request  Table 8-1.Steps to take for device malfunctions SYMPTOM STEPS TO TAKE After turning on power, both sound or ...

  • Page 47: Troubleshooting

    SYMPTOM STEPS TO TAKE  Check that the DC adaptor is connected to the AC power cord.  Check that the AC power cord is connected correctly to AC power outlet. Correct input voltage of this device is AC 100-240V, 50/60[Hz] DC adaptor is not ...

  • Page 48: Maintenance Schedule

    Change the receptor or compare Receptor defective. with another receptor. X-ray emission works, but Exposure time is too long. Decrease the exposure time. exposure is too dark Call a qualified service Device defective technician. Maintenance schedule Periodically review Section '1.1 Intended use / Prohibition for Use' for use and ...

  • Page 49: Annual User Check

    9.3.2 Annual User Check User should review the following material yearly, and be sure to record their results  in the Maintenance Log Sheets located in Section 8.3.4. Power button verification: If you press the power button for 1 second, a beep ...

  • Page 50: Annual Calibration

     check exposures into by using the test detector. Compare results with the factory release parameters indicated in the chart below. For results outside these parameters, discontinue use and contact DEXCOWIN. This device should be calibrated once a year. ...

  • Page 51: Maintenance Log Sheet

    9.3.4 Maintenance Log Sheet Table 8-4.Maintenance Log Sheet Year 1 Year 2 Year 3 Year 4 Year 5 Year 6 Maintenance Test Date Date Date Date Date Date /Initial /Initial /Initial /Initial /Initial /Initial 1. Power button 2. Exposure sequence 3.

  • Page 52: Technical Description And Product Warranty

    10 Technical Description and Product Warranty 10.1 Basic Technical specifications Product Type Portable Handheld X-RAY System Protection type B type Grade for electrical shock Waterproof rating IPX0 Mode of operation Discontinuous operation Cooling method Oil cooling method COCOON Total filtration More than 2.3mmAl Main Body Input voltage...

  • Page 53: High Voltage Generator

    10.2 High voltage generator 10.2.1 X-ray Tube Specifications and Characteristics X-ray tube model name D-041   Manufacturer TOSHIBA(JAPAN)  Operating Tube Voltage 70kV  X-ray tube focal spot  Nominal Anode Input Power (at 1.0s) See rating chart  Constant potential high-voltage generator 430W ...
  • Page 54 Figure 8.2 Maximum rating charts Figure 8.3 Emission & Filament characteristics...

  • Page 55: Emc Data

    10.3 EMC Data WARNING Other cables and accessories may negatively affect EMC performance. Use of other accessories may result in non-compliance. COCOON should not be used adjacent to or stacked with other equipment. If adjacent or stacked use is necessary, COCOON should be observed to verify normal operation.

  • Page 56: Electromagnetic Interference

    Table 8-1.Electromagnetic emission The COCOON is intended for use in electromagnetic environment specified below. The customer or the user of the COCOON should assure that it is used in such an environment. Emission test Compliance Electromagnetic environment - guidance The COCOON uses RF energy only for its internal function.
  • Page 57 Table 8-3.Electromagnetic Susceptibility FIELD CONTENTS Frequency range Field strength Modulation Frequency step Radiation field 3 [V/m] AM 80 [%] 80 ~ 2500 [MHz] 1 [%] / 3 step 10 [V/m] 1 [kHz] sine wave Axis of Test frequency Field level(EMF) Duration orientation Magnetic field...

  • Page 58: Product Warranty

    We strongly recommend the battery is to be replaced every year It must be at least every  two years to prevent any possible accident. If the battery replacement rule is refused or not accepted by the customer, Dexcowin will be  exempted or free from any product liability for an accident caused by the battery.
