Quick User Guide

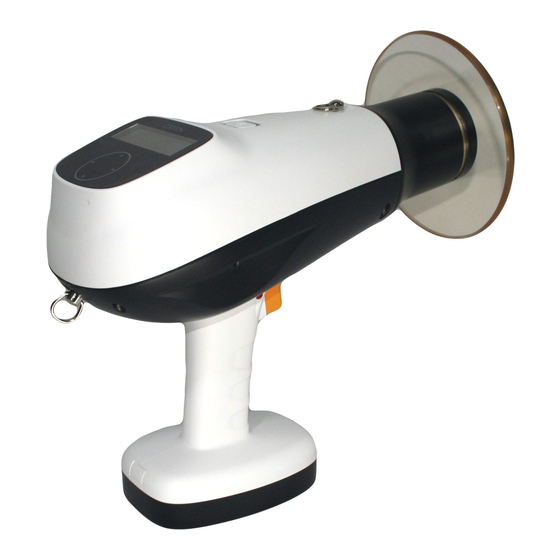

Part name of the main body
①
⑤ Trigger
④ Neck strap hook ring
①
Power ON/OFF button: press power button until the device turns on or off (about
1 second).
②
Direction panel:
◀/▶ direction panel – select the option to adjust function.
▲/▼ direction panel – change the option and the value of the X-ray exposure time.
③
Exposure lamp: the lamp light is a green normally and will turn orange during X-
ray exposure.
④
Neck strap hook ring: hook for connecting neck strap.
⑤
Trigger: X-ray exposure trigger.
⑥
Safety lock: safety option to avoid unintended X-ray exposure.
Power On/Off Button
②
Direction panel
③
Exposure lamp
⑥ Safety lock
