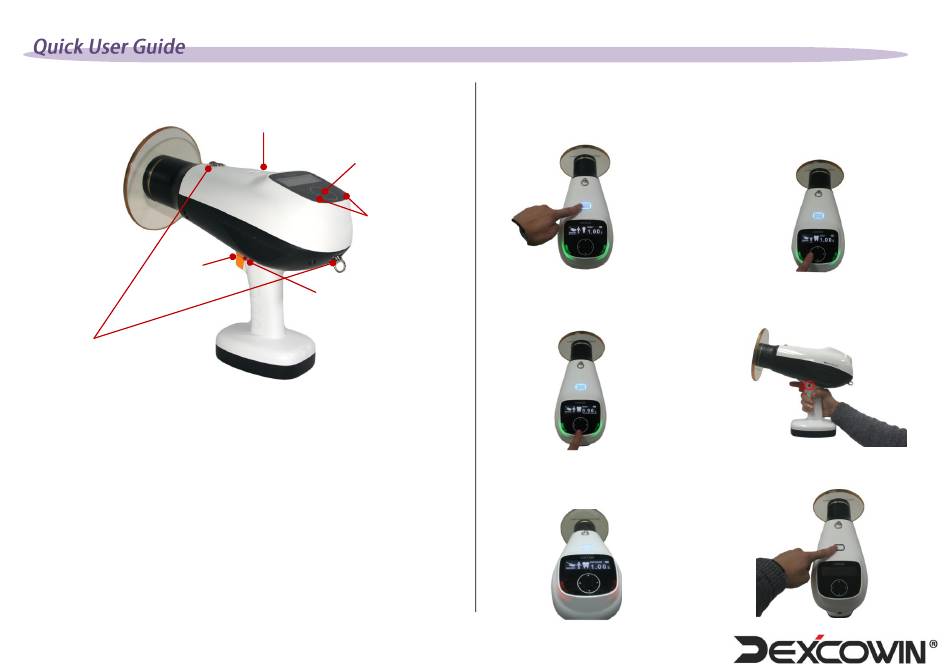

Dexcowin Cocoon Quick User Manual

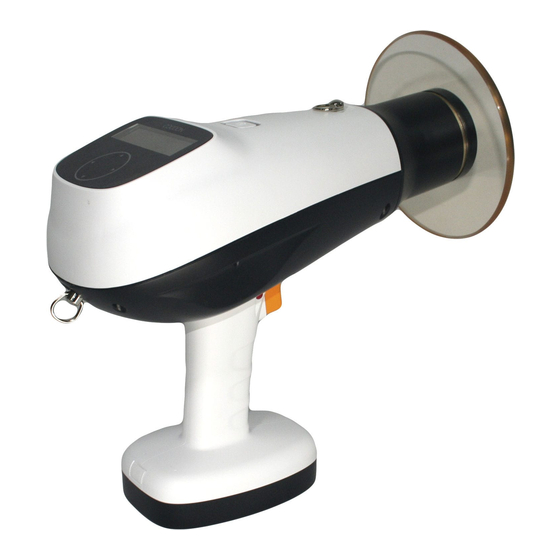

Part name of the main body
④ Trigger
⑥ Neck strap hook ring
① Power ON/OFF button: Keep press power button till the device turn on or off
(about 2 seconds).
② Direction panel:
◀/▶ direction panel – select each function of X-ray exposure setting.
▲/▼ direction panel – change a value of the function of X-ray exposure setting.
③ Exposure lamp: the lamp light is a green normally and it turns as orange on during
X-ray exposure.
④ Neck strap hook ring: a hook for connecting Neck strap.
⑤ Trigger: X-ray exposure trigger.
⑥ Safety lock: safety option to avoid unintended X-ray exposure.
①
Power On/Off Button
②
Direction panel
③
⑤ Safety lock

How to use Cocoon

③ Keep press power button for 2 seconds
to turn on the device.
Exposure lamp
③ Set value of the function of X-ray
exposure setting by
panel.
⑥ When user pull the exposure trigger, a
device status on GUI will changed as "ready"
to "exposure" and LED lamp turned orange
and "beep" sound occurres.
② Select each function of X-ray exposure setting by
touch ◀/▶ direction panel.
④ Unlock a safety lock after X-ray exposure
setting. Lock- push lock button to right side,
▲/▼ direction
unlock – push lock button to left side.
⑦
Keep press power button for 2 seconds to turn
off the device.
