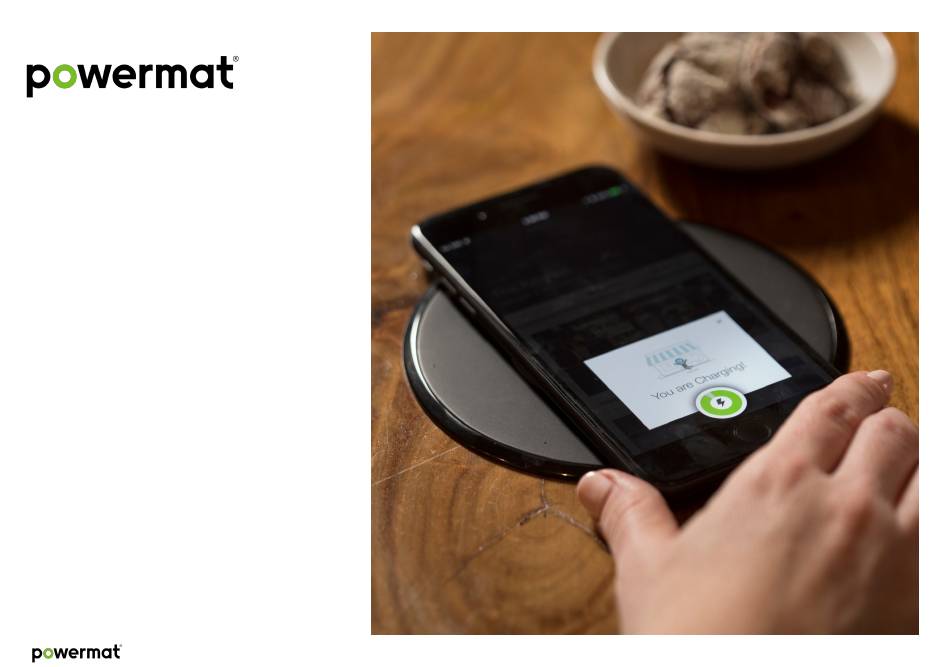

Powermat Charging Spot 4.0 Installation Manual

Advertisement

Quick Links

Charging Spot 4.0
Installation
Guide
Oct-2018
© 2018 Powermat Technologies Ltd. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Charging Spot 4.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Powermat Charging Spot 4.0

  • Page 1 Charging Spot 4.0 Installation Guide Oct-2018 © 2018 Powermat Technologies Ltd. All rights reserved.
  • Page 2: Legal Disclaimer

    This document is solely for the use of Powermat employees and authorized Powermat customers. The material furnished in this document is believed to be accurate and reliable. However, no responsibility is assumed by Powermat for the use of this document or any material included herein.
  • Page 3 Safety, Warnings & Disclaimers  Powermat Charging Spot 4.0 is designed to be installed by Powermat certified installers only  Opening of, and/or repairing of the device should only be done by an authorized specialist  Do not install the device under an electrical conductive surface ...
  • Page 4 Charging Spot Installation Kit Top unit Bottom chassis bottom cover Dimensions: ø5.55” (141mm) X 0.14” (3.6mm) Dimensions: ø6.26” (159mm) X 0.55” (14mm) Dimensions: ø6.26” (159mm) X 1.06” (27mm) 6X Wood Screws (per unit) Power Supply © 2018 Powermat Technologies Ltd. All rights reserved.
  • Page 5: Tool List

    Tool List Philips Screwdriver Slot-head Screwdriver Smartphone (Android / iPhone) Cable tie (optional) Tape measure Super 7 or High Tack Glue One per Charging Spot (for hard surface installation only) © 2018 Powermat Technologies Ltd. All rights reserved.
  • Page 6: Pre-Installation Considerations

    Charging Spot clearance from metal It is recommended to keep 1” (25mm) distance between the Charging Spot and any metallic objects such as fixtures table brackets and table legs. This guarantees proper network connectivity with the Powermat Gateway and the Installer App ...
  • Page 7: Installation Overview

    Top unit installation  Charging Spot activation process After installation  Test your Charging Spot. Make sure unit is charging  Set up Ring adaptors if required Have a question? Contact support@powermat.com © 2018 Powermat Technologies Ltd. All rights reserved.
  • Page 8 (!) Important note: Prior to installing bottom unit chassis, make sure power supply is disconnected from the AC power. Avoid touching the electronics unit during Figure 5: Glue application area Figure 6: Apply glue in recess installation. © 2018 Powermat Technologies Ltd. All rights reserved.
  • Page 9 Before starting, make sure the Charging Spot is connected to power.  Download the Charging Spot 4.0 Installer from Google Play / iTunes to your Android / iPhone device from the link sent to your email address. The email also includes a user name and password for authentication purposes.
  • Page 10  Open Installer App Figure 14: Remove film Figure 15: Orient graphics Figure 16: Pres  Press Venue installation  Follow the app instructions For more assistance please contact us at support@powermat.com © 2018 Powermat Technologies Ltd. All rights reserved.
  • Page 11 Place your device or device with Ring to test the unit is charging:  If your venue has a Tap to Charge policy—download the Powermat app or your brand app with SDK and follow the instructions. © 2018 Powermat Technologies Ltd. All rights reserved.
  • Page 12: Appendix A - Installing In Surfaces Thinner Than 0.5" Or Greater Than 1.5"

    Appendix A - Installing in surfaces thinner than 0.5” or greater than 1.5” Surface thickness thinner than 0.5” Surface thickness between 0.5"-1.5" Surface thickness greater than 1.5" © 2018 Powermat Technologies Ltd. All rights reserved.
  • Page 13: Appendix B - Wiring & Power Supplies

    Wiring & Power Supplies Power Supply Selection DC Wiring Guidelines To minimize AC outlet usage, Powermat enables you to daisy chain multiple units to a This section is relevant if you have chosen to daisy chain several Charging Spots single Power supply.
  • Page 14 Use the bottom chassis channels to place the DC cable wire into the direction in which you wish to exit. The Charging Spot has a total of 4 exit points. Figure 17: Option A Figure 18: Option B © 2018 Powermat Technologies Ltd. All rights reserved.
