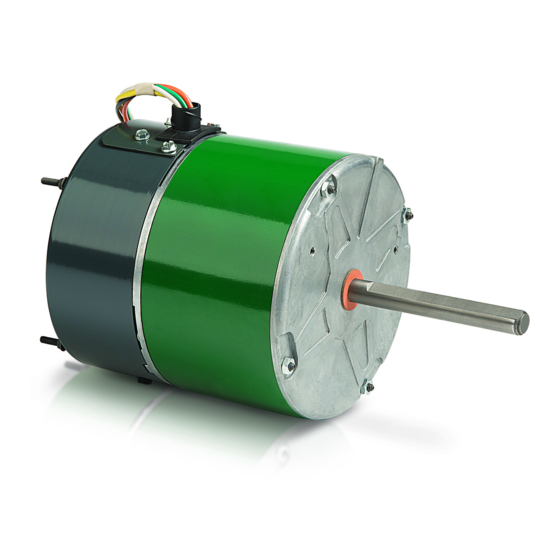

Regal genteq Evergreen OM Installation Manual

Regal genteq Evergreen OM Installation Manual

Outdoor fan motor

Advertisement

Quick Links

Evergreen
OM
®
Outdoor Fan Motor
Installation Guide
WARNING indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
• Read and follow all instructions carefully.
• Disconnect and lock out the main power from the unit being
serviced before installing the Evergreen
good practice to confirm that the power is disconnected with a
voltmeter.
• Do not operate equipment without guards in place.
• Improper installation, adjustment, alteration, service,
maintenance, or use could cause explosion, fire, electrical shock,
or other conditions. Consult a qualified installer, service agency,
or your distributor or branch for information or assistance.
The qualified installer or agency must use the supplied or
recommended parts when installing or servicing this product.
• After installing the Evergreen
of the installing technician to verify the HVAC system matches
the manufacturer's requirements for proper operation, capacity,
efficiency and safety.
This installation guide covers Evergreen
Page 1
6301 & 6303 mechanical installation
Page 1-2
6303R (Remote Mount) mechanical installation
Page 3
6301, 6303 & 6303R (Remote Mount) electrical connections
Page 4
Specifications, diagnostics and warranty information
Evergreen
OM Models 6301 & 6303
®
Mechanical Installation
Install the motor using the extended clamp-bolts or belly band mount.
Changing Rotation
From the factory, the motor will be set up for CCW rotation, as viewed from
lead end.
The Yellow wire connected thru the 2 pin connector to the Violet wire and the
Orange wire connected thru the 2 pin connector to the Brown wire.
To change the rotation from CCW to CW:
Disconnect the 2 pin connector and rotate it 180° so the Yellow wire is
connected to the Brown wire thru the 2 pin connector and the Orange
wire is connected to the Violet wire thru the 2 pin connector.
Evergreen
OM Models 6303R (Remote Mount)
®
Mechanical Installation
The hardware described in the mounting instructions for the motor and the
motor control are located in the parts bag, in the box with the motor, with the
exception of the four (4) mounting screws in the side of the motor.
There are two components to install, the motor and the motor control.
There is a break point in the umbilical cord between the motor control and
the motor comprised of four quick connect terminals. These terminals can be
separated to make it easier to install each component and for routing of the
umbilical cord through the wiring conduit if applicable.
1
OM motor. It is also a
®
®
OM motor, it is the responsibility
OM models 6301, 6303 and 6303R (Remote Mount).
®
Regal Beloit America, Inc.
1325 Heil Quaker Blvd.
LaVergne, TN 37086
Customer Service: 866 503 8566
thedealertoolbox.com
CAUTION indicates a hazardous situation that, if not avoided,
could result in minor or moderate injuries.
• Periodic inspections should be performed. Failure to perform
proper maintenance could result in premature product failure.
• Installation and service of this motor should be performed only
by trained and qualified service technicians familiar with the
Evergreen
OM motor and the HVAC systems into which it will
®
be installed.
CAUTION: Secure all wires, including the Rotation Connector,
out of the path of the fan blade before starting the motor!
Motor
Umbilical Cord
F O R M
G0038E
Revised
September 2019
CCW (Factory)
Yellow
Violet
Orange
Brown
Rotation Connector
CW
Yellow
Brown
Orange
Violet
Motor Control
Line Voltage
Harness
