7. Mounting The Control Panel:
cabinet & spa pack. Drill a 3/4" Hole to allow the Control Panel cables to run through. Use silicone caulking
to seal the hole once the cables are run through. Use the provided mounting screws to securely fasten the
control panel to the spa skirting making sure the control panel completely covers the 3/4 inch hole.
8. Control Panel Connections:
be identified with black tape near the connection end. Connect the control panel power supply cable to the
black power supply. CAUTION: Do not turn spa power on until the spa has been refilled with water and
salt has fully dissolved. Refer to DIAGRAM 3.
9. Refill Spa & Add Salt: Recheck all plumbing connections to make sure all are tight. Refill spa with water
and pour/dissolve the recommended amount of salt in the water (See "Salt Requirement Section). Please
make sure the salt is fully dissolved before proceeding to the next step.
10. Turn Spa Power ON: When ChlorMaker is turned on, the LED Lights will alternate flashing 11 times indicat-
ing the unit has power and is getting ready to make chlorine. After the 11th flash, ChlorMaker will be off in
stand-by for 11 seconds. After the 11 second pause, ChlorMaker will begin the chlorine generation process.
Find a location in the spa skirting that will give easy access to the spa
Connect the control panel cell cable to the ChlorMaker Cell. This cable will

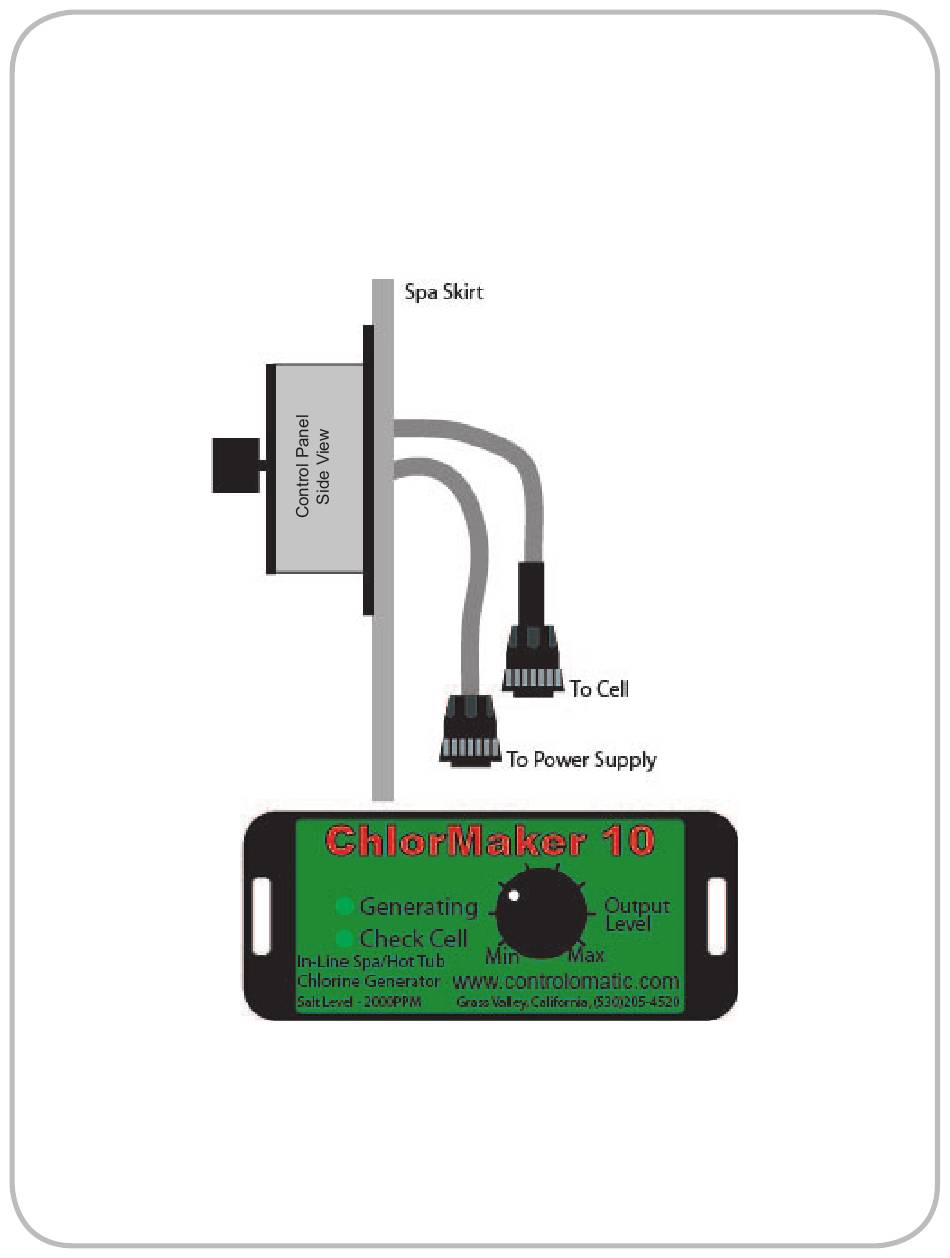

DIAGRAM 3
