ChlorMaker is equipped with a 110/220 VAC Auto-Sensing Power Supply allowing ChlorMaker to be installed on
almost any spa with a 24 Hour Circulation Pump. Spa Dealers or Licensed Electricians are required to install
this product as they are familiar with the electrical codes in your area. ChlorMaker needs to be wired to
a power source that turns on & off when the spas continuous 24 hour circulating pump turns on & off.
ChlorMaker should only operate when water is circulating through the cell. Make sure the SPA is protect-
ed with a GFI protected circuit. Please see the general product layout below.
PRODUCT LAYOUT
1.
Prepare Spa For Installation:
panel to the spa exposing the spas plumbing and spa pack. Open the access panel to the spa pack.
2.
Find Power Supply Location:
where water will not splash on it. Use the supplied screws to fasten power supply to spa compartment.
3.
Find Pump Connection:
have special connectors. It may be necessary to cut and splice ChlorMaker's power supply cable to make the
connection. When routing the wires make sure they are protected from sharp edges in the spa cavity or spa
pack. Refer to Diagram 1 for wiring layout.
PRODUCT INSTALLATION
Shut down main power to spa and drain water completely. Open access
ChlorMaker's power supply needs be fastened to a cool dry location
Locate the spas pump connection inside the spas power pack. Many spa packs

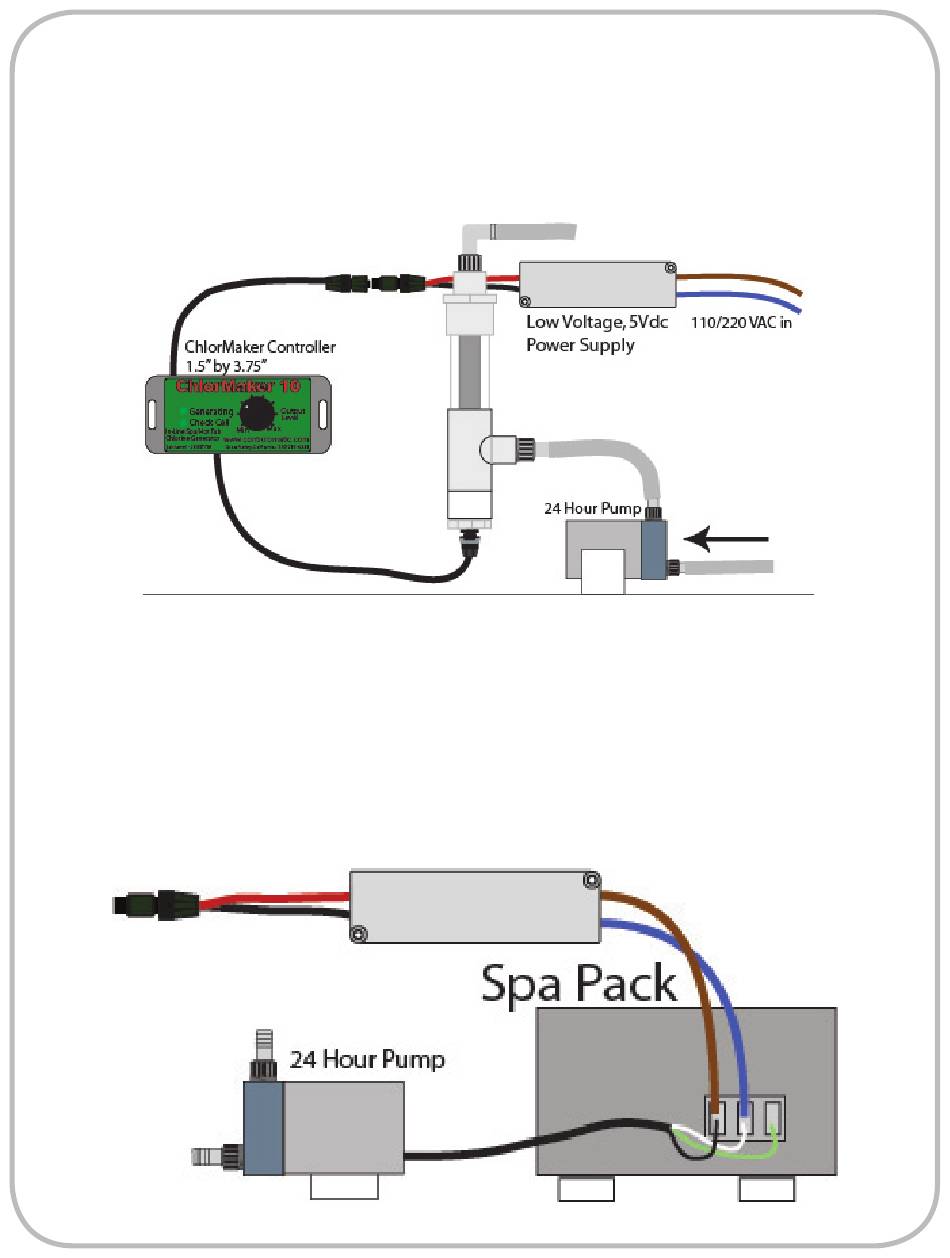

DIAGRAM 1
Power Supply
