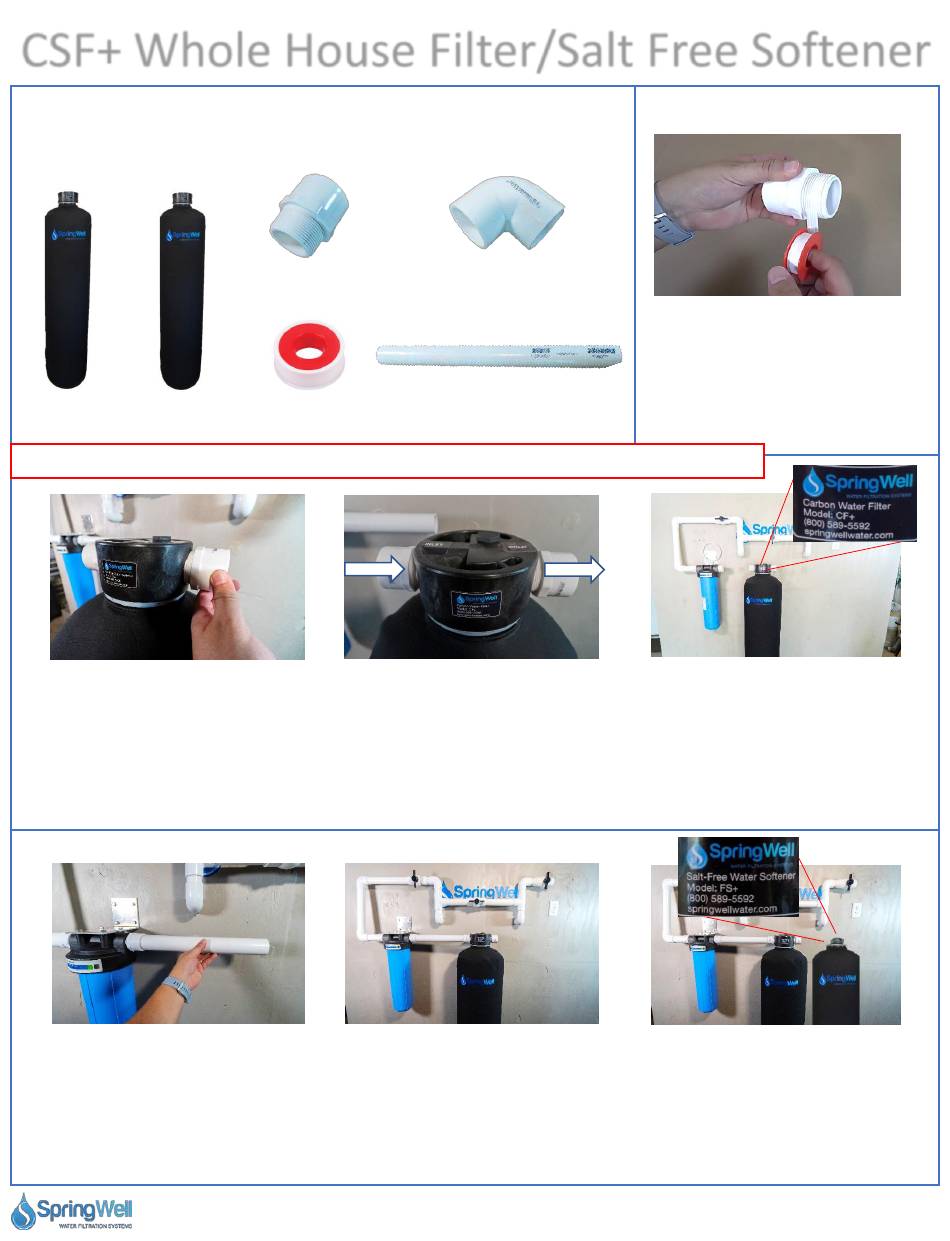

SpringWell CSF+ Setup And Installation Manual page 12

CSF+ Whole House Filter/Salt Free Softener
Installing the Tanks
This step will require the materials listed below
Carbon Filter Conditioner
Tank (CF+) Tank
* The quantities are suggestions. Your system configuration may vary depending on installation area.
55) Connect a 1.5-inch adapter
to the inlet and outlet on each
tank. Fully tighten.
58) Cut a piece of PVC to bridge
between the outlet of the pre-
filter to the inlet on the CF+ tank
and install into the pre-filter.
1.5-inch Adapter (Slip x
Thread)(x4)
Plumbers Tape
1.5-inch PVC Pipe (Cut to fit)
56) Make note of the water
flow direction on each tank.
59) Connect the PVC to the
inlet on the CF+ tank.
Questions? Call (800)-589-5592
1.5-inch Elbow
Connector (Slip) (x2*)
54) Note: Plumbers tape will need
to be applied to all PVC threads
during the installation.
57) The Carbon Filter Tank
labeled CF+ will be installed first.
Stage it inline with the pre-filter.
60) Stage the FS+ tank next to
the installed CF+ tank.
