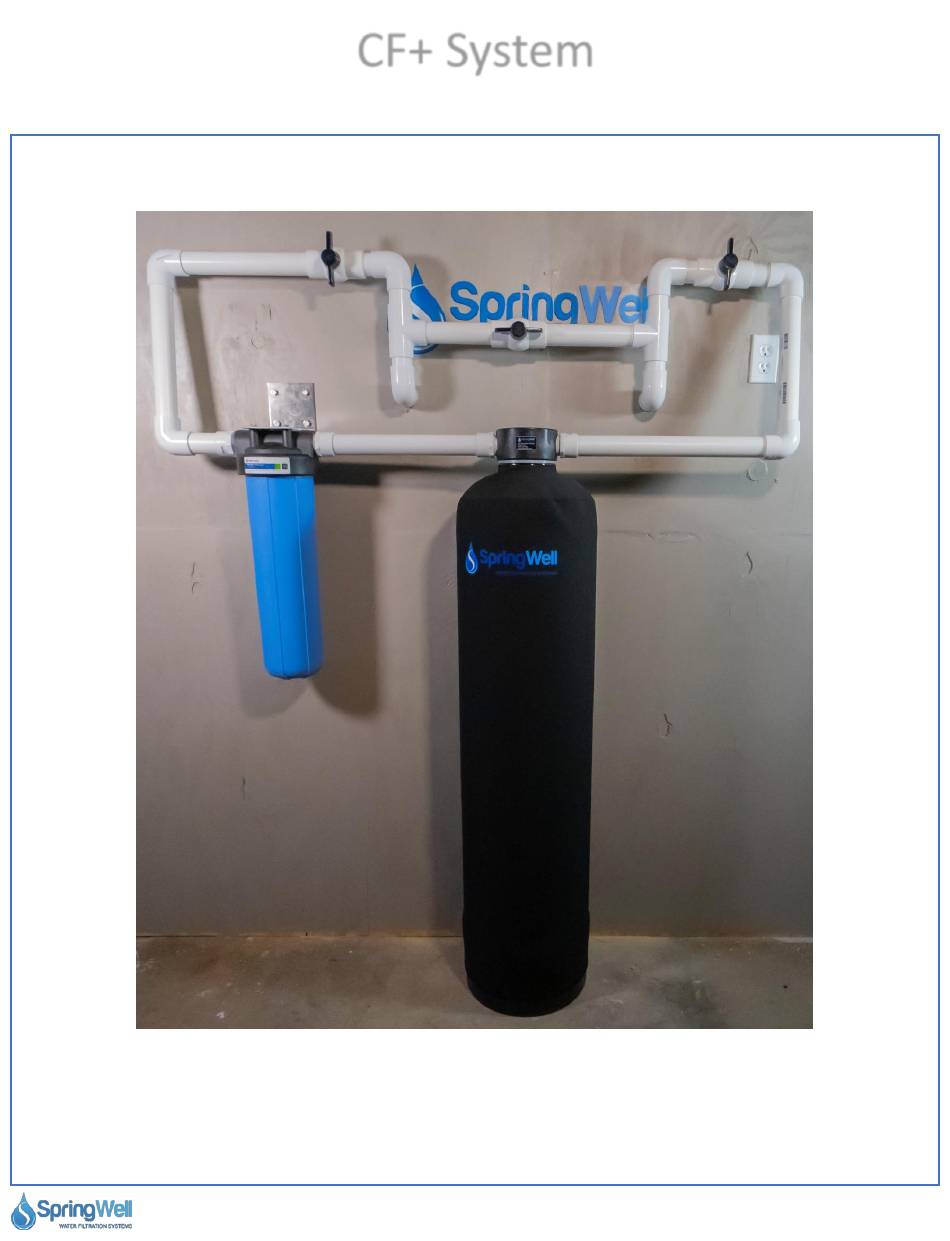

  • Page 1 CF+ System Setup And Installation Questions? Call (800)-589-5592...

  • Page 2: System Contents

    CF+ System Setup And Installation System Contents Spanner Wrench Hose Bib Sediment Assembly (2) Filter Pre-Filter Mounting Bracket Gasket and Lube Carbon Filter Tank (CF+) Recommended Supplies 1.5-inch Elbow 1 Roll Plumbers 1.5-inch Tee 1.5-inch Adapter (Slip 1.5-Inch PVC Shut Off Tape Connector (Slip) (x8*) x Thread) (x4)

  • Page 3: Product Specs

    CF+ System PLEASE READ INSTRUCTIONS FULLY PRIOR TO ATTEMPTING INSTALLATION. Be sure to follow all applicable plumbing codes. The system must be installed on a main water supply line Caution: Do not install on well water unless you have spoken to a customer service representative first.
  • Page 4 CF+ System IMPORTANT! The carbon media inside the filter system MUST soak in water for a minimum of 48 hours prior to installation Carbon Soak Instructions (48 Hours Prior) This step will require the materials listed below Hose Bib Lawn Hoses (x2) and Carbon Filter Assembly (x2) access to a faucet...
  • Page 5 CF+ System IMPORTANT! The carbon media must be flushed on both tanks prior to install Carbon Flush Instructions This step will require the materials listed below Hose Bib Lawn Hoses (x2) and Carbon Filter Assembly (x2) access to a faucet Tank (CF+) 9) Attach the hoses to the tank.
  • Page 6 CF+ System Assembling a Bypass Valve Bypass Operation Note: The tank does not have a built- in bypass valve. Therefore you will need to build a bypass to allow for Bypass on. No water flow to Bypass off. Water flows easy system maintenance.
  • Page 7 CF+ System Assembling a Bypass Valve 16) Cut two 3” pieces of PVC for the 17) Insert one piece of the cut 18) Attach one of the 3-way next step. PVC into each of the elbows splitters with the openings facing upward.
  • Page 8 CF+ System Assembling a Bypass Valve 25) Cut two more 3” pieces of PVC 26) Insert one piece of the cut 27) To limit the height of the for the next step. PVC into each of the 3-way other valves, elbows are splitters facing upward.
  • Page 9 CF+ System Prepping the Pre-Filter This step will require the materials listed below Pre-Filter Housing Sediment Filter O-Ring w/Lube 33) Unscrew the lid from the 34) Insert the Sediment Filter 35) The O-Ring will now be laid Pre-Filter Housing. into the Pre-Filter Housing. into the groove around the top Ensure it sits beneath the edges of the Pre-Filter Housing tank.
  • Page 10 CF+ System Installing the Pre-Filter This step will require the materials listed below 1.5-inch Elbow 1/2” Socket and 1.5-inch Adapter (Slip x Ratchet Thread)(x2) Connector (Slip) (x2*) Mounting Bracket Prepped Pre-Filter Drill with 3/16” drill bit Plumbers Tape 1.5-inch PVC Pipe (Cut to fit) Housing * The quantities are suggestions.
  • Page 11 CF+ System Installing the Pre-Filter (cont.) 45) Take note of the in versus out 46) The other 4 bolts will be used 47) Fully tighten the bolts. flow markings on the top of the to secure the pre-filter housing to pre-filter housing.

  • Page 12: Installing The Tank

    CF+ System Installing the Tank This step will require the materials listed below 1.5-inch Adapter (Slip x 1.5-inch Elbow Thread)(x2) Connector (Slip) (x2*) 54) Note: Plumbers tape will need to be applied to all PVC threads during the installation. Carbon Filter Plumbers Tape 1.5-inch PVC Pipe (Cut to fit) Tank...
  • Page 13 CF+ System 61) Add an elbow pointing 62) Add a length of PVC to the 63) Add an elbow to the PVC towards the outlet connection on elbow to align with the pointing towards the outlet on the CF+ tank. connection of the CF+ tank.

  • Page 14: Testing The System

    CF+ System Testing the System 71) Turn the bypass off and allow 70) Fully turn on the cold water 69) Start with the bypass on to on a bathtub faucet in your water to flush through the system. check it for leaks prior to Allow the system to flush for at home.
