- Page 1 RMC-1E Rackmount Chassis User's Manual UM_RMC-1E_v1.1_032421...
-
Page 2: Table Of Contents
Table of Contents Preface ������������������������������������������������������������������������������������������������ i Safety Instructions ������������������������������������������������������������������������������ ii About This Manual ����������������������������������������������������������������������������� iv Chapter 1� Product Features �������������������������������������������������������������� 1 1.1 Components ....................1 1.2 Specifications .................... 2 1.3 Feature ....................... 2 Chapter 2� Hardware Setup ���������������������������������������������������������������� 5 2.1 Top Cover ....................5 2.2 Fan Module .................... - Page 3 Document Release History Release Date Version Update Content February, 2021 User's Manual release to public. March, 2021 Specifications update. Content...
- Page 4 Copyright© 2021 AIC®, Inc� All Rights Reserved� This document contains proprietary information about AIC® products and is not to be disclosed or used except in accordance with applicable agreements.
-
Page 5: Preface
Disclaimer AIC® shall not be liable for technical or editorial errors or omissions contained herein. The information provided is provided "as is" without warranty of any kind. To the extent permitted by law, neither AIC®... -
Page 6: Safety Instructions
Safety Instructions Before you commence, please attentively read the following important discretions below. All cautions and warnings on the equipment or in the manuals should be circumspectly noted and reviewed. Always ground yourself to prevent static electricity. Always ground yourself to prevent static electricity. 請... - Page 7 • Ensure that the voltage of the power source is within the specification on the label when connecting the equipment to the power outlet. The current load and output power of loads must be within the specification. • This equipment must be firmly connected to reliable grounding before usage. Pay special attention to power supplied other than direct connections, e.g.
-
Page 8: About This Manual
1E Rackmount Chassis. For the latest version of this user's manual, please refer to the AIC® website: RMC-1E is a flexible rackmount storage chassis with tool-less design. This product supports hot swappable HDDs and easy swap fans. For more information about our product, please visit our website at https://www.aicipc.com/en/productdetail/64. -
Page 9: Chapter 1� Product Features

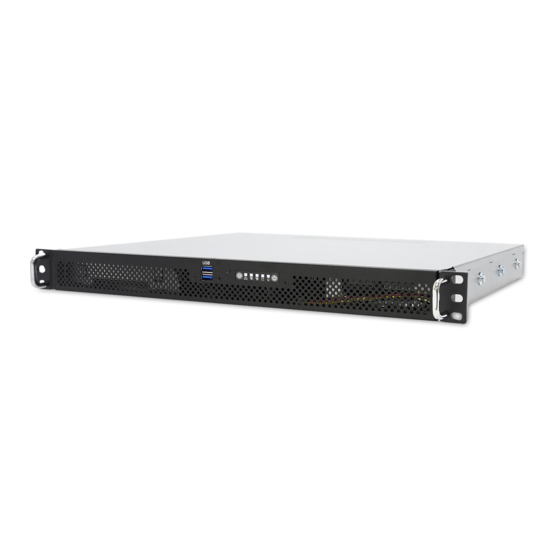

Chapter 1� Product Features RMC-1E is a space saving rackmount management chassis with tool-less design. This product supports hot swappable HDDs and easy swap fans. For more information about our product, please visit our website at http://www.aicipc.com/en/index. Before removing the subsystem from the shipping carton, visually inspect the physical condition of the shipping carton. -
Page 10: Specifications
Chapter 1. Product Features 1�2 Specifications Storage mm : 427 x 381 x 44.4 Dimensions 0ºC(32ºF) ~ 50ºC(122ºF) Temperature (W x D x H) inches : 16.8 x 15 x 1.75 Humidity 5%~95% non-condensing Industry Standard EIA-RS310D kgs : 7 Material Heavy-duty preplated SPGC cold-rolled steel Gross Weight... - Page 11 Chapter 1. Product Features Front Panel System Button and LED Indicator Item Description Item Description System power button System power LED Drive activity LED LAN1 & LAN2 LED System BMC Alert System reset button 2 x USB port Rear Panel ...
- Page 12 Chapter 1. Product Features Top View 3 x 40x28mm fans 3.5-inch HDD 3.5-inch HDD NOTE Motherboard is not included in this product.
-
Page 13: Chapter 2� Hardware Setup
Chapter 2� Hardware Setup 2�1 Top Cover Dislodge screw on the top cover. Push the cover towards the rear panel. Lift upward to remove. ... -
Page 14: Fan Module
Chapter 2. Hardware Setup 2�2 Fan Module Remove the top cover of the chassis. Please refer to Section 2.1. Unplug the cables and connectors. Remove the fan module by dislodging the screw on the fan bracket. Lift the fan module upward. -
Page 15: Hard Disk Drive
Chapter 2. Hardware Setup 2�3 Hard Disk Drive Lift the disk drive out of the chassis. Insert the new disk drive into chassis. Ensure that the dimples are accurately matched before installing the drive. -
Page 16: Riser Card
Chapter 2. Hardware Setup 2�4 Riser Card Loosen the captive screw. Lift the riser card bracket from the chassis. ... -
Page 17: Slide Rail Installation
Chapter 2. Hardware Setup 2�5 Slide Rail Installation NOTE This sections provides a basic instruction for mounting the slide rail onto the system. Tool-less rails vary per order. The rail in this manaul may not exactly match the rail for your system. - Page 18 Chapter 2. Hardware Setup Install the inner rail onto the system barebone. Lock the keyholes. Continue installing the outer rail bracket to the mounting frame. Attach the outer rail assembling to the frame and press the bracket to fix the rail onto the frame. Repeat to fully mount the bracket assembly.
- Page 19 Chapter 2. Hardware Setup Slide the release tab and push barebone into rack. Make sure the barebone is completely installed onto the rack.
-
Page 20: Chapter 3� Technical Support
Chapter 3� Technical Support Taiwain, Global Headquarters South California, United States Address: No� 152, Section 4, Address: 21808 Garcia Lane Linghang N� Rd, Dayuan District, City of Industry, CA 91789, Taoyuan City 337, Taiwan United States Tel: +886-3-433-9188 Toll free: + 1-866-800-0056 Fax: +886-3-287-1818 Tel: +1-909-895-8989 Fax: +1-909-895-8999...
