Summary of Contents for AIC RSC-2ET

  • Page 1 RSC-2ET Rackmount Chassis User's Manual UM_RSC-2ET_v1.3_030921...
  • Page 2: Table Of Contents

    Table of Contents Preface �������������������������������������������������������������������������������������������������������� i Safety Instructions �������������������������������������������������������������������������������������� ii About This Manual ������������������������������������������������������������������������������������� iv Chapter 1� Product Features ���������������������������������������������������������������������� 1 1�1 Components ������������������������������������������������������������������������������������� 1 1�2 Specifications ����������������������������������������������������������������������������������� 2 1�3 Feature ��������������������������������������������������������������������������������������������� 2 Chapter 2� Hardware Setup ������������������������������������������������������������������������ 6 2�1 Top Cover ����������������������������������������������������������������������������������������� 6 2�2 Power Supply Unit Module ����������������������������������������������������������������...
  • Page 3 Copyright © 2017 AIC®, Inc� All Rights Reserved� This document contains proprietary information about AIC® products and is not to be disclosed or used except in accordance with applicable agreements.
  • Page 4 Document Release History Release Date Version Update Content October Content Update 2017 1. New cover August 2. LED update. 2019 3. Datasheet update August logo update 2020 March Technical support update 2021 Cover update.
  • Page 5: Preface

    Disclaimer AIC® shall not be liable for technical or editorial errors or omissions contained herein. The information provided is provided "as is" without warranty of any kind. To the extent permitted by law, neither AIC®...
  • Page 6: Safety Instructions

    Safety Instructions Before you commence, please attentively read the following important discretions below. All cautions and warnings on the equipment or in the manuals should be circumspectly noted and reviewed. Always ground yourself to prevent static electricity. Always ground yourself to prevent static electricity. 請...
  • Page 7 • Ensure that the voltage of the power source is within the specification on the label when connecting the equipment to the power outlet. The current load and output power of loads must be within the specification. • This equipment must be firmly connected to reliable grounding before usage. Pay special attention to power supplied other than direct connections, e.g.
  • Page 8: About This Manual

    LED descriptions. Chapter 4 Technical Support For more information or suggestion, please contact the nearest AIC® corporation representative in your district or visit the AIC® website: https://www.aicipc.com/en/index. It is our greatest honor to provide the best service for our customers.
  • Page 9: Chapter 1� Product Features

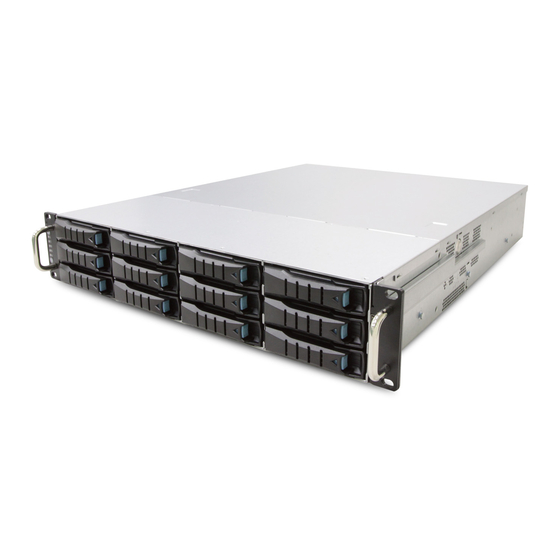

    Chapter 1� Product Features RSC-2ET is a flexible rackmount storage chassis with tool-less design. This product supports hot swappable HDD and easy swap fans. For more information about our product, please visit our website at https://www.aicipc.com/en/index. Before removing the subsystem from the shipping carton, visually inspect the physical condition of the shipping carton.
  • Page 10: 1�2 Specifications

    Chapter 1. Product Features 1�2 Specifications 1 x 12-port 12Gb SATA/SAS backplane mm : 430 x 680 x 88 Dimensions with 28-PHY expander chip and 3 (W x D x H) inches : 17 x 26.8 x 3.5 SFF-8643 connectors Backplane Options Industry Standard...
  • Page 11 Chapter 1. Product Features Front Panel 12 x 3.5-inch hotswap bays Item Description Power Button Power Status LED Drive Activity LED LAN Activity LED System Alert LED System ID LED System ID Button System Reset Button USB 3.0 Type A port...
  • Page 12 Chapter 1. Product Features Rear Panel Option 1 2 x 2.5'' External hot swap drive bays 7 x PCIe 3.0 slots(low-profile) 1U redundant high-efficiency power supply 80+ Option 2 2 x 2.5'' 7'' SSD OS Option 3 2 x 2.5'' internal SSD OS...
  • Page 13 Chapter 1. Product Features Top View 3 x 80x38mm hot swap fans...
  • Page 14: Chapter 2� Hardware Setup

    Chapter 2. Hardware Setup Chapter 2� Hardware Setup 2�1 Top Cover  Push the release button on both sides of the chassis.  Push the cover toward the rear panel.  Lift the top cover to complete removal. Push. Push button on both sides. Lift.
  • Page 15: 2�2 Power Supply Unit Module

    Chapter 2. Hardware Setup 2�2 Power Supply Unit Module  Extract the power supply unit by pushing the ejector while pulling the power supply unit.  Pull the module completely out of the chassis.  Install the new power supply unit by pushing it into the chassis. Ensure that the module is accurately inserted and locked into the chassis.
  • Page 16: 2�3 Fan Module

    Chapter 2. Hardware Setup 2�3 Fan Module  Unplug the cables and connectors.  Lift the fan module upward. Check to carefully dislodge the rubber connectors from the attached bracket.  Insert the new fan into the chassis. Verify to align the rubber connectors with the appropriate slot in the bracket.
  • Page 17: 2�4 Hard Disk Drive

    Chapter 2. Hardware Setup 2�4 Hard Disk Drive  Press the release button on the tray lever to loosen the lever.  Pull the tray lever outward completely.  Pull the tray out of the chassis. Press button Open tray lever.
  • Page 18 Chapter 2. Hardware Setup  Remove the HDD by pushing the HDD out from the backside of the HDD tray, Push HDD out. Remove HDD.
  • Page 19 Chapter 2. Hardware Setup  Match the dimples on the tray to insert the new HDD into the tray. Pull upward to remove the HDD from the HDD tray. Make certain that the HDD is not damaged during installation or removal process. HDD can also be screwed on HDD tray by fastening two screws.
  • Page 20: 2�5 Hdd Backplane Module

    Chapter 2. Hardware Setup 2�5 HDD Backplane Module  Detach the cables and hard disk drives from the backplane module.  Release the module by shifting the hook. Unplug cables. Shift the hook.
  • Page 21 Chapter 2. Hardware Setup  Hold the module on both sides.  Lift the module upward. Hold. Lift.
  • Page 22 Chapter 2. Hardware Setup  Align the new backplane module and insert it into the chassis.  Secure the module with the lockPin to complete installation.
  • Page 23: 2�6 Slide Rail

    Chapter 2. Hardware Setup 2�6 Slide Rail NOTE This sections provides a basic instruction for mounting the slide rail onto the system. Tool-less rails vary per order. The rail in this manaul may not exactly match the rail for your system. Please refer to the spefications or quick installation guide that came with your purchased product.
  • Page 24 Chapter 2. Hardware Setup  Attach inner rail to the system. Slide inner rail to lock. Make sure spring lock firmly. Reserved screw hole.
  • Page 25 Chapter 2. Hardware Setup  Attach outer rail to the rack.  Align� Push� Lock�...
  • Page 26 Chapter 2. Hardware Setup  Verify that the ball bearing retainer is locked forward.  Pull out the intermediate rail until iit is locked out.  Slide the release tab and push system into rack to complete installation.
  • Page 27: Chapter 3� Hardware Specifications

    Chapter 3� Hardware Specifications 3�1 HDD Backplane 3�1�1 Placement Connector Location JFAN1 JFAN2 JFAN3 JFAN3 JFAN3 JI2C3 JEXP2 JI2C4 JI2C0 JFAN4 SASHD3 SASHD3 SASHD3 JPMBUS JPMBUS JPMBUS JEXP_UART JEXP_UART JEXP_UART JPWR1 JPWR1 JPWR1 SASHD2 SASHD2 SASHD2 JMCU_DBG JMCU_DBG JMCU_DBG JPWR2 JPWR2 JPWR2 JMCU_UART...
  • Page 28: Connector

    Chapter 3. Hardware Specifications 3�1�2 Connector Power Connector (JPWR1) Description Description +12V +12V +3.3V MUTE_L +5VSTBY PSU_N1 PS_ON_L Power Connector (JPWR2) Description Description +12V +12V +12V +12V PMBUS Connector (JPMBUS) Description PMBUS_CLOCK PMBUS_DATA...
  • Page 29 Chapter 3. Hardware Specifications I2C Connector (JI2C0, JI2C3, JI2C4) Description I2C_CLOCK I2C_DATA Fan Connector (JFAN1, JFAN2, JFAN3, JFAN4) Description I2C_CLOCK I2C_DATA Console for Expander (JEXP_UART) Description Description DEBUG_RXD SMART_RXD +12V DEBUG_TXD SMART_TXD Remote Power Control (JMCU_UART) Description Description DOWN_RXD UP_RXD DOWN_TXD UP_TXD...
  • Page 30 Chapter 3. Hardware Specifications Console for MCU (JMCU_DBG) Description MCU_RXD MCU_TXD 2.54mm Header for Front I/O (JFRONT) • Fan number select Pin[5,6] Pin [3,4] Pin [1,2] Fan no. support Active Fan Locate Close Close Close No Fan Close Close Open One Fan JFAN1 Close...
  • Page 31: Led Indicator

    Chapter 3. Hardware Specifications 3�1�3 LED Indicator LED1 LED1 LED1 LED2 LED2 LED2 SASHD Status LED SASHD Status LED SASHD Status LED LED5 LED5 LED5 Blue (On) HDD present HDD Activity LEDs Blue (Blinking) HDD Activity detected or Locate HDD HDD no connect or Power Off Normal HDD Fault/Status LEDs...
  • Page 32: Jumper

    Chapter 3. Hardware Specifications 3�1�4 Jumper JMCU_RST JMCU_RST JMCU_RST JMD_SEL JMD_SEL JMD_SEL Open Normal, default JMCU_RST Close Reset MCU Open Normal, default JMD_SEL Close Boot loader mode...
  • Page 33: Drive Slot Map

    Chapter 3. Hardware Specifications 3�1�5 Drive Slot Map...
  • Page 34: Chapter 4� Technical Support

    Chapter 4� Technical Support Taiwain, Global Headquarters South California, United States Address: No� 152, Section 4, Address: 21808 Garcia Lane Linghang N� Rd, Dayuan District, City of Industry, CA 91789, Taoyuan City 337, Taiwan United States Tel: +886-3-433-9188 Toll free: + 1-866-800-0056 Fax: +886-3-287-1818 Tel: +1-909-895-8989 Sales Email: sales@aicipc�com�tw...
