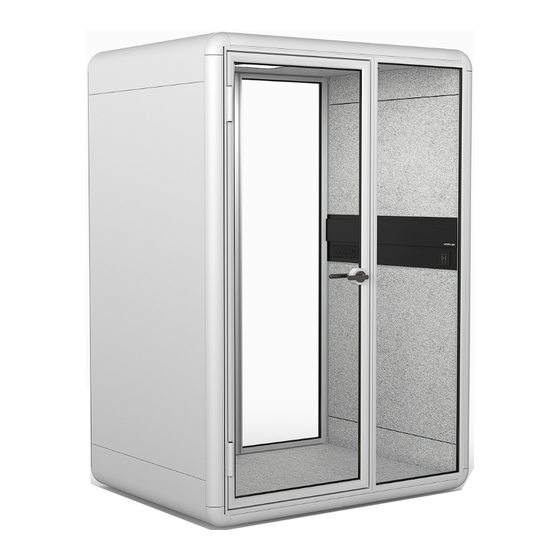

- Page 1 KOLO MIDI Assembly Instructions. acoustic collection - kolo midi [left hand open - outlet on right - without furniture- type A/B] koplus b.v. | koplus.eu info@koplusbrand.com version 060321...
- Page 4 14W. The power cord fuse is set at 7amp to prevent overloading. Kolo Midi comes with 2 AC power outlets and 2 USB charging outlets. DO NOT plug in any electronic devices that uses over 5amp.
- Page 5 90 Degree Drill Adaptor Rubber Mallet Ratchet Wrench - Metric Socket Phillips Screw Driver Allen Key Set Page 03 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 6 M4x40mmL Nº1-10 Nº6 Nº1-11 Nº2-1 Screw Cover Double Bottom Socket Cover Tile Floor Corner Page 04 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 7 Horizontal Frames Horizontal Frame Covers Nº9-2 Nº9-1 Nº10 Vertical Frame Covers Vertical Frames Frame Corners Page 05 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 8 Center Floor PET Tile Side Floor PET Tiles Top Side Panels Nº17 Bottom Side Panels Page 06 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 9 Spring Washer M8 x 50 M8 x 25 M4 x 30 M4 x 25 Page 07 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 10 M8 x 50 Nº2-1 FRONT Floor Corner Nº6 Nº2-2 Floor Floor Corner + Electric Page 08 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 11 Nº5 Side Wall + Electric Side Wall M8 x 50 FRONT M8 x 50 Page 09 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 12 Nº3-1 FRONT Roof Corner Nº7 Roof Nº3-2 Roof Corner + Electric Nº1-3 Dowel Pin Page 10 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 13 Step 4. M8 x 50 M8 x 50 Page 11 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 14 Step 5. FRONT Spring Washer Nº8-1 Horizontal Frame M8 x 25 Page 12 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 15 Step 6. Spring Washer M8 x 25 Nº9-1 Vertical Frame Nº10 Frame Corner Page 13 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 16 Step 7. Nº11 Nº12 Side Glass Back Glass Page 14 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 17 Step 8. Nº9-1 Vertical Frame Nº10 Frame Corner Nº8-2 Horizontal Frame Cover Page 15 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 18 Step 9. Spring Washer M8 x 25 Nº9-1 Vertical Frame Page 16 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 19 Frame Corner Frame Corner Nº9-2 Vertical Frame Cover Nº9-2 Vertical Frame Cover Nº10 Frame Corner Page 17 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 20 Step 11. Spring Washer M8 x 25 Page 18 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 21 Step 12. FRONT Nº8-1 Spring Washer Horizontal Frame M8 x 25 Page 19 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 22 Step 13. Spring Washer M8 x 25 Nº9-1 Vertical Frame Nº10 Frame Corner FRONT Page 20 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 23 M4x40mmL Nº1-5 Rose INTERIOR Nº1-7 EXTERIOR Interior Handle Nº1-6 Nº1-4 Mounting Plate Exterior Handle Page 21 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 24 Step 15. Nº13 Nº11 Glass Door Side Glass Page 22 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 25 Vertical Frame Nº10 Frame Corner Nº10 Frame Corner Nº8-1 Nº8-2 Horizontal Frame Horizontal Frame Cover Page 23 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 26 Step 17. Spring Washer M8 x 25 Nº9-1 Vertical Frame Page 24 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 27 Nº10 Frame Corner Nº9-2 Vertical Frame Cover Nº9-2 Vertical Frame Cover Nº10 Frame Corner Page 25 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 28 Step 19. Spring Washer M8 x 25 Nº8-1 Horizontal Frame Page 26 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
- Page 29 Nº1-9 Screw Cover Single Nº1-10 M4 x 30 M4 x 30 Screw Cover Double Page 27 Koplus B.V. | Kolo Midi | Left Hand Open Door | Outlet on Right | Without Furniture | Type A/B Plug | Assembly Instruction...
