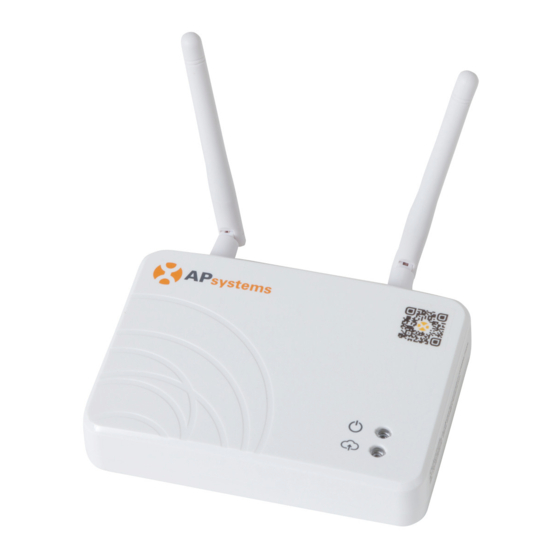

APsystems ECU-R Quick Start Manual
Cellular communication lte usb dongle
Hide thumbs
Also See for ECU-R:
- Quick installation manual (28 pages) ,
- Installation & user manual (25 pages) ,
- Installation & user manual (23 pages)
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for APsystems ECU-R
Summary of Contents for APsystems ECU-R
- Page 1 ECU-R & ECU-C cellular communication LTE USB Dongle © All Rights Reserved ALTENERGY POWER SYSTEM Inc. www.APsystems.com APsystems China: Rm. B305 No.188, Tomson Center, Zhangyang Road, Pudong, Shanghai , China TEL: +86 21 33928205 EMAIL: info@APsystems.cn...
- Page 2 ECU-R & ECU-C cellular communication LTE USB Dongle APsystems new generation of ECU-R and ECU-C is able to manage cellular communication with the addition of an external 4G USB Dongle. New generation of ECUs can be identified either by their firmware version or their UID (serial number) •...
- Page 3 LTE USB Dongle card slot is adapted to Nano SIM Card. Ordinary SIM Card Nano SIM Card Micro SIM Card 12x9 (mm) Nano SIM Card APsystems China Rm. B305 No.188, Tomson Center, Zhangyang Road, Pudong, Shanghai , China ｜+86 21 33928205...
- Page 4 These 4 steps are only needed if he SIM Card is protected with a PIN code. Once the SIM card has been deactivated, you can use it in the EC20 USB 4G Dongle. APsystems China Rm. B305 No.188, Tomson Center, Zhangyang Road, Pudong, Shanghai , China ｜+86 21 33928205...
- Page 5 Extension antenna （ CRC9 ） Note: LTE USB dongle must always be equipped with the main antenna. APsystems China Rm. B305 No.188, Tomson Center, Zhangyang Road, Pudong, Shanghai , China ｜+86 21 33928205...
- Page 6 Then connect the LTE USB dongle with the energy communication Unit (ECU) through the USB interface. Once the ECU is powered on, the Dongle can be connected to the 4G network. ECU-C and LTE USB Dongle ECU-R and LTE USB Dongle Note: LTE USB dongle only supports the USB connection; Once the LTE USB dongle is plugged into the ECU, it does not need any special settings in the ECU_APP.
- Page 7 When selecting the data plan, we recommend as a rule of thumb to multiply the typical data volume by a factor of 2.5. APsystems China Rm. B305 No.188, Tomson Center, Zhangyang Road, Pudong, Shanghai , China ｜+86 21 33928205...
