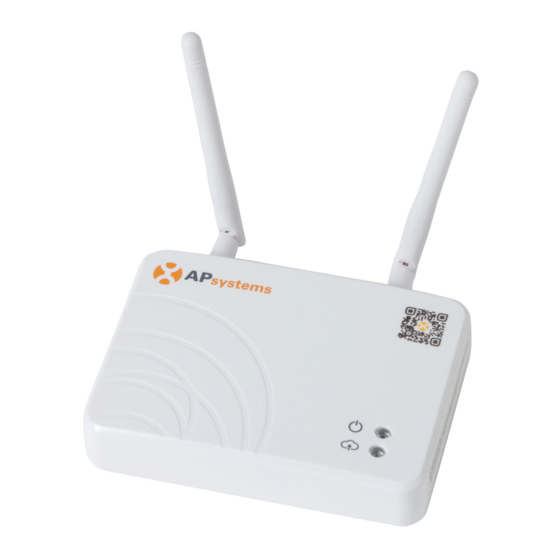

APsystems ECU-R Quick Installation Manual

Energy communication unit

Hide thumbs Also See for ECU-R:

APsystems Energy Communication Unit

This guide is for reference only and assumes you have access to, and have read the detailed

instructions in the ECU-R User Manual (available at APsystems.com).

Step 1: Power-on ECU-R



Make sure the adapter is properly connected to the power port on the top of the ECU-R.



Plug the adapter into a dedicated standard AC electrical outlet.

Step 2: Antenna Up ECU-R



Make sure the antenna is properly connected to corresponding position on the top of the

ECU-R.

Step 3: Connect your smartphone to ECU-R

1 : Open Wi-Fi setting in your smartphone, select ECU-R hotspot.

2 : Connecting to the ECU-R via the Local Wireless, the default password is "88888888".

Step 4 : Connect Microinverter to ECU-R

1 : Open the APP.

2 : Check APP is connected to ECU-R in the Home page.

3 : Click "Settings", select the ID management, input the micro ID with the SCAN function or

manually, select the IDs and click Sync to enter IDs into ECU-R. If you want to clean up all the IDs,

please select the IDs and click "Delete" and then "Sync".

ECU-R Quick Installation Guide

2021/01/27 REv5.0 Quick Installation Guide

Table of Contents

Need help?

Do you have a question about the ECU-R and is the answer not in the manual?

Page 1 3 : Click “Settings”, select the ID management, input the micro ID with the SCAN function or manually, select the IDs and click Sync to enter IDs into ECU-R. If you want to clean up all the IDs, please select the IDs and click “Delete” and then “Sync”.
Page 2 Please use mobile browser to scan the QR codes to download APP. (EMA App is for end user, EMA Manager is for installer.) Or click the link to download the app: http://q-r.to/1OrC Product information is subject to change without notice.(Please download manuals at www.APsystems.com). 2021/01/27 REv5.0 Quick Installation Guide...
