The model used ZigBee PRO protocol to send RF signals for device communication.
The model can be used after pairing with a dedicated device which was installed with a
receiver dongle.
APS2530H was used as a dongle which need to be installed in customer's device. It
offers UART to communicate with customer's device according predefined protocol.

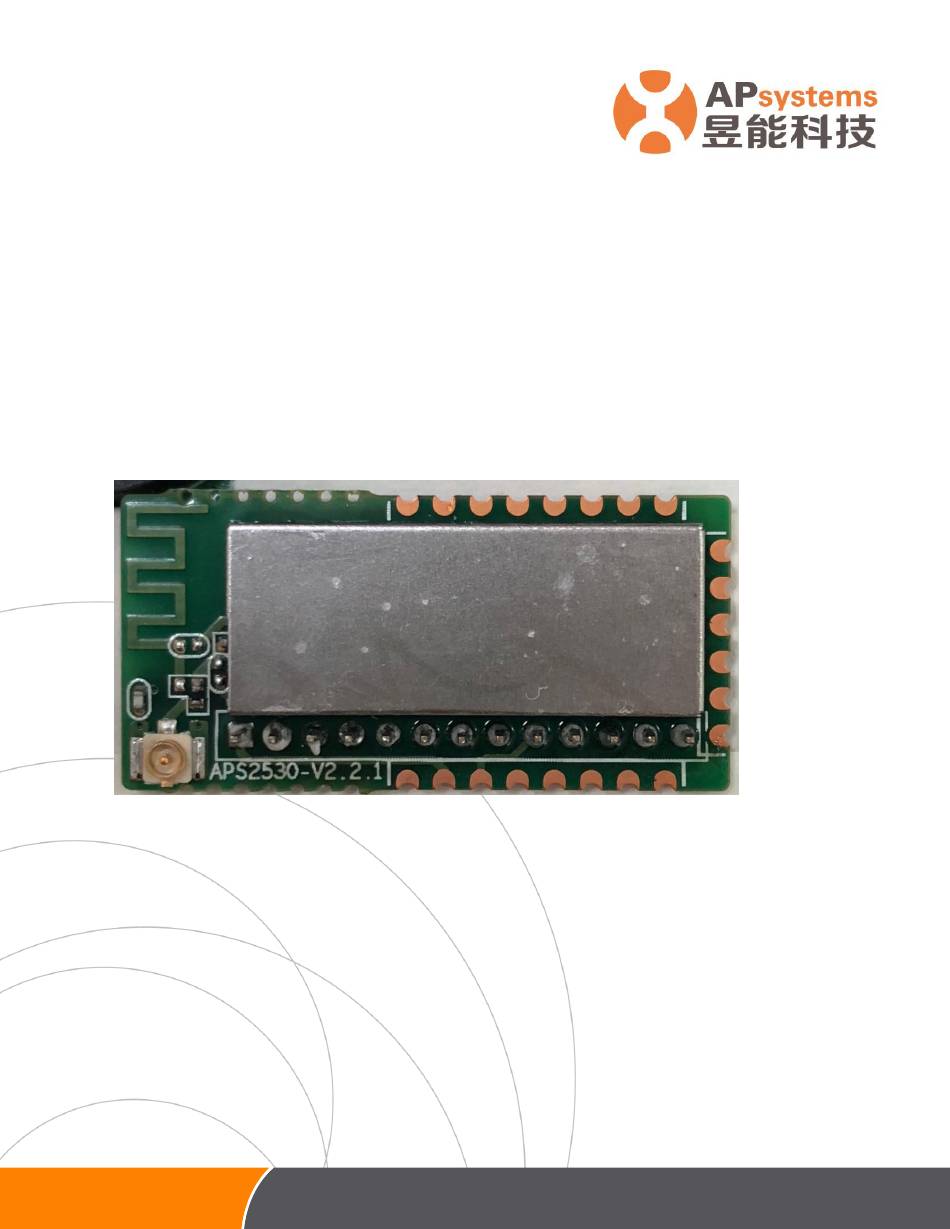

1:product figure(APS2530H)
2: Technical specifications
RF operating frequency: 2402MHz ~ 2483MHz
Reference frequency: 2.400GHz
Channel spacing: 5MHz
Channel wide：2MHz
Modulation method: OQPSK
Communication rate: 250Kbps
User Manual for APS2530H
昱能科技
NO.1 Yatai Road, Jiaxing, Zhejiang, China
浙江省嘉兴市南湖区亚太路 1 号
+86 57383986967 | APsystems.com
Advertisement
Table of Contents
Related Manuals for APsystems APS2530H
Summary of Contents for APsystems APS2530H
- Page 1 The model can be used after pairing with a dedicated device which was installed with a receiver dongle. APS2530H was used as a dongle which need to be installed in customer’s device. It offers UART to communicate with customer’s device according predefined protocol.
- Page 2 Average operating current：<20mA Operating voltage：2V-3.6V Max remitting current: 20mA Max rate：250Kbit/s Receiving sensitivity： -95dbm Receiving current：<24mA Max receiving distance：>100M Normal operating receiving distance： 100M 昱能科技 NO.1 Yatai Road, Jiaxing, Zhejiang, China 浙江省嘉兴市南湖区亚太路 1 号 +86 57383986967 | APsystems.com...
- Page 3 P0_2 Digital I/O Port0.2 - UART RX P0_3 Digital I/O Port0.3 - UART TX P0_4 Digital I/O Port0.4 P0_5 Digital I/O Port0.5 P0_6 Digital I/O Port0.6 昱能科技 NO.1 Yatai Road, Jiaxing, Zhejiang, China 浙江省嘉兴市南湖区亚太路 1 号 +86 57383986967 | APsystems.com...
- Page 4 This device complies with Part 15, Subpart C, Section 15.247 of the FCC Rules. product should not collocate with other radio host label should content modular FCC ID:2AFGR-APS2530H/IC :20481-APS2530H ANT type/gain tolerance of antenna OEM should use. Use only the antenna supplied by the manufacturer when operating this device(antenna gain:2dBi).
- Page 5 L'exploitation est autorisé e aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et 昱能科技 (2) l'utilisateur de l'appareil doit accepter tout brouillage NO.1 Yatai Road, Jiaxing, Zhejiang, China 浙江省嘉兴市南湖区亚太路 1 号 +86 57383986967 | APsystems.com...
- Page 6 . Cet é quipement doit ê tre installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corps. 昱能科技 NO.1 Yatai Road, Jiaxing, Zhejiang, China 浙江省嘉兴市南湖区亚太路 1 号 +86 57383986967 | APsystems.com...
