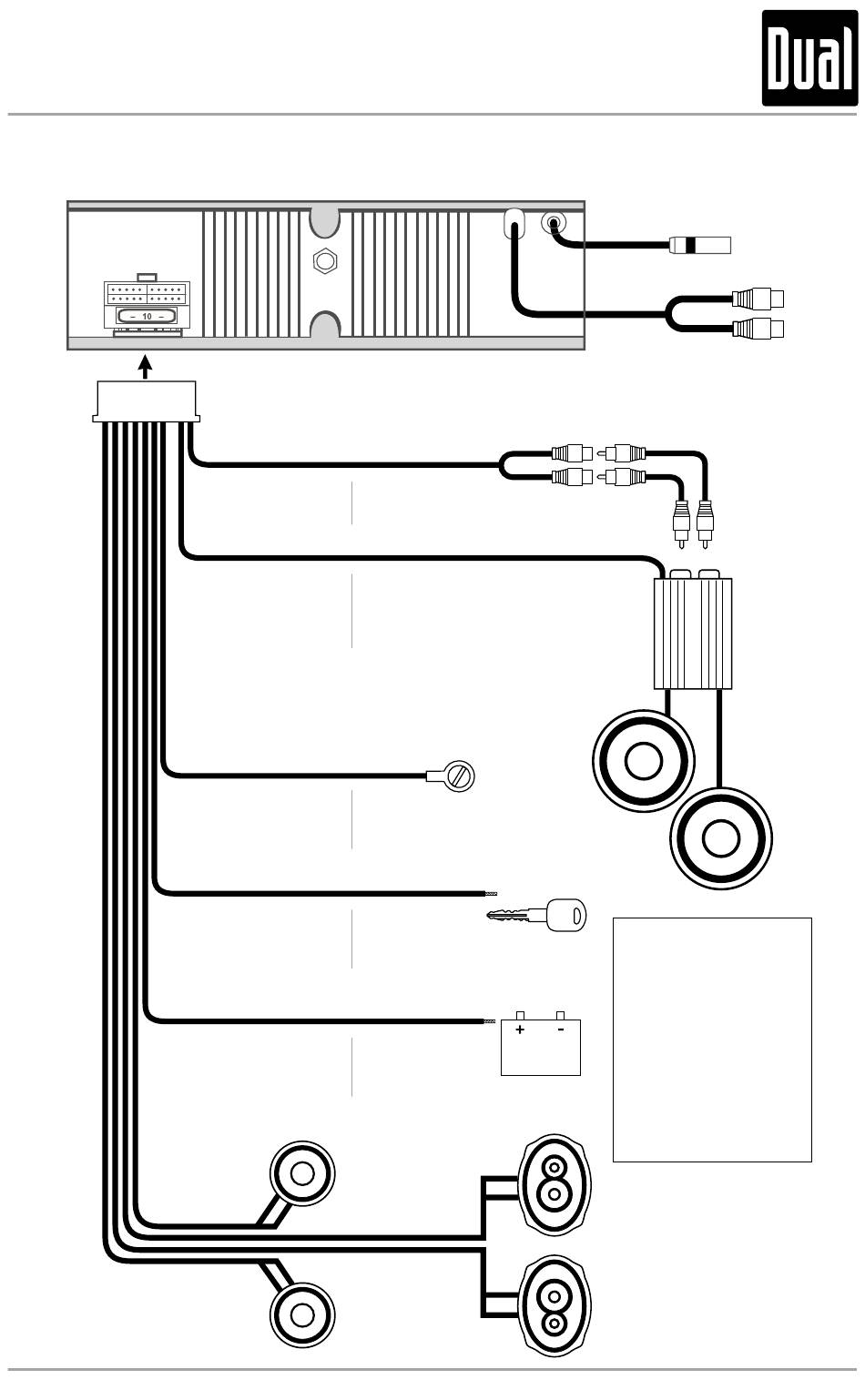

Wiring Diagram - Dual USER MANUAL Installation & Owner's Manual

GREY
BLUE
BLACK
RED
YELLOW
Right Front
Gray/Black (-)
Gray (+)
Left Front
White/Black (-)
White (+)
XD6200
Rear Preamp Output
Connect to amplifier RCA Input
Remote Turn-On
Connect to amplifier or power
antenna. Insulate wire if not used.
Ground
Connect to vehicle
chassis ground.
Accessory
Connect to existing ignition
circuit or switched 12 volt source.
Memory
Connect to battery
circuit or constant 12 volt source.
Right Rear
Violet/Black (-)
Violet (+)
Left Rear
Green/Black (-)
Green (+)
INSTALLATION

Wiring Diagram

Antenna Connector
YELLOW Auxiliary Input
RCA Cable
(sold separately)
AMP
FUSE
When replacing a fuse,
make sure new fuse is the
correct type and amperage.
Using an incorrect fuse
could damage radio.
The XD6200 uses one
10 amp ATO fuse located
below wiring connector.
3
