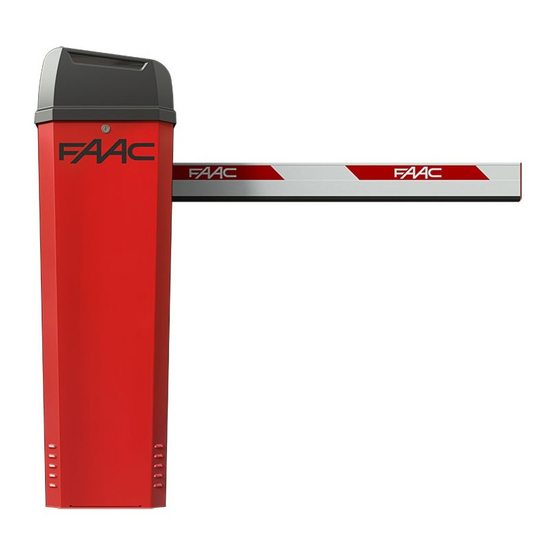

B614
Questa istruzione è una bozza preliminare destinata ad ac-
IT
compagnare il prodotto di pre-serie. Alcune parti sono
incomplete o in versione non definitiva.
This instruction is a preliminary draft meant to accompany
EN
the pre-series product. Some parts are incomplete or in
pre-release version.
Translation of the original instructions
Advertisement
Table of Contents
Related Manuals for FAAC B614
Summary of Contents for FAAC B614
- Page 1 B614 Questa istruzione è una bozza preliminare destinata ad ac- compagnare il prodotto di pre-serie. Alcune parti sono incomplete o in versione non definitiva. This instruction is a preliminary draft meant to accompany the pre-series product. Some parts are incomplete or in pre-release version.
- Page 2 Die Kunden dürfen nur für den Eigengebrauch Kopien anfertigen. Dieses Handbuch wurde 2017 veröffentlicht. © Copyright FAAC S.p.A. del 2017. Todos los derechos están reservados. No puede reproducirse, archivarse, distribuirse a terceros ni copiarse de ningún modo, ninguna parte de este manual, con medios mecánicos o mediante fotocopia, sin el permiso previo por escrito de FAAC S.p.A.
-
Page 3: Eu Declaration Of Conformity
EU DECLARATION OF CONFORMITY The Manufacturer Company name: FAAC S.p.A. Soc. Unipersonale Address: Via Calari, 10 - 40069 Zola Predosa BOLOGNA -ITALY hereby declares under its own exclusive liability that the following product: Description: Barrier Model: B614 complies with the following applicable EU legislations:... -
Page 4: Table Of Contents
Components ................32 2.3 Unpacking and handling ............8 7.2 Connections ................34 Control devices ................34 2.4 Disposal of the product ............8 External loops ................35 3. B614 .....................9 Bus devices ..................35 3.1 Intended use ................9 OUT outputs ................35 3.2 Limitations of use ..............9 "... - Page 5 7 Board technical data sheet E614 ........32 16 Rectangular beam balancing ........60 8 Basic programming ............38 17 Round beam S balancing ..........60 9 Speed default ..............39 ADDENDUM 1 Foundation for barrier in maximum configuration ..59 2 Balancing system ............60 B614 732998 - Rev.A_DRAFT...
-
Page 6: Introduction To This Instructions Manual
product B614 will be installed, prior to commissioning Manual operation - automation system unlocked the machine. These activities include the analysis of all... -
Page 7: Symbols: Safety Signs (En Iso 7010)
RISKS FROM BATTERIES AT THE END OF THEIR LIVES - Risk to the environment and health posed by batteries at the end of their lives due to fluid escaping RISK OF FORKLIFT TRUCK IMPACT - Risk of being hit by or colliding with forklift trucks B614 732998 - Rev.A_DRAFT... -
Page 8: Safety Recommendations
Register of the system. The installer must prove or declare to possess technical and professional proficiency to perform installation, testing and maintenance activities according to the requirements in these instructions. B614 732998 - Rev.A_DRAFT... -
Page 9: Transport And Storage
Protect from mechanical stresses. If storing for longer than 3 months, periodi- cally check the condition of the components and the packaging. - Storage temperature: from 5 °C to 30 °C. - Storage humidity: from 30% to 70%. B614 732998 - Rev.A_DRAFT... -
Page 10: Unpacking And Handling
4. Dispose of the packaging materials. recycling facilities. The packaging materials (plastic, polystyrene, etc.) must not be left within reach of children as they are potential sources of danger. 1 Barrier body B614 2 Upper lid 3 Installation accessories 4 Instruction manual 5 Risk signalling 1... -
Page 11: B614
- Do not allow water jets of any type or size to come B614 requires the use of a FAAC spring that is adequate into direct contact with the actuator. for counterbalancing the weight of the beam and... -
Page 12: Emergency Use
"DANGER OF AUTOMATIC MOVEMENT" (not supplied) It must be the specific foundation plate and cemented onto a placed on the trunk by the installation engineer. plinth RH/LH barrier B614 makes it possible to build a right hand or left hand barrier without modifying the bar- rier body. ... -
Page 13: Manual Operation
6 Technical data B614 220-240 V ~ B614 115 V ~ Supply voltage 220-240 V~ 50/60 Hz 115V~ +/-10% 50/60 Hz 24 V " 24 V " Electric motor Max power 165 W 165 W Max torque 300 Nm - 63 Nm (Breakaway - 45°) 300 Nm - 63 Nm (Breakaway - 45°) -
Page 14: Component Identification
3.8 COMPONENT IDENTIFICATION Standard equipment on the barrier body (4): 1 Bearing trunk B614 beam side 2 Drive shaft 3 Beam release device (triangular key) 4 Upper lid 5 Door with lock 6 Control board E614 7 Control board cover E614... -
Page 15: Installation Components
3 Fixing pocket for the installed beam (rectangular or round) 4 Single or double balancing spring 3.10 OPTIONAL ACCESSORIES For the FAAC accessories for B614 see chapter § 10. Rectangular beam Round beam Pocket for rectangular... -
Page 16: Installation Requirements
EN 349. For the safety distances required to prevent danger zones being reached, refer to ISO 13857. For the specifics relative to the creation of detection coils, refer to the relative instructions. 6 B614 732998 - Rev.A_DRAFT... -
Page 17: Electrical System
This is mandatory in the case of hold-to-run controls. If an emergency stop button has been installed, it must be EN13850 compliant. Comply with the following heights from the ground: B614 732998 - Rev.A_DRAFT... -
Page 18: Example System
4.3 EXAMPLE SYSTEM The example is purely an illustration and is only one of the possible applications of B614. Example System Minimum wire cross section 1 Barrier B614 2 Mains power supply 3G 1.5 sq. mm 3 Cut out switch... -
Page 19: Mechanical Installation
The torque wrench and the tightening torque in Nm Never manage the barrier by holding the board holder. is shown in the figures. E.g.: HEX WRENCH 6 set at 2.5 Nm B614 732998 - Rev.A_DRAFT... -
Page 20: Placing The Foundation Plate
Check the plate is horizontal using a spirit level. Clean the concrete off the surface of the plate and the nuts with washers so they can be removed when necessary. 4. Wait for the concrete to set. beam side door side B614 9 B614 732998 - Rev.A_DRAFT... -
Page 21: Installing The Barrier Body
3. (12) Fix the body of the barrier in post ion us- ing a nut with washer on every fixing point of the foundation. Use the torque wrench to tighten to the torque shown in the figure. 11 50 Nm 12 B614 732998 - Rev.A_DRAFT... -
Page 22: Fixing The Cables Inside The Barrier
2. (14) Remove bolt with washer 1. Open cable tie2. Bring the cables to the board. 3. Use the screw and washer 1 to close the cable tie. The electrical connections must be made after completing the mechanical installation 13 14 B614 732998 - Rev.A_DRAFT... -
Page 23: Fitting The Beam
The spacer must not be used and must be eliminated. 3. (17) Remove guide 1 and replace it. 4. Fix in position with screw 2, interposing washer 3. Use the torque wrench to tighten to the torque shown in the figure. 60 Nm 17 B614 732998 - Rev.A_DRAFT... - Page 24 8. (19) Insert cover 1 and fix it with screw2, inter- posing the washer. 9. Insert the cover 3 at the end of the beam. (20) Leave the beam supported to take the weight until the assembly of the spring is complete. 18 20 19 B614 732998 - Rev.A_DRAFT...
-
Page 25: Round Beam
7. Insert counter plate 2. 8. Fix in position with screws 3, interposing the washers. Use the torque wrench to tighten to the torque shown in the figure. 60 Nm 22 25 Nm 23 B614 732998 - Rev.A_DRAFT... - Page 26 10. (25) Apply the reflective papers 1 on both sides of the beam. 11. Insert cover 2 at the end of beam and fix with screws 3. Leave the beam supported to take the weight until the assembly of the spring is complete. 24 25 B614 732998 - Rev.A_DRAFT...
-
Page 27: Fitting The Spring
4. (27) Align bushing 1 and tie rod 2 on the ap- propriate hole. Fix in position with screw 3, interposing washer3. Use the torque wrench to tighten to the torque shown in the figure. 15 Nm 27 B614 732998 - Rev.A_DRAFT... -
Page 28: Single Spring
3. Shorten the tie rod by screwing it up manually to Keep away from the spring coils. place the spring under tension. 3. Restore the automatic operation Keep away from the spring coils. 4. Restore the automatic operation. 28 29 B614 732998 - Rev.A_DRAFT... -
Page 29: Accessories On The Beam
- to lower the beam further, it is necessary to lengthen the tie rod 4. Repeat the regulation until obtaining the balanc- ing: the beam holds the position at 45°. 5. Restore the automatic operation. 30 B614 732998 - Rev.A_DRAFT... -
Page 30: Limit Switch Adjustment
4. Check the correct adjustment of the limit switch. Repeat the sequence if necessary. At the end, tighten screw 2 definitively with the indicated torque. Use the torque wrench to tighten to the torque shown in the figure. B614 732998 - Rev.A_DRAFT... -
Page 31: Earthing The Door
1. (33) Insert the lower slot of the door in its place 1, at the bottom of the box. 2. Close the door and fix it in place with screws 2 (provided). 32 33 B614 732998 - Rev.A_DRAFT... -
Page 32: Closing The Upper Lid
For the seal of the closure it is necessary for the door of the barrier to be closed and fixed definitively. 34 B614 732998 - Rev.A_DRAFT... -
Page 33: Installing Optional Features
If it is raining, an adequate shelter for the barrier must be made until the mechanical and electronic installation is complete. Never manage the barrier by holding the board holder. 6.1 PERSONALISED KEY RELEASE Work in progress B614 732998 - Rev.A_DRAFT... -
Page 34: Electronic Installation
OPEN status LED Terminal board for the beam lights DL12 LOOP1 status LED Terminal board for outputs DL13 LOOP2 status LED Connector for integrated flasher Connector for motor Board protection fuse (F3 = T2.5A) DISPLAY Programming display B614 732998 - Rev.A_DRAFT... - Page 35 AC MAIN DISPLAY RADIO 1 LIGHT BEAM RADIO 2 ERROR ALARM DL11 DL12 DL13 DL1 DL10 TRAFFIC LAMP 24 V 15 W max 35 B614 732998 - Rev.A_DRAFT...
-
Page 36: Connections
STOP input as FSW-CL. Connect the negative of the transmitter (TX) power supply of the photocells to an OUT output configured as Fail-Safe. In this way the functioning of the pho- B614 732998 - Rev.A_DRAFT... -
Page 37: External Loops
Invert the wires if a LH barrier is being installed. TRAFFIC LAMP ENCODER The encoder wire is connected in the factory. The encoder must always be connected in order for the 40 automation system to operate. B614 732998 - Rev.A_DRAFT... -
Page 38: Beam Lights
2. (42) Insert 2 washers, the cable terminal and the nut provided on the earth plug respecting the insertion order. 3. Tighten the nut. 4. Connect the phase wires and neutral to J1. AC MAIN 42 B614 732998 - Rev.A_DRAFT... -
Page 39: Start-Up
Master-Slave, before beginning the start up of the Master, it is necessary to have configured the Slave barrier (see § 11). 1. Check that the B614 is locked. or - button to modify the value. 3. Use the 2. Power up the plant (Master barrier) . The board... -
Page 40: Advanced Programming
10 seconds, up to a maximum of 9.5 minutes. E.g.: if the display indicates , the time is 2 min and 50 sec. OPENING SPEED See tab. Speed de- minimum speed fault maximum speed B614 732998 - Rev.A_DRAFT... -
Page 41: Speed Default
(active in pause mode/open, 9 Speed default turns off on closure) step by step activation through second radio cF 01 cF 02 cF 03 channel battery operation Loop1 engaged Loop2 engaged B614 732998 - Rev.A_DRAFT... - Page 42 If activated, at the end of the countdown (settable with the two subsequent "Cycle Programming” functions) it activates the LAMP output for a pe- riod of 4 sec every 30 sec (intervention required). This can be useful to set scheduled maintenance interventions. Active Excluded B614 732998 - Rev.A_DRAFT...
-
Page 43: Operating Logics
OPEN and CLOSE com- mands: - OPEN when the barrier is closed, it commands the opening. - CLOSE when the barrier is open, it commands the closure. - CLOSE during opening it causes reclosure. B614 732998 - Rev.A_DRAFT... -
Page 44: Set-Up
The beam begins to open and stops when it reaches the stop. 5. The procedure has come to an end and the display shows the status of the open automation system B614 732998 - Rev.A_DRAFT... -
Page 45: Putting Into Service
6. Fill out the EC declaration of conformity and the system register. 7. Give the EC Declaration, the system register with the maintenance plan and the instructions for use of the automation system to the system owner/ operator. B614 732998 - Rev.A_DRAFT... -
Page 46: Accessories
1. (45) Positioning the battery 2. Connect the battery to clamp J8 on the board 3. Set battery operation ( Advanced programming) Disconnect the emergency battery if the automation system is taken out of use. 46 B614 732998 - Rev.A_DRAFT... -
Page 47: Radio Module Xf
J3 paying attention to the insertion direction remote control. If the procedure was carried out (imm.xx). correctly, the B614 will open the barrier, if permit- 2. Memorise the remote controls. ted by the operating mode that has been set. -
Page 48: Ds - Memorising Remote Controls
DL5 begin to flash more quickly (beginning cancellation). - At the end of the rapid flashing LEDs DL4 and DL5 come on and remain steady to confirm the suc- cessful cancellation of all the (OPEN and CLOSE) radio codes in the board. B614 732998 - Rev.A_DRAFT... -
Page 49: Bus 2Easy Devices
1. Position the DIP switches to assign the commands. Stop NC also generates a stop when the device is discon- nected. A command (e.g.: OPEN A_1) must be used on only one of the connected devices. B614 732998 - Rev.A_DRAFT... -
Page 50: Bus 2Easy Device Registration
BUS 2EASY DEVICE REGISTRATION Registration is required: - When the automation system is first started or after the board has been replaced. - Following any changes (addition, replacement or removal) to the BUS 2easy devices. B614 732998 - Rev.A_DRAFT... -
Page 51: Round Beam Light Kit
- Apply a danger of crushing sticker on the beam in the jointed area. Vite fissaggio piedino Nr.2 M5 (701008): 6Nm - Check the integrity of the wire during the half-yearly scheduled maintenance. B614 732998 - Rev.A_DRAFT... -
Page 52: Hedge
- You should install a beeper or similar to indicate the beam is closing. - Provide for a clearance area or signals to prevent pedes- trians being knocked. The area must be adequately lit. XBAT 24 Head light kit Joint kit B614 732998 - Rev.A_DRAFT... -
Page 53: Master-Slave
Loop Outputs Flashing light 3. The BUS 2easy devices can be connected to the Master or to the Slave board. The devices must be 48 registered on the Master barrier. 49 B614 732998 - Rev.A_DRAFT... -
Page 54: Slave Barrier Configuration
4. Check the direction of travel (see § 12.2). The barrier must not be in manual functioning mode. 5. Start up (see § 8). During the set-up the Master board controls the Slave board and the two beams move with a synchronous movement. B614 732998 - Rev.A_DRAFT... -
Page 55: Diagnostics
3. Keep the - button pressed. The display shows and the barrier closes. The flashing point between the two letters indicates that the encoder is operating correctly. B614 732998 - Rev.A_DRAFT... -
Page 56: Maintenance
Check the fixing of the bearing box to the foundation plate. 6 FAAC S.p.A. shall bear no liability for damage or injury due to components which have been modified or otherwise Check the barrier and its fixings: integrity, absence of defor- tampered with. -
Page 57: Spring Replacement
13.3 REPLACEMENT OF THE Check the correct functioning of the manual release: when ELECTROMECHANICAL ACTUATOR the release is activated it must only be possible to move the Work in progress beam manually. Check the presence of the lock cover. B614 732998 - Rev.A_DRAFT... -
Page 58: Fuse Replacement
EMER are not active check the automation is not released The barrier does NOT Check the status of the STOP LED is OPEN and does NOT not active CLOSE check the motor and encoder con- nection B614 732998 - Rev.A_DRAFT... -
Page 59: Instructions For Use
MANUAL FUNCTION; otherwise keep the automation 14.1 SAFETY RECOMMENDATIONS out of order until the repair or restoration. The plants made with FAAC buried actuators B614 In the case of a breakdown, the automation system series are intended for vehicular traffic. -
Page 60: Manual Operation
OPERATION RESTORATION 1. 51 Insert the key and turn it twice clock- wise until it stops (2). 2. Check that manual movement is inhibited. 3. Remove the key and close the cover. 51 B614 732998 - Rev.A_DRAFT... -
Page 61: Foundation For Barrier In Maximum Configuration
1 Foundation for barrier in a i u confi guration B614 732998 - Rev.A_DRAFT... -
Page 62: Balancing System
3 A 3 A 5 A beam, lights, hedge and foot 1 ... 5 B614 DX B614 SX 3 4 5 A ... B 1 ... 5 A ... B B614... - Page 63 FAAC S.p.A. Soc. Unipersonale Via Calari, 10 - 40069 Zola Predosa BOLOGNA - ITALY Tel. +39 051 61724 - Fax +39 051 758518 www.faac.it - www.faacgroup.com B614 732998 - Rev.A_DRAFT...
