INSTALLATION
It is recommended to install this pump on a drum using a reinforced
cover due to weight considerations, but it is possible to install it two
different ways:

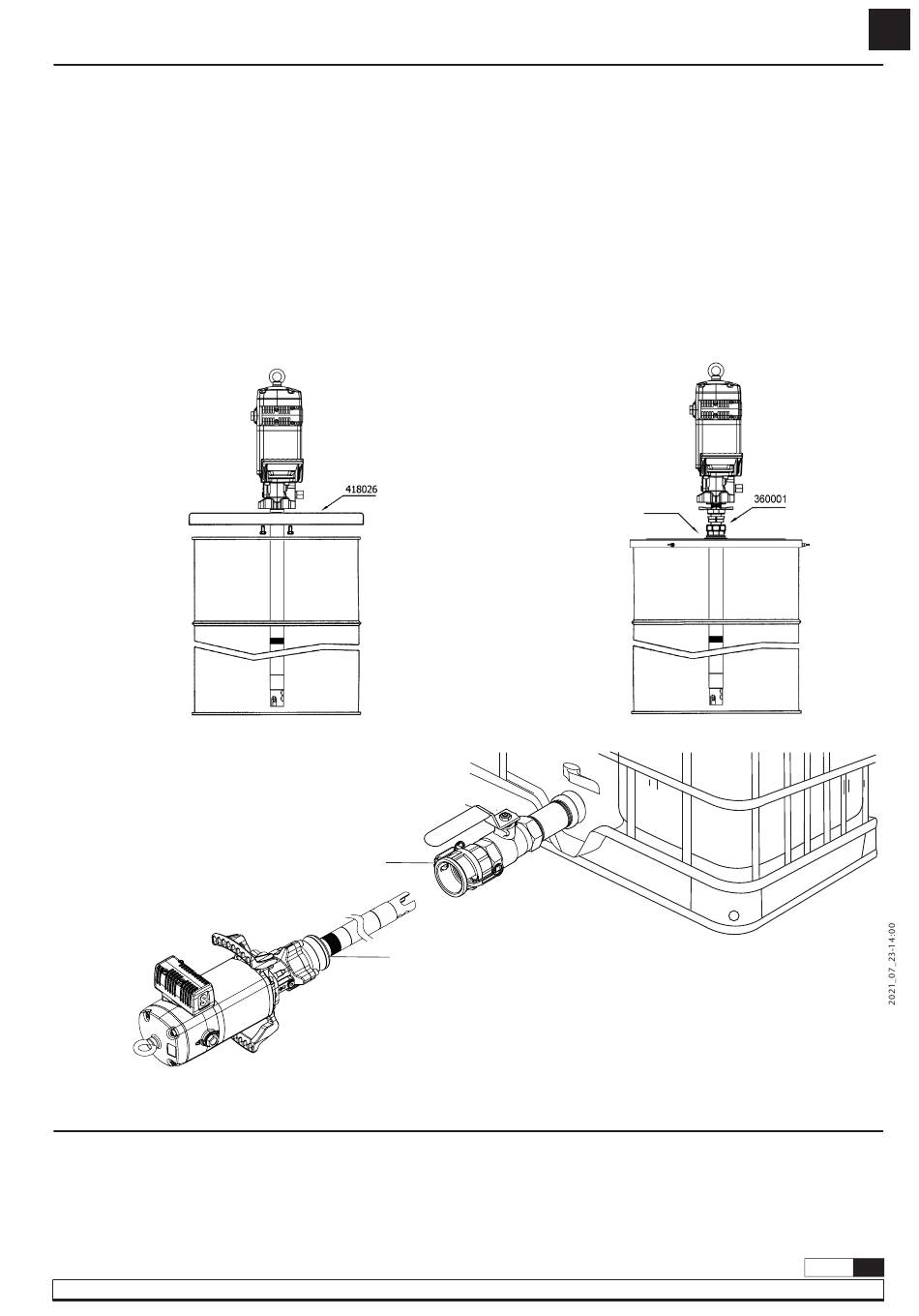

• a. Mounting with reinforced cover (418026 for 185 kg drum and
418025 for 50 kg drum). Insert the pump through the cover and
fasten it with the enclosed screws. Insert the pump through the bung
opening and fasten the cover onto the drum firmly (see figure 2).
• b. Mounting with cover (418006 for 185 kg drum and 418016 for 50
kg drum) and bung adaptor 360001. Fasten the cover onto the drum
and screw the nut of the bung adaptor securely into the 2" bung
opening of the cover. Insert the pump through the nut and adjust it
with the star nut to the desired height (see figure 3).
Fig. 2
Fig. 4

TYPICAL INSTALLATION

Fig. 4 is a typical installation shown with all the recommended
accessories for the pump to operate correctly.
NOTE: The compressed air supply must be set between 2 and 7 bar
(29 and 100 psi), being 6 bar (90 psi) the recommended pressure.
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com
FEMALE 3" CAMLOCK
MALE 3" CAMLOCK
• c. Horizontal mounting to a bulk container (531730, 531731 pumps).
These pumps have the male part of a 3" camlock which would connect
to the female part installed in the container (fig. 4).
418006
Fig. 3
An air closing valve must be installed, in order to be able to close the
compressed air line at the end of the day (If the air inlet not is closed
and there is a leakage in some point of the grease outlet circuit, the
pump will start automatically, emptying the container).
EN
3
R. 07/21 853 806
