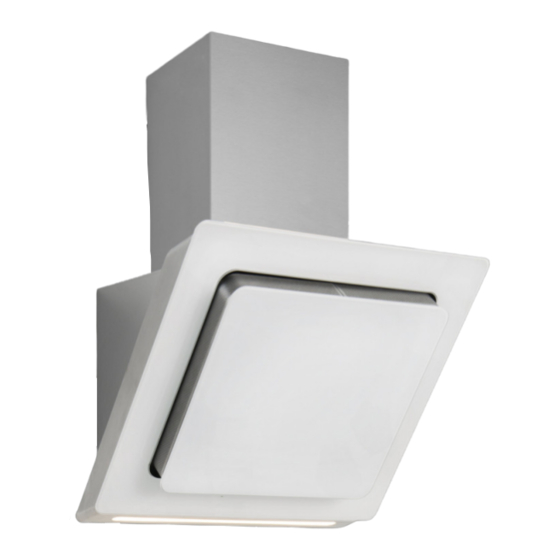

- Page 1 Assembly instructions ENGLISH CAMPANA INCLINADA 80CM CRISTAL BLANCO A+ _ SVCC8080B Read this manual prior to performing any task!
- Page 2 SVAN TRADING SL CIUDAD DE CARTAGENA 20 (FUENTE DEL JARRO) PATERNA 46988 VALENCIA Spain Telephone: +34 960 600 034 1, en_US This device is designed exclusively for domestic use. ENGLISH 12.03.2019...
-
Page 3: Table Of Contents
Table of contents Table of contents Technical Drawing.............. 4 WARNING AND SAFETY PRECAUTIONS......5 LETHAL RISK, DANGER OF POISONING......7 USAGE WITH AND WITHOUT CARBON FILTER.... 11 CARBON FILTER REPLACEMENT........12 CLEANING AND PREVENTIVE MAINTENANCE..... 13 6.1 Washing in Dishwasher..........13 6.2 Hand Wash.............. -
Page 4: Technical Drawing
Technical Drawing Technical Drawing Fig. 1 ENGLISH 12.03.2019... -
Page 5: Warning And Safety Precautions
WARNING AND SAFETY PRECAUTIONS WARNING AND SAFETY PRECAUTIONS WARNING AND SAFETY PRECAU- This appliance can be used by children of 8 years and older, TIONS people with physical, sensory or mental capability deficiency or people with lack of experience or knowledge; as long as they are provided supervision or instructions for the safe use of the appliance and they comprehend the dangers. - Page 6 WARNING AND SAFETY PRECAUTIONS If your product's periodic cleaning is not made in a timely manner, it could pose risk of fire. De-energize the appliance before any maintenance operations. (Plug off the appliance or turn off the main switch.) When electric cooker hood and devices fed with energies other than electricity operate simultaneously, the negative pressure in the room must not exceed 4 Pa ( 4 X 10 bar ).
-
Page 7: Lethal Risk, Danger Of Poisoning
LETHAL RISK, DANGER OF POISONING LETHAL RISK, DANGER OF POISONING DANGER! Warning - Choking Hazard The packaging materials are dangerous for chil- dren. Never allow children to play with packaging materials. DANGER! Warning - Death Hazard There are life-threatening danger and poisoning danger due to reabsorbed combustion gases. - Page 8 LETHAL RISK, DANGER OF POISONING WARNING! Fire danger! – The oil residue in the oil filter may catch fire.Clean the oil filter at least once every 3 months.Never operate the device without the oil filter. – The oil residue in the oil filter may catch fire. Never work with open flame (ex.
- Page 9 LETHAL RISK, DANGER OF POISONING DANGER! Danger of physical injury! – During the installation, there is a danger of physical injury due to the sharp edges. Use protective gloves throughout the installation process of the appliance. – Due to risk of dropping the appliance, assembly of all safety bolts and covers must be performed as specified in the user manual.
- Page 10 LETHAL RISK, DANGER OF POISONING NOTICE! If the feeder cable is damaged, it must be replaced by its manufacturer or its authorized technical service or any other personnel qualified at the same level, in order to avoid any dangerous situa- tion.
-
Page 11: Usage With And Without Carbon Filter
USAGE WITH AND WITHOUT CARBON FILTER USAGE WITH AND WITHOUT CARBON FILTER You can use this appliance in exhaust air mode and ventilated air mode. Exhaust air mode The absorbed air is cleaned by the grease filters, and is discharged through a piping system.Fig. -
Page 12: Carbon Filter Replacement
CARBON FILTER REPLACEMENT CARBON FILTER REPLACEMENT Under circumstances without a flue, an active carbon filter should be used to resend the inside air by re-filtering. An active carbon filter should be obtained from the service or your dealer. Discon- nect the device prior to replacing the carbon filter. Since the carbon filter is used in kitchens without a flue outlet, it should be replaced with a new one every 3 to 5 months subject to usage. -
Page 13: Cleaning And Preventive Maintenance
CLEANING AND PREVENTIVE MAINTENANCE Washing in Dishwasher CLEANING AND PREVENTIVE MAINTENANCE CAUTION! Cleaning and user maintenance of the appliance shall not be performed by unattended children. The surface could be damaged due to aggressive and abrasive cleaning agents. Never use aggressive and abrasive cleaning agents. -
Page 14: Hand Wash
CLEANING AND PREVENTIVE MAINTENANCE Removing/Installing Aluminium Filters 6.2 Hand Wash For stubborn dirts, you can use a special grease solvent. You can buy such an agent from the authorized sales centre. – Soften the metal grease filters in a hot water with dish-washing liquid. - Page 15 CLEANING AND PREVENTIVE MAINTENANCE Removing/Installing Aluminium Filters Press on the aluminium filter’s latch and lightly pull out towards yourself. Apply these steps in reverse to install the aluminium filter (Fig. 9). DANGER! When removing the filter of your product, take care not to have any pot etc.
-
Page 16: Appliance Position
APPLIANCE POSITION Recommendations for Energy Saving APPLIANCE POSITION Fig. 10 After completing the installation of hood, the minimum distance must be 65 cm between the product and any electric cooker; and 75 cm between it and any gas ranges or cookers burning other fuels (Fig. - Page 17 APPLIANCE POSITION Recommendations for Energy Saving Turn off the hood when not needed. Clean or replace the filter in the specified time intervals, this way you can increase ventilation efficiency and avoid fire hazard. Disposal in environmentally compliant way Dispose of the packaging material in an environmentally compliant way.
-
Page 18: Content Of Package
CONTENT OF PACKAGE CONTENT OF PACKAGE Fig. 11: CONTENT OF PACKAGE Product Product Hanging Plate Inner Flue 10 Ø6mm Plastic Dowel Outer Flue 11 Ø10mm Plastic Dowel Flue Connection Plate 12 5.5x60 Wall Mount Screw 120/150 mm Flue Adapter (optional) 13 M5x35 Product Mount Screw Remote Control (Optional) 14 3.9x22 Flue Connection Plate Screw... -
Page 19: Overview Of Hood
OVERVIEW OF hood OVERVIEW OF hood Inner Flue Outer Flue Body Panel Control Panel Side Suction Plate/Glass Glass Cooker Lighting Fig. 12: OVERVIEW OF hood 12.03.2019 ENGLISH... -
Page 20: Assembly Of Product
ASSEMBLY OF PRODUCT ASSEMBLY OF PRODUCT Fig. 13: ASSEMBLY INSTALLATION AND COMPONENTS Inner Flue 3x 5.5x60 Wall Mount Screw Outer Flue 3x Ø10mm Plastic Dowel 2x M5x35 Screw 2x 3.9x22 Screw Product Hanging Plate Flue Connection Plate Body 10 2x Ø6mm Plastic Dowel Product Hanger Plate Assemble the cooker hood with the help of the assembly scheme. -
Page 21: Air Exit Installation
ASSEMBLY OF PRODUCT ASSEMBLY OF SHEET METAL FLUES Insert Ø10mm dowels into the holes drilled as A, B, C and screw down the screws at the points A + B so that 5mm space remains between the screw head and the wall. (Fig. -
Page 22: Use Of Product
USE OF PRODUCT USE OF PRODUCT LIGHTING Touch this button to turn cooker lighting on/off (Fig. 16/1). Fig. 16 RUNNING SPEEDS Touch this button to run the product at first speed level (Fig. 17/2). Touch this button to run the product at second speed level (Fig. -
Page 23: Remote Control
USE OF PRODUCT REMOTE CONTROL FILTER CLEANING WARNING After the product runs for 60 hours, the filter cleaning light shall start to blink. When you see this warning the aluminium filters must be cleaned. For filter cleaning operation see - Fig. 9 When you touch the filter cleaning warning icon once, the filter cleaning warning is deactivated. -
Page 24: Replacing The Lamps
REPLACING THE LAMPS REPLACING THE LAMPS Ä Further information on page 14 - Open the product's main cover. Fig. 8 Remove the lamp cover plate and remove the malfunctioning lamp. Install the new lamp.Fig. 21 Fig. 21 ENGLISH 12.03.2019... -
Page 25: Authorized Service
AUTHORIZED SERVICE AUTHORIZED SERVICE If Lighting is Not Functioning: Make sure that the plug is plugged in, and that the fuses are intact. Check the bulbs. Make sure you unplugged the device before performing this check. Tighten the bulbs if they are loose; you can replace the bulbs if they still don't work. - Page 26 AUTHORIZED SERVICE Fault description Cause Remedy It Does Not Discharge Air (in Check The Alumi- The aluminium cartridge filter should be washed flueless use) nium Filter. once a month under normal conditions. It Does Not Discharge Air (in Check The Carbon In products that work with carbon filters, carbon flueless use) Filter.
