ENGLISH
CAMPANA INCLINADA 90CM CRISTAL BLANCO CLASE A
_SVCC9074B
CAMPANA INCLINADA 90CM CRISTAL NEGRO CLASE A
_SVCC9074N
Read this manual prior to performing any task!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SVCC9074B and is the answer not in the manual?

Questions and answers

Related Manuals for Svan SVCC9074B

Summary of Contents for Svan SVCC9074B

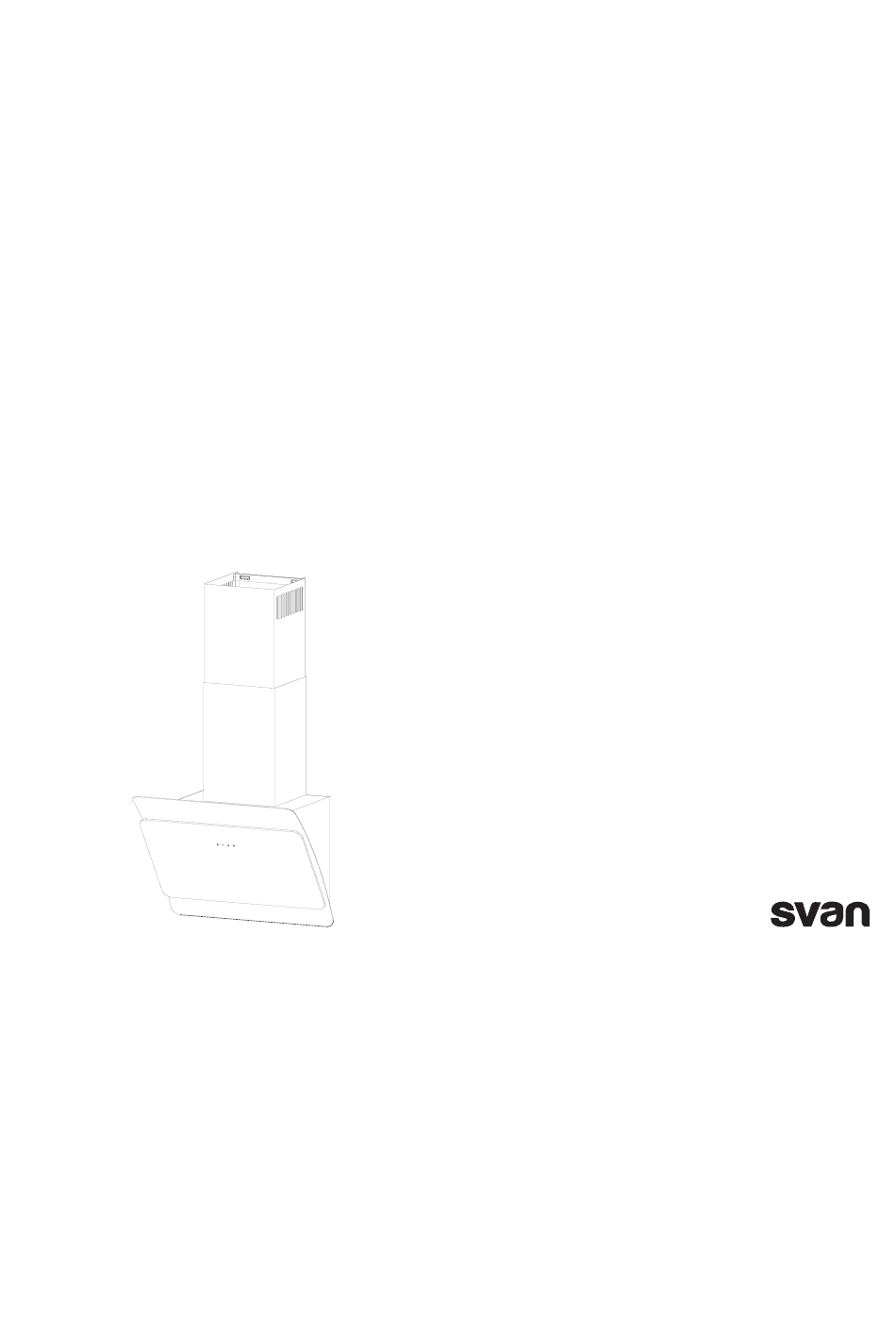

  • Page 1 ENGLISH CAMPANA INCLINADA 90CM CRISTAL BLANCO CLASE A _SVCC9074B CAMPANA INCLINADA 90CM CRISTAL NEGRO CLASE A _SVCC9074N Read this manual prior to performing any task!
  • Page 2 SVAN TRADING SL CIUDAD DE CARTAGENA 20 (FUENTE DEL JARRO) PATERNA 46988 VALENCIA Spain Telephone: +34 960 600 034 1, en_US This device is designed exclusively for domestic use. ENGLISH 12.03.2019...

  • Page 3: Table Of Contents

    Table of contents Table of contents TECHNICAL DRAWING............4 WARNING AND SAFETY PRECAUTIONS......5 2.1 LETHAL RISK, DANGER OF POISONING....7 USAGE WITH AND WITHOUT CARBON FILTER.... 11 Carbon Filter Replacement..........12 CLEANING AND PREVENTIVE MAINTENANCE..... 13 5.1 Washing in Dishwasher..........13 5.2 Hand Wash..............

  • Page 4: Technical Drawing

    TECHNICAL DRAWING TECHNICAL DRAWING Fig. 1 ENGLISH 12.03.2019...

  • Page 5: Warning And Safety Precautions

    WARNING AND SAFETY PRECAUTIONS WARNING AND SAFETY PRECAUTIONS WARNING AND SAFETY PRECAU- This appliance can be used by children of 8 years and older, TIONS people with physical, sensory or mental capability deficiency or people with lack of experience or knowledge; as long as they are provided supervision or instructions for the safe use of the appliance and they comprehend the dangers.
  • Page 6 WARNING AND SAFETY PRECAUTIONS If your product's periodic cleaning is not made in a timely manner, it could pose risk of fire. De-energize the appliance before any maintenance operations. (Plug off the appliance or turn off the main switch.) When electric cooker hood and devices fed with energies other than electricity operate simultaneously, the negative pressure in the room must not exceed 4 Pa ( 4 X 10 bar ).

  • Page 7: Lethal Risk, Danger Of Poisoning

    WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING 2.1 LETHAL RISK, DANGER OF POISONING DANGER! Warning - Choking Hazard The packaging materials are dangerous for chil- dren. Never allow children to play with packaging materials. DANGER! Warning - Death Hazard There are life-threatening danger and poisoning danger due to reabsorbed combustion gases.
  • Page 8 WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING WARNING! Fire danger! – The oil residue in the oil filter may catch fire.Clean the oil filter at least once every 3 months.Never operate the device without the oil filter. – The oil residue in the oil filter may catch fire.
  • Page 9 WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING DANGER! Danger of physical injury! – During the installation, there is a danger of physical injury due to the sharp edges. Use protective gloves throughout the installation process of the appliance. –...
  • Page 10 WARNING AND SAFETY PRECAUTIONS LETHAL RISK, DANGER OF POISONING NOTICE! If the feeder cable is damaged, it must be replaced by its manufacturer or its authorized technical service or any other personnel qualified at the same level, in order to avoid any dangerous situa- tion.

  • Page 11: Usage With And Without Carbon Filter

    USAGE WITH AND WITHOUT CARBON FILTER USAGE WITH AND WITHOUT CARBON FILTER You can use this appliance in exhaust air mode and ventilated air mode. Exhaust air mode The absorbed air is cleaned by the grease filters, and is discharged through a piping system.Fig.

  • Page 12: Carbon Filter Replacement

    Carbon Filter Replacement Carbon Filter Replacement CARBON FILTER The device you have bought is suitable for use with an carbon- filter. 1-Place the carbon filter in its housing.Fig. 6 2-Rotate the carbon filter clockwise and make sure that it is seated completely.Fig.

  • Page 13: Cleaning And Preventive Maintenance

    CLEANING AND PREVENTIVE MAINTENANCE Washing in Dishwasher CLEANING AND PREVENTIVE MAINTENANCE CAUTION! Cleaning and user maintenance of the appliance shall not be performed by unattended children. The surface could be damaged due to aggressive and abrasive cleaning agents. Never use aggressive and abrasive cleaning agents.

  • Page 14: Hand Wash

    CLEANING AND PREVENTIVE MAINTENANCE Hand Wash 5.2 Hand Wash For stubborn dirts, you can use a special grease solvent. You can buy such an agent from the authorized sales centre. – Soften the metal grease filters in a hot water with dish-washing liquid.

  • Page 15: Appliance Position

    APPLIANCE POSITION Installation and Unpacking of the Appliance APPLIANCE POSITION Fig. 7 After completing the installation of hood, the minimum distance must be 650 mm between the product and any electric cooker; and 750 mm between it and any gas ranges or cookers burning other fuels (Fig.

  • Page 16: Recommendations For Energy Saving

    APPLIANCE POSITION Recommendations for Energy Saving 6.2 Recommendations for Energy Saving Your new appliance is exclusively energy saving. Here, you can find some recommendations on how you can save more energy while using your appli- ance and some advice required to dispose of your appliance properly.

  • Page 17: Content Of Package

    CONTENT OF PACKAGE CONTENT OF PACKAGE Fig. 8: CONTENT OF PACKAGE Product Installation Template Inner Flue Ø6mm Plastic Dowel Outer Flue 10- Ø10mm Plastic Dowel Ø150/120mm Flue Adapter (Option) 11- 5.5x60 Wall Mount Screw Flue Connection Plate 12- 3.9x22 Flue Connection Plate Screw Ø150/120mm Flue Adapter (Option) 13- 3,5x9,5 Rysb Vida User Manual...

  • Page 18: Overview Of Hood

    OVERVIEW OF hood OVERVIEW OF hood 1- Inner Flue 2- Outer Flue 3- Body 4- Side Suction Plate / Glass 5- Control Panel 6- Cooker Lighting Fig. 9: OVERVIEW OF hood ENGLISH 12.03.2019...

  • Page 19: Assembly Of Product

    ASSEMBLY OF PRODUCT ASSEMBLY OF PRODUCT Fig. 10: ASSEMBLY INSTALLATION AND COMPONENTS Inner Flue 4x 5.5x60 Wall Mount Screw Outer Flue 4x Ø10mm Plastic Dowel Rear Panel 2x 3.9x22 Flue Connection Plate Screw Hanging Plate of Cooker Hood 10- Flue Connection Plate Hanging Plate of Cooker Hood Fixing Screw 11- 2x Ø6mm Plastic Dowel Body...

  • Page 20: Assembly Of Sheet Metal Flues

    ASSEMBLY OF PRODUCT ASSEMBLY OF SHEET METAL FLUES 9.1 ASSEMBLY OF SHEET METAL FLUES This section is for models that don’t feature self flue exhaust. 1- Ø150/120 mm Flue Adapter (Option) 2- 3.5x9.5 Screw 3- Ø120/150 mm Plastic Flue (Option.) 4- Body Fig.

  • Page 21: Assembly Of Sheet Metal Flues

    ASSEMBLY OF SHEET METAL FLUES ASSEMBLY OF SHEET METAL FLUES 1- Inner Flue 2- Flue Connection Plate Fixing Screws 3- Flue Connection Plate 4- Outer Flue Fixing Screws The outer and inner sheet metal flues are assembled one within the other (Fig. 12). The cooker hood is set in the midst, and then the flue con- necting plate (3) is directly affixed to the wall, under the cover or points E and F are marked after performing a measurement...

  • Page 22: Use Of Product

    USE OF PRODUCT How to use 5 Spd Dig Touch Control Product USE OF PRODUCT 11.1 3 Spd Digital Product Use Fig. 13: Touch Button When this button is pressed, product will operate at speed level 1. When this button is pressed, product will operate at speed level 2.
  • Page 23 USE OF PRODUCT How to use 5 Spd Dig Touch Control Product When timer button is pressed, a 15-minute timer function will be activated; display will give a signal once the timer starts and the motor will stop automatically after 15 minutes.Fig. 14 Press this button to turn on and off the lamp.Fig.

  • Page 24: Replacing The Lamps

    REPLACING THE LAMPS Led Lamp Replacement REPLACING THE LAMPS 12.1 Halogen Lamp Replacement WARNING! Disconnect the electrical supply of the hood. Leave the lamps to cool down first because they could burn your hands when they are hot. It indicates the maximum power consumption of the lamp. A lamp with same power rating should be used when replacing the lamp.
  • Page 25 REPLACING THE LAMPS Led Lamp Replacement Push on the lamp with your hand, to remove it. Separate the self adhesive tape around the lamps and the body plate from each other. Before placing the new LED lamp, remove the protective folio from the frame, and then stick it on its place on the body of the product.

  • Page 26: Authorized Service

    AUTHORIZED SERVICE AUTHORIZED SERVICE If Lighting is Not Functioning: Make sure that the plug is plugged in, and that the fuses are intact. Check the bulbs. Make sure you unplugged the device before performing this check. Tighten the bulbs if they are loose; you can replace the bulbs if they still don't work.
  • Page 27 AUTHORIZED SERVICE Fault description Cause Remedy It Does Not Discharge Air (in Check The Alumi- The aluminium cartridge filter should be washed flueless use) nium Filter. once a month under normal conditions. It Does Not Discharge Air (in Check The Carbon In products that work with carbon filters, carbon flueless use) Filter.

  • Page 28: Technical Table

    TECHNICAL TABLE TECHNICAL TABLE Supply Voltage 220 - 240 V 50Hz Insulation Class of Motor Insulation Class CLASS I This product complies with the 2014/30/EC (Regulation on Electro- magnetic Compliance) and 2014/35/EC (Regulation on Low Voltage Devices (LVD)) Directives. This device complies with the Directive on the Control of Waste Electrical and Electronic Equipment.

This manual is also suitable for:

Svcc9074n
