Assembly instructions
FREE FLOW
Hoods
INDUCCION CON CAMPANA INTEGRADA_SVI784CI
Read this manual prior to performing any task!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FREE FLOW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Svan FREE FLOW

Summary of Contents for Svan FREE FLOW

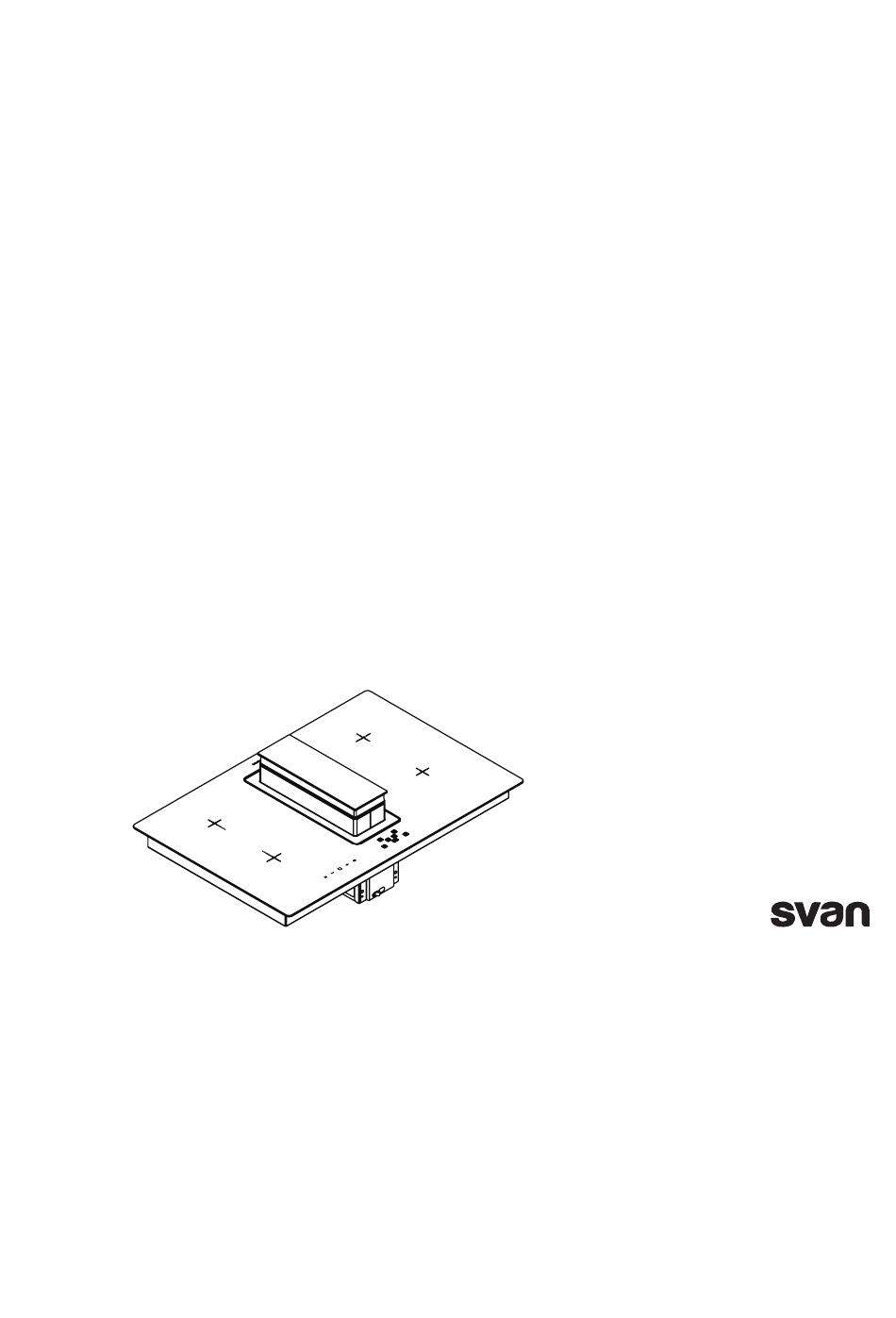

  • Page 1 Assembly instructions FREE FLOW Hoods INDUCCION CON CAMPANA INTEGRADA_SVI784CI Read this manual prior to performing any task!
  • Page 2 SVAN TRADING SL CIUDAD DE CARTAGENA 20 (FUENTE DEL JARRO) PATERNA 46988 VALENCIA Spa�n Telephone: +34 960 600 034 1, en_US Th�s dev�ce �s des�gned exclus�vely for domest�c use. FREE FLOW Hoods 07.10.2019...

  • Page 3: Table Of Contents

    5.1 Cleaning the metal oil filters........14 CLEANING AND PREVENTIVE MAINTENANCE..... 17 6.1 Installation and Unpacking of the Appliance....17 6.2 Recommendations for Energy Saving......17 ASSEMBLY OF PRODUCT..........18 Operating................23 8.1 Safety when operating..........23 AUTHORIZED SERVICE............ 25 07.10.2019 FREE FLOW Hoods...

  • Page 4: Technical Drawing

    Technical Drawing Technical Drawing Fig. 1 FREE FLOW Hoods 07.10.2019...

  • Page 5: Warning And Safety Precautions

    Do not operate your product without filter, and do not remove the filters when the product is in operation. In case of any fire, de-energize the hood and any other cooking devices. (Plug off the appliance or turn off the main switch.) 07.10.2019 FREE FLOW Hoods...
  • Page 6 When electric cooker hood is used simultaneously with devices that use gas or other fuels, there must be sufficient ventilation in the room (might not apply to devices that discharges the air back into the room). FREE FLOW Hoods 07.10.2019...

  • Page 7: Lethal Risk, Danger Of Poisoning

    In such a case, the toxic gases are Fig. 2: Poisoning Danger absorbed from the flue and waste gas channel, and are taken into to door again. Fig. 2 Therefore, adequate fresh air ingress must always be ensured.Fig. 3 Fig. 3 07.10.2019 FREE FLOW Hoods...
  • Page 8 If the device is malfunc- tioning pull the power plug and switch off the circuit breaker. Call customer service. – Water leaking into the device may cause elec- tric shock. High pressure or steam cleaners must not be used. FREE FLOW Hoods 07.10.2019...
  • Page 9 Repairing must be performed only by the author- ized technical service or authorized experts. NOTICE! If the appliance is faulty or damages, turn off the fuse or unplug the feeder cable of your appliance and call the authorized service. 07.10.2019 FREE FLOW Hoods...
  • Page 10 Never use aggres- sive and abrasive cleaning agents. There is a risk of damage due to condensate liquid backflow. Install the air exit canal with a small downward inclination (1° inclination) from the appliance. FREE FLOW Hoods 07.10.2019...

  • Page 11: Usage With And Without Carbon Filter

    You can buy the accessories required for Fig. 5: Air Circulation with Carbon this process from the relevant outlets, authorized Filter technical service or online sales center. 07.10.2019 FREE FLOW Hoods...

  • Page 12: Replacement Of Carbon Filter

    2- Active Carbon Filter Remove the connection screw of the active carbon filter ( Fig. 7/1) by turning in the direction of the arrow. Fig. 7 1- Connection screw of the active carbon filter 2- Active Carbon Filter FREE FLOW Hoods 07.10.2019...
  • Page 13 Make the active carbon filter reusable by holding in the at 175 - 200 °C for 60 - 90 minutes in the oven. Fig. 8 Placing the active carbon filter Attach the active carbon filter by performing the reverse of the procedures given above. 07.10.2019 FREE FLOW Hoods...

  • Page 14: Cleaning And Preventive Maintenance

    Risk of due to oilsediments in metal oil filter. – Clean the metal oil filter at least every 2 weeks or when the oil filter cleaning warning is dis- played. – Never operate the hood without a metal oil filter. FREE FLOW Hoods 07.10.2019...
  • Page 15 (Fig. 13). Pull the lighting and filter group upwards and remove it (Fig. 13). Fig. 9 Remove the main waste bin upwards and remove it (Fig. 10). Fig. 10 <1 To access the main waste chamber 07.10.2019 FREE FLOW Hoods...
  • Page 16 After cleaning Allow the metal oil filter to dry on an absorbent coaster. Inserting the metal oil filter or main waste bin Insert the main waste bin and metal filter by following the instructions above in reverse. FREE FLOW Hoods 07.10.2019...

  • Page 17: Cleaning And Preventive Maintenance

    Regularly clean your aluminium filters. Since dirty filters would block the air passage, you might have to use the appliance at a higher speed. Use your product according to its normal speeds. Use at higher speed would cause an increase in the energy consumption. 07.10.2019 FREE FLOW Hoods...

  • Page 18: Assembly Of Product

    (). Remove the appliance package. Press on the label on the appliance, open the lighting and filter group (Fig. 13). Pull the lighting and filter group upwards and remove it (Fig. 13). Fig. 13 FREE FLOW Hoods 07.10.2019...
  • Page 19 Place the cooker to the kitchen counter that was prepared prior (Fig. 16). Fig. 16 Place the exterior container of the hood to the mounting plates behind the lower section of the cooker and tighten 2 screws to attach them (Fig. 17). Fig. 17 07.10.2019 FREE FLOW Hoods...
  • Page 20 (Fig. 19). Fig. 19 Remove the motor box package. Remove the 6 flue ingress plate connection screw and remove the flue ingress plate (). Fig. 20 1- Flue Connection Plate Fixing Screws 2- Flue Connection Plate FREE FLOW Hoods 07.10.2019...
  • Page 21 2- Flue Connection Plate 3- Motor Box Mount the electronic circuit box inside the kitchen counter with 4x3,9x22 screws with M4 nuts (Fig. 23). Fig. 23 1- 3.9x22 Screw 2- M4 Washer 3- Electronic Circuit Box 07.10.2019 FREE FLOW Hoods...
  • Page 22 ASSEMBLY OF PRODUCT Make the air connections of the product(Fig. 24). Fig. 24 FREE FLOW Hoods 07.10.2019...

  • Page 23: Operating

    In order to turn the fan off, press button until “0” is displayed. If the appliance is left idle for 10 minutes, it will switch to standby mode and will be locked. 07.10.2019 FREE FLOW Hoods...
  • Page 24 After 7 minutes, product shall automatically switch down one speed level and shall resume operation in the lower speed level. It is not possible to use timer feature in the boost mode. FREE FLOW Hoods 07.10.2019...

  • Page 25: Authorized Service

    Air Outlet Flue Must Be Open. Flue. Product's Air Intake is Weak Check The Carbon In products that work with carbon filters, carbon Filter. filter must be replaced once in every 3 months under normal conditions. 07.10.2019 FREE FLOW Hoods...
  • Page 26 It Does Not Discharge Air (in Check The Carbon In products that work with carbon filters, carbon flueless use) Filter. filter must be replaced once in every 3 months under normal conditions. FREE FLOW Hoods 07.10.2019...
