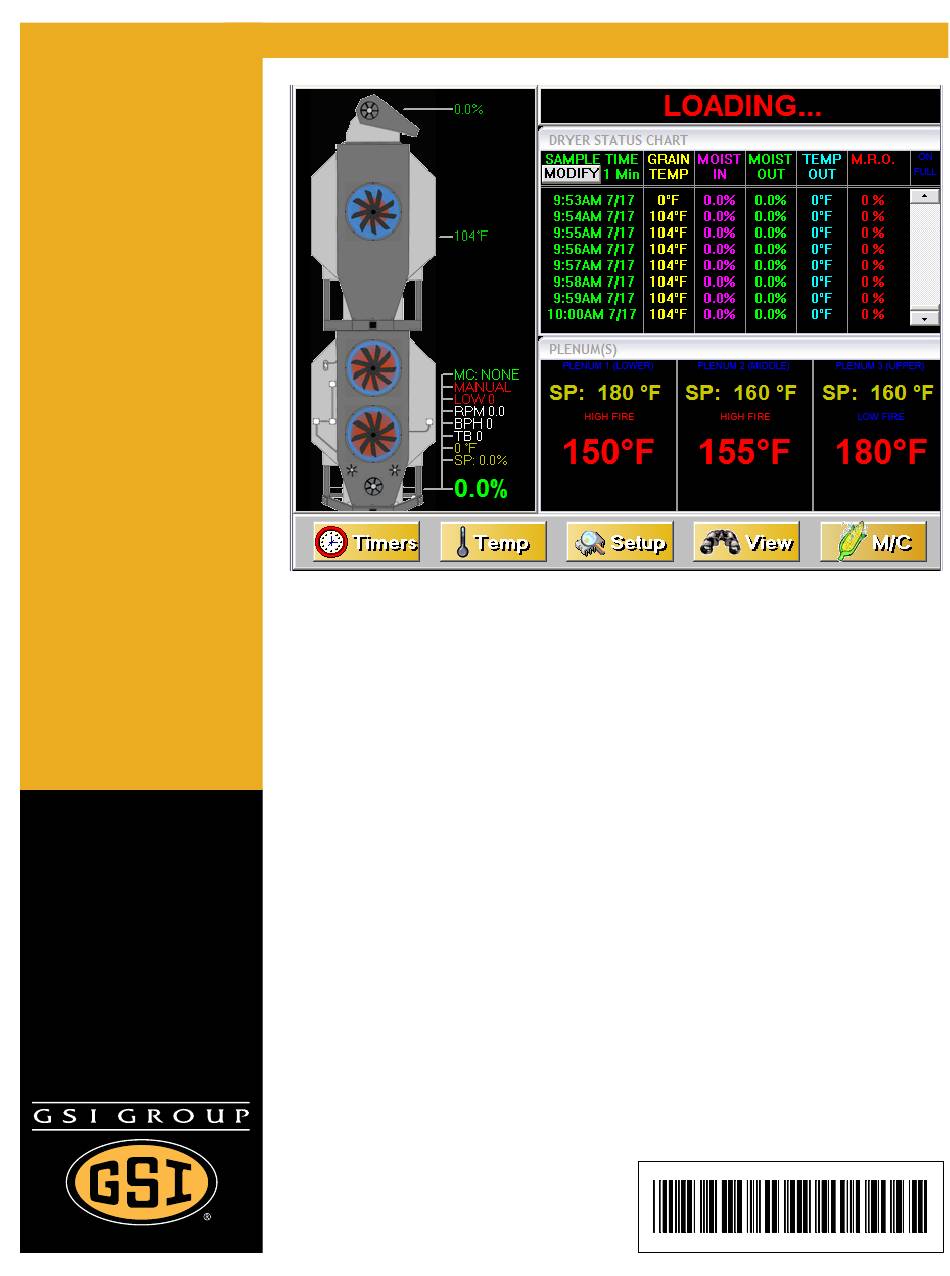

GSi Vision X-Stream 2314 Operator's Manual

2 and 3 module portable dryer
Hide thumbs Also See for Vision X-Stream 2314:
Table of Contents

Advertisement

Quick Links

2 and 3 Module Vision X-Stream
Portable Dryer
Operators Manual
PNEG-1622
